CERVO Yacht for Sale

• Mekanord Model 270 HS/LS Ratio 3.95:1
• Exhaust Scrubber System: / Marquip passive diesel particle filter (DPF)
• Compressed air system: / 2-Cylinder reciprocating air compressor @ 0.6 bar / 400-VAC
• Water maker: / HEM Model H30/4000 400-VAC
• Compressed air system: / 2-Cylinder reciprocating air compressor @ 0.6 bar / 400-VAC
• Water maker: / HEM Model H30/4000 400-VAC
• Central Hydraulic System:
  • 4x PTO’s 1 / Generator, 2 / Main engine gearbox
  • Generator Rated Capacity 75cc
  • Main engine gearbox 105cc
• Output:
  • 240,000 BTU / 400-VAC
  •  4 x Compressors Reverse Cycle
• Toilet system: / Planus touch screen toilets
• Boilers:
  • / 2x SIGMA 123 Liter ACV type electric mains pressure
  • Stainless steel water cylinders. (6 kw each) installed 2022

DC SYSTEM

• 4x DC Electrical Systems supplied by 4 dedicated battery banks, Service, Engine Start, Nautical.

BATTERIES

• Service Bank: 12 x 2-Volt Gel Type Batteries 600Ah@24-VDC
• Grid Buffer Bank: 16 x 12 Volt Lithium Ion 1,040Ah@24-VDC ;  18 KW/hour battery bank – installed 2022
• Engine Start 2 Banks: 4 x 12 Volt AGM 100Ah@24-VDC
• Nautical Bank: 2 x 12 Volt 110Ah
• Chargers: Victron / Zizan


AC SYSTEM

• Shore power converter: / 2 x Magnus SP100 Shore Power Converters
• Inverter:
  • 2 x Victron Energy 24v, 50 amp, GMDSS
  • 2 x Victron Energy 24v, 100 amp 3 phase
  • 3 x Victron Energy Phoenix Inverter 24v, 5000 VA
  • 3 x Victron Energy 24 v, 100 amp inverter
• Fuel separator: Alfa Laval Type MIB 303S-13 / Serial Number 4153878

GUEST ACCOMMODATION

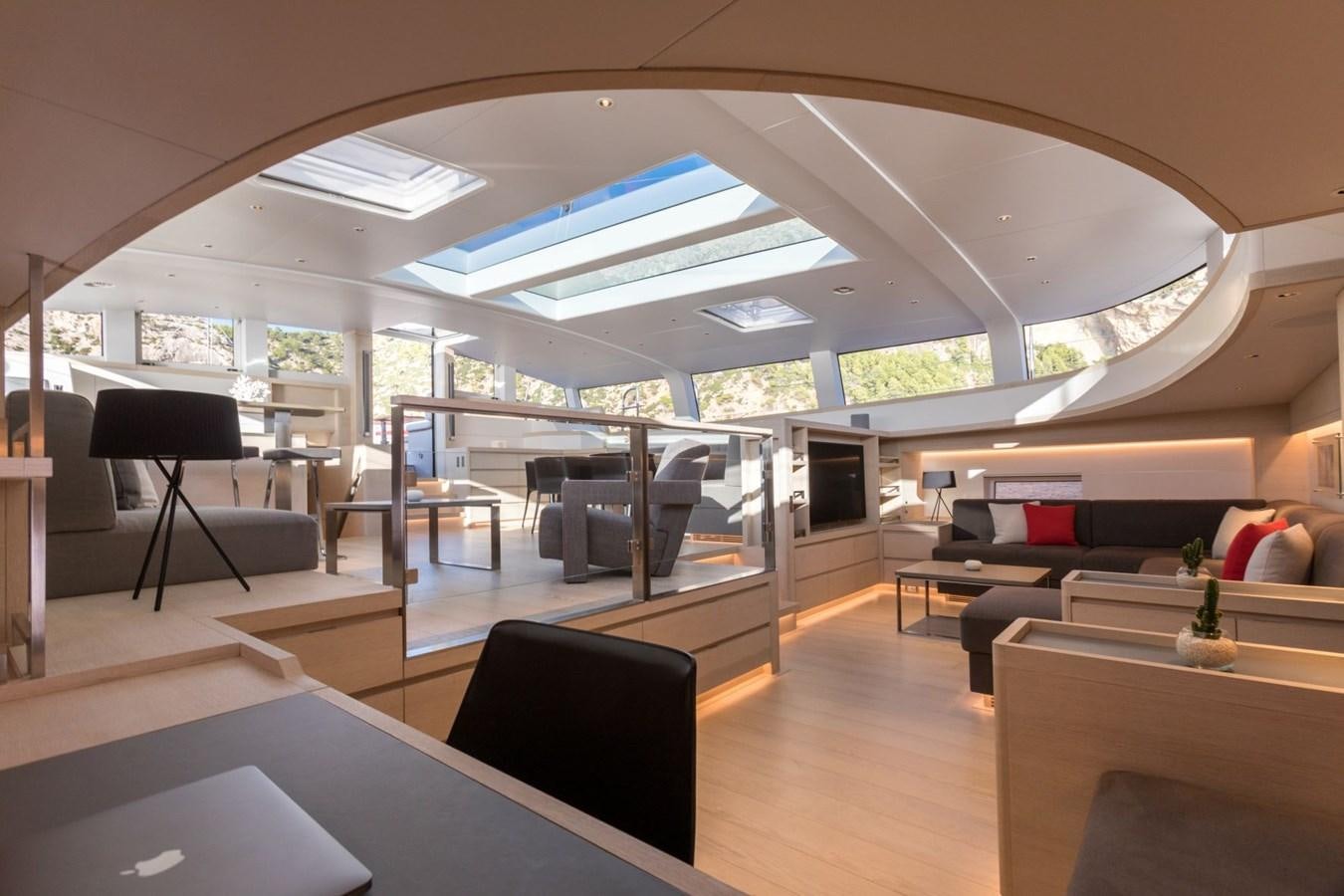

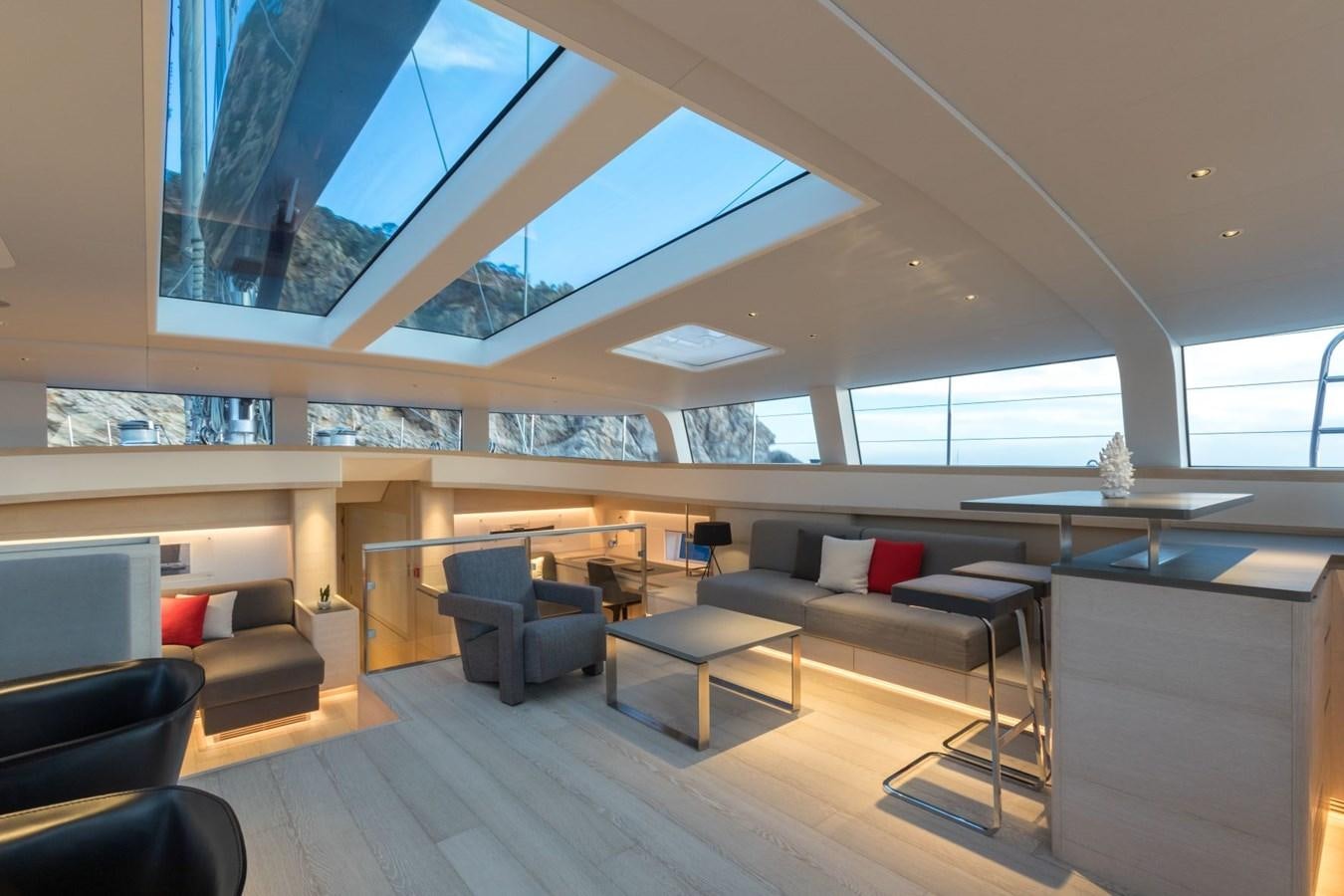

• Upper Saloon: Large saloon with dining table and lounging area

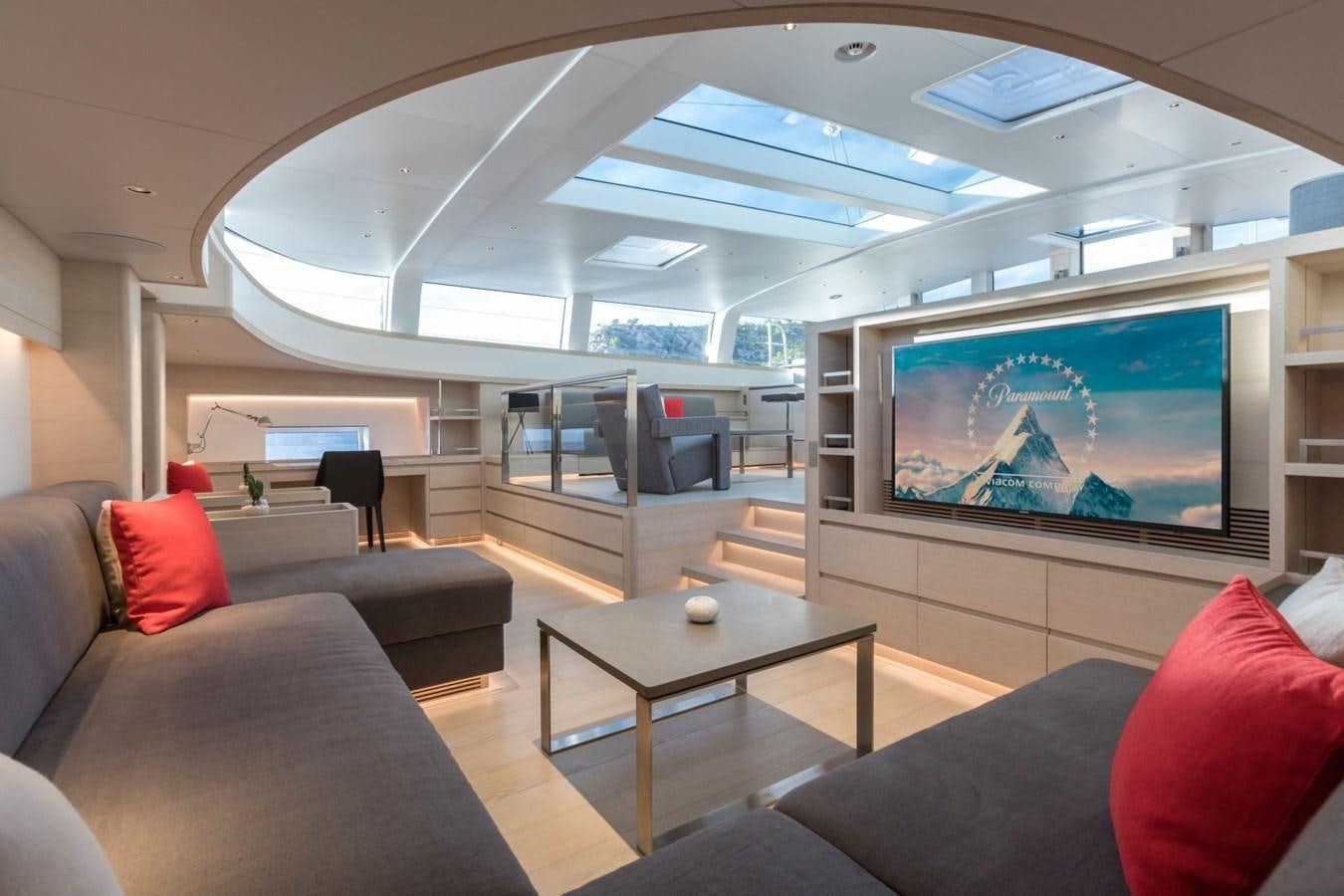

• Lower Saloon: Large TV seating area to port with desk set to starboard

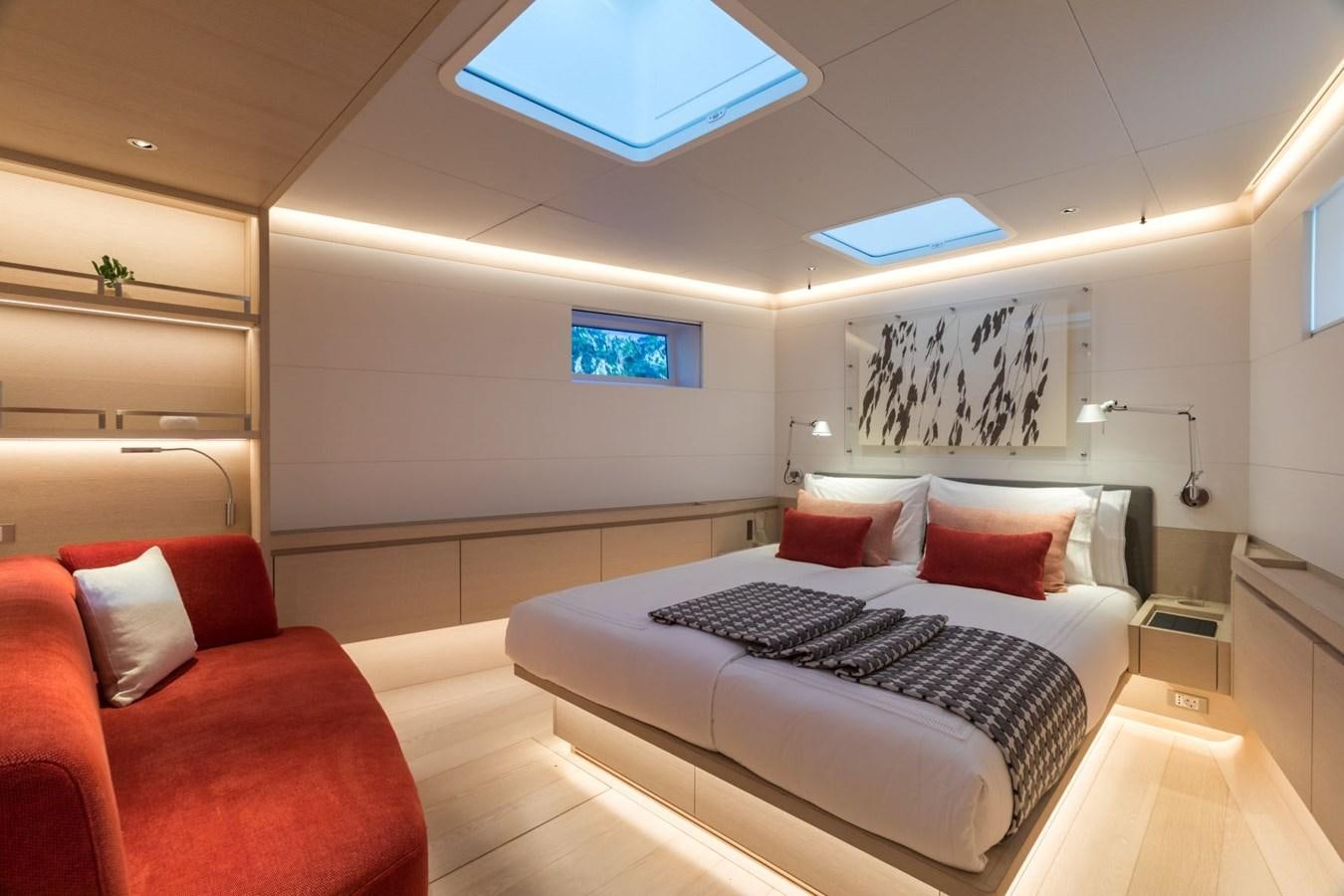

• Master Stateroom: Full beam stateroom forward with double bed with ensuite head & shower
• VIP Stateroom: Port Side midships, Double bed with ensuite head & shower

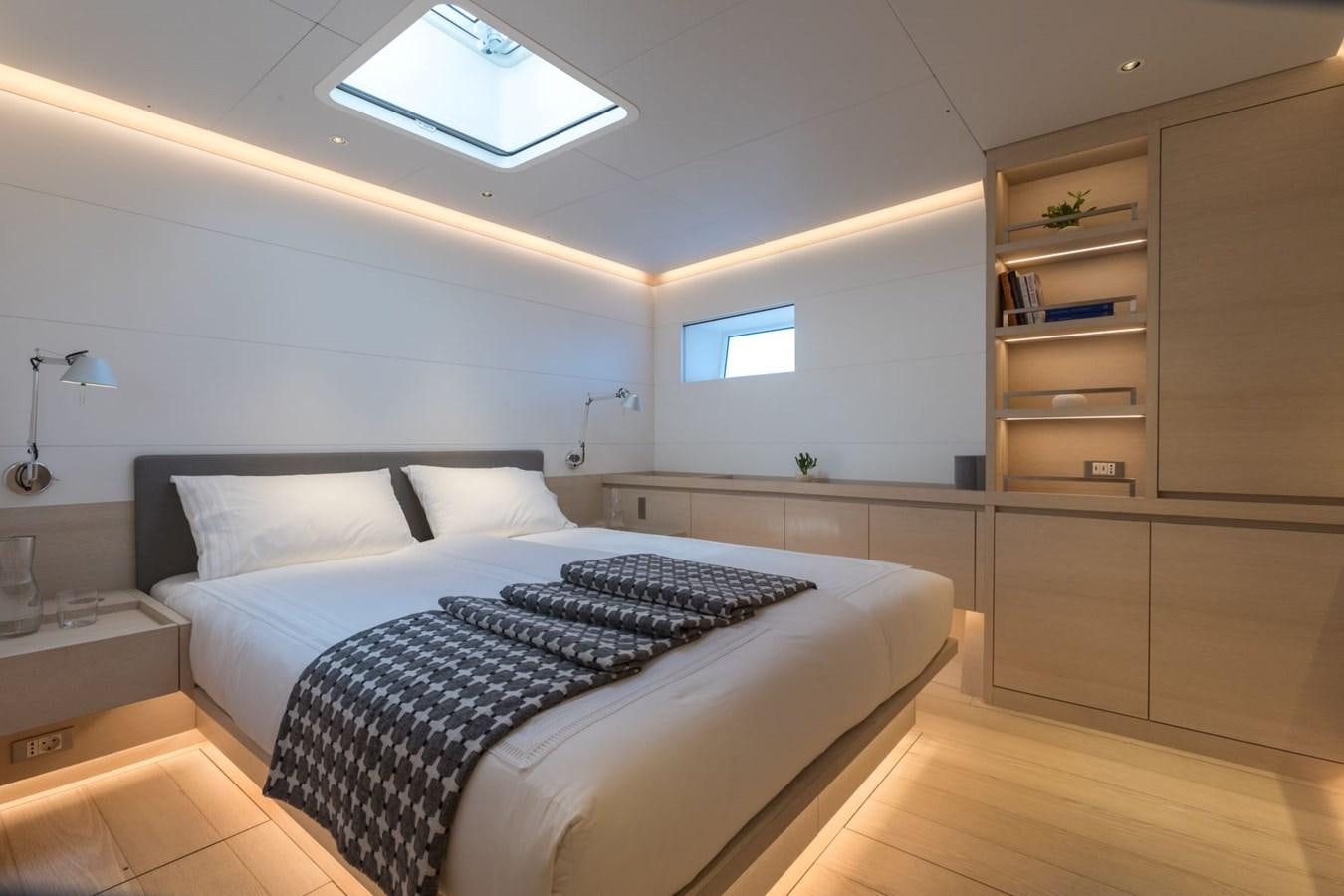

• Guest Stateroom 1: Port Side Fwd, 1 double bed to port

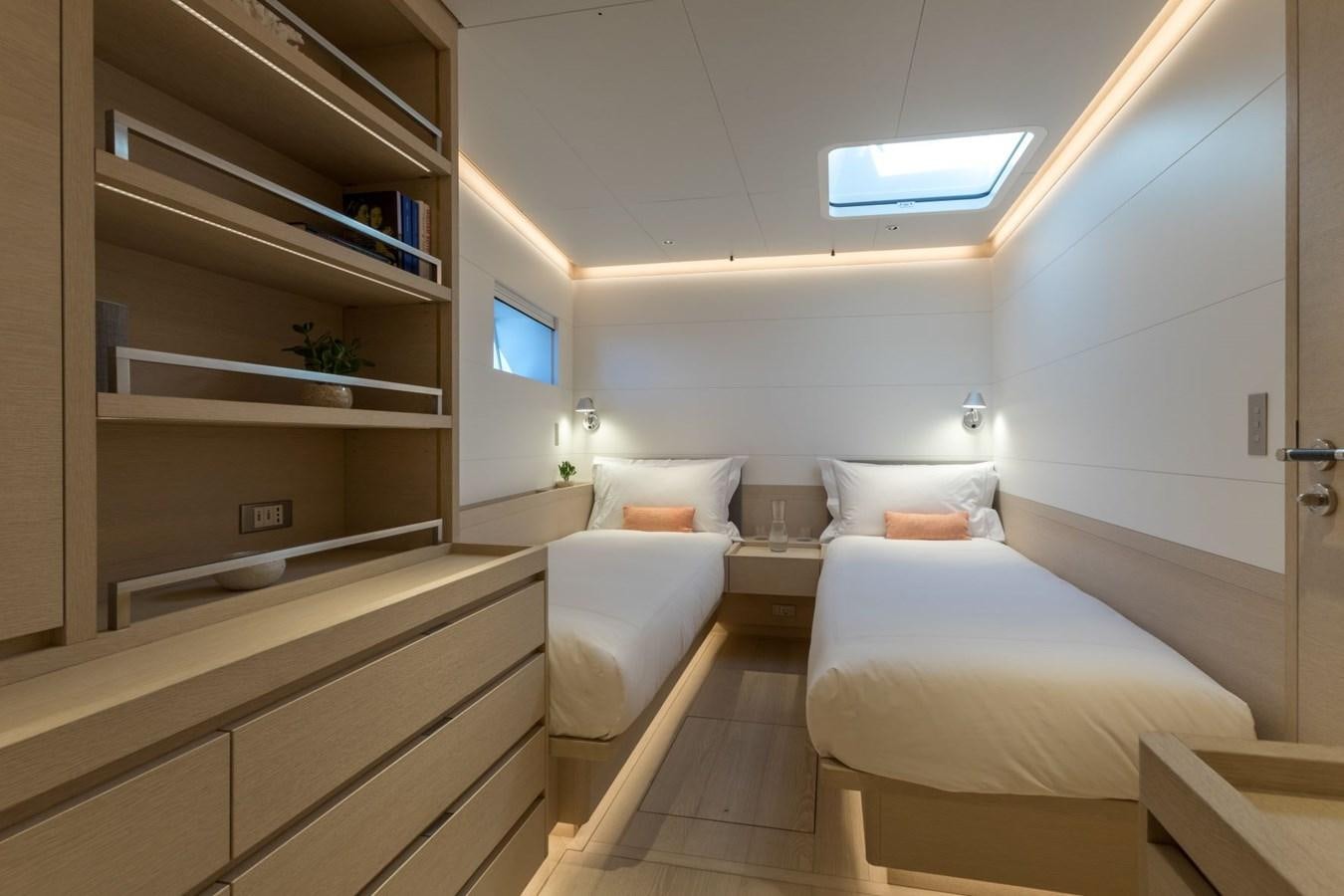

• Guest Stateroom 2: Starboard side midships, double with option to set up as two singles

CREW ACCOMMODATION

• Captain’s Cabin: 1 double cabin with ensuite head and show
• Crew Cabins: 2 twin bunk cabins with ensuite head and shower
• Crew mess: to seat 6

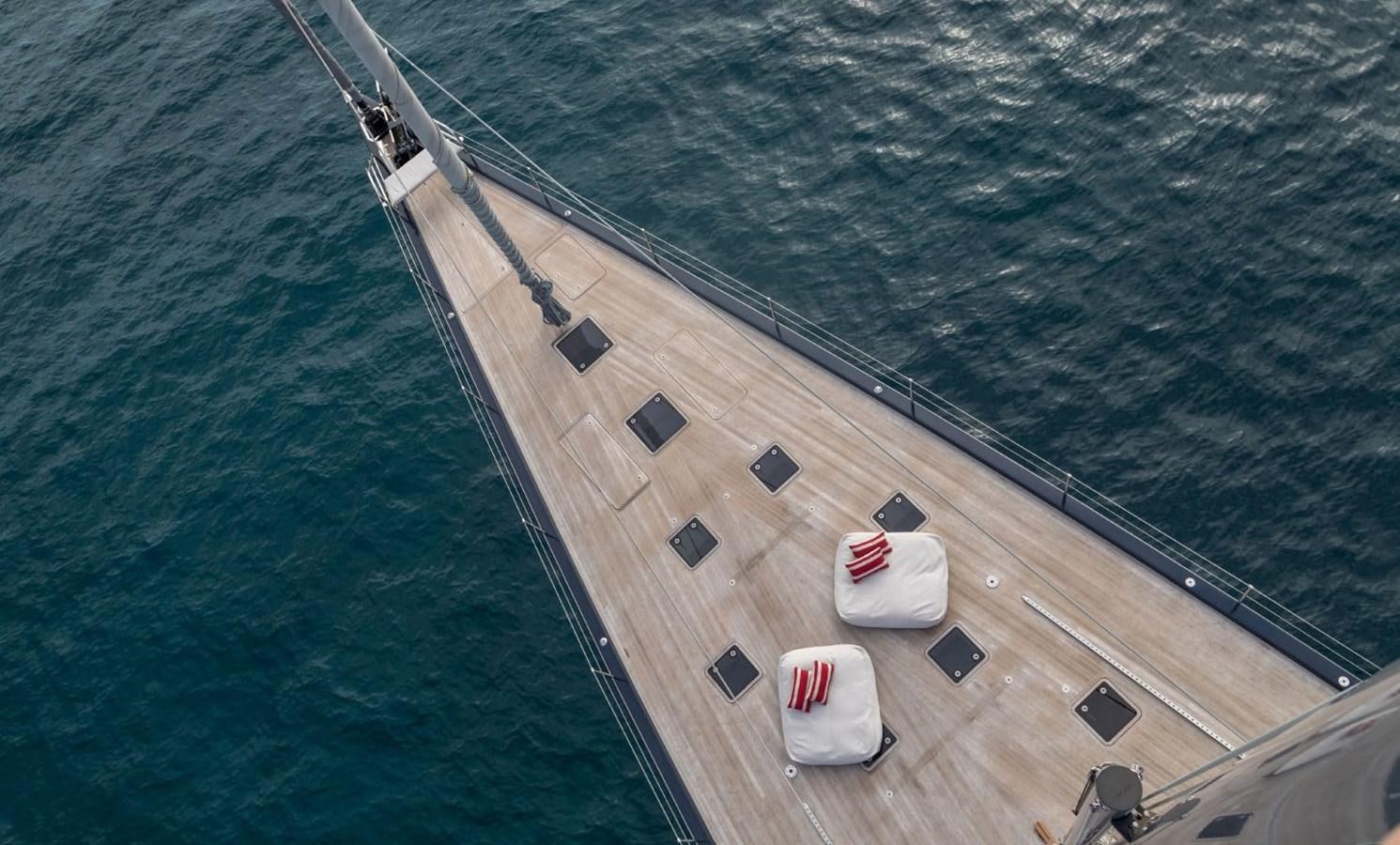

• Deck Arrangement: Flush decked, rationally laid out for racing and fast, hands-on cruising, with central cockpit and a further aft cockpit

• 1x Miele Professional washing machines
• 1x Miele Professional tumble driers Cockpit
• Drinks fridge in custom locker main Cockpit

Refrigeration

• 2 x Freezers. Foster LR-150A – 150 Ltrs
• 2 x Miele Fridges Dyna Cool – K37272 iD – 301 Ltrs
• 1 x Miele Fridge / Freezer Dyna cool KFN 37682 iD – 238 Ltrs
• Drinks fridge located in main cockpit

• Furuno VHF radio with DSC functions model FM-8900S
• Garmin VHF model 315I. 3 x hand sets, crew mess, captain office, aft cockpit.
• Furuno Inmarsat C - Satellite communication terminal (data only) model Felcom18
• Furuno paperless Navtex receiver model NX-700
• Omnia Access VSAT using Plexus controller. Worldwide internet coverage powered by 2x Sailor 600 antenas
• Vsat VoiP phone

• Alpha Course Gyro-Compass display (main unit near stern thruster)
• Back up electronic compass LT-500 AHRS
• Furuno solid state droppler radar with scanner on mast. Model no DRS4DNXT
• Navigation PC Furuno TZTBB for TimeZero navigation (in captain cabin)
• 2x large deck touch screen hatteland monitors to display Radar, Time Zero navigation, engineroom cameras  and marbel PLC controlled by mouse.
• Furuno GPS model GP-39
• Furuno back up GPS model GP-330B
• Simrad AP50 Autopilot control
• A&T ATPI processor integrated navigation system (speed, depth, wind)
• 2x B&G Full Function Display (FFD) located in captain office
• 6 x A&T displays located in main cockpit combing
• 2 x rudder angle indicators located in aft cockpit
• Furuno BINWAS model BR-510
• Furuno AIS model FA-170
• 2x C. Plath magnetic dome type compasses
• 2x large monitors to display: Radar, TimeZero navigation, Engine room cameras, and `communication software.

The following entertainment equipment is located in the lower saloon:

• 50 inch Samsung Blueray and DVD player
• Apple TV with media server
• IPad AV controller
• Unifi 48 ports network switch new 2022
• Unifi wifi network new 2022
• Sony Bravia LCD television in crew mess
• Bang and Olufsen Bluetooth/Wifi sound system with Denon Amp
• Pepwave max mobile router
• G2 server and back up server

Tenders

• 2022 Smuggler tender. Model Strata 580.
• Boat HIN: NZSMU 58018 F222
• 2022 115HP Yamaha outboard Model F115XB


Toys

• Snorkeling kit
• Fishing kit
• 1x Wakeskate
• 1x Wakeboard
• 1x Waterskis
• 1x Seabiscuit

Dive equipment

• 4x complete sets of Aqualung dive gear
• Bauer Junior II Dive compressor

Anchors & chain

• CQR 185KG 140m of stud-link galvanized chain
•  Throw arm anchor with bow roller
• 135KG Pool Type Anchor stowed in forepeak
• Alloy Fortress anchor model FX 125

Windlass

• Lewmar 6000 Vertical Windlass with Capstan

Passarelle

• CFPR & Teak manually fitted to the stern

Bathing ladder

• Yes fitted off transom

Winches

• 6x Rondal captive winches
• 1x model 'RW 6000' for main sheet
• 1x model 'RW 6000' for main halyard
• 2x model 'RW 8000' for Genoa sheets
• 2x model 'RW 6000' for running-backstays
• 2x Rondal drum type winches (model 'RCW 400')
• 2x Lewmar 122 2 speed + backwind hydraulic deck winches
• 4x lewmar 111 3 speed hydraulic deck winches

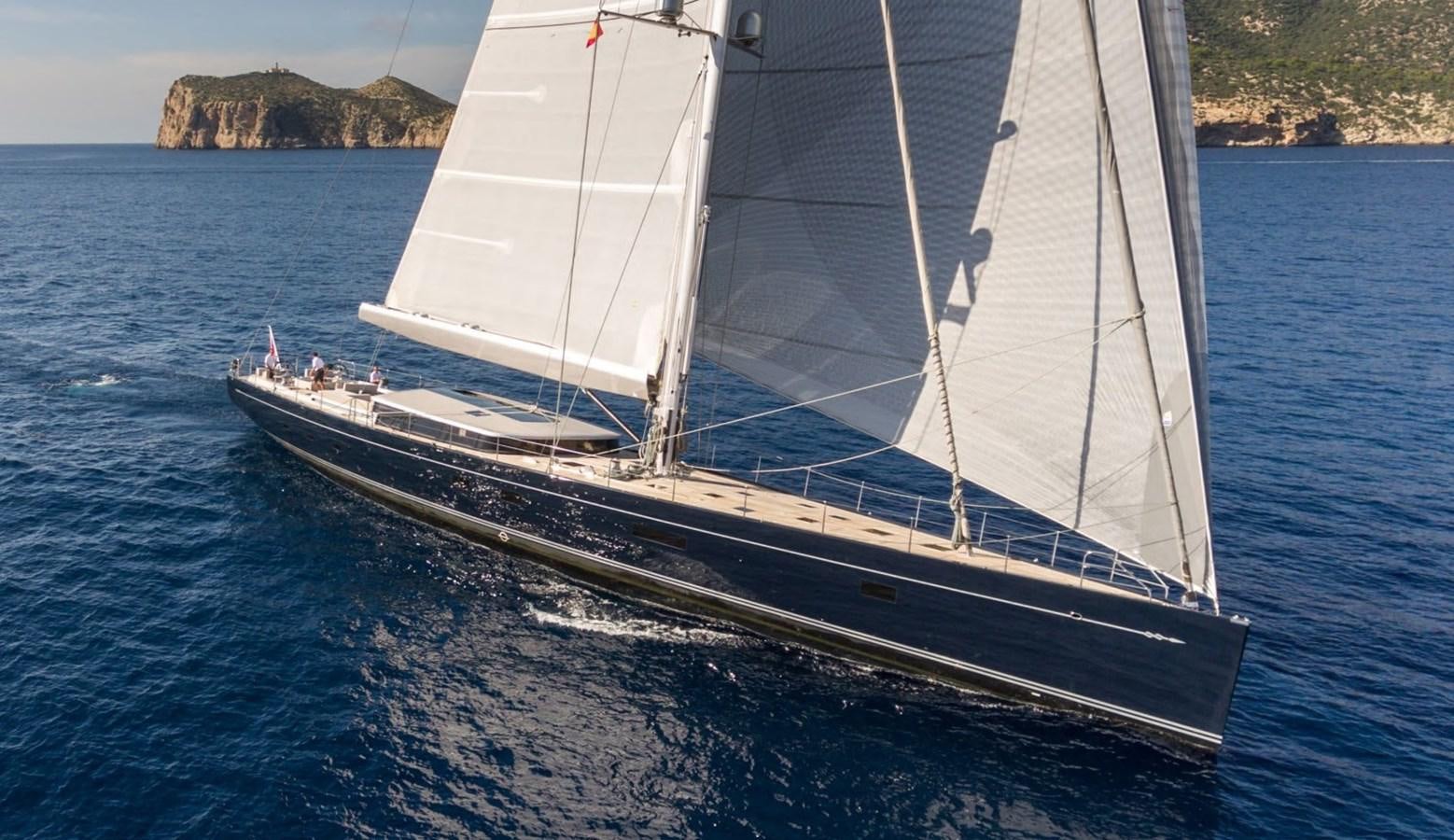

MAST & RIGGING

• She is a masthead rigged cutter, the mast is keel stepped and has 3 sets of swept back spreaders. The boom  is hollow type to accommodate in boom furling gear, standing rigging is EC6 from Future Fibres.
• Mast
  • Southern Spars Carbon Fiber
  • Keel Stepped
• Boom
  • Southern Spars
  • Roller Furling
• Standing Rigging
  • Future Fibres EC6
• Outer and Inner Headstays
  • Hydraulic Reckmann furling gear

SAIL INVENTORY
DOYLE

• Mainsail / 442 sqm Stratis 1100 CT 2023
• Blade / 340 sqm Stratis 1100 CT 2019
• Staysail / 147 sqm Stratis 1100 CT 2022
• Code 0 / 731 sqm Stratis 1100 CT 2022

QUANTUM

• A2 2018
• A4 2018

SHIP'S ALARM, MONITORING AND CONTROL SYSTEM (SAMCS)

• The vessel features a fully comprehensive alarm and monitoring system which integrates some control functions.
• The system is PC based (by GUI – Graphical User Interface) and features two PC's with touch-screen monitors at
• Engine room and crew mess, and track-ball operated monitors on deck in the aft cockpit pedestals.
• The two PCs are running in parallel (hence creating the necessary redundancy) and interact with a set of PLCs  that control the majority of the onboard systems such as: main engine, generators, electrical system, hydraulic  system, tank levels, fuel & water systems, bilges, fire detection. The system also integrates a Cosworth VMMS  (Vessel Motion Monitoring System) that monitors and records longitudinal, lateral, and vertical acceleration as  well as the degree of roll, trim, and yaw.

CCTV SYSTEM

• The CCTV system comprises of 2 remotely controllable cameras (pan & zoom) integrated to the MaxSea  navigation. Cameras located in engine room (2).

FIRE FIGHTING

• Engine room is protected by a fixed Novec type fire-extinguishing installation. The 52 kg storage bottle is fitted in  the engine room with manual remote release just outside the engine room. The system integrates emergency  fuel and blowers shut offs.
• A suitable number of portable fire extinguishers charged with different types of extinguishants such as AFFF foam,  dry powder, and CO2 are also onboard. All fire extinguishers are serviced / certified. The fire / bilge pump fitted  in the engine room supply 3 hydrants (at forepeak, lazarette, and on deck). Correct fire hose & spray nozzle were  noted adjacent to each hydrant.
• The same pump through different lines supplies also the chain wash system and wastewater tanks flushing. An  emergency 'stand-alone' diesel driven pump is fitted in the lazarette as backup to either primary fire or bilge  pumps.
• Central Fire Alarm System is fitted in the crew mess with smoke or heat detectors throughout the vessel’s interior.

LIFE SAVING EQUIPMENT

• Two Zodiac 8-person SOLAS A type life rafts and one 6- person SOLAS A type life raft are located in the main  cockpit; these are normally stored in dedicated float-free lockers at main cockpit (1 raft) and aft cockpit (2 rafts).
• All 3 rafts are contained in hard canisters and equipped with Hydrostatic Release Units (HRUs).
• Two MOB recovery modules are fitted on the Pushpit.
• An adequate number of inflatable type lifejackets are aboard.
• A McMurdo 406 EPIRB was noted on deck and equipped with a HRU. The unit is correctly registered.
• Breathing Apparatus sets and line throwers were also noted onboard.

REFIT / REBUILD PENDENNIS 2017/18

• 10 Year Survey Works
  •  Rudder removal and serviced
  •  Shaft removal and serviced
  • Thrusters removed and serviced
  • Tanks cleaned and pressure tested
• Replace standing rigging with EC6
• New Doyle Sails Inventory
• AV/IT Upgrades throughout
• Bilge and Fire Pipework upgraded
• Removal of the aft cuddy / installation of new aft cockpit arrangement
• Removal and replacement of the guest accommodation throughout the yacht
• Aft bulkhead relocated in Owners Cabin forward to enlarge cabin
• Reconfiguration of the crew accommodation following aft deckhouse removal
• Skylight installed on the center line in the deckhouse
• Portlights enlarged throughout the guest accommodation
• New removable center and aft cockpit bimini cover arrangement
• Engineering overhaul of all critical systems
• Helm Station Modifications
• Teak Deck Modifications
• New upholstery throughout guest accommodation
• Rig removed and serviced
• Complete repaint of hull superstructure and rigs
• Silicon antifoul application
• Show power converter serviced and installation improved
• Alarm and monitoring system service
• Under water lights X 2 aft

REFIT ORAMS 2021/22

TANKS

• All tanks cleaned inspected and pressure tested where required
• Hydraulic oil polished and tested

GEARBOX, SHAFT, PROPULSION AND STEERING

• Inspection and service of steering system, pump, rams, quadrant, solenoids etc

MAIN ENGINE
Main Engine bottom end overhaul / Works in accordance with manufacturers schedule

• Fuel injector pump service
• Heat exchanger service and pressure test
• Turbocharger service
• Alternator service
• Starter motor service
• Remove, clean and pressure test intercooler
• Flush cooling system
• Replace thermostats
• Service and inspect vibration damper
• Replace V Belt
• Adjust valve lash
• Change oil filters
• Spare parts order

GENERATORS

• Generators replaced with new
• PTO Clutches serviced / bearings replaced
• Marquip passive diesel particle filter (DPF) to Marquip specification

HYDRAULICS

• PTO’s serviced
• Windlass motor serviced
• 1x Keel rams serviced
• AC Hydraulic Power Pack Serviced
• Boom outhaul service
• Vang service

PUMPS

• Air conditioning sea water pump serviced
• Grey water pump serviced
• Grey water sub tank pumps serviced
• Chilled water pump serviced and painted
• Water maker low pressure pump serviced
• Diesel fire pump serviced
• HEM High and Low pressure pumps serviced
• All accumulator tank pressures tested
• Bilge and Fire pumps serviced
• Fuel transfer pump serviced
• Alfa Laval Serviced
• Hot water circulation pumps serviced
• Fresh water pumps replaced

GENERAL ENGINEERING

• Bilges cleaned and inspected
• Air make-up fans and filters serviced
• Refrigeration systems checked and serviced as required
• Hydraulic filters replaced
• Port & Starboard Engineroom fans serviced and bearings replaced
• Air conditioning frequency drives – Removed and cleaned
• Engineroom raw water crossover valve serviced
• Gearbox oil cooler / ultrasonic clean and pressure tested
• Flow meter for shaft cooling replaced
• HEM Membranes tested
• HEM 3 way solenoid valve tested from salinity meter
• Air compressor serviced
• Hamann serviced
• HVAC – Crew air hander service / service and flush condenser tubes / test glycol in AC closed loop
• Batteries surveyed and tested

SPARS & RIGGING

• Annual service completed
• Jib and Staysail navtec rams serviced

SAILS

• Annual service of Main, Jib, Staysail and Code 0 by Doyle Sails New Zealand

PAINT & VARNISH

• Hull painted in majestic blue
• Silicon antifoul touch ups where required
• Prop speed application
• Bilges under main engine and generators repainted
• Cockpit tables – Matt varnish application

GALLEY

• Oven and induction top and oven hood replaced
• Miele Equipment Service


FIRE & SAFETY

• All LSA Equipment Service as required
• MCA Medical Kit updated

DECK

• Rondal and Lewmar Winches Serviced
