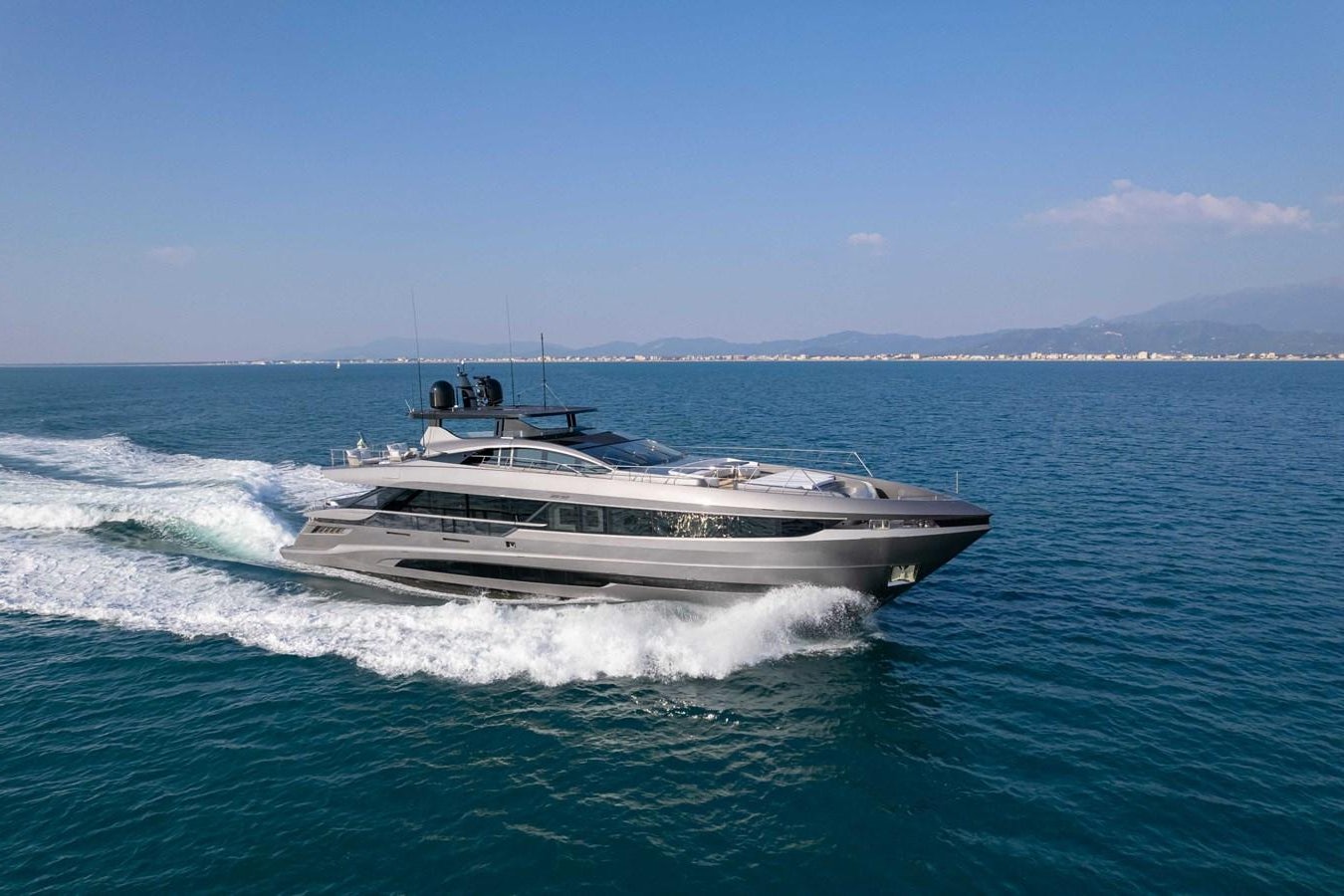

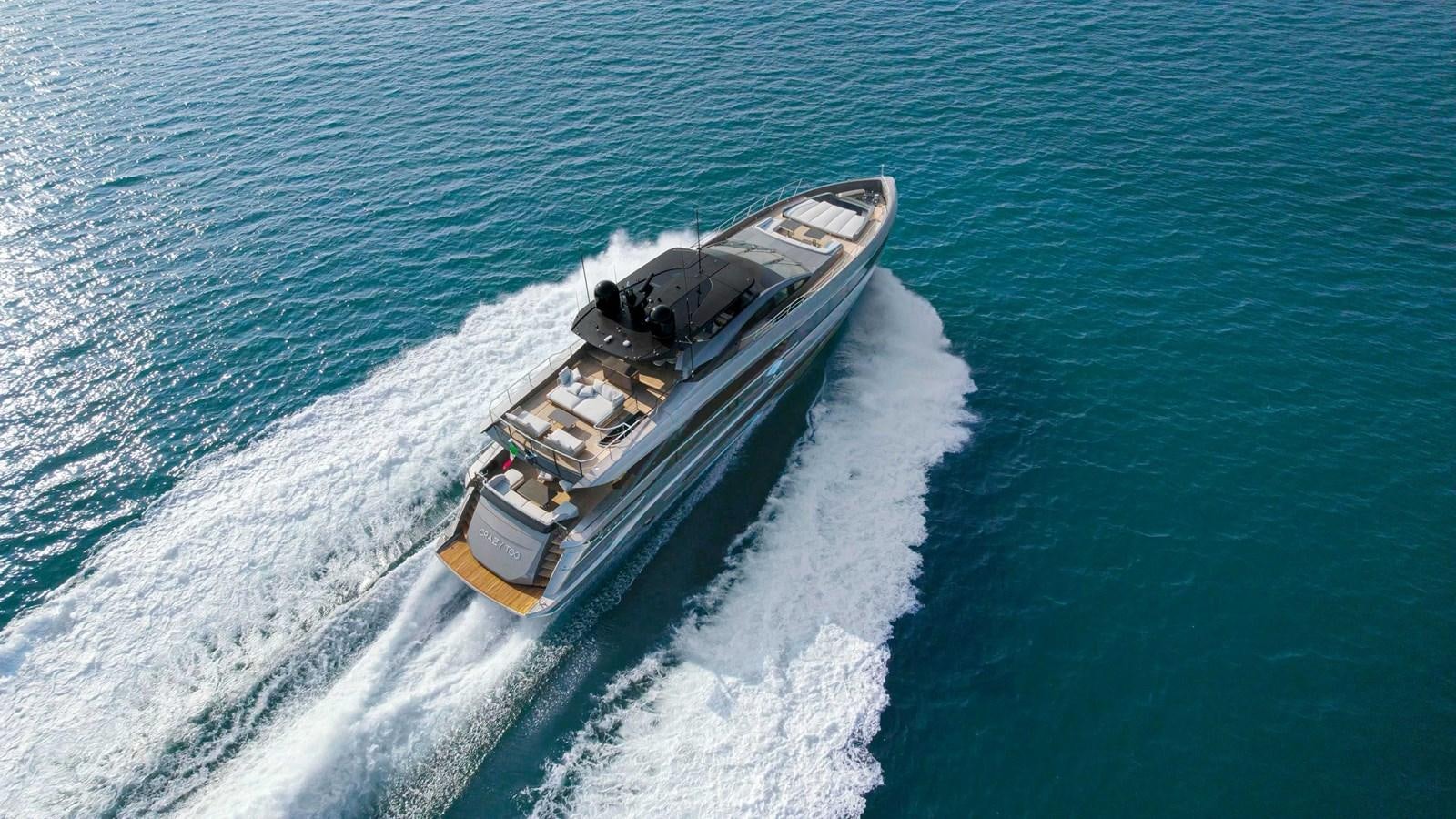

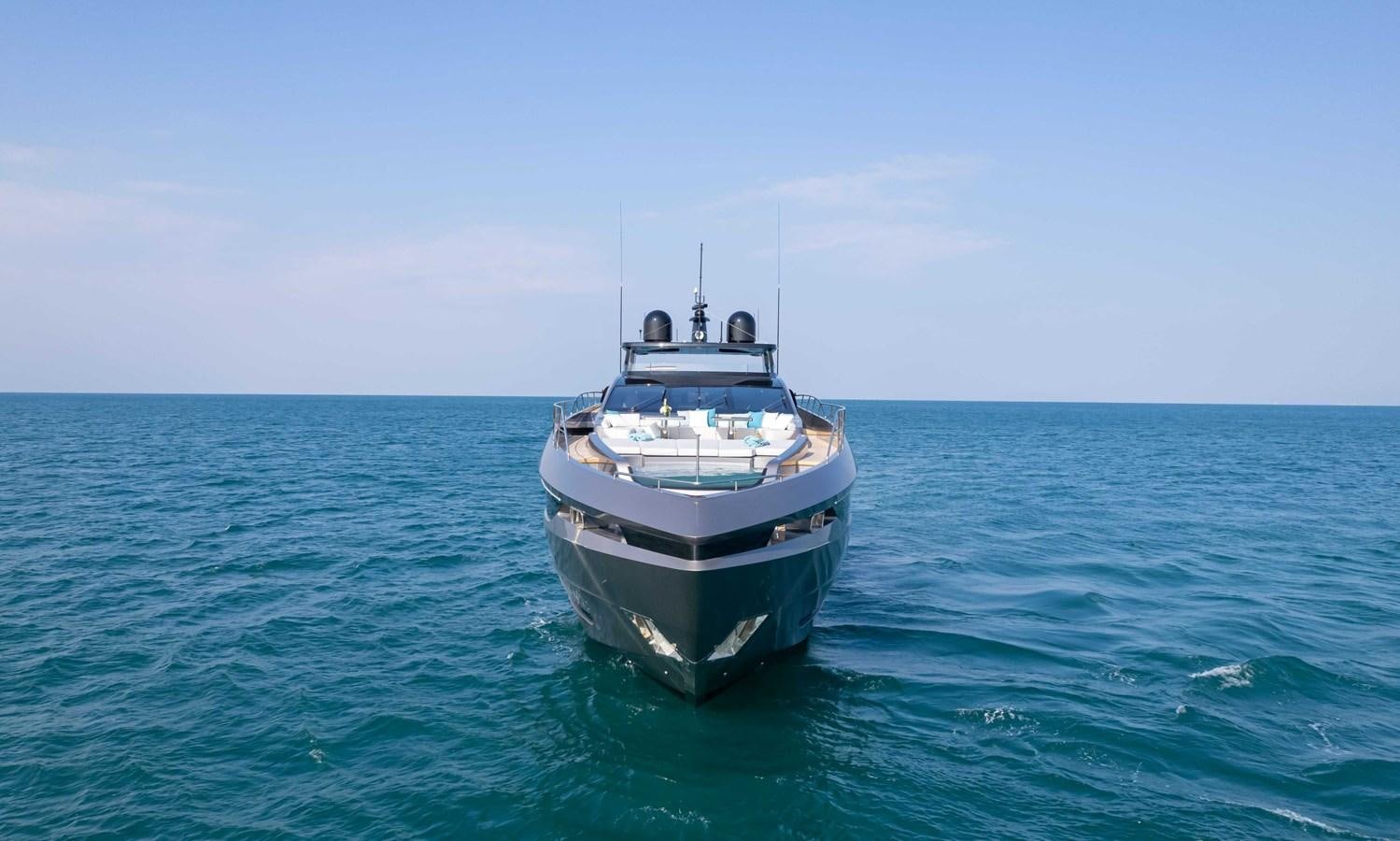

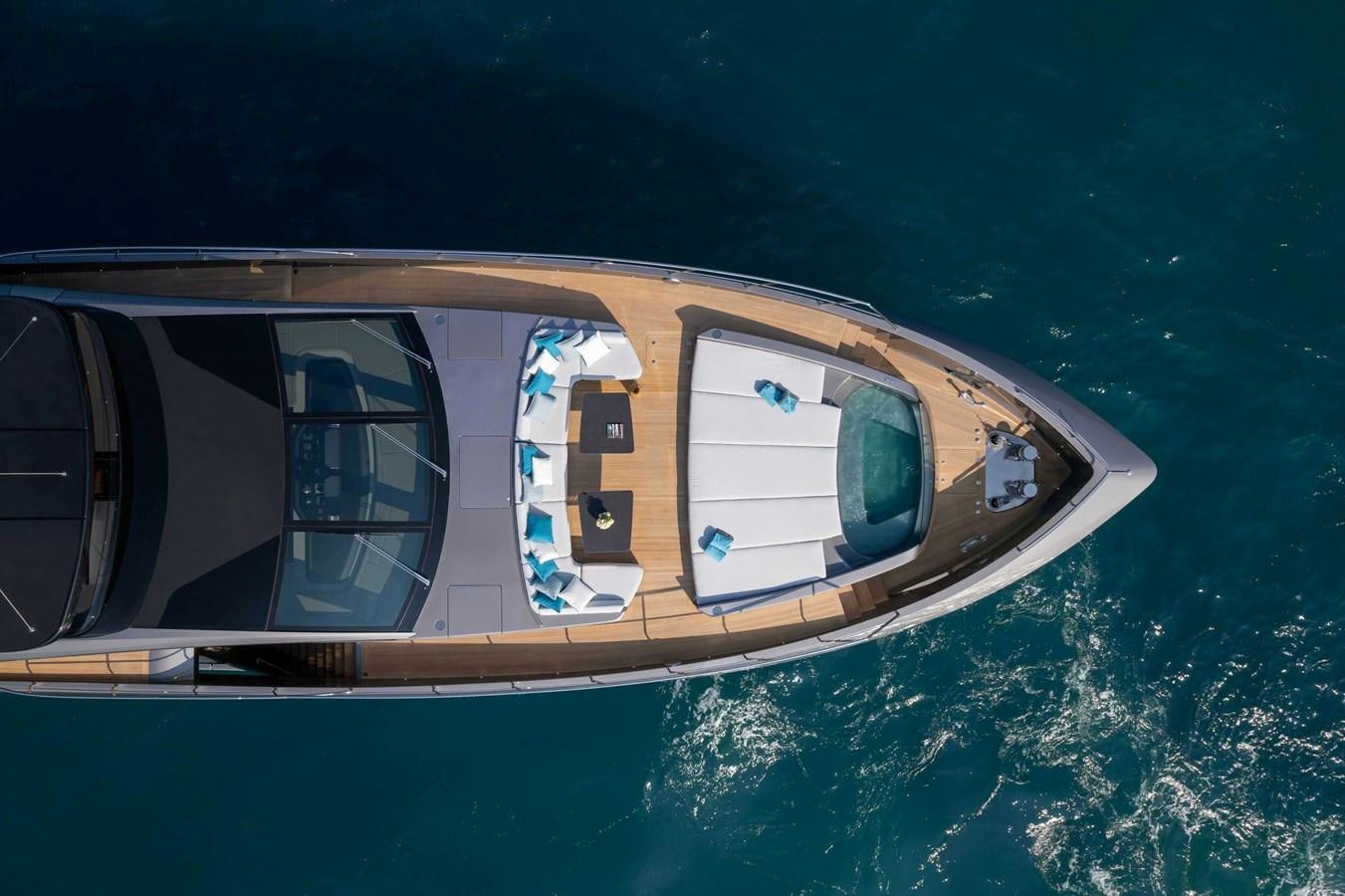

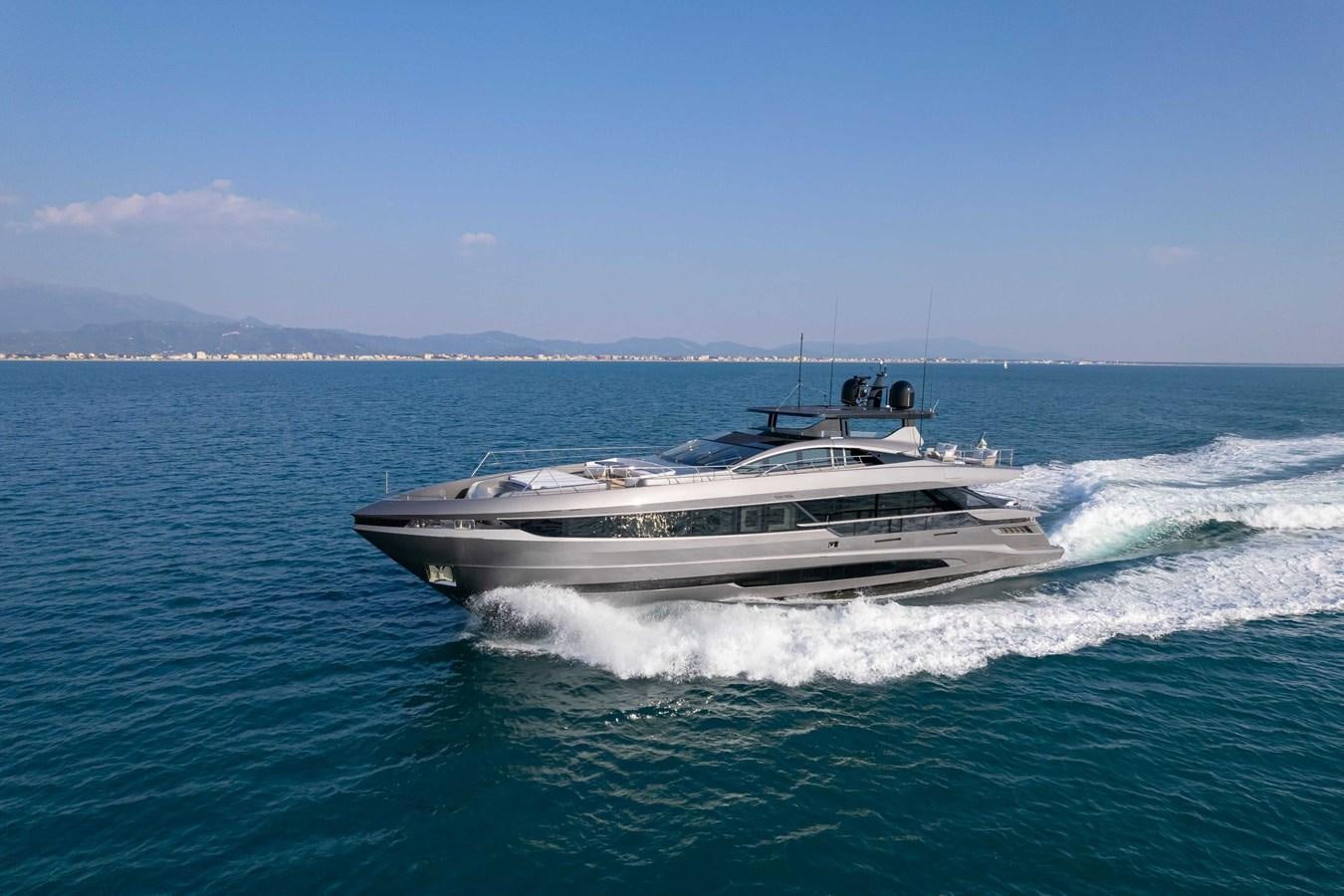

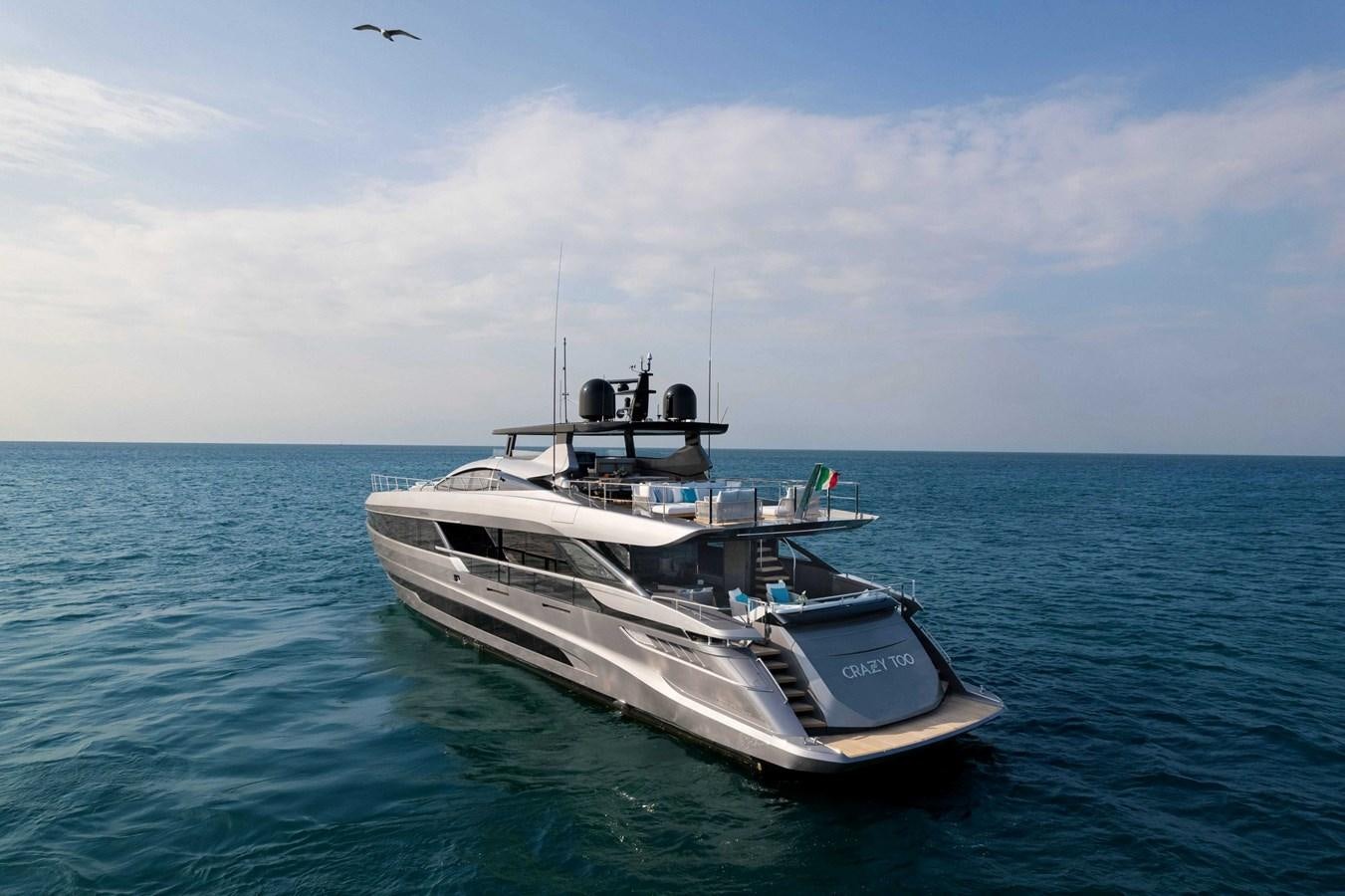

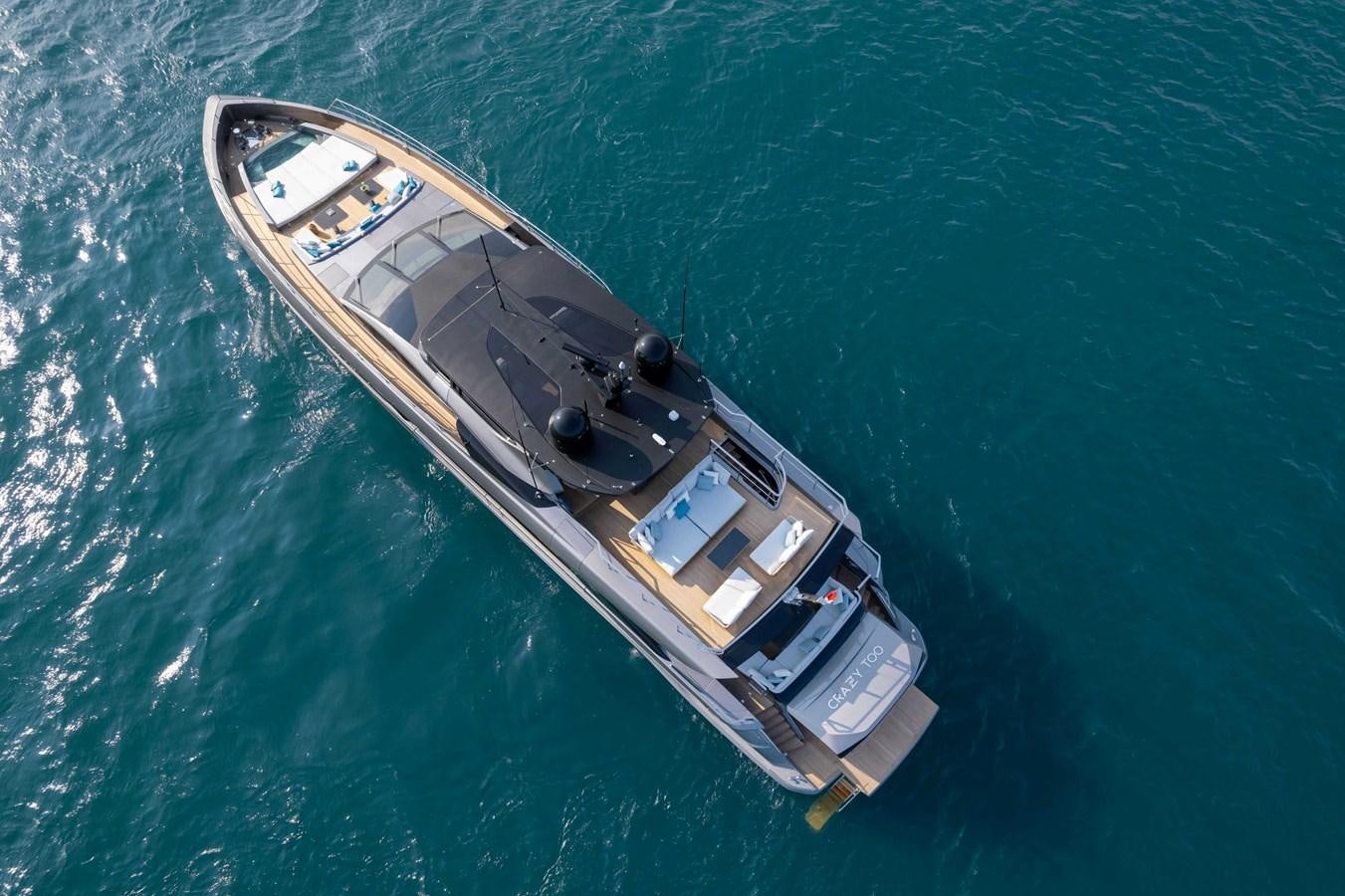

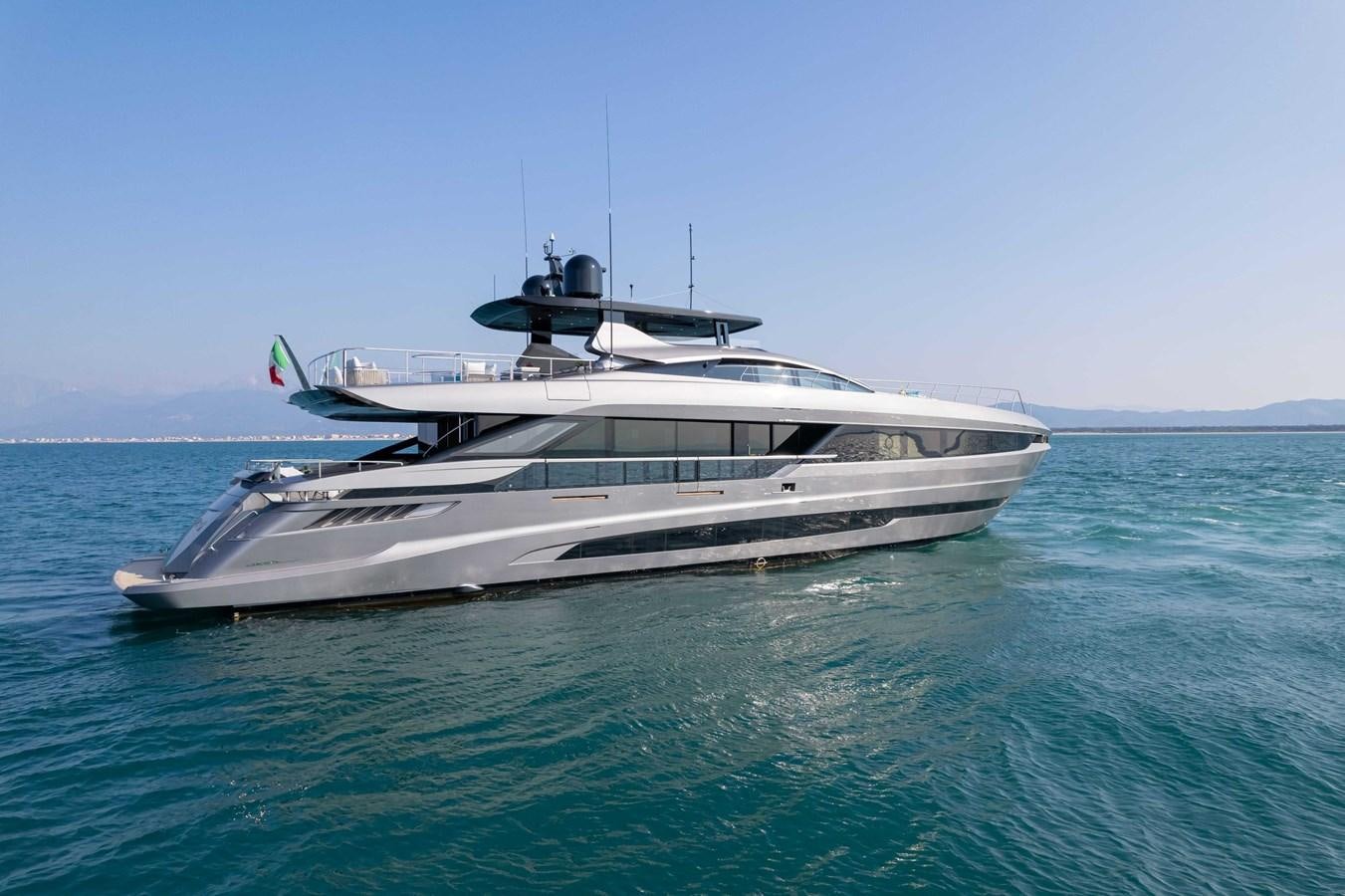

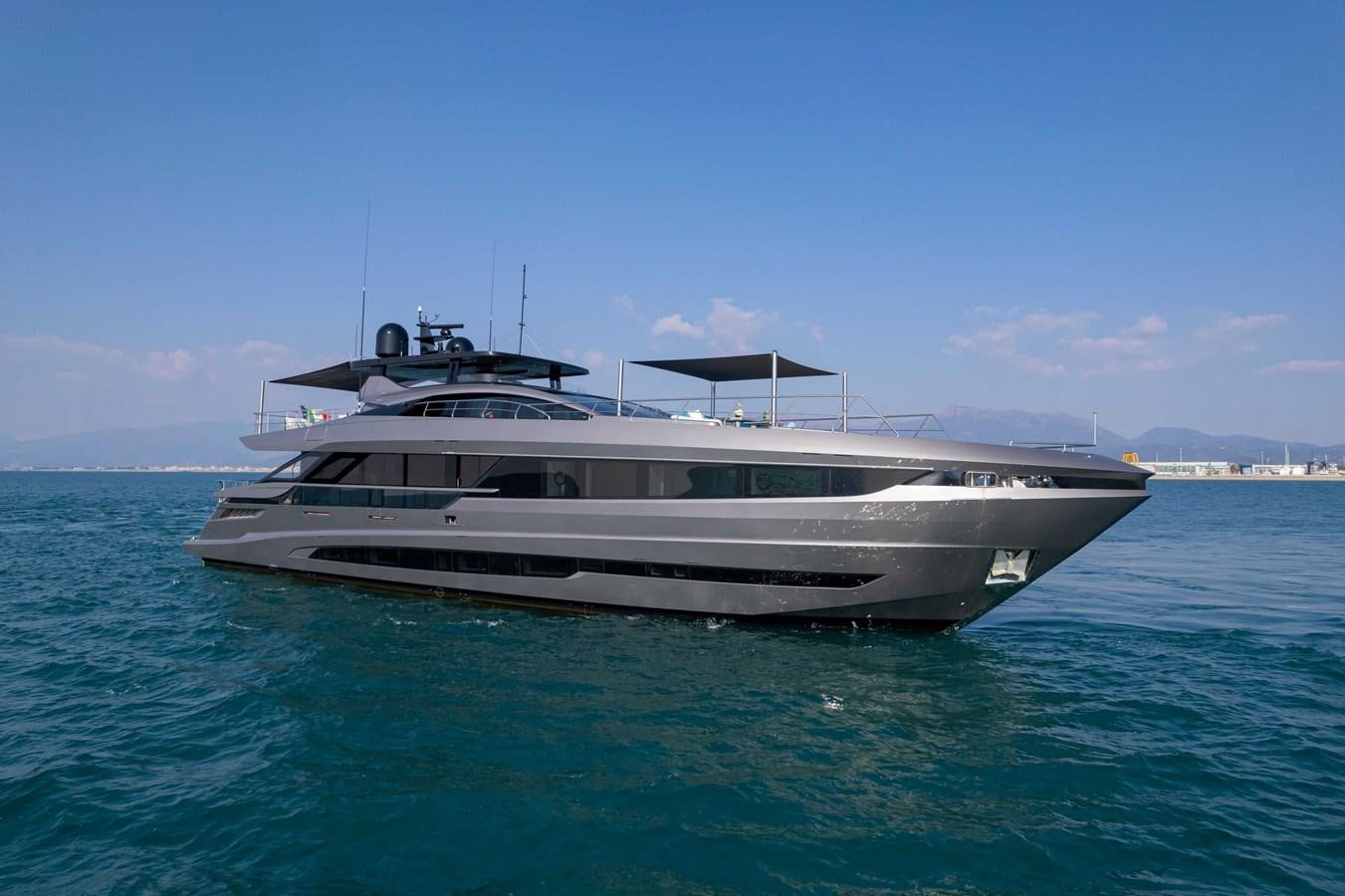

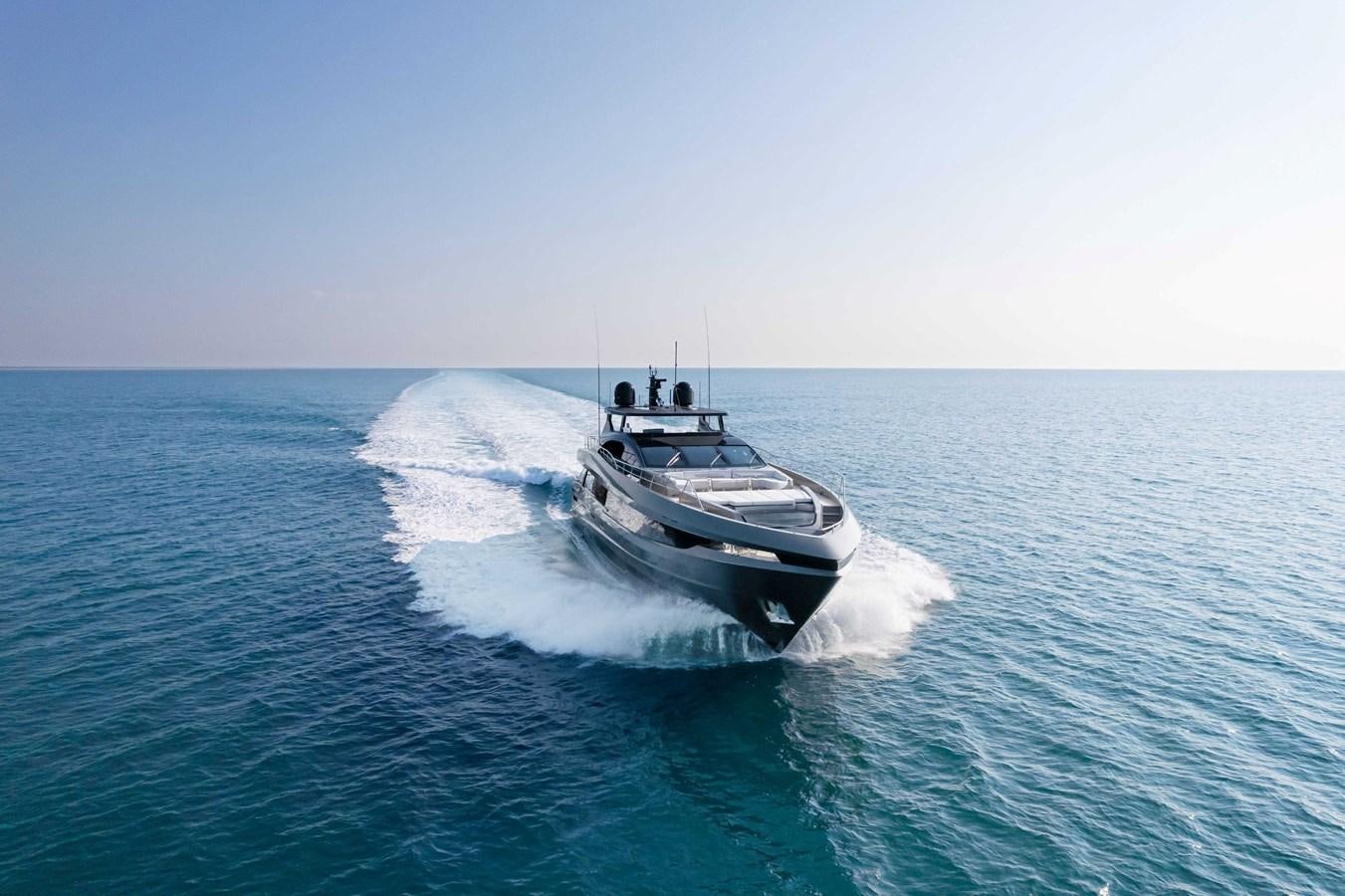

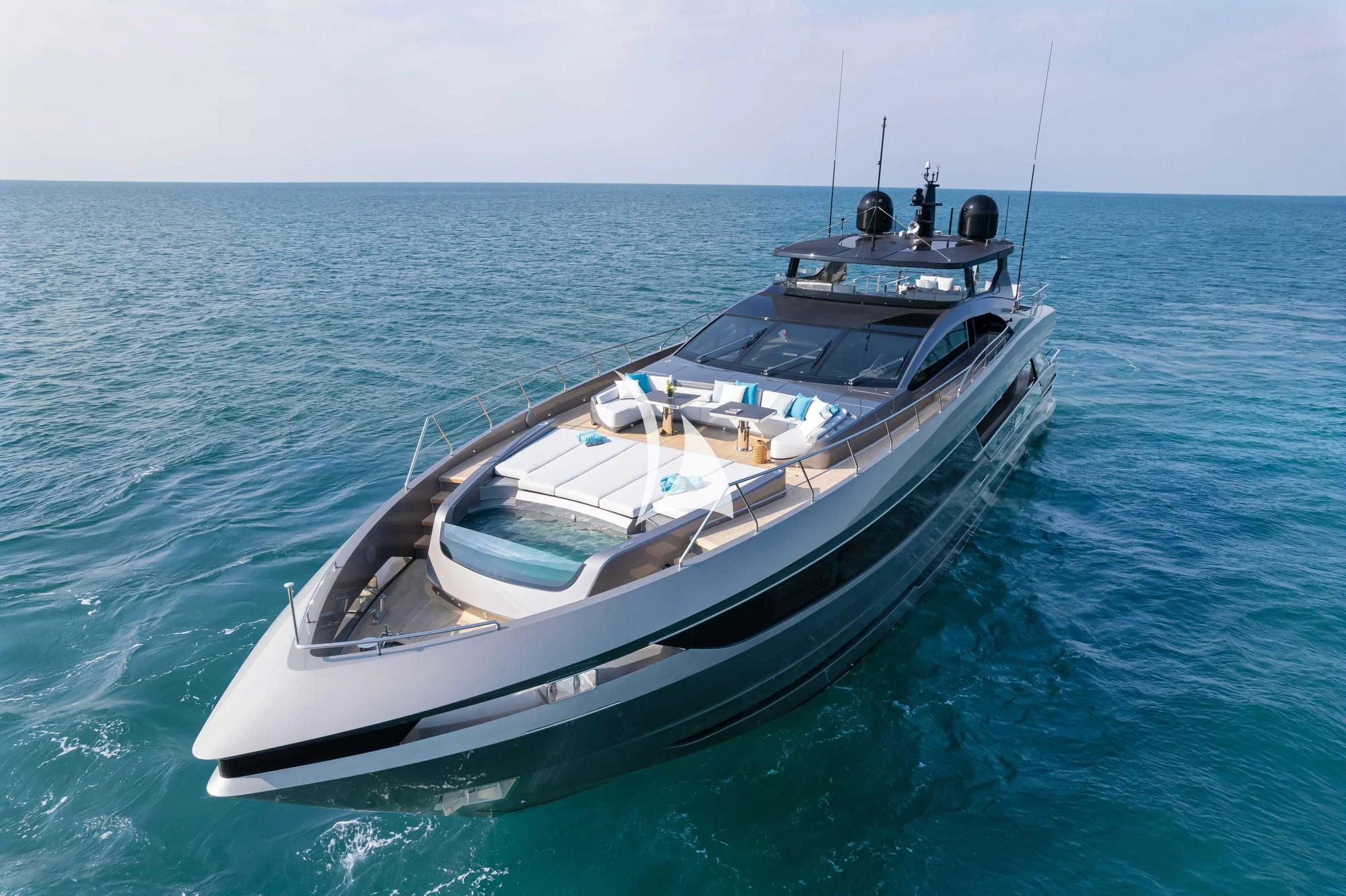

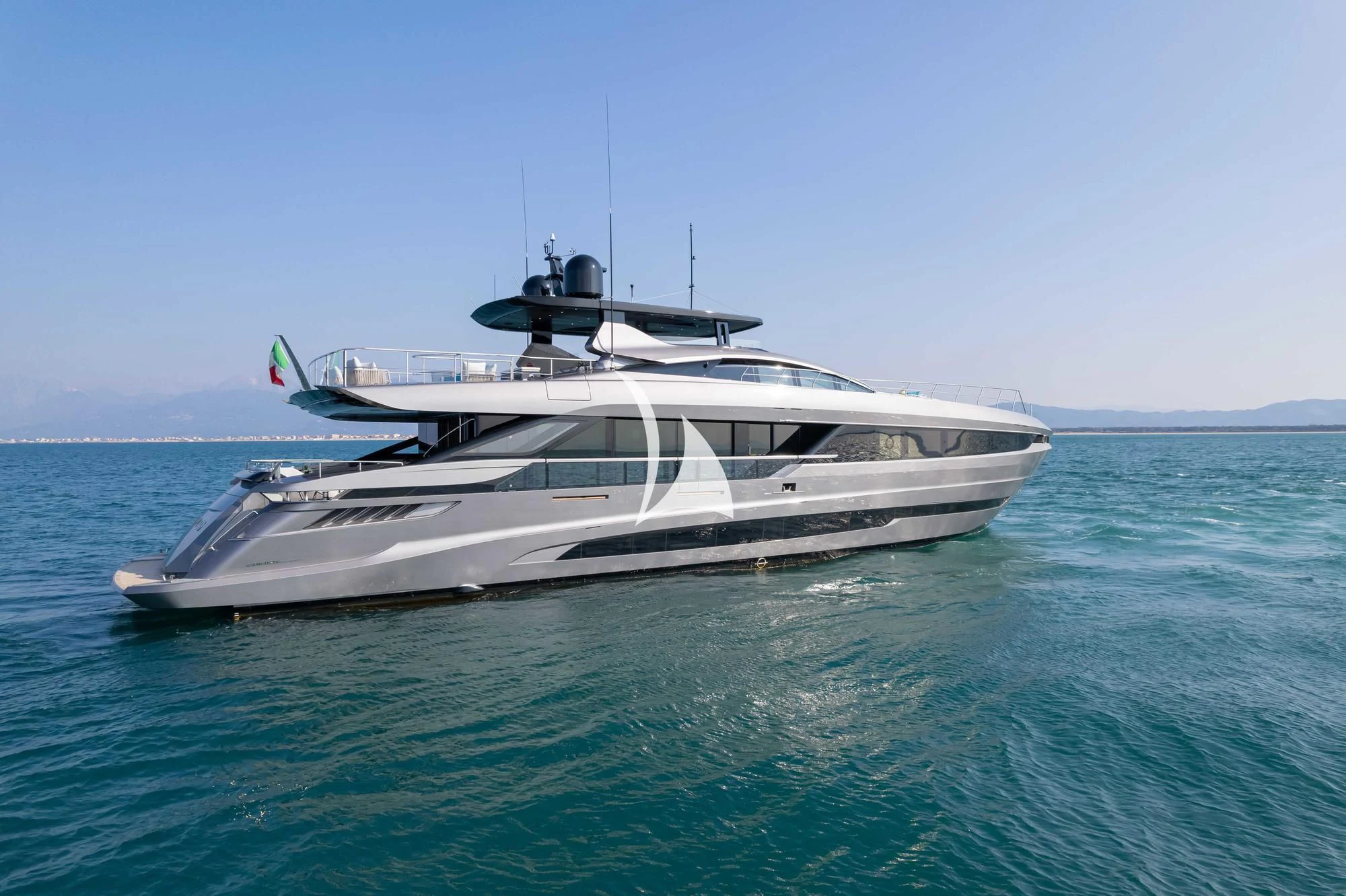

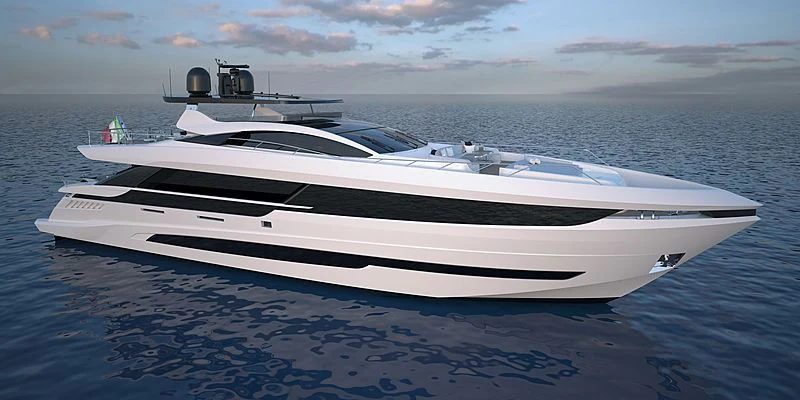

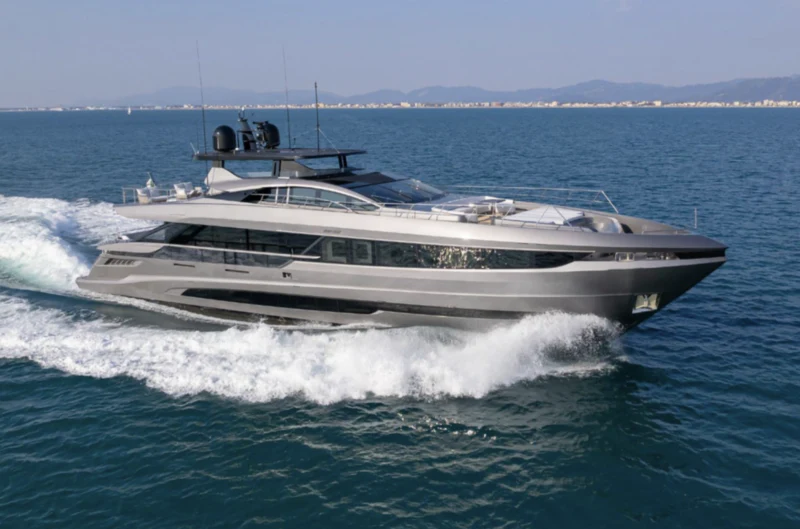

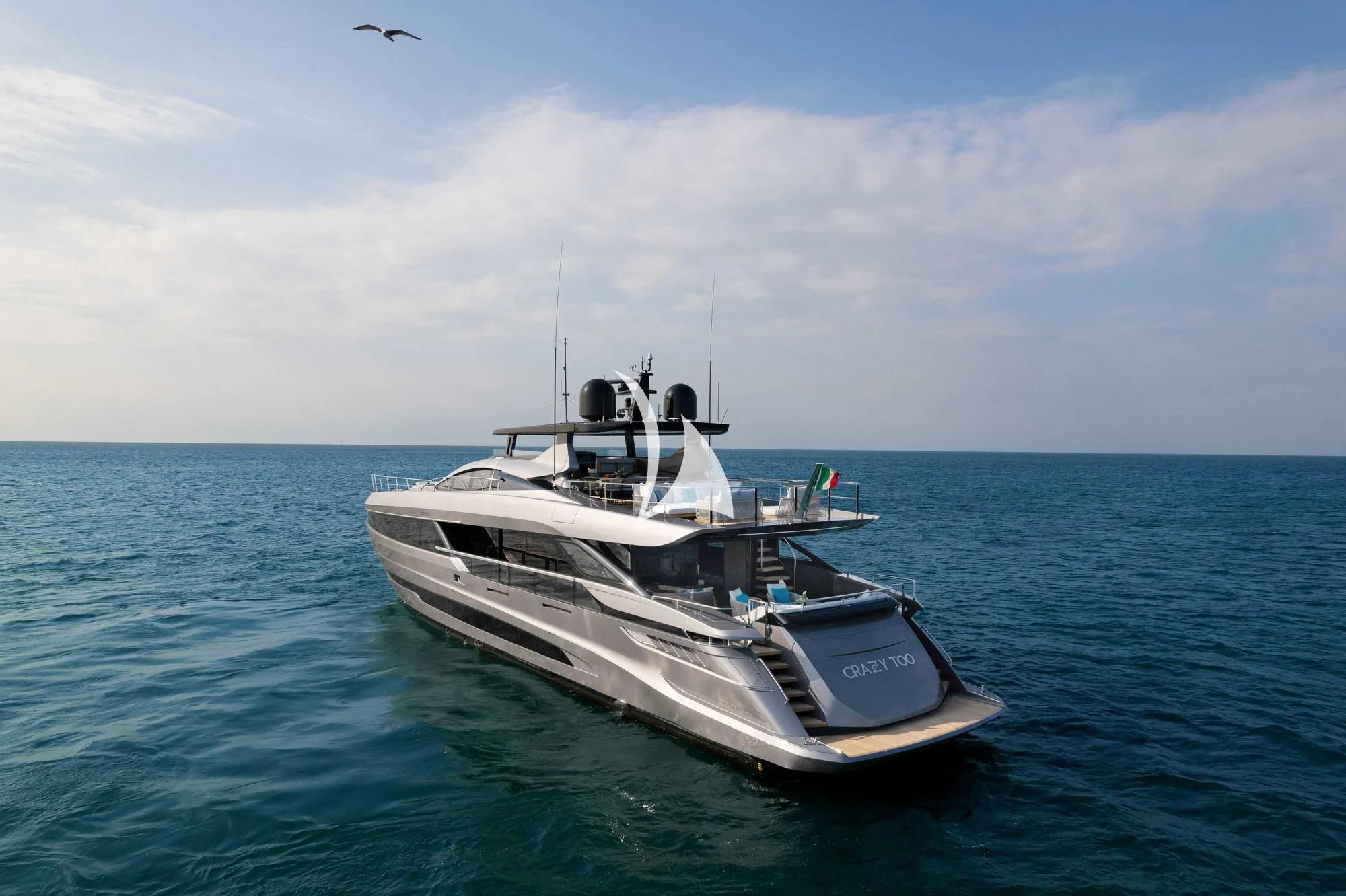

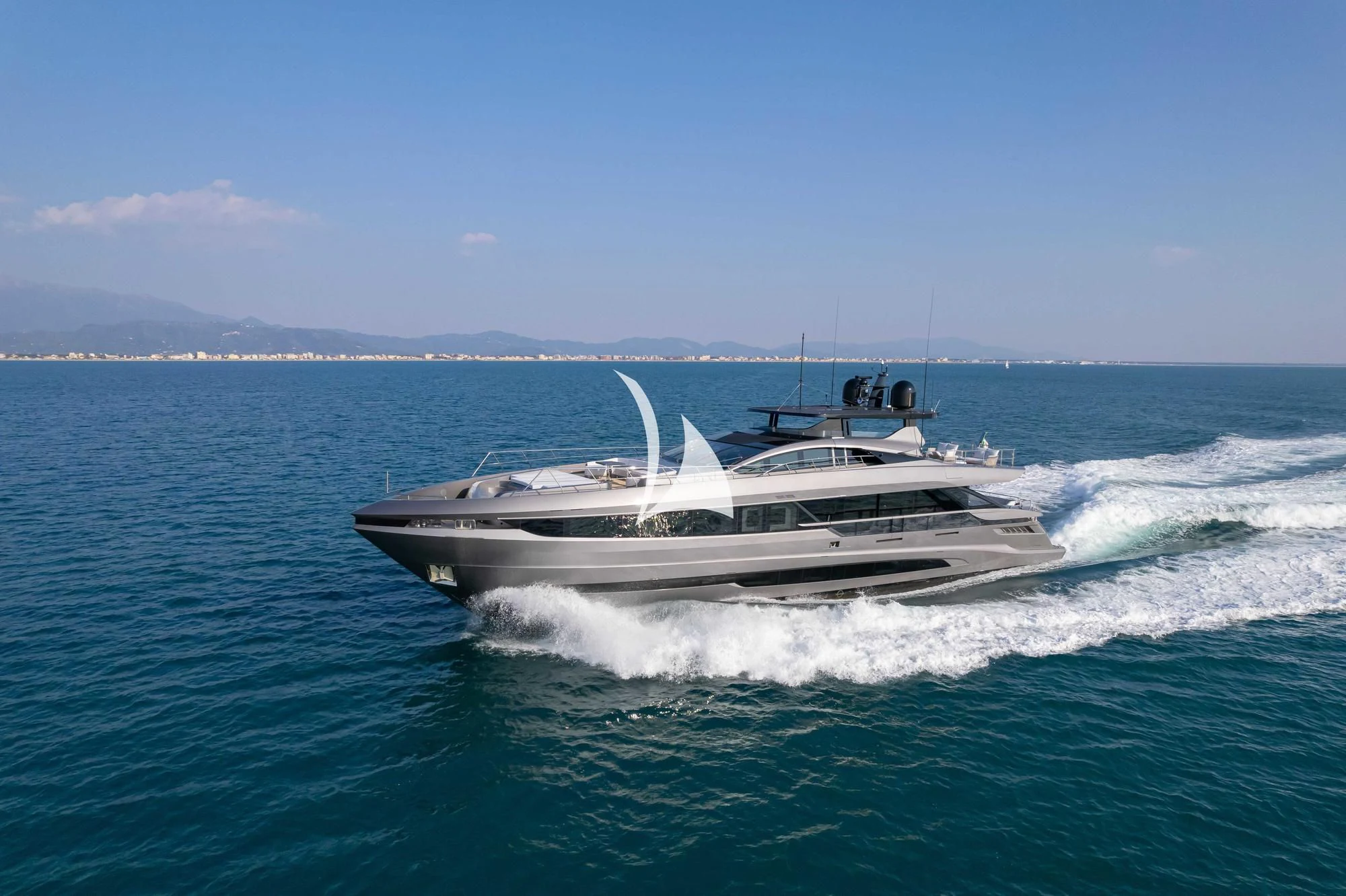

CRAZY TOO Yacht for Sale

• 1 x seawater cooled ch iller unit Frigit® C18 (or equivalent) - 400VAC, 3Ph, 50 Hz
• 3x Refrigerator circuits
• 3x Compressors
• 3x Cylinders
• total refrigeration output 240 000 BTU/h
• total heating output 280 000 BTU/h

Summer conditions:

• External air 38 °C - 100 °F, HR 80%
• Internai air 23 °C- 73 °F, max HR 45±5%
• Sea water temperature: max. 30°C - 86 °F


Winter conditions:

• External air 0°C / 32 °F,
• Internai air 22 °C / 72 °F, max HR 45±5%
• Sea water temperature: min. 5°C / 41 °F

Voltage and services
Heavy consumers 400 VAC/3ph with neutral / 50Hz
Small users 230 VAC/1ph
Lighting and light consumers 24 VDC
Emergency lighting 24 VDC
Navigation 230VAC/1 Ph - 24 VDC

Main components
• Shore power transformer:
• Input: 400Vac ±5%, 50Hz, 3 phases
• Output: 400Vac, 50Hz, 3 phases + neutral (grounded)
• Output power: 50KV A
• Diesel Generators: 2x 35kW (each) - 400 VAC/3ph 50Hz;
• 24 VDC battery banks
• 24 to 12 VDC converters for 12-volt consumers
• Battery Chargers

lnsulation on Shore power supply is guarantee by insulation transformer 3
phases input, tree phases + neutral (grounded) output. A galvanic insulator is installed
on shore ground connection.

System overview
Yacht main power supply 400 Volt AC, 50 Hertz three phase four wire system with
neutral grounded.

Power management system has a standalone PLC based; data exchange to Ship

monitoring system is used to visualize all parameter on displays.

PMS provides:

•automatic parallel of generators in case overload (threshold can be set)

•automatic discharge of one generator in case of low load. (threshold can be set; PMS can be set in two different modalities: 1) unload higher running time; 2) first generator IN for parallel has first OUT for unload).

•Seamless transfer of Load between Generators and between Generators and Shore Power.

•Meyer capability, in case of overload air conditioned and galley equipment switches off (priority and logical sequence can be set) in case of black out, generator. designed as "primary stand by" starts automatically; in case of starting failure, second generator starts. Once shore power restored, system automatically transfers power and shut down generator. Ship Monitoring System is controlling and supervising the Power Management System. ln case of pre-alarm for overload the System automatically start and parallel the second DDGG.

• 1x E.pump Gianneschi® ACB 451-400VAC/3ph/50Hz
• 1xE.pump Gianneschi® ACB 431 - 24VDC
• 1xEmergency Pump outside Engine Room Gianneschi® P&B MBMA 50-160B Diesel
• Electric remote operated valves
• Bilge Level Alarm
• Vacuum and pressure gauges

• 1x E.pump Gianneschi® ACB 431-24VDC
• 1x E.pump Gianneschi® ACB 451 - 400VAC/3ph/50Hz
• 1x Emergency Pump outside Engine Room Gianneschi® P&B MBMA 50-160B Diesel
• Vacuum and pressure gauges

• Water pressure system: 2x E.pumps Gianneschi® JET 4 B C.E. 400V/3ph/50Hz
• Hot water circulation system: 1x E.pump Gianneschi® Z25 230V/50Hz
• Hot water Expansion tank: 1x Gianneschi® 20Lt ;
• 2x Stainless Steel Boilers Gianneschî® 150LUeach / heating element 1.5+1.5kW;
• Reverse Osmosis Water maker 1x ldromar® / MC 3J, 180 IUh
• Fresh water sterilization system ldromar®
• 1x Water softener ldrofast;
• 1x Silver lon/Chlorine dosing station;
• 1 x Active Carbon Filter;
• 1 x UV Sterilizer;
• 1x mesh Filter 10 Micron;
• Level gauge

• 1x Fuel Priming & Tender Filling E.Pump: Gianneschi® CP 20 A1 24VDC;
• 1x Priming Pump: Gianneschi® Excelsior 1 GB;
• Engine Fuel Pre filter: Racer - Parker 75900FHX1 O - Duplex (VP supply) withwater alarm sensor
• DDGG Fuel Pre filter: Racer - Parker (diesel generators supply).
• Tank Level Gauges

Custom Made Fridges

•lnsulated with polyurethane foam and internally/externally lined with 1 mm

•Stainless Steel sheets.

•Each compartment provided with a specific thermostat to be set in °C or °F.

•Automatic switch for light on and blowers off when door is open

•Doors boundary with heating system in order to avoid condensation

•Condensed water heated discharge

•Compressors remotely installed

•Central fire alarm panel, in the wheelhouse (technical space)

•Smoke detectors in each accommodation area

•Smoke detectors in engine room and garages

•Heat detectors in galley and ER

•Acoustic alarm at wheelhouse

•Alarms in Engine Room, Accommodation areas, Owner's suite, Wheelhouse and Crew areas

•Call point in proximity of escape exits

Two Galvanised High Tensile Steel anchors supplied from Posidonia® (or equivalent) of
140Kg (each) mod. Super High Holding Power.

• 1 Chain x 125 m x 14mm
• 1 Chain x 125 m x 16 mm

Fuel tank - Vinylester Resin

G&B water tank - Vinylester Resin

Fresh Water tank- Vinylester Resin + Gelcoat

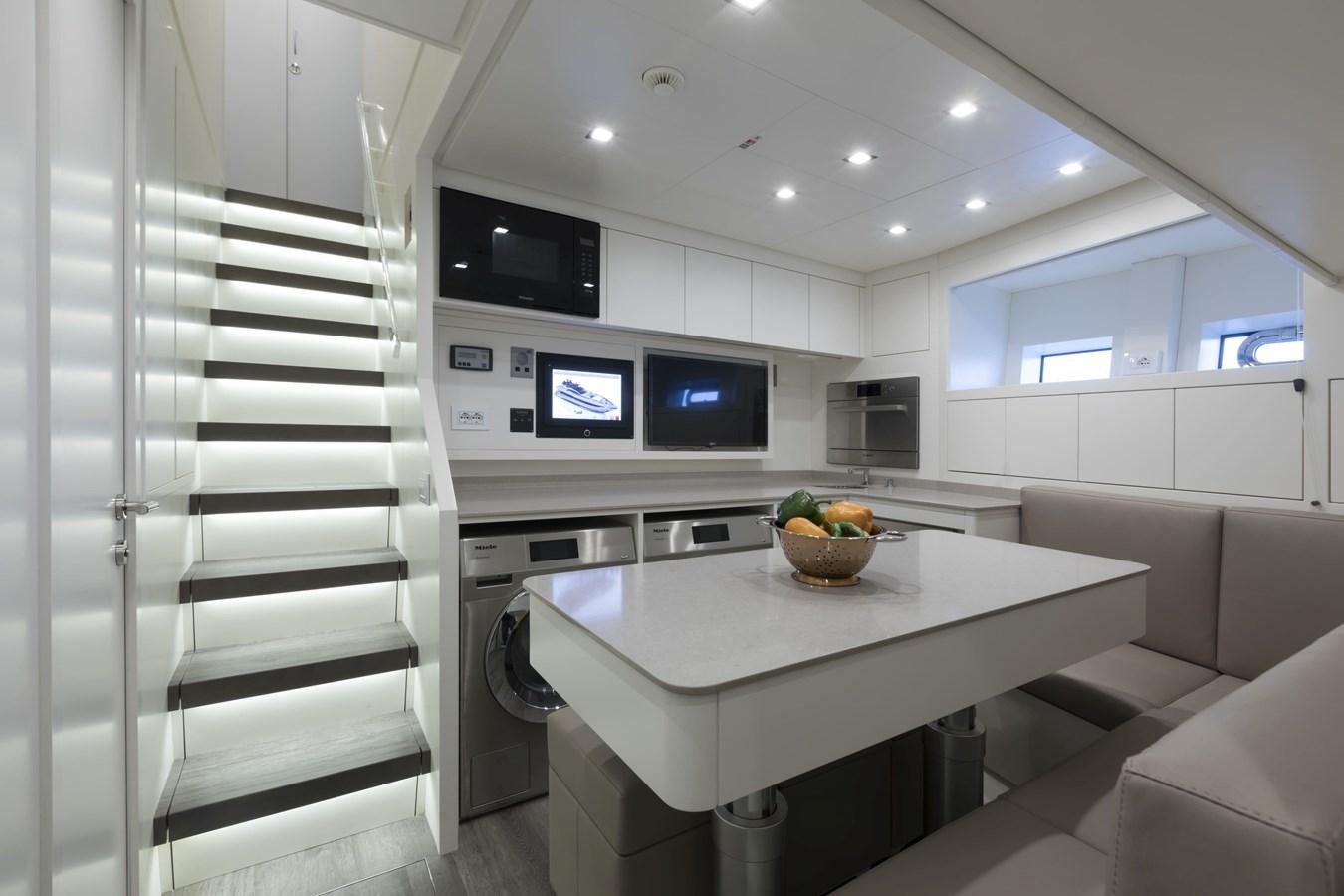

• One Hot Plates Miele® KM6117
• One Professional Exhaust hood over range Zanussi Professional® AMPV712DT
• One commercial electric oven Miele® (70 cm) H 6860 BP
• One commercial micfowave oven Miele® M 6032
• One dish washer Miele® PG 8056
• One double sink of stainless steel
• Custom made Fridges and Freezers

• One washer Miele® FtW 6065 PLUS
• One dryer Miele® PTl7136

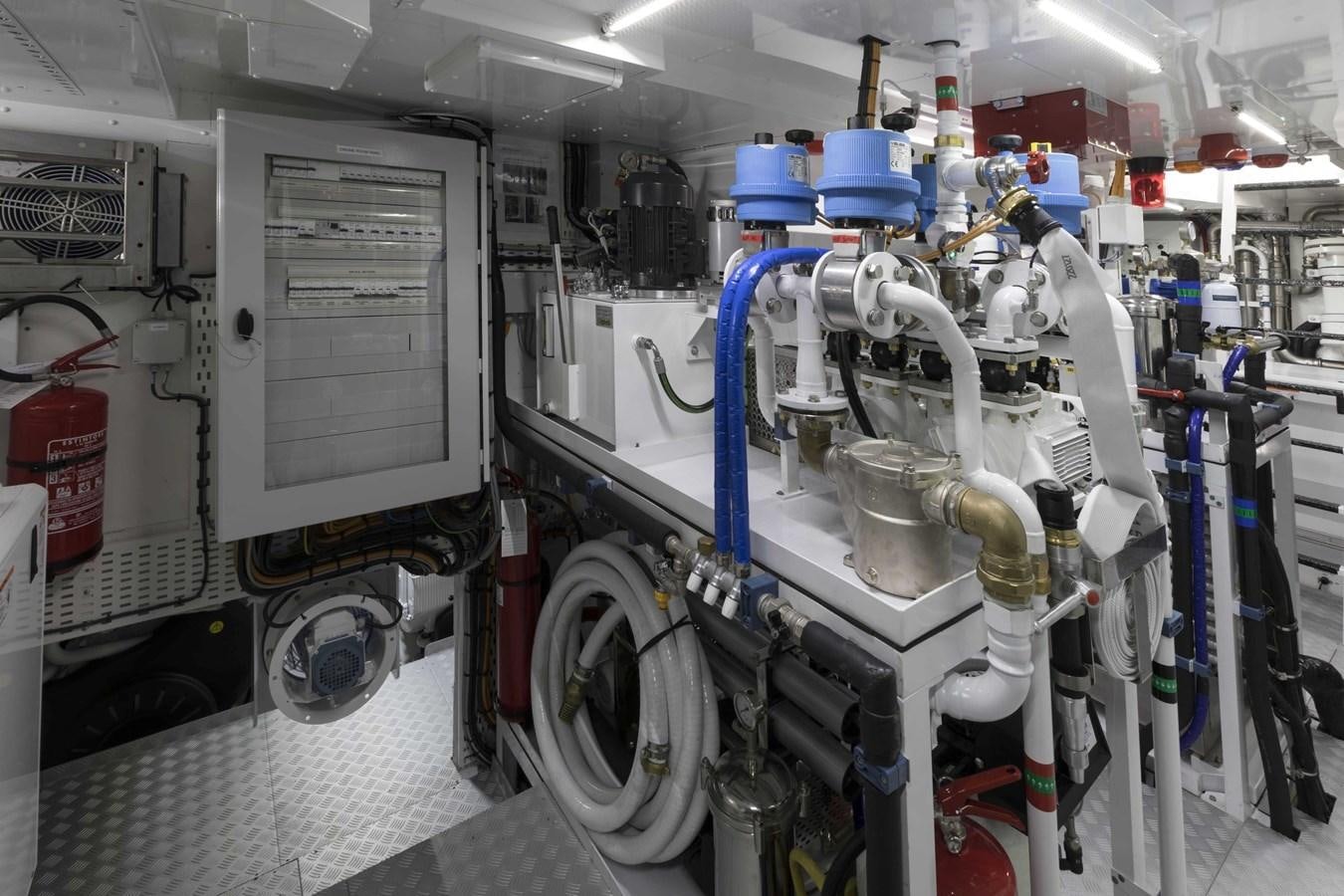

Four Volvo Penta Diesel Engines mod. D13-1000 IB - 735kW (~1000HP) at 2400

rpm. liquid- cooled, four-stroke diesel engine, common rail-technology with direct fuel

injection, controlled exhaust gas turbo-charging, charge air cooling

Four gearboxes integrated Volve Penta IPS drive units mod and counter-rotation. IPS 1350. Marine reverse-reduction gearbox for uni-rotation

Four Volvo Penta duoprop type contra-rotating propellers installed on each IPS

propeller shaft

Two Kohler® model 35EFKOZD marine generator, each having a capacity of 35 kW,

400 VAC, 50 Hz, three-phase. (600 hours 15/11/2023)

• Generators are equipped with all necessary accessories for the correct use

and operation, such as sound enclosure with removable panels, switch

gauges for low oil level and low coolant level, alarm switches for high

temperature, low oil pressure and over-speed protection.

• On board mounted contrai panels including safety shutdowns lamps and

reset switch, hour-meter and start/stop switch.

Side Power Marine bow thruster of 28 [kW] power and a predicted Thrust of 450 [kg]

with dual counter rotating 4 blades Kaplan propellers

2x 1,5 sqm (each) CMC Electrically actuated Stabilizing Fins for "Zero Speed" and

"Underway" stabilizing capability

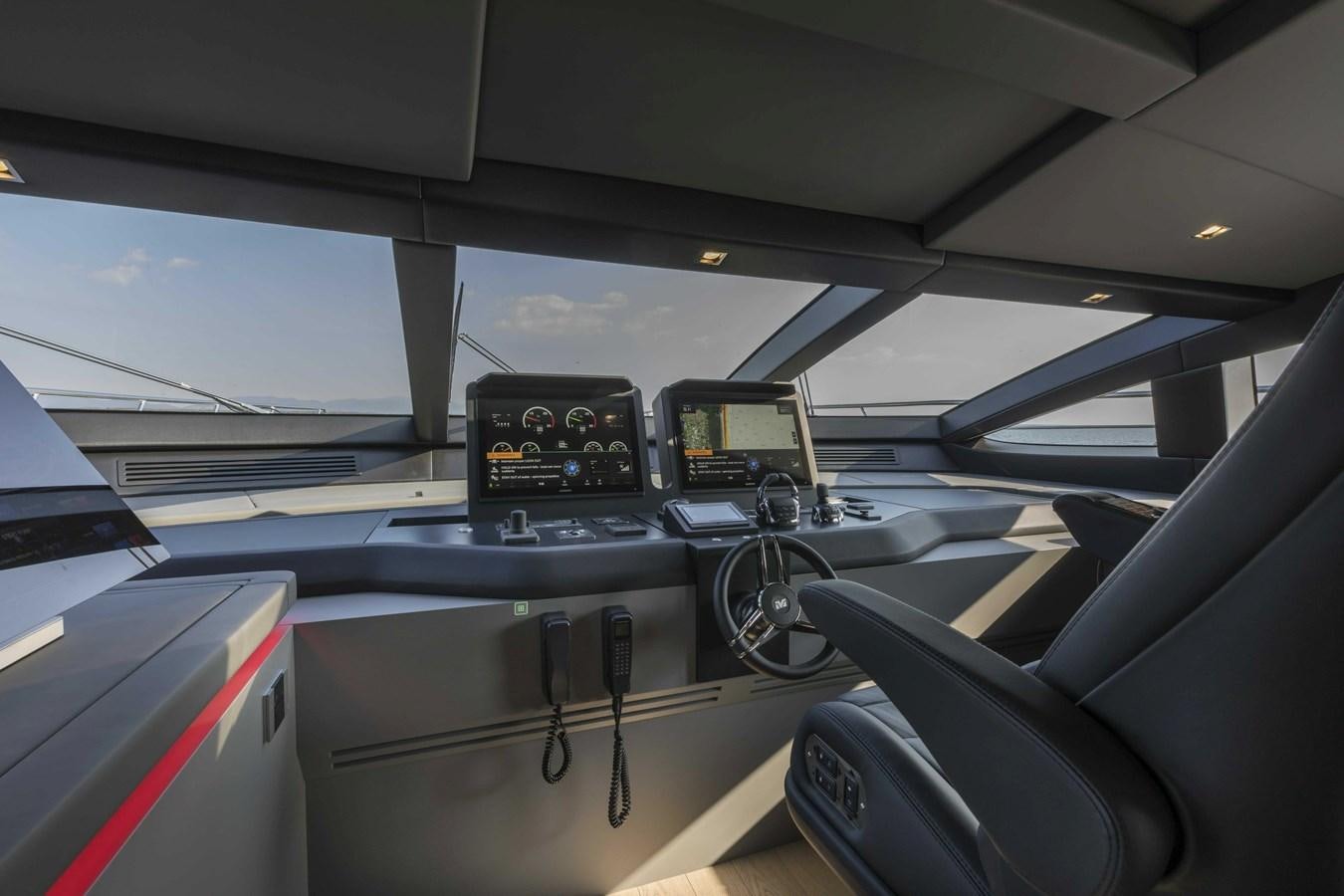

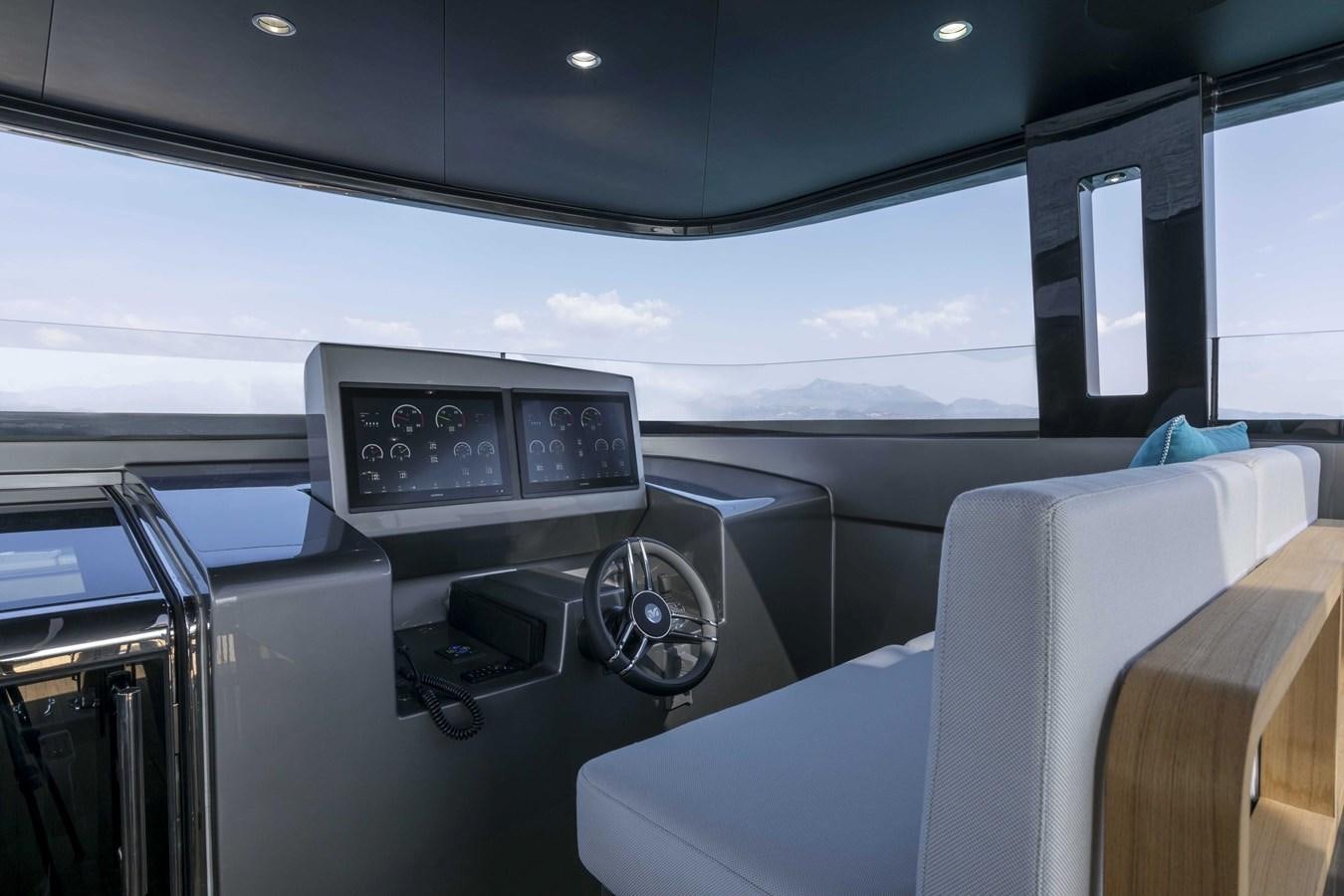

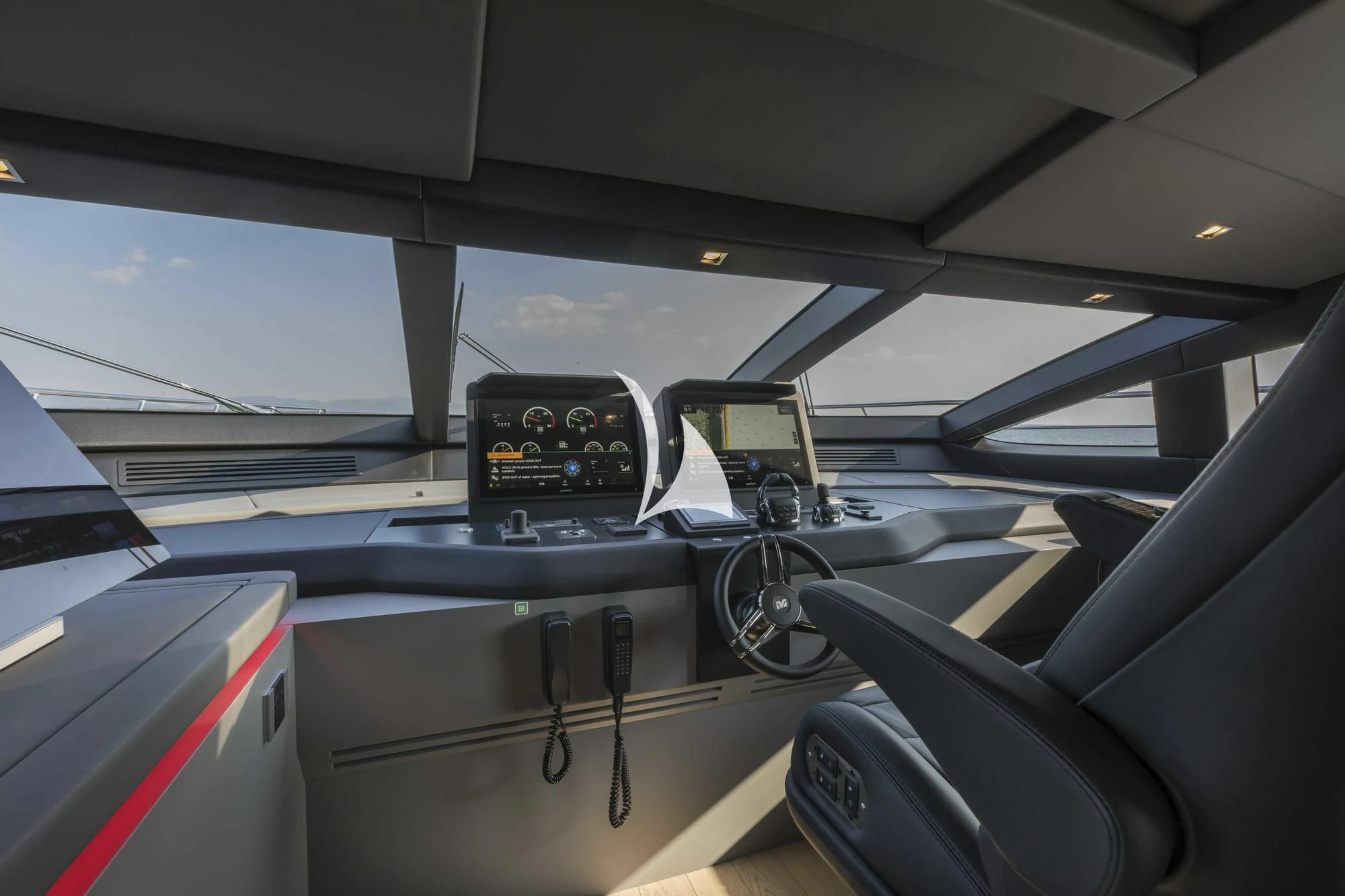

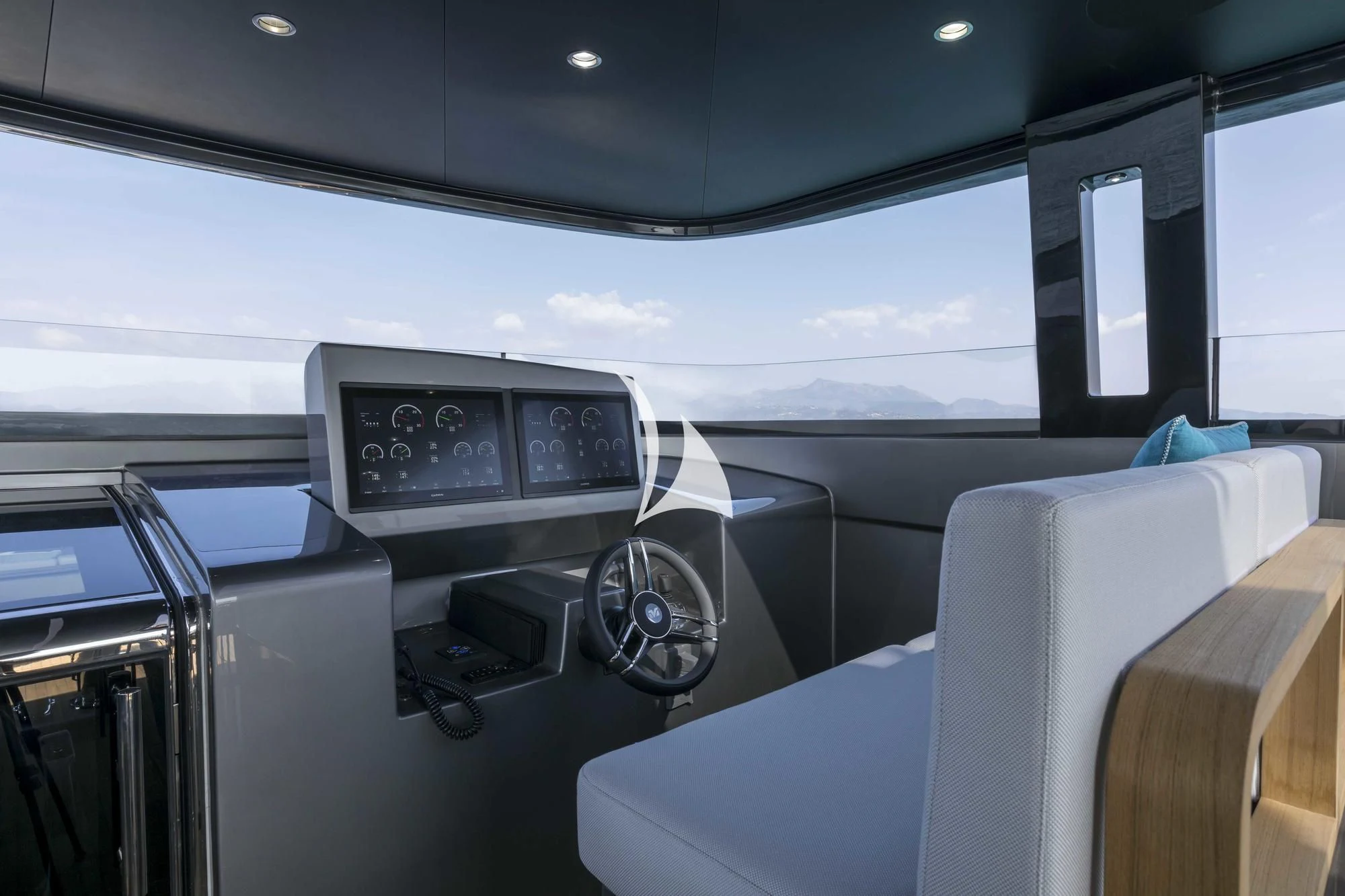

WHEELHOUSE

DISPLAY

1 x DISPLAY 24" GC 8624

PLOTTER

N.01 DISPLAY 24" GC8624 GPSMAP

2 x GRID GARMIN REMOTE IMPUT DEVICE (dashboard / seat armrest)

RADAR

1 x GARMIN GMR FANTOM 54, 50 W

GPS

1 x GA38

1 x 19X HVS NMEA 0183

1 x ACTISENSEB UFFER NMEA 0183 NBF-3 (6 OUT)

GYRO/AUTOPILOT SENSOR

1 X CCU REACTOR 40 GYRO/ AUTOPILOT

1 x VOLVO PENTA DINAMIC POSITIONING ANTENNA

VHF

1 x FURUNO VHF DSC CLASS A - IMO FM8900 S

SSB

1 x FURUNO SSB HF /MF GMDSS CLASS A WHEELMARKA PPROVED IMO

AIS

1 x AIS800

SOUNDER

1 x  GSD25 lKW CHIRP CLEARVU-SIDE-VU

1 x AlRMAR M265LH

1 X TRIDUCER PASS PLAST DST800

1 X TRIDUCERPANOPTlX PS51-TH FRONT VU

WIND

1 X  GWIND & GND10 BLACK BOX

NAVTEX

1 X  FURUNO NAVTEX NX700

BNWAS

1 X MAIN PANEL & PROCES.UNIT BR-510/520-E-10

1 x AlARM PANEL BR-540 (CREWMESS)

1 x AlARM PANEL BR-540 (CAPTAIN CABIN)

INTERCOM

1 x INTERCOM SYSTEM PHONOTECH CIS 3100 PHONTECH

1 x N.01 9052 -SUB STATION

1 X 9003 - SUBSTATION FOR HEADSET

1 X 9001-INDOOR UNIT, WALL MOUNTED

INMARSAT C

1 X FURUNO INMARSAT STD C/LRIT WHEELMARKA PPROVED IMO FELCOM18 INMARSAT-C + N.02 SSAS ALERT UNITS IC307

FLYBRIDGE

DISPLAY

2 X  DISPLAY 16" GC 8616

VHF

1 X  FURUNO RB8900W FULL FUNCTION REMOTE HANDSET WITH DISPLAY

CCTV

PTZ Camera

AXIS CAMERA PTZ P5512E

• AFT DECK CELING

• ENGINE ROOM 1

• ARCH REAR VIEW

AXIS CAMERAP1214E

• ANCHOR PORT

• ANCHOR STBD

THERMAL CAMERA

E-NAV ISMART

CCTV Display and control station

CONTROL STATION

NETWORK

C ISCOS G 300·52P, 24 ports 10/100/1000 Mbps

UNIFI AP

PEPLINK PEPWAVE BR-14G ACCESS ROUTER

HARBOUR 2.4 Ghz Wi-Fi ANTENNA AIGEAN LINK2

TV SAT

SEATEL 80 TV WORLD WIDE

AUDIO VISUAL

MAINDECK

DECK SALON

TV XI.N.01 TV 55" SAMSUNG UE55KS7000

1 x FOCAL CUBE SUBWOOFER

6 x FOCAL 100 IW6 SPEAKERS

1 x A/V RECEIVER DENON AVR X-3500H SERIES

1 x SEALUXH D/3D A/V CLIENT

1 x APPLE IPAD MINI 16GB

1 x SATELLITE DECODER

OWNER CABIN

1 x TV 49" UHD 4K NU8000

1 x FOCAL CUBE SUBWOOFER

5 x FOCAL 100 IW6 SPEAKERS

1 x A/V RECEIVER DEN ON AVR X-3500H SERIES

1 x SEALUX HD/3D A/V CLIENT

1 x APPLE IPAD MINI 16GB

1 x SATELLITE DECODER

LOWERDECK

VIP CABIN STARBOARD

1 x TV 49" UHD 4K NUB00O

2 x FOCAL 100 IW6 SPEAKERS

1 x A/V RECEIVER DENON AVR X-1600H

1 x SEALUXH D/3D A/V CLIENT

1 x APPLE IPAD MINI 16GB

1 x SATELLITE DECODER

VIP CABIN PORT

1 x TV 49" UHD 4K NUB00O

2 x FOCAL 100 IW6 SPEAKERS

1 x A/V RECEIVER DENON AVR X-1600H

1 x SEALUXH D/3D A/V CLIENT

1 x APPLE IPAD MINI 16GB

1 x SATELLITE DECODER

GUEST CABIN STARBOARD

1 x TV 32" M5520 Full HD Smart TV

2 x FOCAL 100 IW6 SPEAKERS

1 x A/V RECEIVER DENON AVR X-1600H

1 x SEALUXH D/3D A/V CLIENT

1 x APPLE IPAD MINI 16GB

1 x SATELLITE DECODER

GUEST CABIN PORT

1 x TV 32" M5520 Full HD Smart TV

2 x FOCAL 100 IW6 SPEAKERS

1 x A/V RECEIVER DENON AVR X-1600H

1 x SEALUXH D/3D A/V CLIENT

1 x APPLE IPAD MINI 16gb

1 x SATELLITE DECODER

CREWMESS

1 x TV 32" M5520 Full HD Smart TV

1 x SATELLITE DECODER

CAPTAIN CABIN

1 x TV 32" M5520 Full HD Smart TV

1 x SATELLITE DECODER

CREW CABIN X2

2 x HARMAN KARDON OMNI 20 WIRELESS HD AUDIO SYSTEM

EXTERIOR

FLYDECK

1 x CRESTRON AMPLIFIER AUDIO MATRIX (MANAGED EXTERIOR AREAS)

1 x AMPLIFIER ECLER EgpaB-150

1 x SONANCE VPXT6R WATERPROOF LOUDSPEAKERS

1 x SEALUX HD AUDIO CLIENT

1 x YAMAHA WXAD-10 AIRPLAY ADAPTER WIRELESS MUSIC

FORE DECK

4 x SONANCE VPXT6R WATERPROOF LOUDSPEAKERS

1 x SEALUX HD AUDIO CLIENT

1 x YAMAHA WXAD-10 AIRPLAY ADAPTER WIRELESS MUSIC

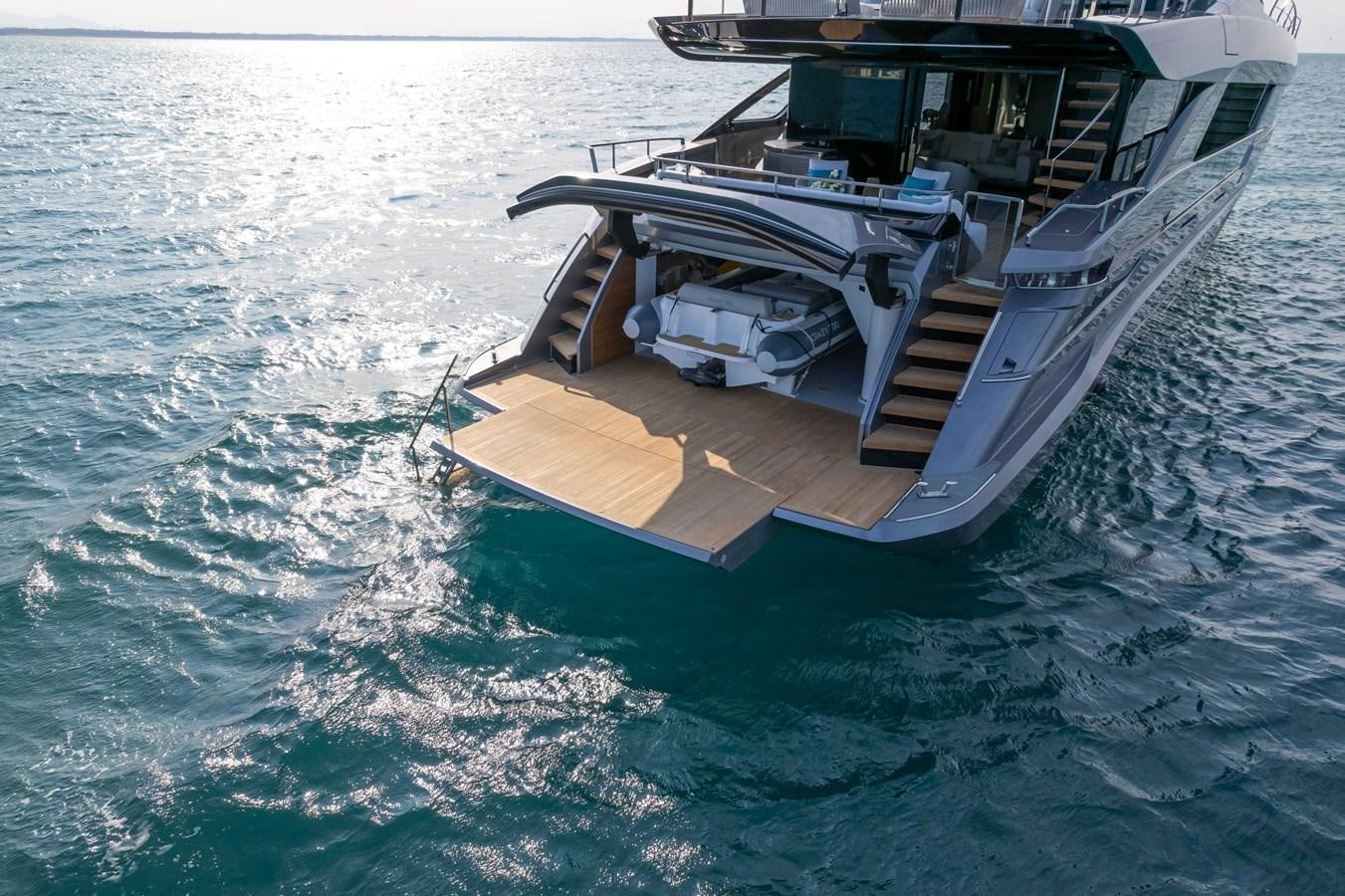

GARAGE

2 x SONANCEV PXT6R WATERPROOFL OUDSPEAKERS

1 x SEALUX HD AUDIO CLIENT

1 x YAMAHA WXAD-10 AIRPLAY ADAPTER WIRELESS MUSIC

AFT DECK

1 x AMPLIFIER ECLER EgpaB-150

8 x SONANCEVPXT6RW ATERPROOF LOUDSPEAKERS

1 x SEALUX HD AUDIO CLIENT

1 x YAMAHA WXAD-10 AIRPLAY ADAPTER WIRELESS MUSIC

1 x SATELLITE DECODER

Williams® DieselJet 565 Jet Tender

4 seabob

1 jet-ski

2 paddle

2 kayaks

Wake board

Water ski
