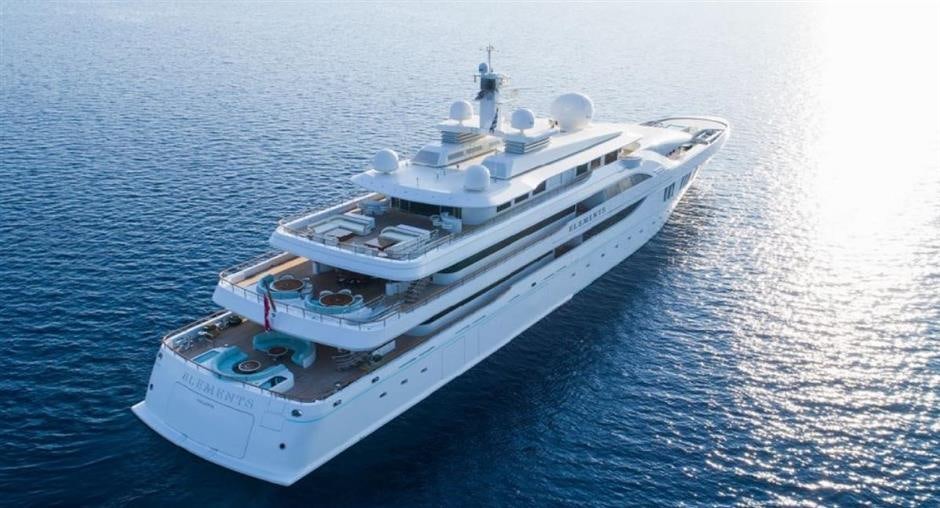

ELEMENTS Yacht for Sale

• Exhaust system & silencer: Marquip BV for (2) under water exhaust & (1) DCL for mast
• Main switch board: Technical Harmony & Yachtley (Schneider & Merlin Gerin)
• Emergency switch board: Technical Harmony
• Power management: DEIF
• Main transformer: 2x ETI 75KVA
• Emergency transformer: 2x ETI 20KVA
• Rudder angle indicator: 2x 35°
• Control & monitoring: Integrator L3-UK & hardware
• Underwater lights: Ocean Led, RGB-W controlled by Creston
• Fuel filters: Racor Filters (Main engines, Generators)
• Fuel oil separator: 2x Alfa Laval P600, 1.6m3/hour
• Main fuel pumps: 2x Gianneschi, FQB 150, 9m3/5bars
• Oily water separator: 1x Poseidon EVO PE 1.0
• Lube oil pump: 1x Gianneschi FQ 15 GH, 0.9m3/2bars
• Dirty oil pump: 1x Gianneschi FQ 15 GH, 0.9m3/2bars
• Sludge pump: 1x Gianneschi FQB200, 15m3/2bars
• Marpol pump: 1x Gianneschi ACM502/C-BT, 15m3/5.2bars
• Bilge/fire/ballast pumps: 3x Gianneschi, ACG-65-7/200, 48m3/6bars
• Emergency fire pump: 1x Gianneschi, ACG-65-7/200, 48m3/6bars
• Emergency bilge pump: 1x Gianneschi, ACG-65-7/200, 48m3/6bars
• Watermakers: 2x Idromar, 30.000 lts/day – 7.925 USGAL/day
• Hydrofor system: 2x Gianneschi ACM402 4KW
• Transfer pump: 1x Gianneschi ACB431/B, self-priming 8.4m3/2.4bars
• Water boilers: 3x Gianneschi, 36kW
• Sewage treatment and toilets: Hamman HL Cont, Plus 10 24.000 lts/day – 6340 USG/day
• Air compressor: 2x Atlas-Corpo 91.3m3/13bars + 1x Air receiver 250lts
• Hydraulic pack: 5x Mor-Saverio (2x passerelle, Limo tender crane, Water toys crane, Provision crane, 2x SOLAS rescue cranes, Provision pantographic side door
• Vessel To Comply with Regulations for the:
• Prevention of Pollution by Oil (Fuel Oil Management)
• Prevention of Pollution by Sewage:
• Sewage Treatment System (Black & Grey Waters), in accordance with IMO - MARPOL / MEPC
• 159(55) regulation
• Wet Garbage Treatment System in the Galley & Pantries
• Garbage Management Plan
• Grey & Black Water Holding Tanks (55 m3)
• Prevention of Air Pollution

BRIDGE DECK
The sky lounge is illuminated by large windows and opens up to a shaded exterior deck space aft.
Two L shaped sofas, each with its own coffee table and Ottomans, face aft with two bars well
situated for service. A third bar and dumb waiter are in the sky lounge itself. The sky lounge and
aft exterior deck space are well suited for large groups or as private alcoves for more intimate

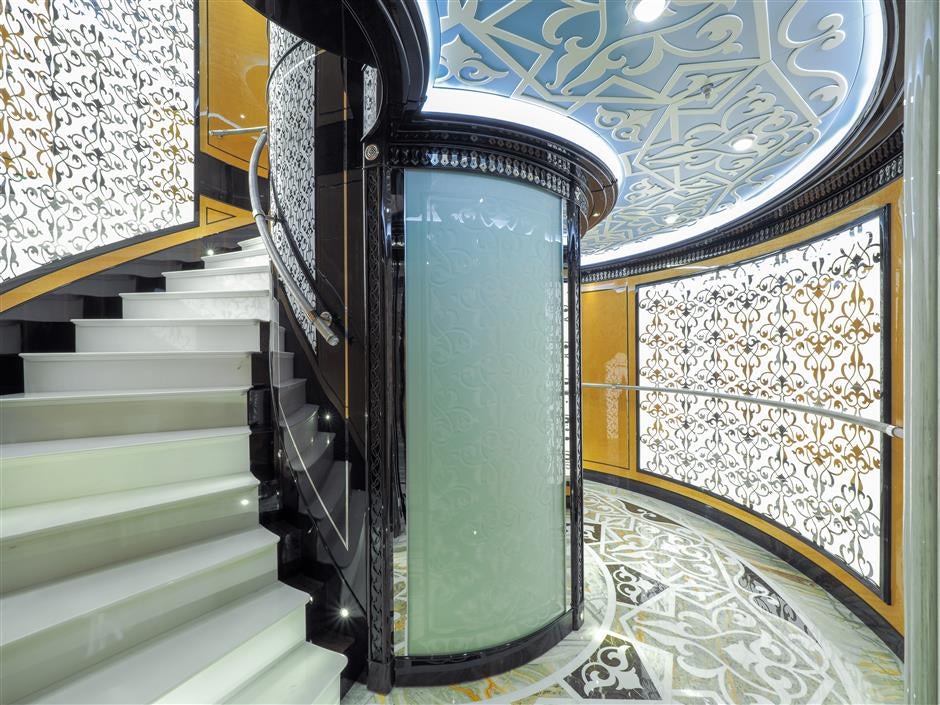

gatherings of smaller groups. Accessible via the central internal staircase and elevator the forward
part of the Bridge deck comprises of the Bridge itself, captain's cabin, ship's office, store, powder
room and technical spaces.

MASTER DECK
Entering the MASTER SUITE the oval lobby doubles into a walk-in closet with more space around

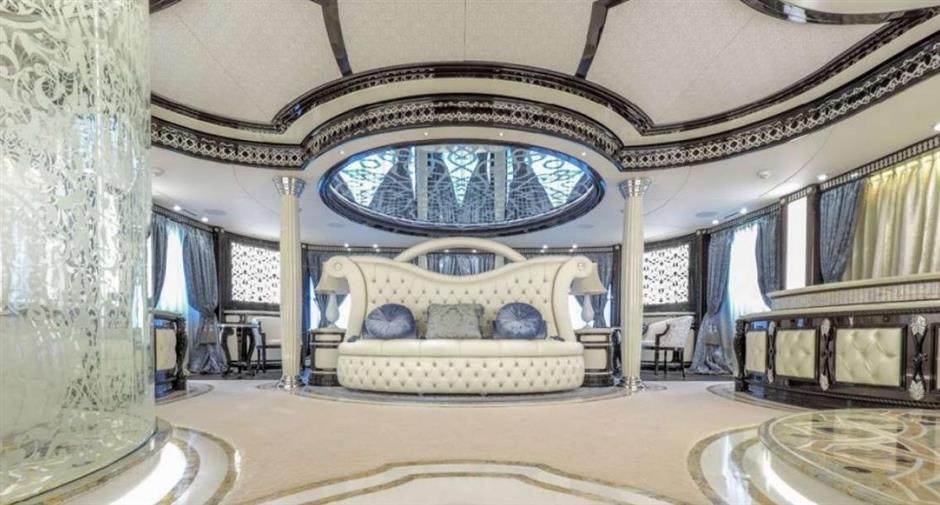

to the port side and master bathroom on the starboard side. The MASTER STATEROOM itself is
immediately forward offering 180-degree views and opening up onto a private deck including the
swimming pool and helipad. Within the MASTER STATEROOM there is an oval bathtub and
jacuzzi on the port side illuminated by a skylight as well as a small private dining table on the
starboard side. The bed is in the center facing forward with a desk and bar on either side.

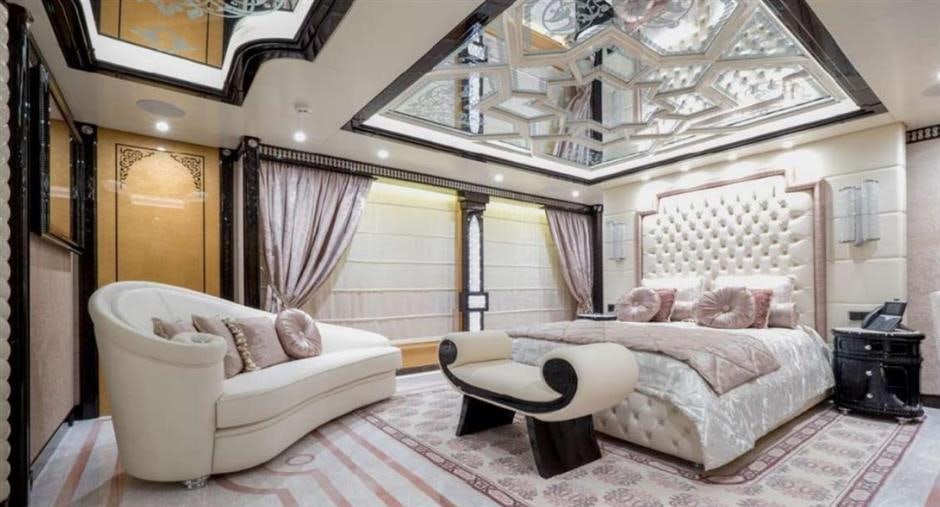

Immediately aft of the MASTER SUITE are two VIP cabins each with large en-suite bathrooms
ample closet space and abundant natural light due to the large windows. The Butler's cabin and
powder room are on the starboard side further aft. To the aft of the central stairwell and elevator

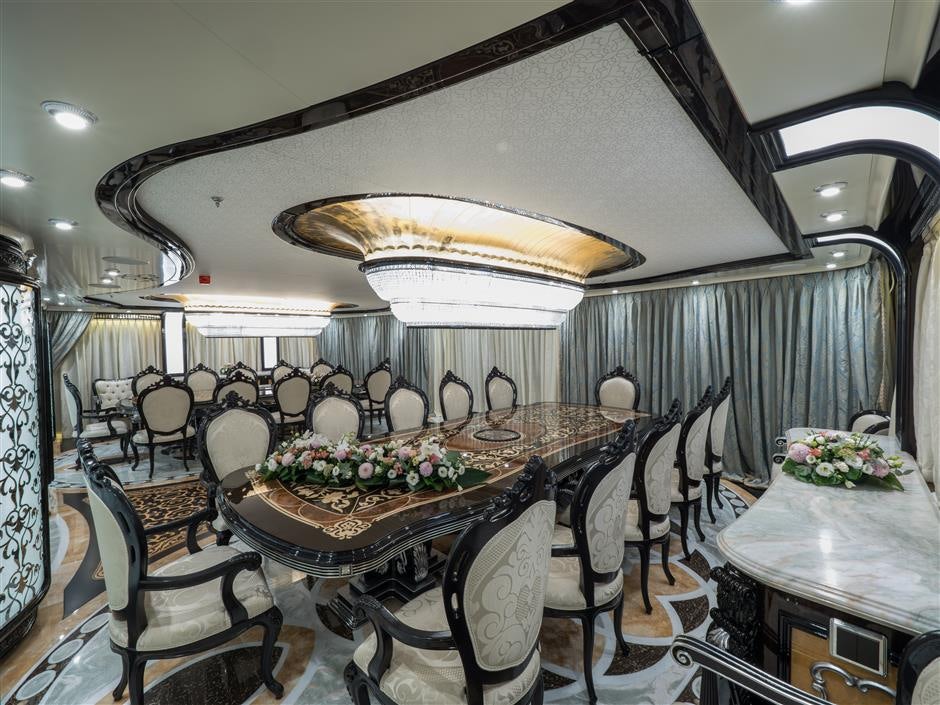

are a dedicated cinema, private card room and the main dining room. The dining room can
comfortably accommodate 24 guests on two large oval tables and opens towards on to a shaded

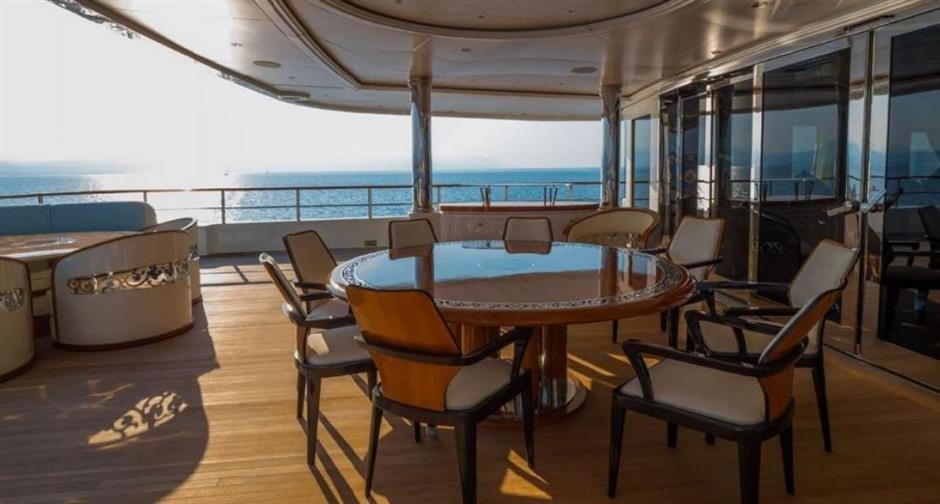

deck space aft with two smaller round tables ideal for breakfast or al fresco dining.

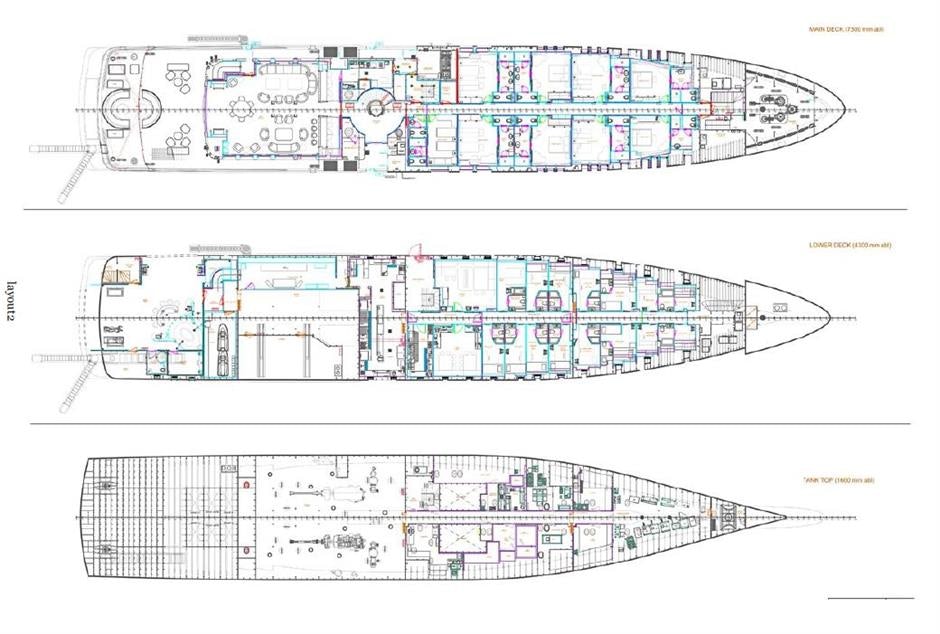

MAIN DECK

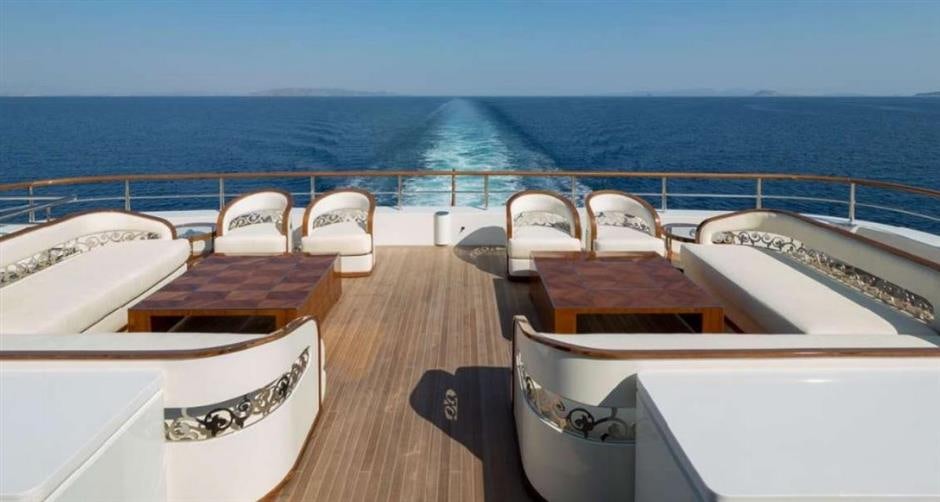

Stepping on board from the dock the large aft deck is shaded, like most of the exterior deck
spaces on board. Two round tables on the aft are enclosed by two comfortable semi-circular

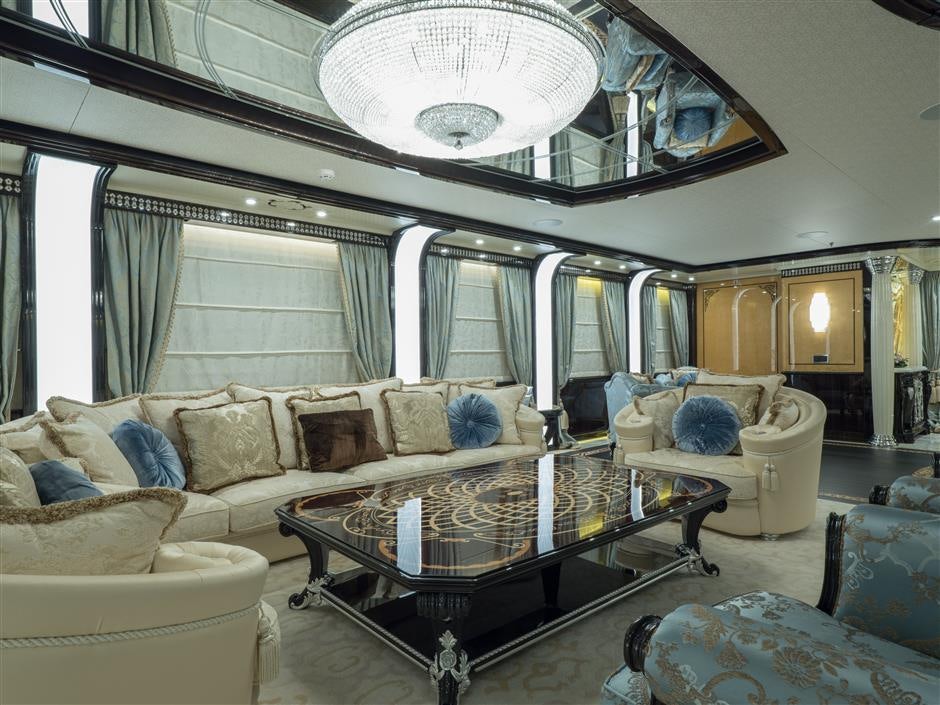

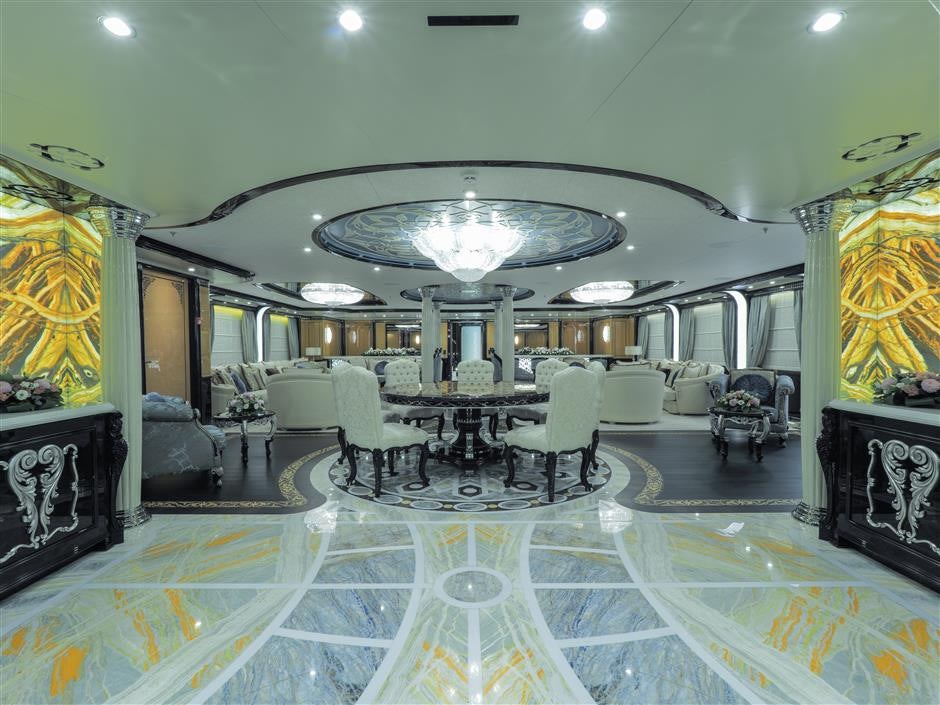

sofas. Stepping into the main salon there are two large seating areas either side almost mirroring

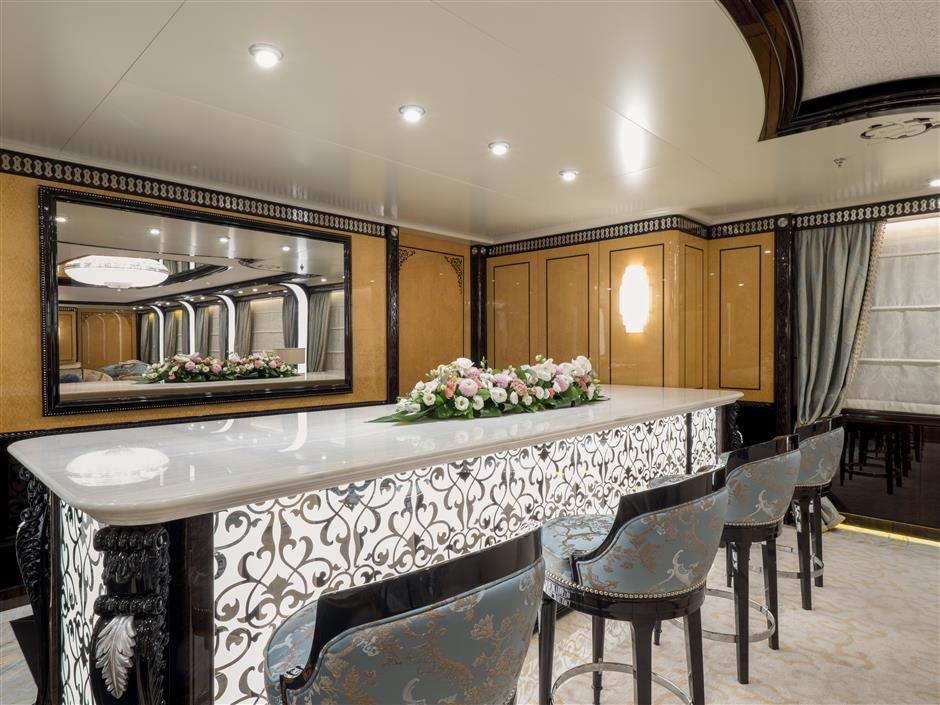

one another with large comfortable sofas and arm chairs. On the starboard side forward, a large
bar overlooks the space. Moving forward and passed the central staircase and elevator is the
grand corridor leading off to nine en-suite guest cabins. The cabins enjoy breath-taking views out
of their large windows and are naturally illuminated through the same windows. These are well

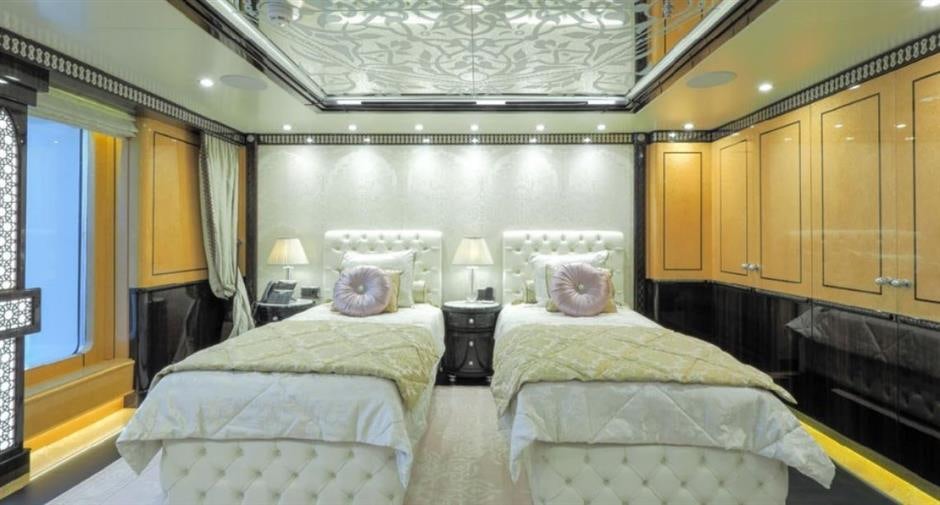

appointed en-suite state rooms, five with twin beds and four with doubles.

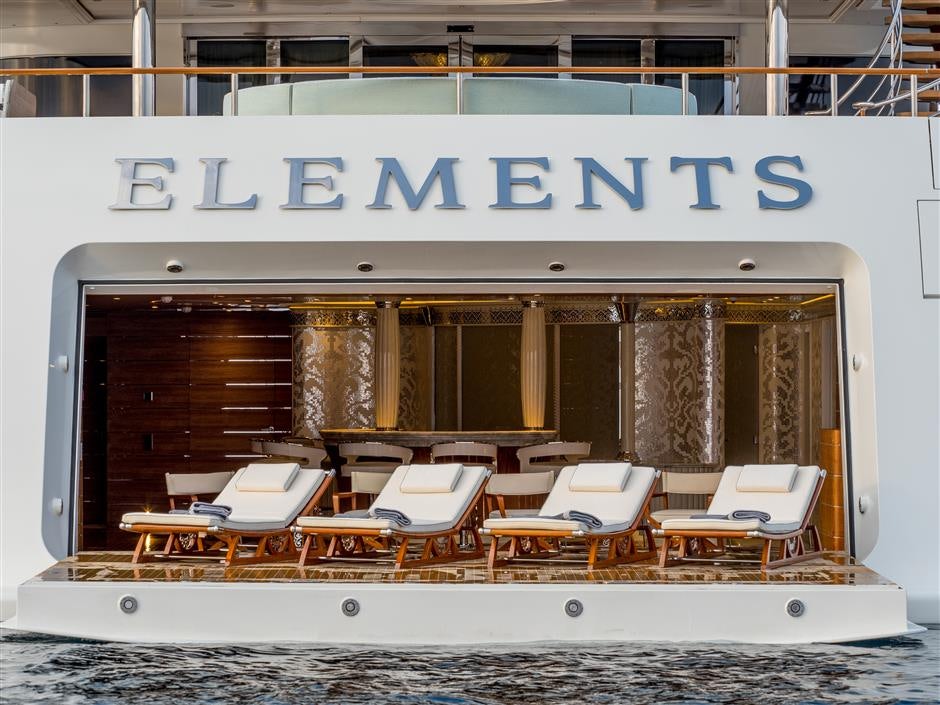

BEACH CLUB
The guest areas are completed with the Beach Club on the aft of the LOWER DECK. With two
large swim platforms opening up onto sea level out of the aft and port side of the yacht, offering
easy access to the sea or platforms for receiving guests by tender. The Beach club itself offers a

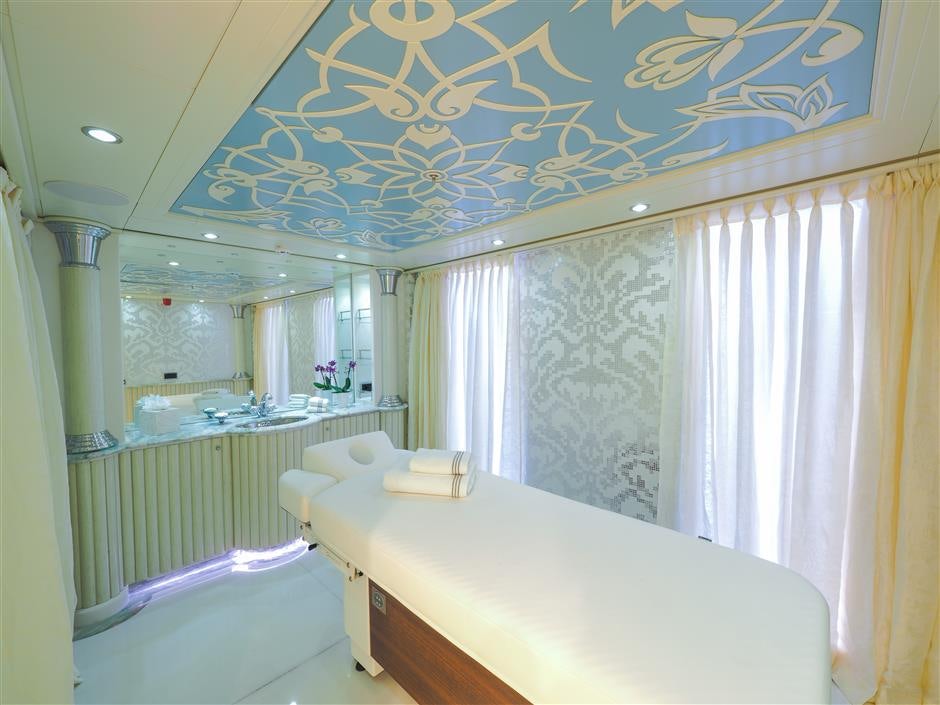

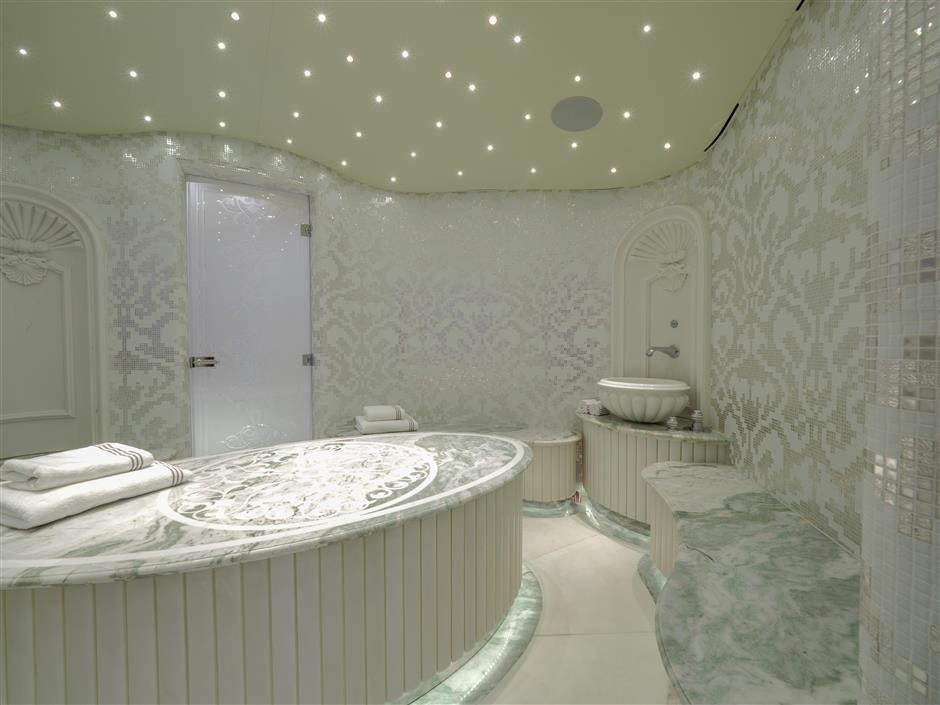

massage room, Turkish bath, bar and powder room. Crew & Staff: 5 x Single 8 x Two-Bedded 2 x
Four-Bedded 1 x Butler's 1 x Hospital Crew Officer's Mess Room: 62 m2

• Aluminox Electric Range, 3 hot plates 6 positions
• Aluminox Electric Grill, double 60x40cm
• Aluminox Electric Grill, single 60x40cm
• MKN Electric Combi Steamer Oven
• Piron Electric Combi Steamer Oven
• Sagi Blast Chiller & Base Hot Chamber
• Aluminox Reach-in Refrigerator (455lts)
• Aluminox Refrigerator (598lts)
• Aluminox Refrigerator (598lts)
• Roller Grill Salamander
• Aluminox Model 400Food Waste Disposal
• Tony Team TT160 Garbage Compactor

• GMDSS consol: 1x Sailor 6334B A3 GMDSS VHF: 2x Sailor 6222, 2x 1.27m
• antennas, 3x repeaters bridge & wings stations
• GMDSS HF/MF: 1x Sailor 6301, 2x Antennas with tuner
• GMDSS handheld VHF: 3x McMurdo R5
• Crew VHF: Icon IC-M323 Bridge console VHF: Icon IC-M323
• Immarsat: 2x Sailor 6110, integrated SASS and LRIT
• Fleet broadband: 1x Sailor 500
• NAVTEX: 1x McMurdo Air band VHF: Icon IC-A120E
• VSAT antennas: 2x COBAHM (SEATEL) 5012,
• 1.4m16 Watts BUC + Arbitrator, VSAT Modem
• Talk back system: 1x Vingtor & Stentofon, central unit & 17 terminals
• Batteryless phone: 1x Vingtor & Stentofon, 5 terminals
• Desk top IP phone

• Navigation electronic integrator L3 systemUK
• Integrated bridge & CAM wheelhouse: 7x Sams-Wartsila Nacos Platinium, 6x processor
• Integrated bridge & CAM: 3x Sams-Wartsila
• Nacos Platinum, Captain, engineer, officer’s mess
• Integrated bridge & CAM MCR: 2x Sams- Wartsila Nacos Platinum, MCR (engineroom)
• Monitor main console: 7x Data Modul S-BAND radar: Sams-Wartsila, 30Kw
• X BAND radar: Sams-Wartsila, 12Kw Gyrocompass Yokogawa CMZ900S
• Bearing repeaters wing station Digital repeater steering room
• Compass monitor & selector main console Magnetic compass: 2x Lilley & Gillie SR4
• GPS compass JCR JLR21 Autopilot: Sams-Wartsila
• Speed log: Skipper DL850 Deep sounder: Skipper GDS102, Dual frequency/transducer 50KHz/200KHz
• GPS: 2x Saab R5 Meteo station: Obsermey & Gill
• Ultrasonic sensors wind, barometric, temperature, humidity
• VDR: JRC JCY1900 fixe & floating captule
• AIS: 11x SAAB R5 AIS Class Transponder EPIRB: 2x McMurdo Smart Find E5
• SART: 1x McMurdo S5 AIS 1x Far 500 Forward Looking Sonar
• Weather station: 1x Obersmey & Gill (Wind, Temp, Pressure, Humidity)

• TV satellite antennas: 2x 1.24m Cobham SEATEL 120TV, 1x Cobham SEATEL ST94
• IF network: Spaum & Ikusi (Amplifiers, Switches, Tabs, Mixers, Sockets)
• Terrestrial tv & radio antenna: 1x Naval, Mark 32ALC
• System backbone: IP Ethernet
• Control system: Creston with Ipad application
• Jacuzzi (owner cabin): 1x unit + self-priming
• Gianneschi pump 45m3 / 2bars

• 1x Custom Line 8.4m Limo Tender
• 2x SOLAS approved Diesel Jet Rescue Tenders
• Compressor BAUER Mini Verticus III MV120- 5.5-3 (250Lt/h)

• Anchor windlass: 2x Data Hydraulic, DZC 11000, double speed max pull 8.1/3.6tons & speed 15/30m/min
• Ground tackle:
• 2x Galvanized Anchors Sotra, High holding 1195Kgr
• 2x Galvanized chains Sotra, GRADE U3 7 & 8 shackles
• Aft warping capstans: 2x Data Hydraulic, DHC 7000, double speed 7/2.2tons & 10/30m/min
• Boat crane & davits:
• 2x Mor-Saverio 1600kg SWL Rescue BoatCranes
• 1x Mor-Saverio 8t SWL Twin Beam Limo Tender Crane
• 1x Mor-Saverio 1000kg SWL Water Toys Crane
• 1x Mor-Saverio 7.1m x 90cm Hydraulic Stern Passerelle
• 1x Mor-Saverio 7m x 90cm Hydraulic Side Passerelle
• 1x Marquip Sea Stair Side Boarding Ladder
• Stern door: Mor-Saverio /Yachtley, Teak Laid
• Swim Platform of approx. 14sqm
• Bathing door: Mor-Saverio /Yachtley, with
• Teak Laid Swim Platform of approx. 12sqm
• Searchlight: 1x Colour Light, CL25-11, Range 3000m
• Awnings: Multiplex System
• Forward mast: 1x Mor-Saverio, telescopic 3 sections, 9m
• Heated Swimming pool of 5x2 meters on owner deck

• 2x 100 Person Mass Evacuation Systems 2x SOLAS Rescue Boats
• 4x Lifebuoys 4x Lifebuoys with Self-Igniting Light
• 2x Lifebuoys with 30m Line 2x Lifebuoys with Self-Activating Smoke, Self-Igniting Light, 30m Line
• 2x Embarcation Ladders 62x Adult Lifejackets with Self-Igniting Light and Whistle
• 6x Child Lifejackets with Self-Igniting Light and Whistle
• 6x Immersion Suits
• 3x Portable Two-Way VHF Radiotelephones 2x Emergency Position Indicating Radio Beacons
• 2x Radar Transponders 6x Pyrotechnic Distress Signals, 12x Rocket
• Parachute Flares, 1x Line-Throwers
• Complete medical kit 34x Water Fire Hoses with Spray/Jet Nozzles
• 2x 20m Foam Fire Hoses with Spray/Jet Nozzles
• 10x Fire Suits, 10x B.A Sets, 10x Pairs of Boots and Gloves
• 10x Rigid Helmets, 20x Fireproof Lifelines 10x Electric Safety Lamps (Hand Held), 10x Fire Axes
• Ultra fog Salwico gaz detector
• Extinguishers Lingso-Wartsila Control and Monitoring System
• FLIR. M400 Infrared & Colour Stabilised Camera
• 19x Bosch HD IP POE 1080P Pan Tilt Zoom 30x
• 16x Bosch HD IP POE 1080P Fixed

Consilium (Salwico CCP), central unit, 4x repeaters, 6x loops, 42x manual calls, 115x smoke sensors, 5x smoke/heat, 19x heat sensors
