Asking
$3,999,000
Not for sale or charter to U.S. residents while in U.S. waters.
Just Reduced!
Bring Offers!!
2015/2023

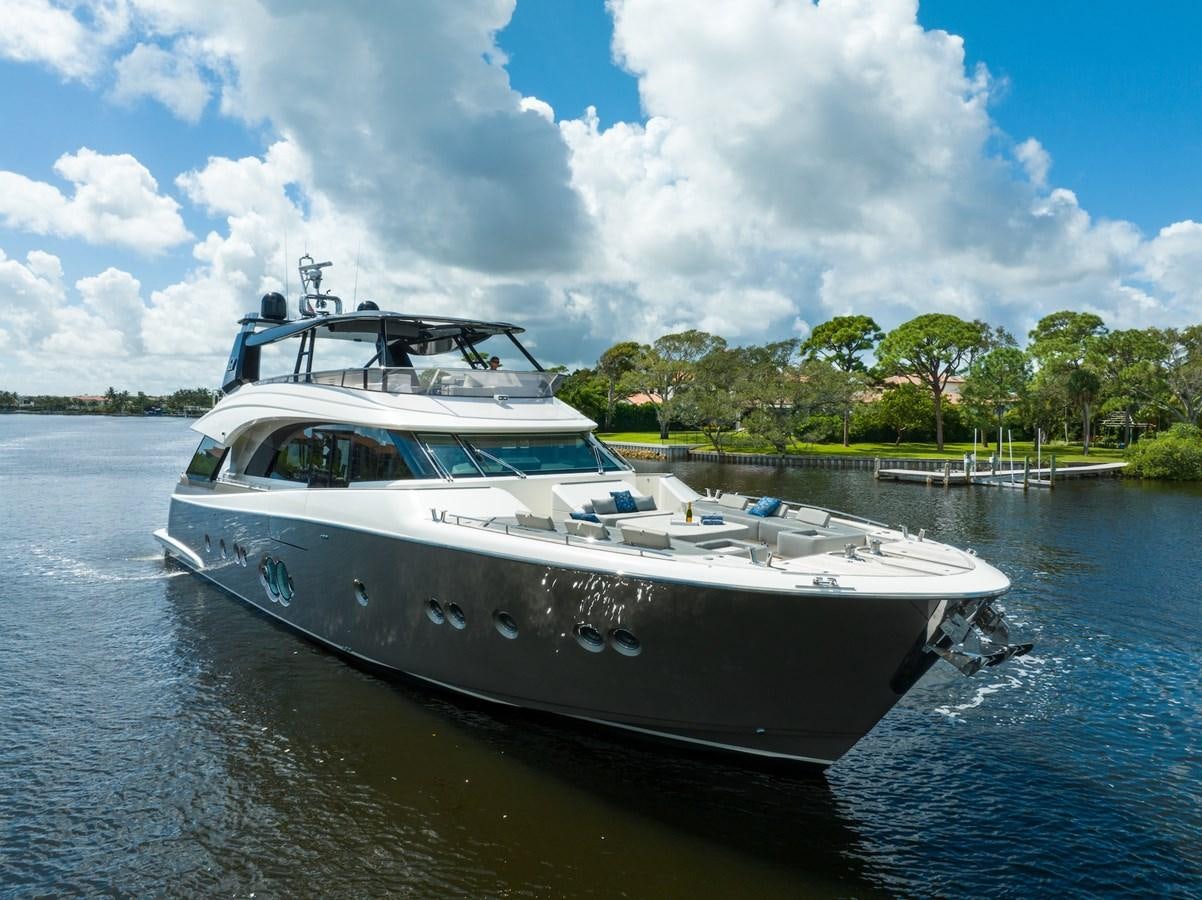

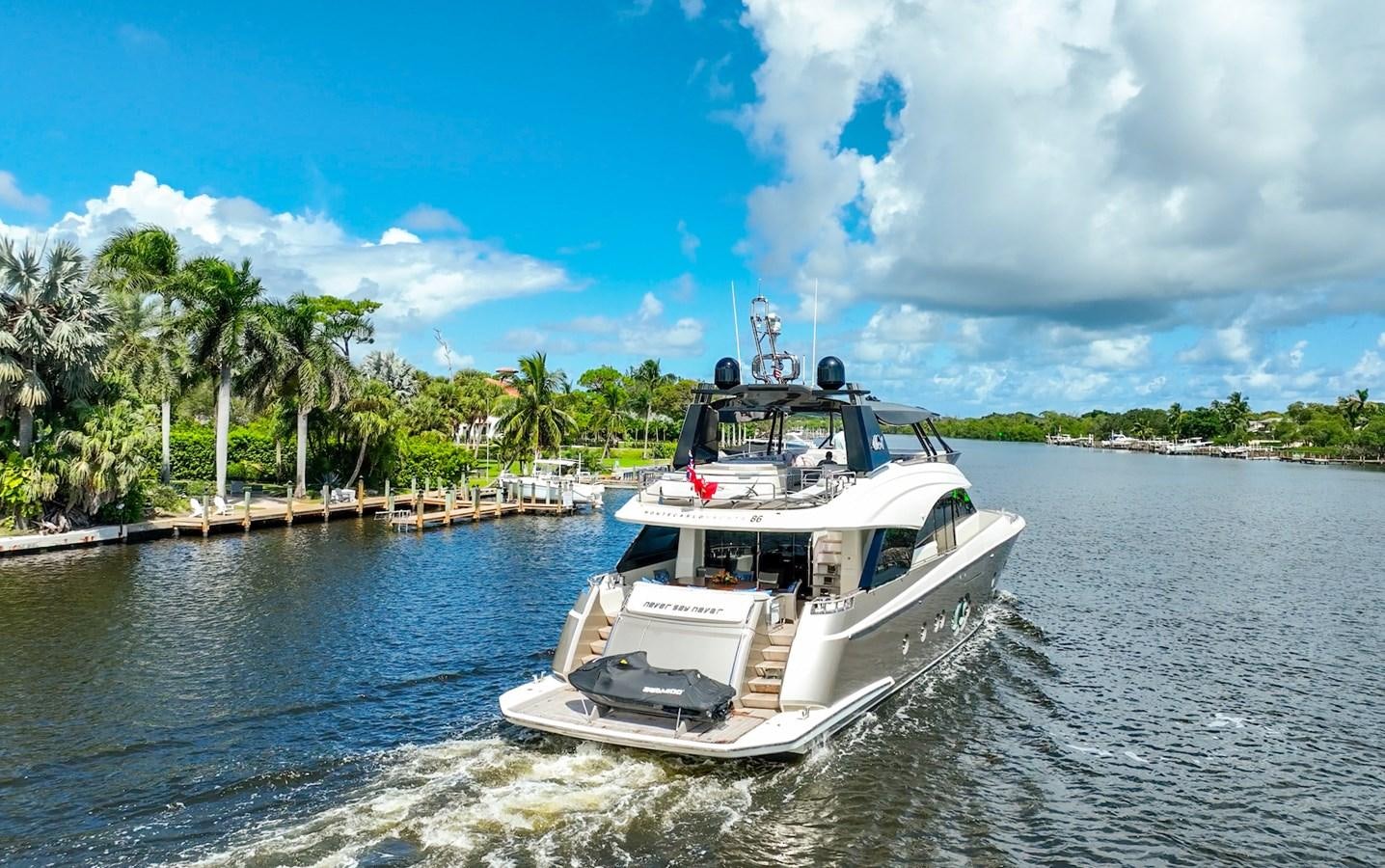

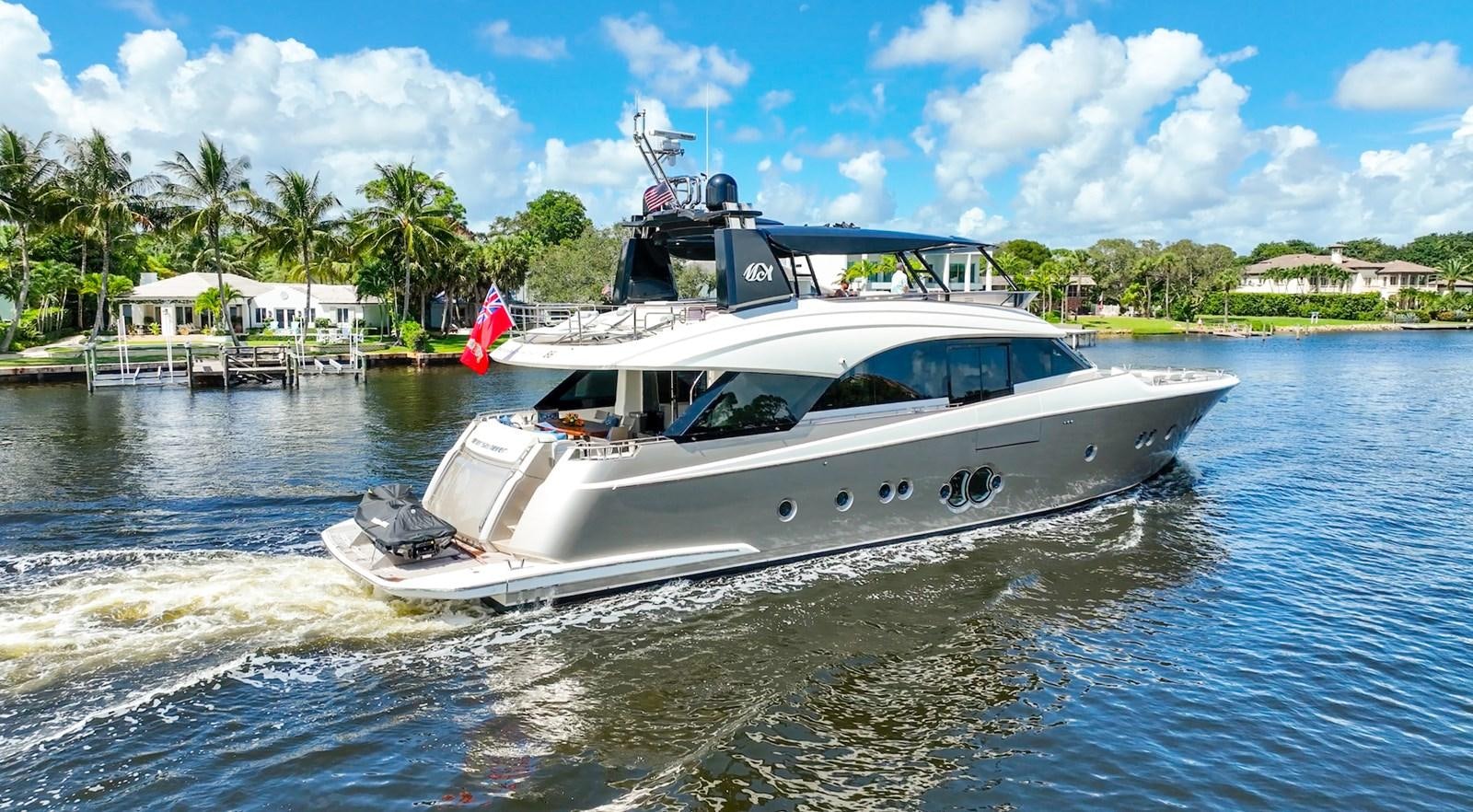

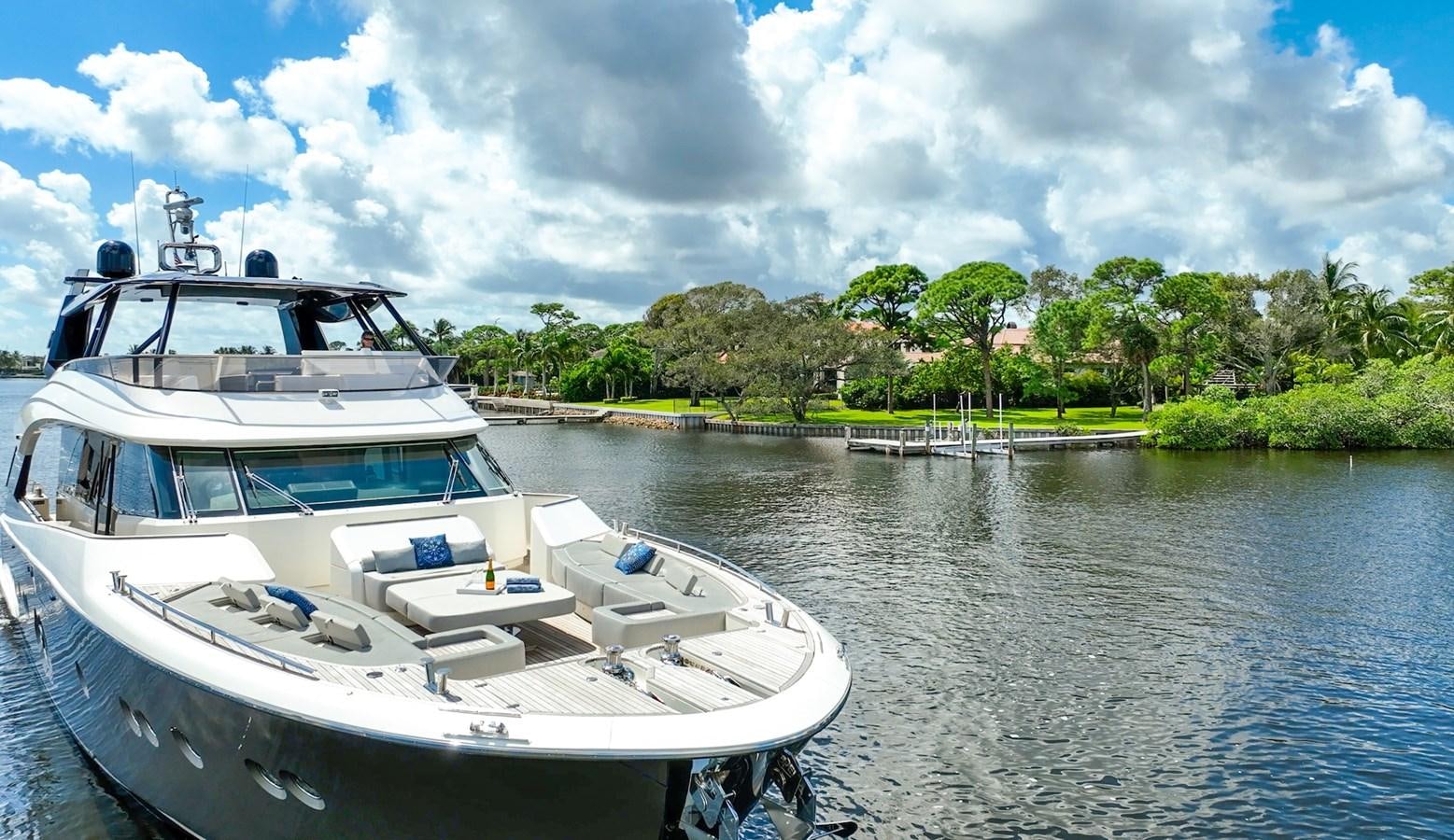

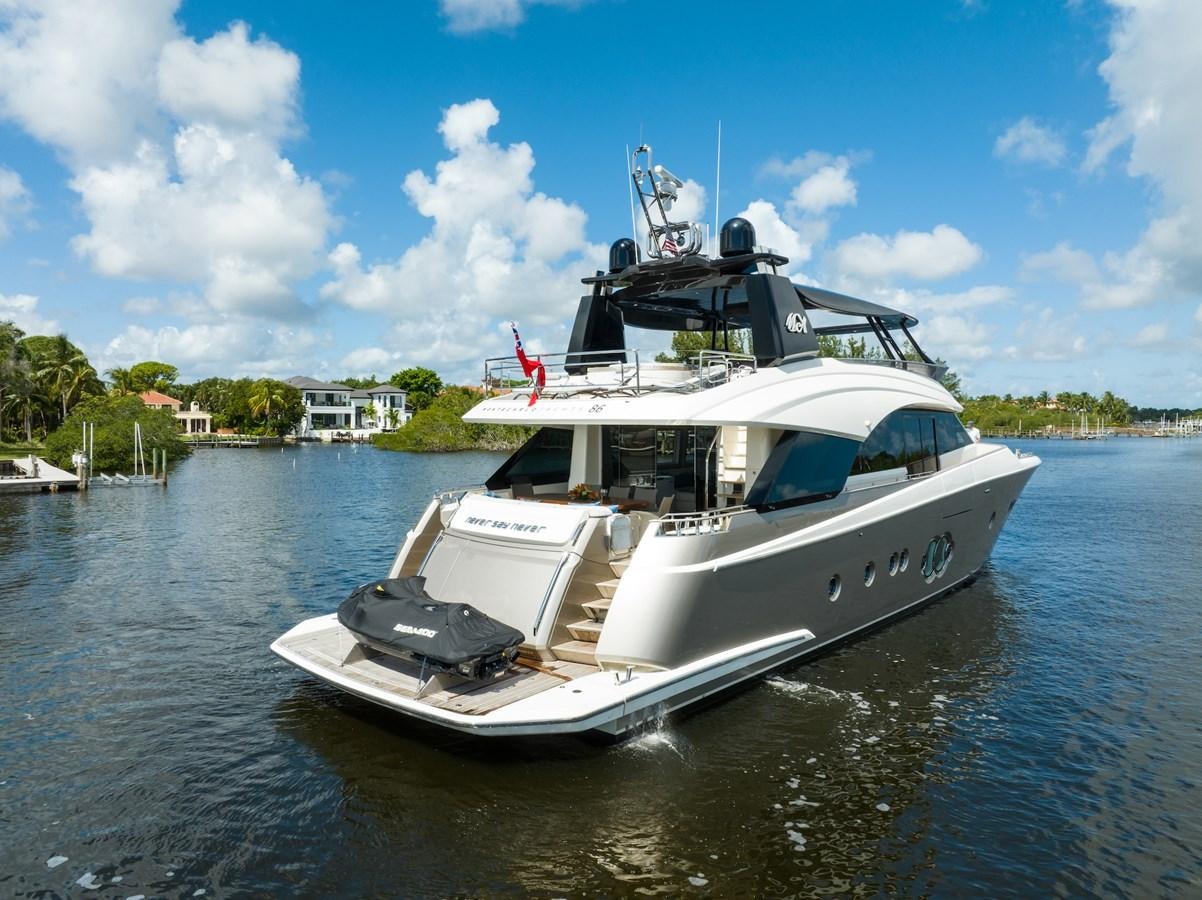

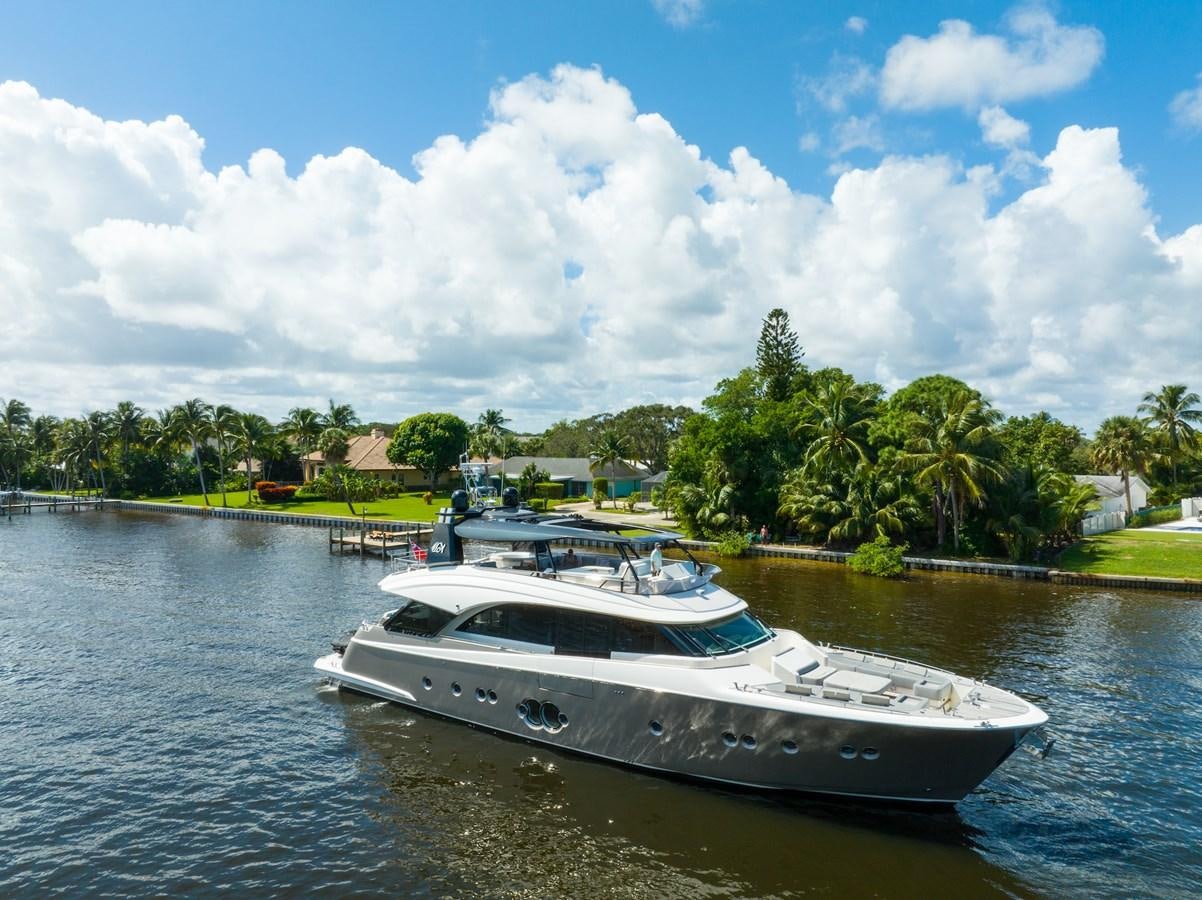

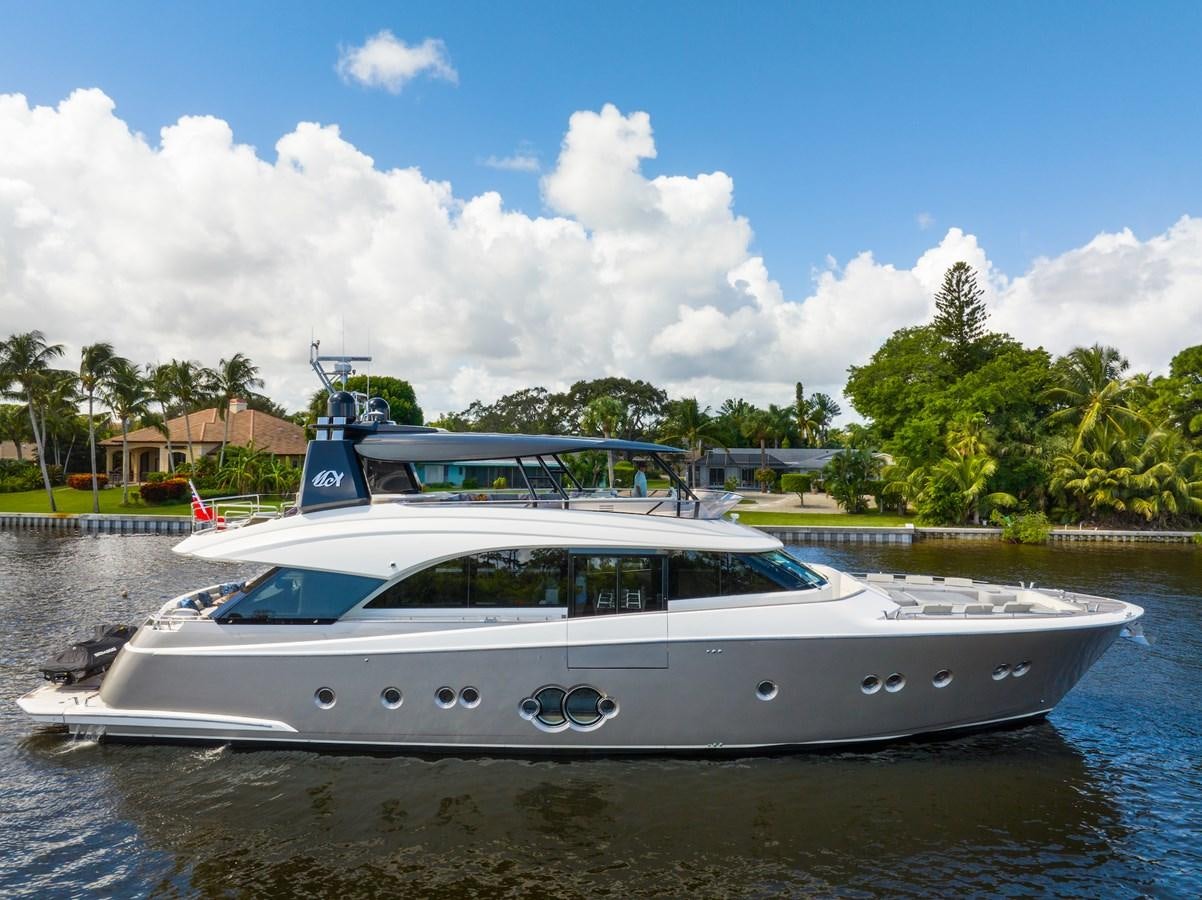

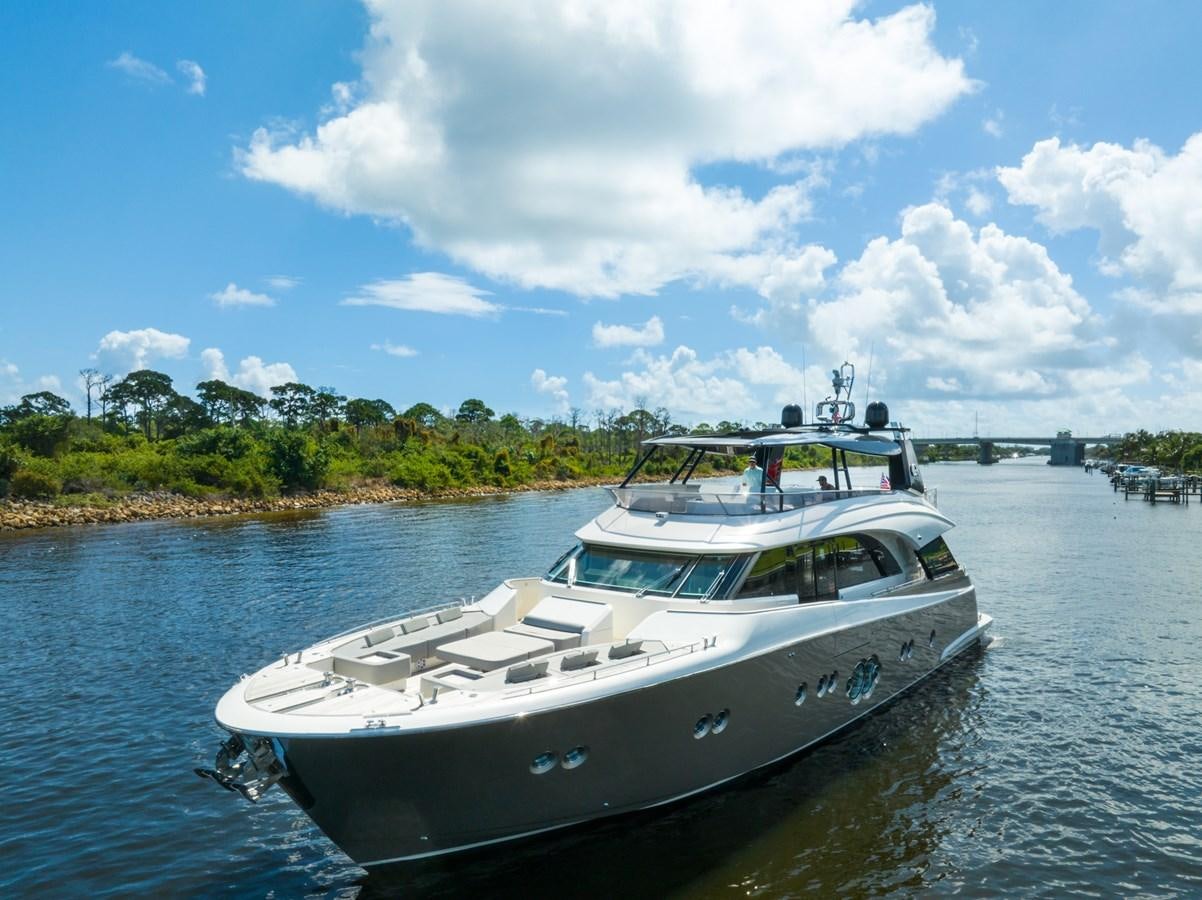

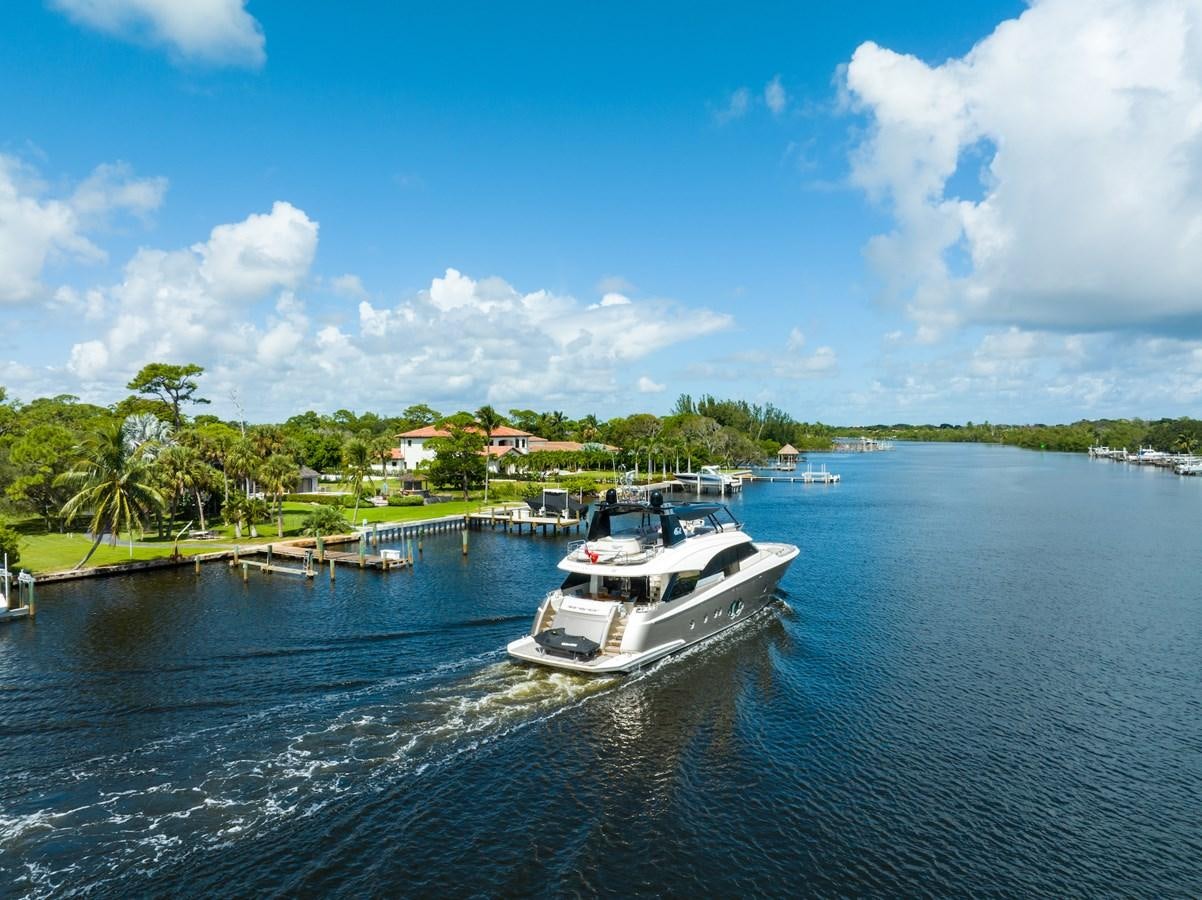

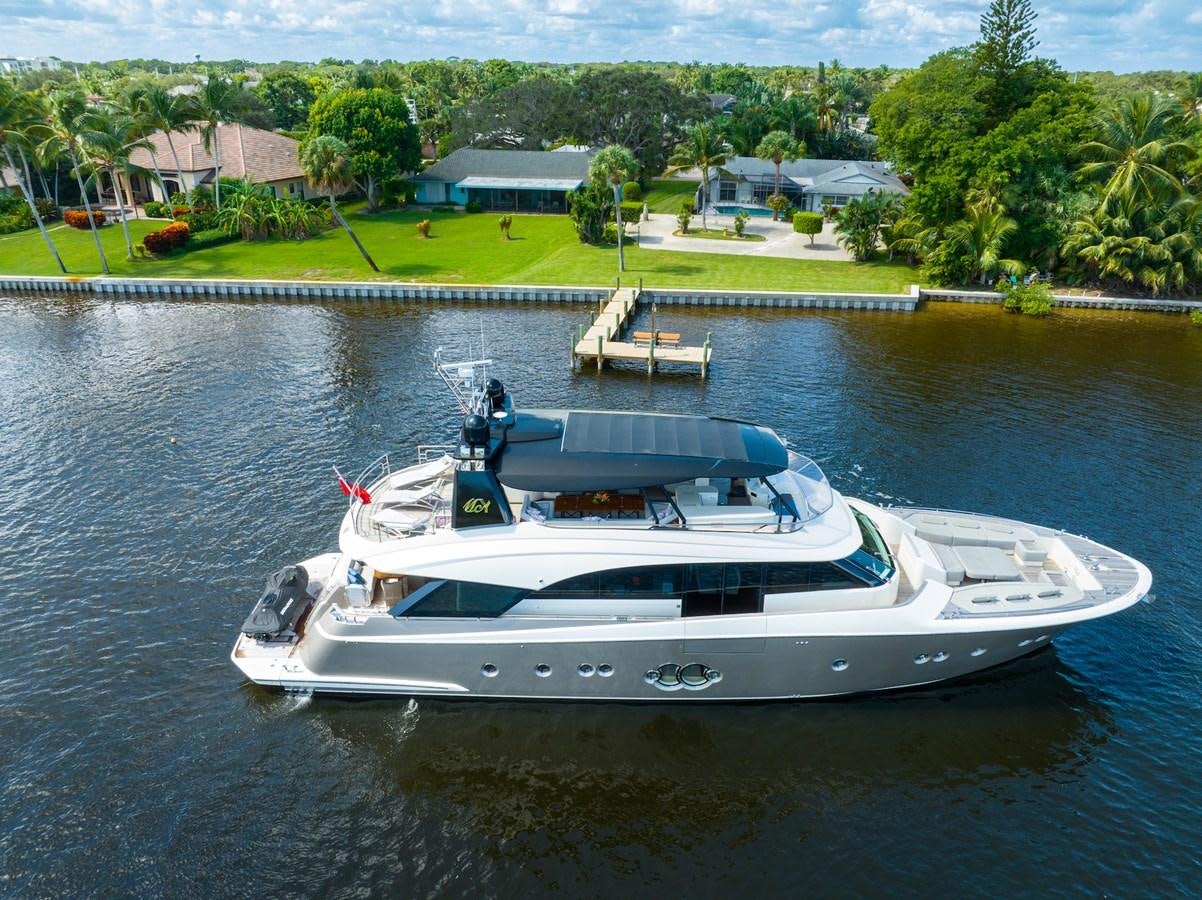

MONTE CARLO YACHTS MCY86
Major Refit with New Engines Upgraded to Latest MAN 1900Hp and in Like New
Condition!!
Refit Includes:
Brand New Factory Upgraded Engines that have New Engine Warranties until July 2025 with extended warranties still available to 2028
Exhaust System completely reconditioned with new spray heads, New Hydraulic lines for all entry doors/Balconies port/starboard garage and engine room door, Props newly re-conditioned/Updated New Boning Screens/Updated Engine Displays, New Varnished Cockpit and Fly Bridge Tables, New Ice Maker, New Lighting for all Staterooms and Heads, New Larger Tv for Master State, New Paint for Garage and Engine Room Door, New Carpet Throughout, Sofas refurbished and re-cushioned, Bottom/Zincs and Prop Speed just finished in May 2023
Professionally Captain/Crew Maintained with service records available
This beautiful Monte Carlo Yacht has 4 Staterooms with 4.5 heads plus 2 crew cabins and head.
Mater Stateroom with King Birth and En-suite head and shower
2 x VIP Staterooms with Queen Births and En-suite head and shower
Guest Stateroom with Queen Birth and En-suite head and shower
1 Day Head
Main Characteristics
Overall Length (LOA) 26.30 m 86’
Hull Length (LH) 23.70 m 77’9”
Maximum Beam 6.46 m 21’2”
Draft (full load, V-drive) 1.90 m 6’3”
Height above waterline without radar mast 7.15 m 23’5”
Height above waterline including radar mast 9.40 m 30’10”
Load (dry) 72 t
Load (full) 85 t
Fresh water capacity 1500 l 396 US gals
Grey water capacity 700 l 185 US gals
Black water capacity 400 l 106 US gals
Fuel capacity 7.100 l 1876 US gals
Design Category CE-A Design Category
Every attempt has been made to give accurate information, but equipment changes and the list below is meant as a guide and a buyers survey will give the accurate details to be relied upon. A full exemption list will be provided once a deal is in place.
Hull design and characteristics
MCY 86 has a planing hull, with a 15,7° deadrise angle along the entire bottom, deep “V” bow, with 6 iso-parametric spray rails.
Structural project has been developed according with EN ISO 12215.
Hull, deck and superstructure are made in sandwich lamination using only vinylester resin.
A bow crash box to improve the resistance to waves and impacts is provided. Furthermore, in that same area, the hull is reinforced by using kevlar lamination.
Structural bulkheads are in sandwich.
The other internal partition walls are built using LARICROSS composite materials.

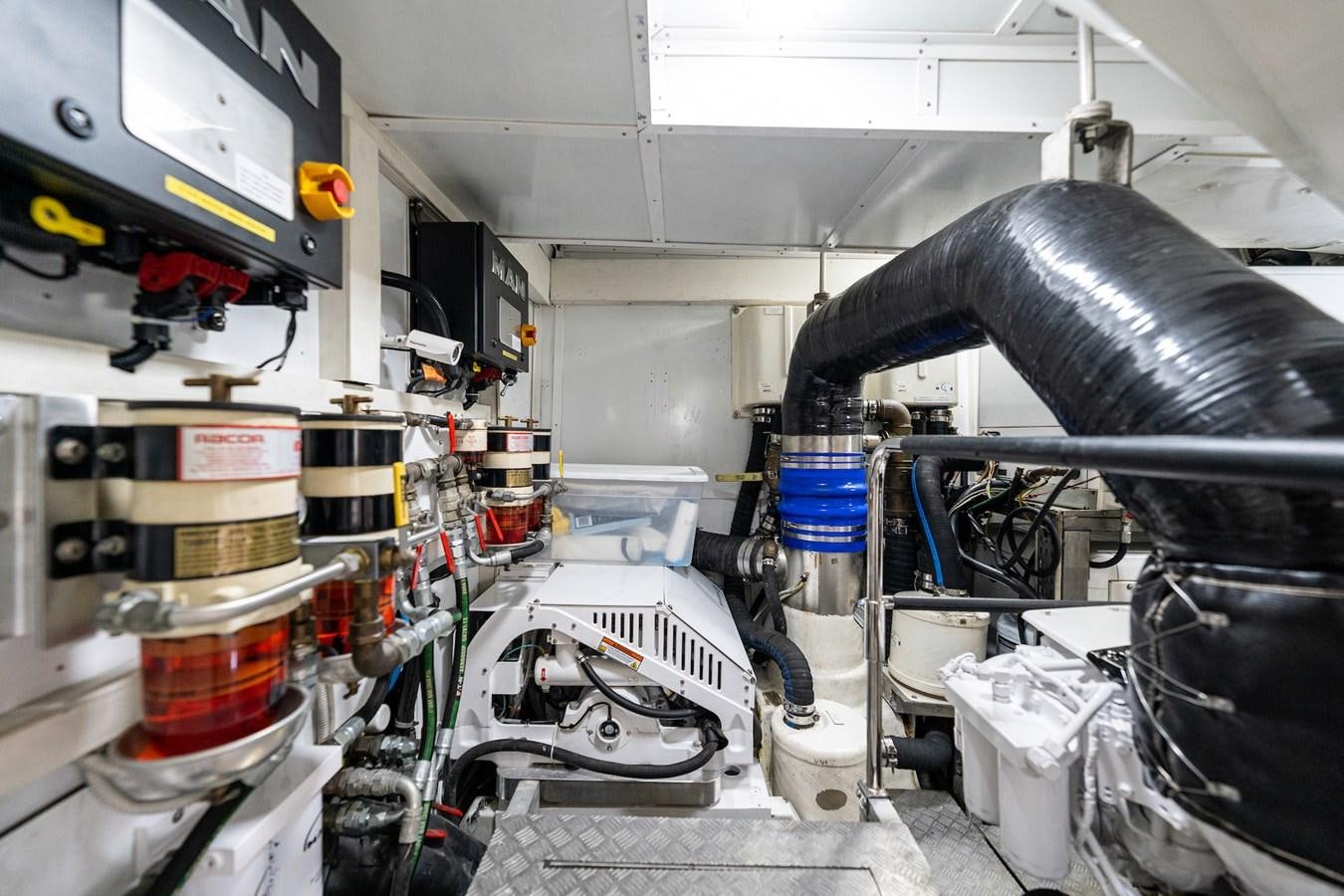

Power and drive systems

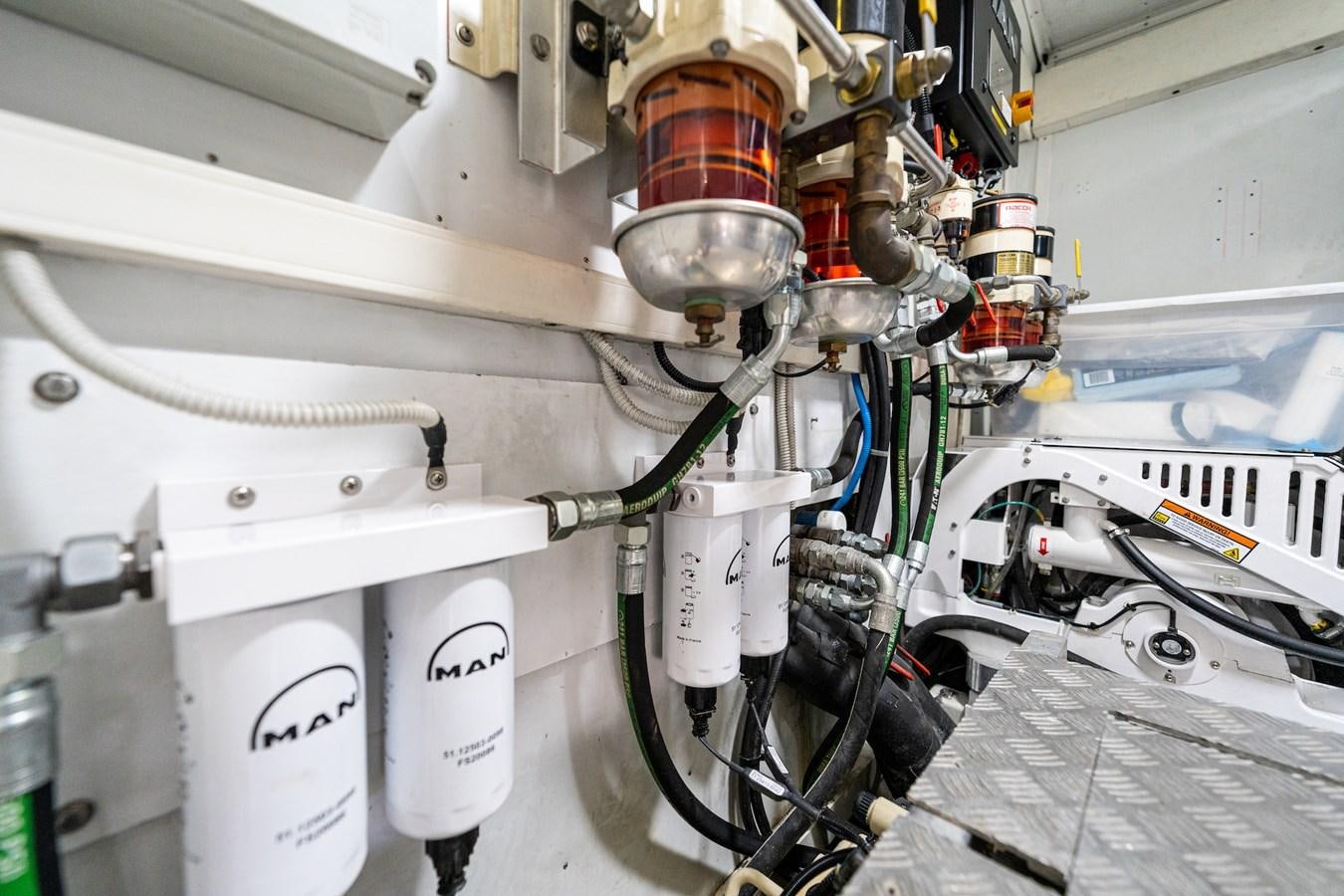

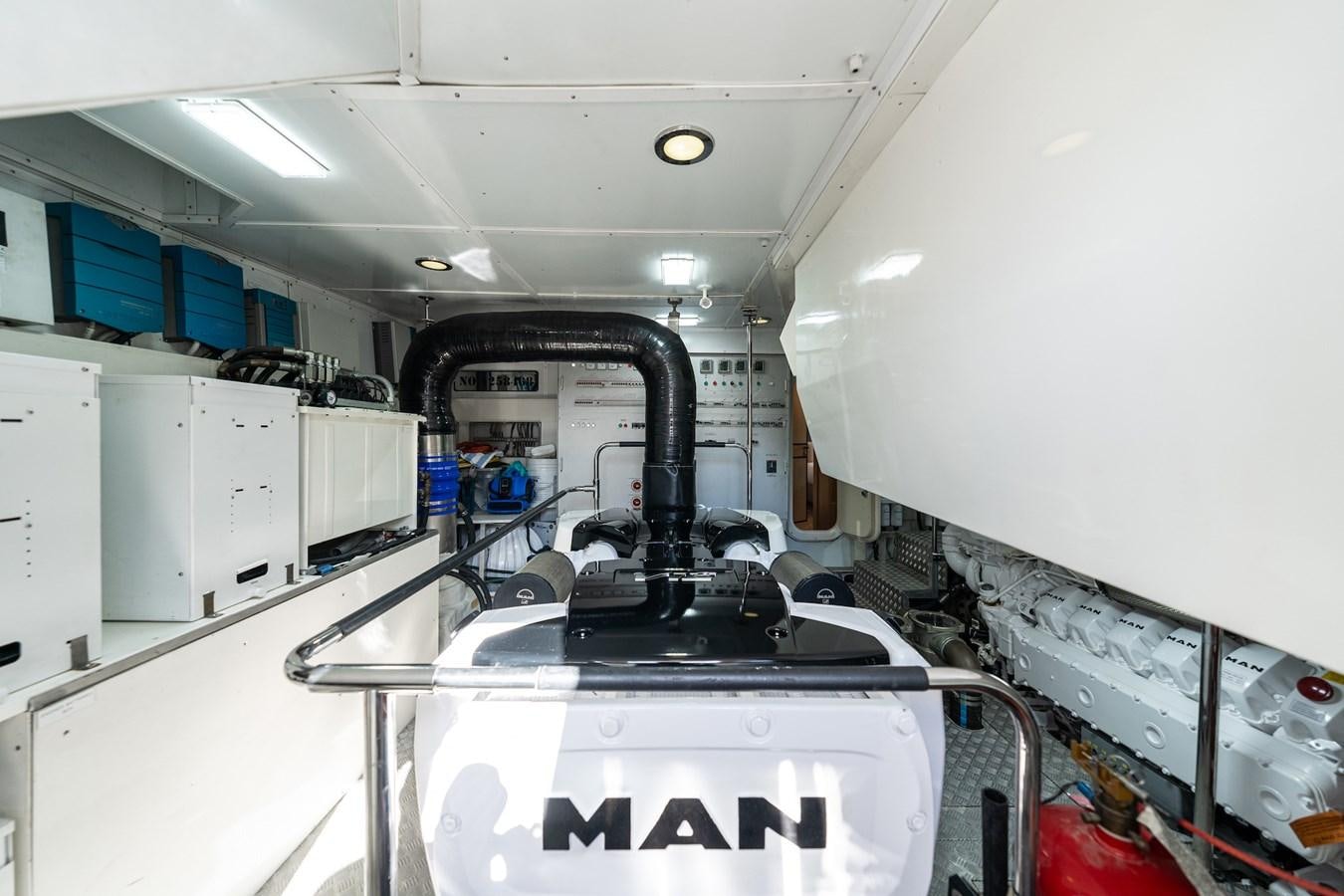

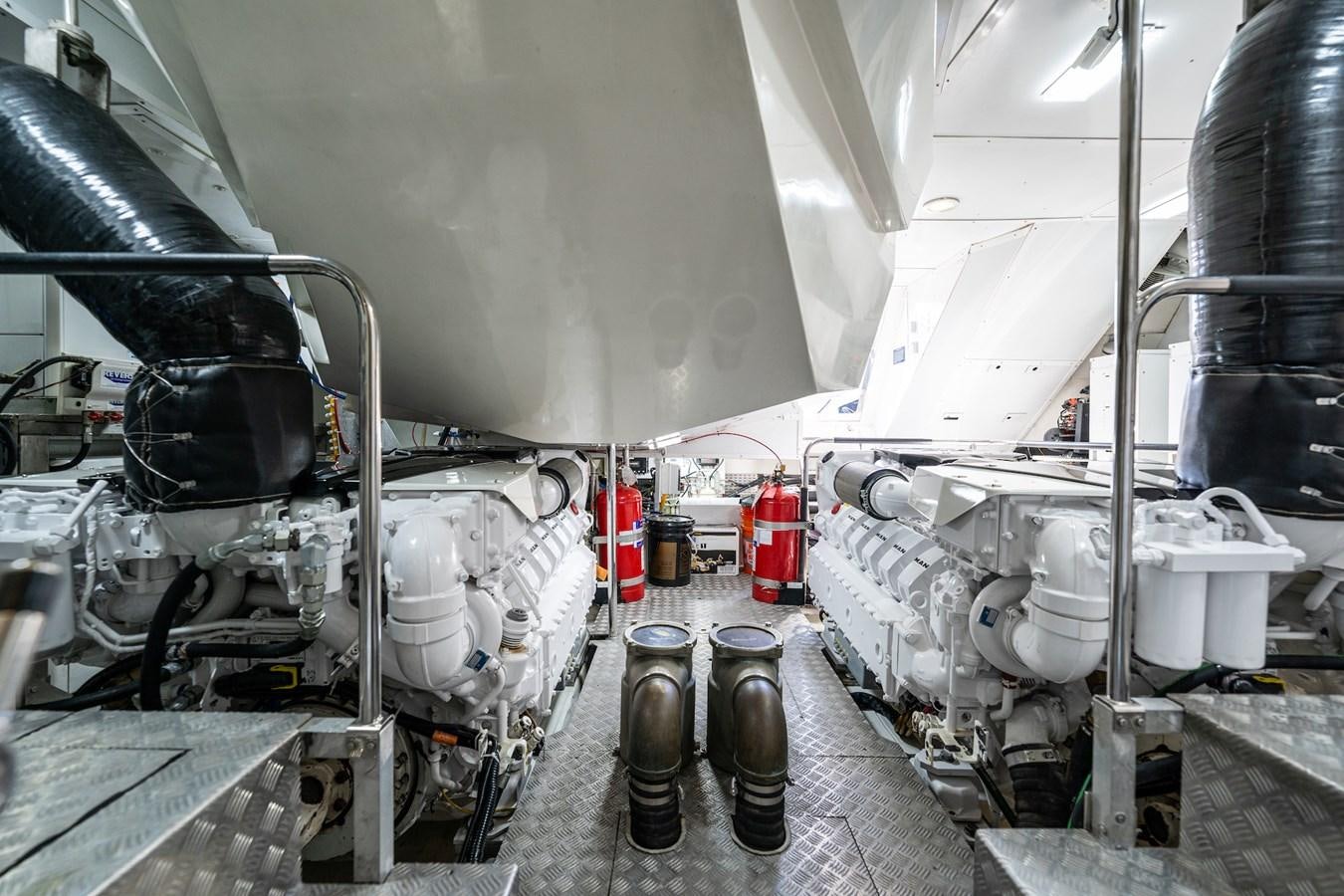

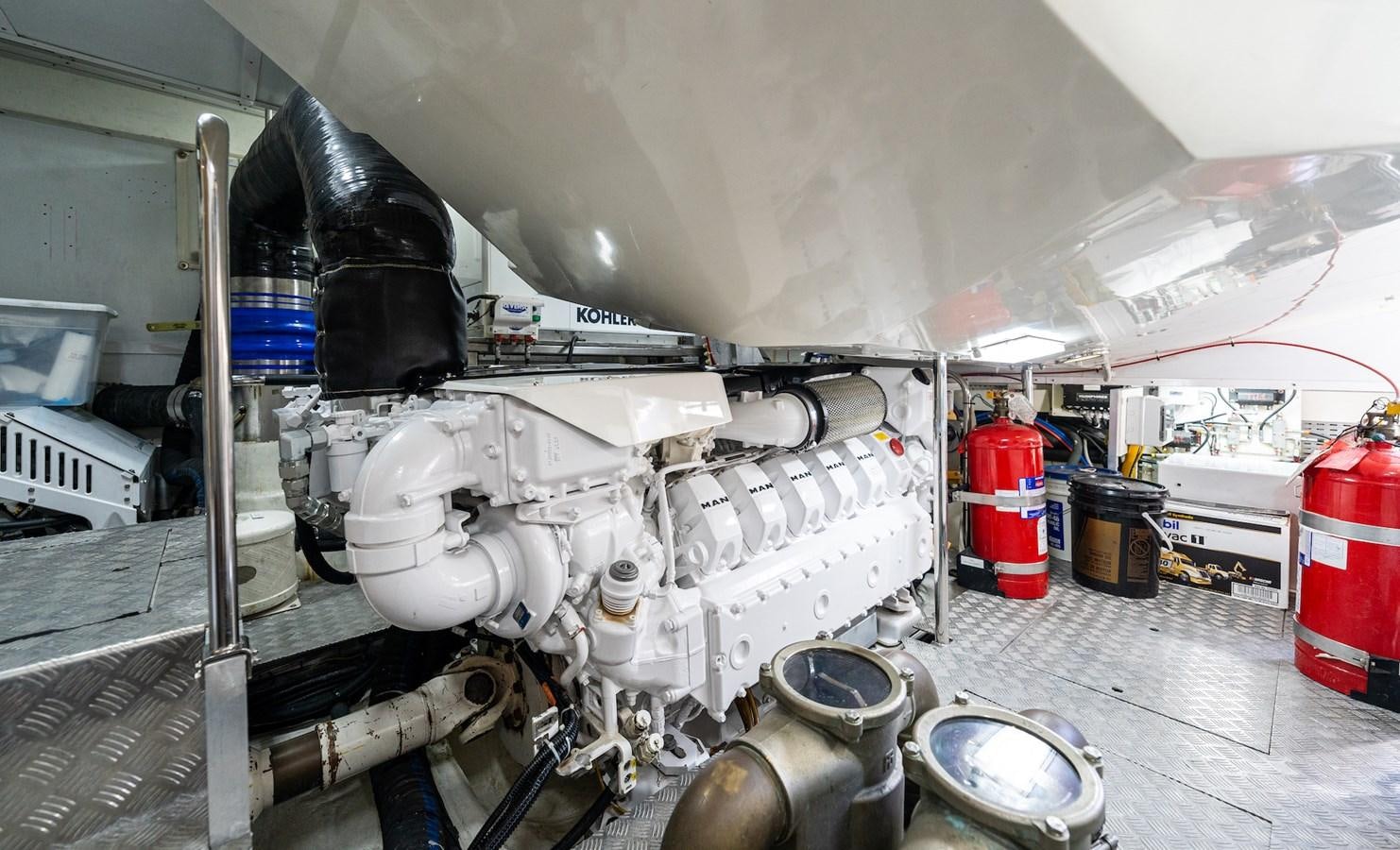

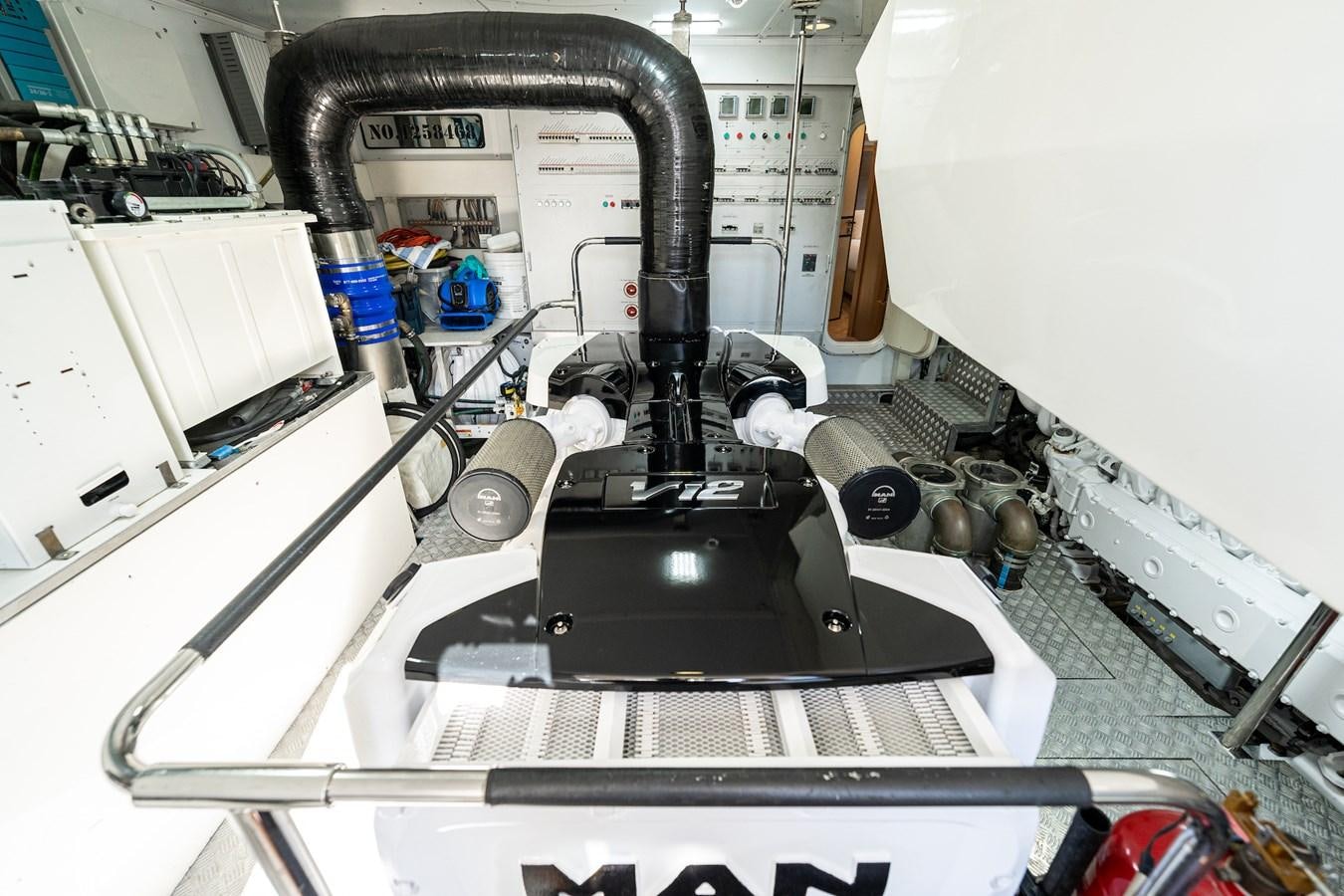

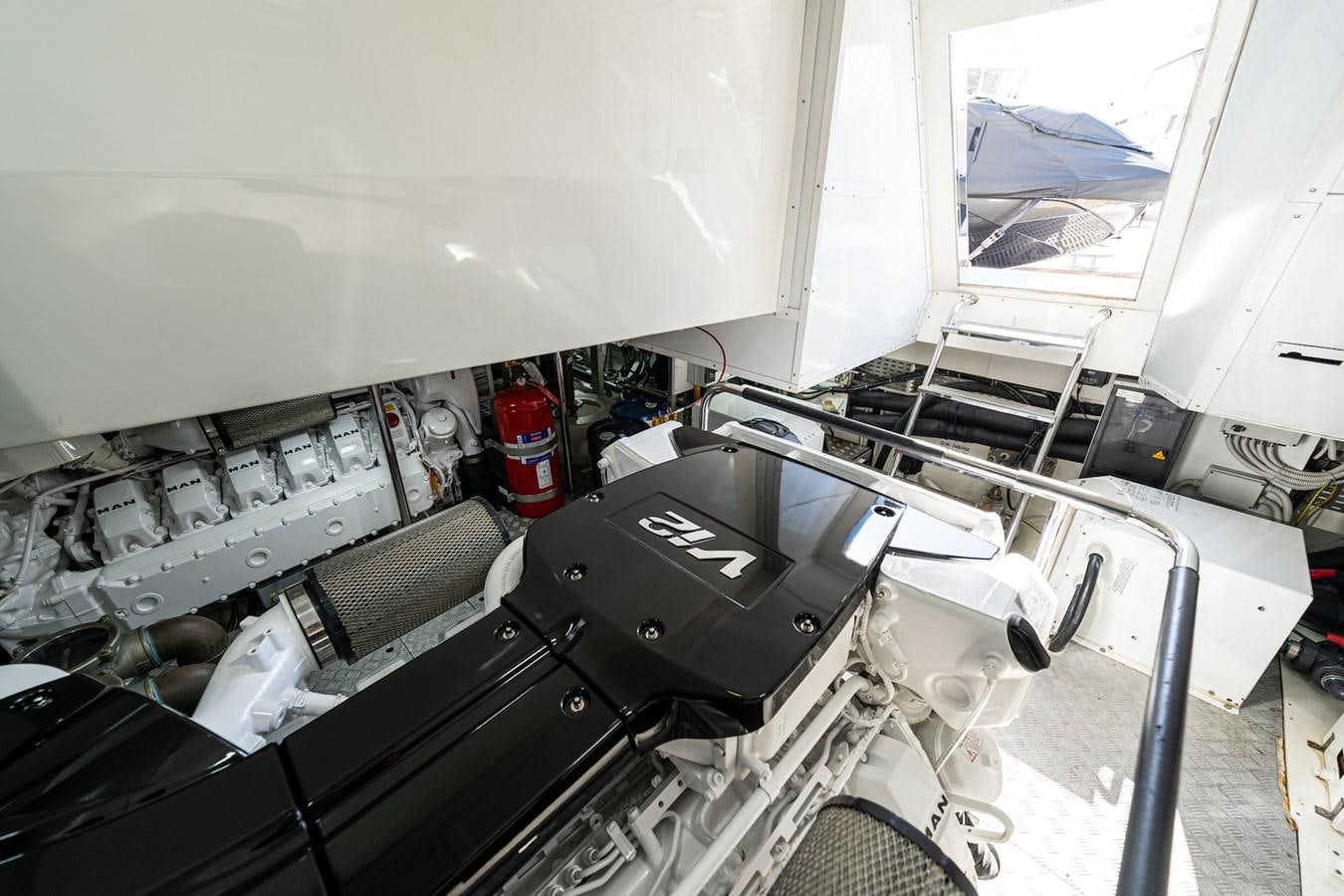

Engines: MAN V12 1800 has been upgraded to New MAN 1900HP
12 cylinders, 90° V design
maximum power output at 2.300 rpm: 1324 kW (1.800 hp) Upgraded to New MAN 1900 Hp
Gearbox: ZF 3050 V
10° V- Drive remote mount marine transmission with intermediate cardan shaft
Shafts: Aquamet 22, diam. 95 mm
Propellers: NiBrAl alloy, four blades, 1030 mm diameter
Rudder and AISI 316 steel, 0.40 sqm surface steering system: Power assisted steering system
Bow Thruster : Hydraulic, 380 mm diameter, 420 kg thrust
Maneuvering system : maneuvering joysticks (main helm and flybridge) for easy control at docking, with electronic control of hydraulic bow thruster engines (and hydraulic stern thruster when installed)
Interceptors : 2x Humphree Auto Trim; 1050 mm length and 75 mm range
Mooring
• 62 kg + 32 kg symmetric steel anchors with 100 m chains (12 mm diameter)
• Option: 62 kg + 62 kg symmetric steel anchors with 100 m chains (12 mm diameter)

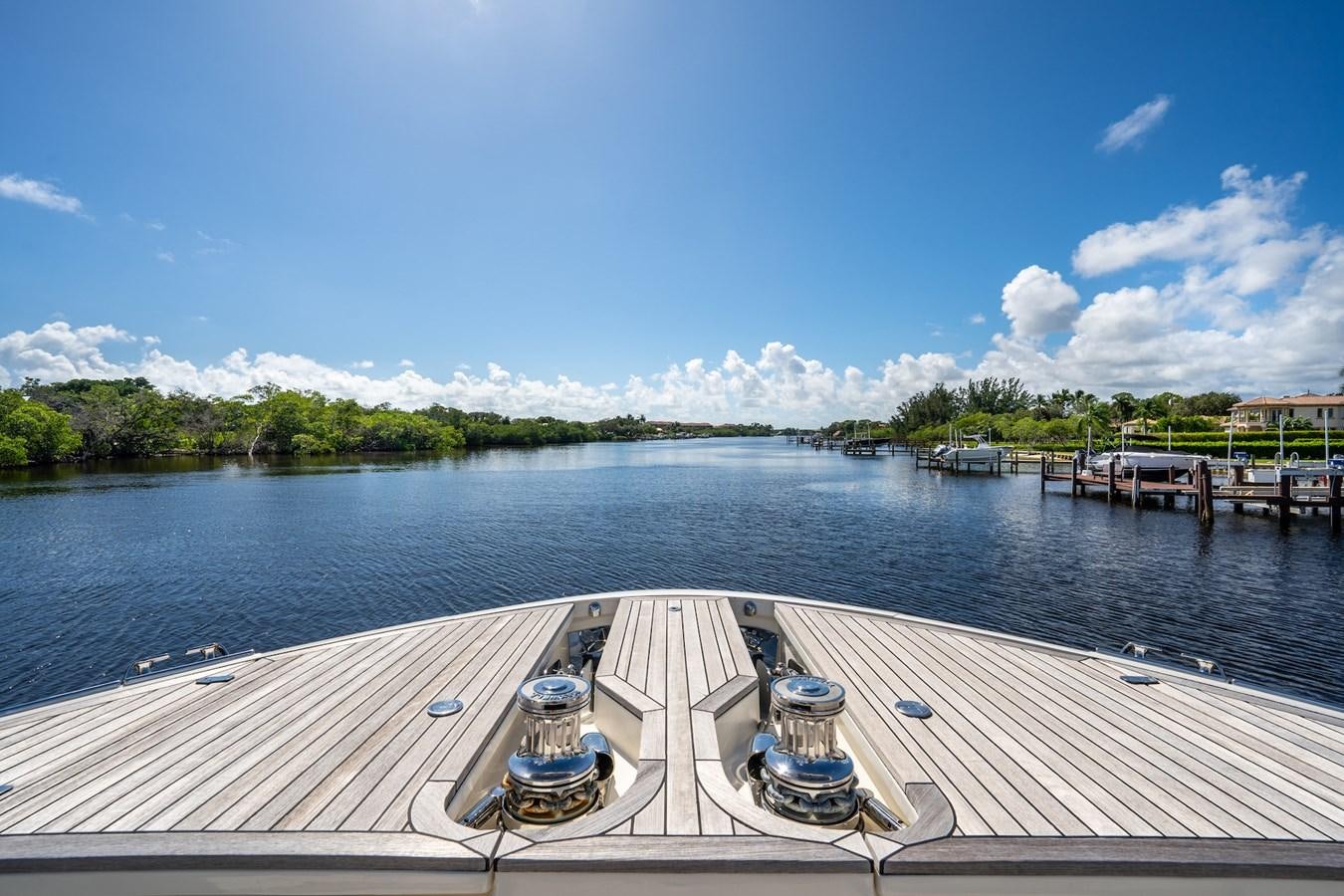

• Two hydraulic anchor winches (4.000 W), with foredeck, main helm and flybridge controls (controls on floor for up/down/captain operation)
• Stem head roller with automatic anchor launch and retrieve
• Bow stainless steel protection
• Stainless steel bow fairleads with stainless steel protection
• Stainless steel bow, stern and 8 spring cleats
• Stern stainless steel fairleads with rollers
External layout and equipment

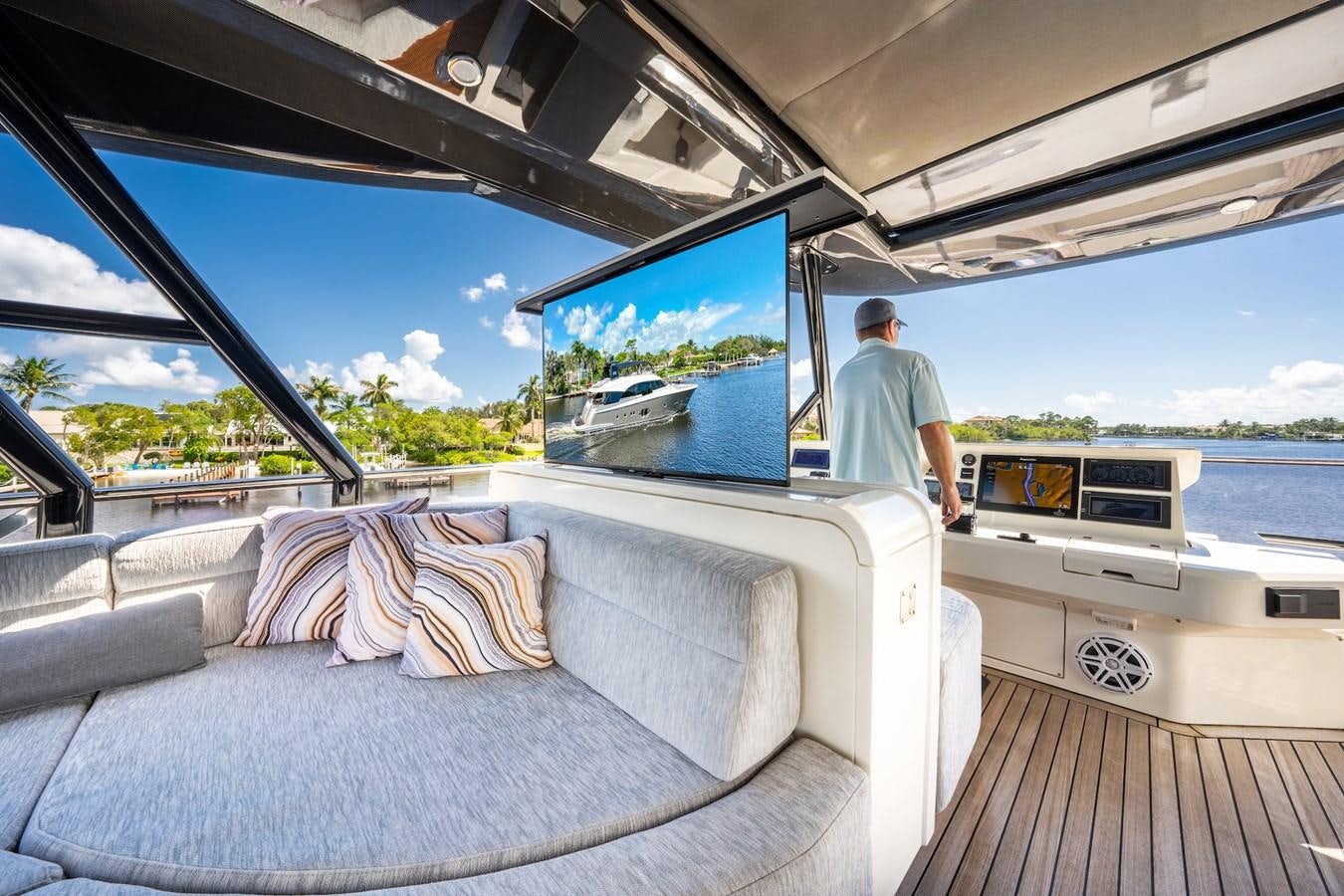

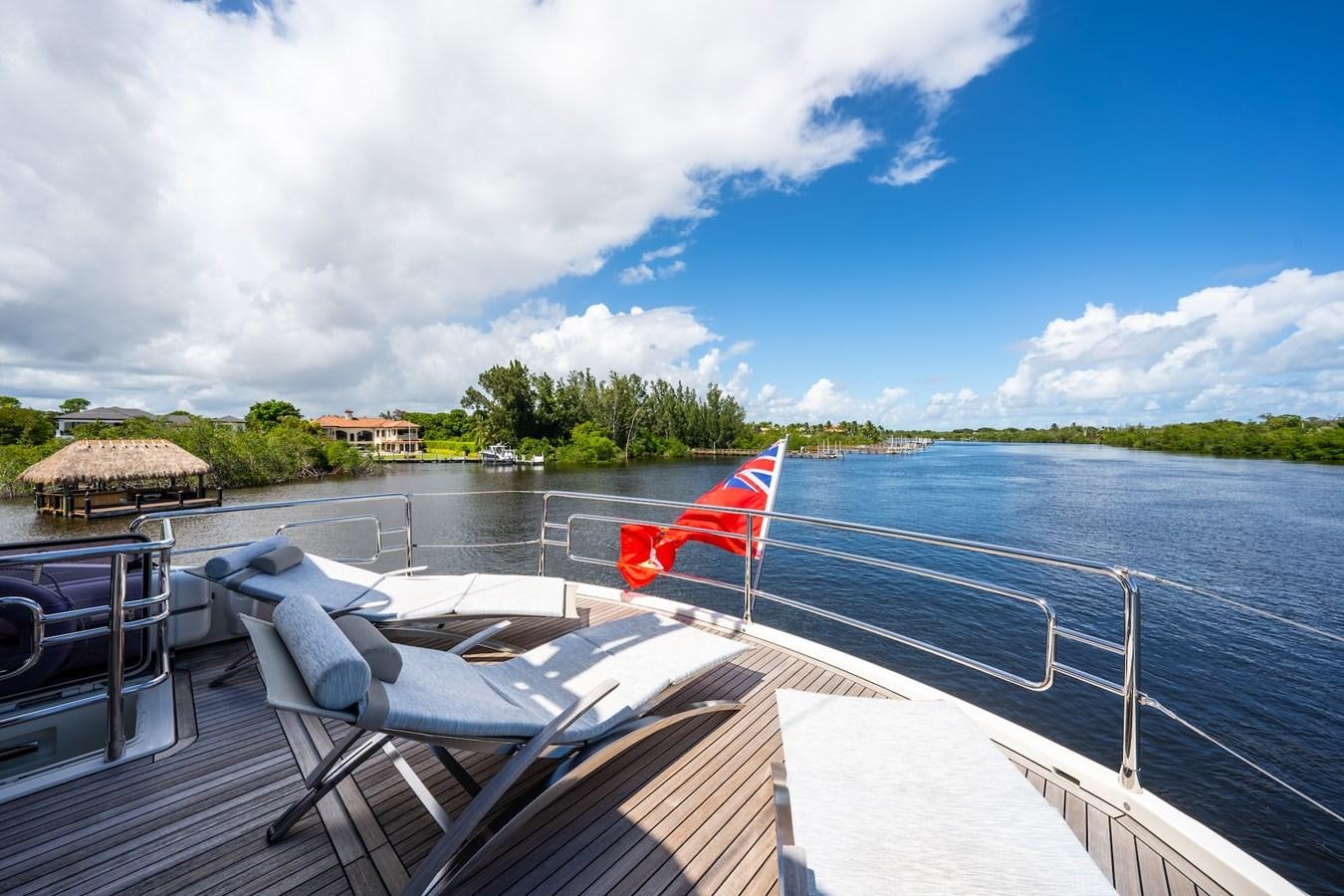

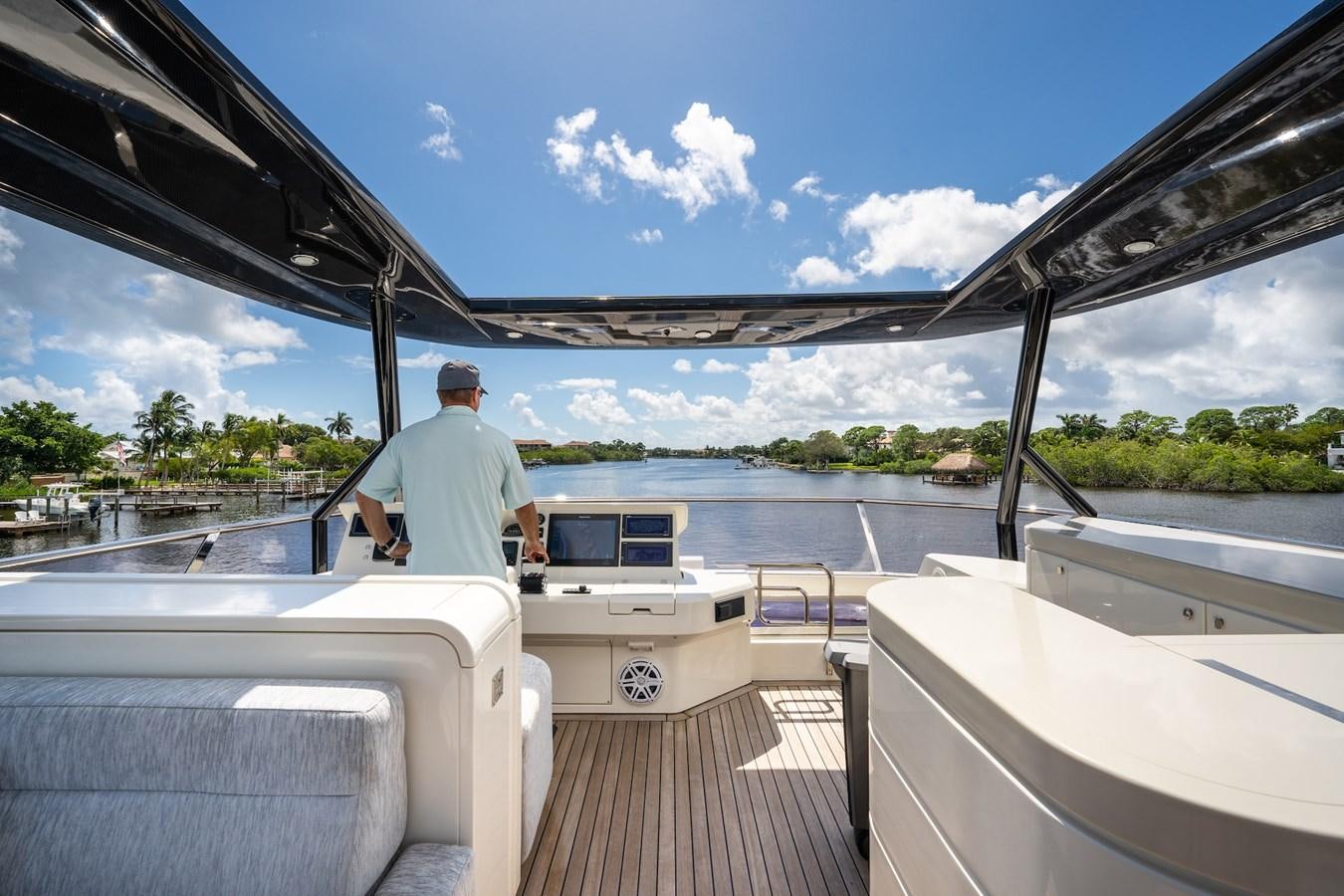

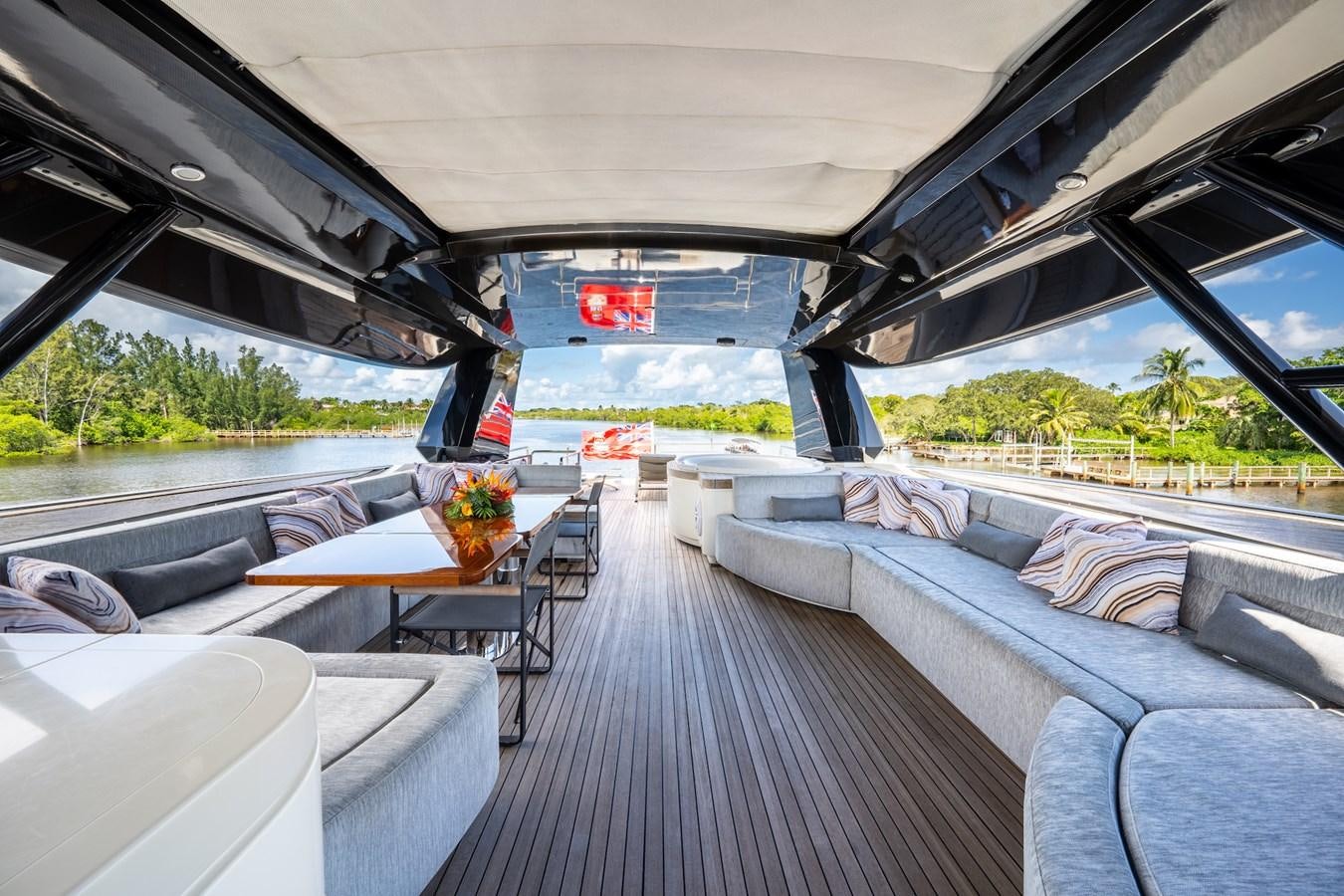

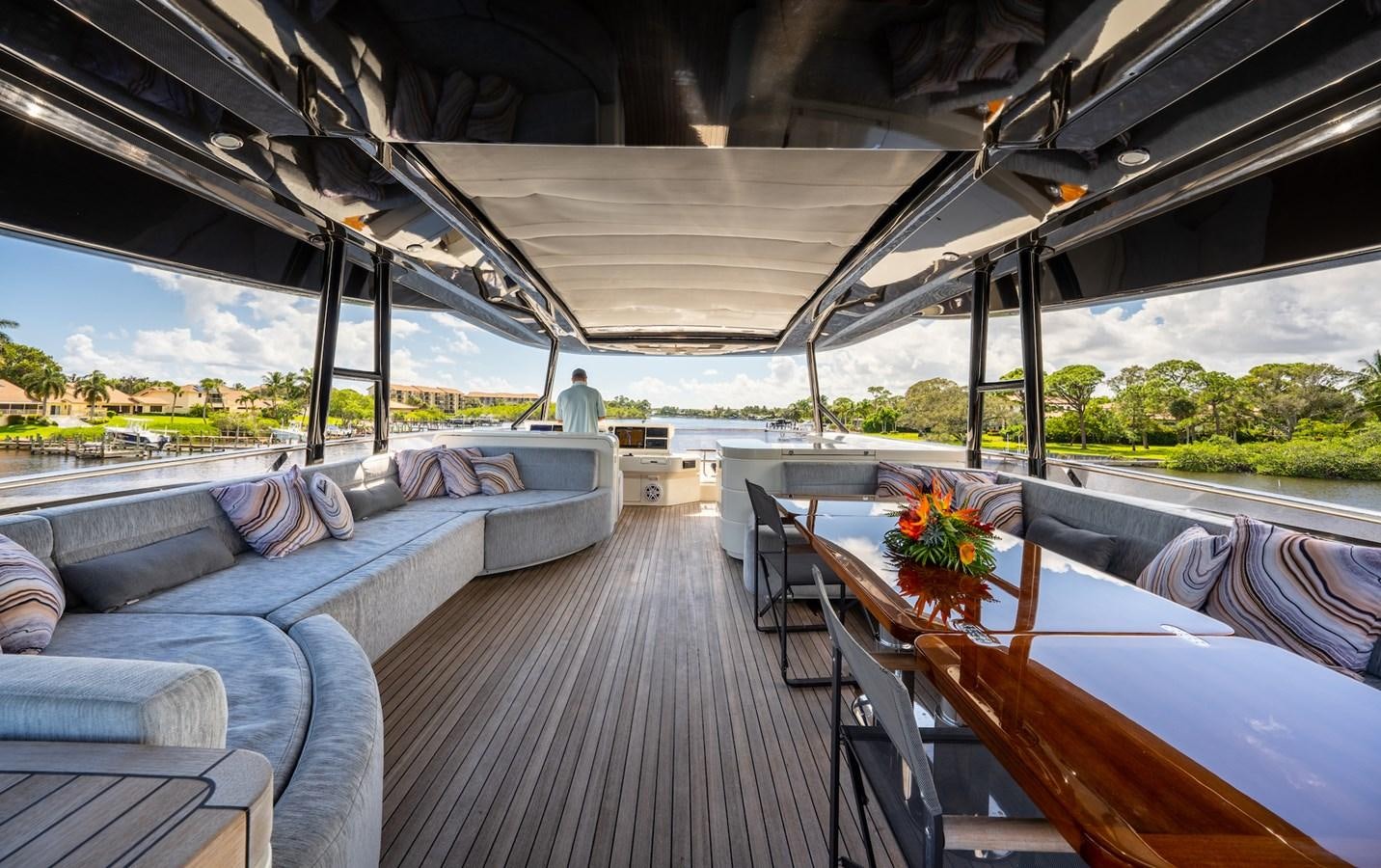

Flybridge
• External staircase with teak steps
• Lights and perimeter courtesy lights
• N°2 Plexiglass and aluminum access hatch to flybridge
• Plexiglass and stainless steel windscreen
• Stainless steel protection pulpit and handrails
• N°2 Fiberglass radar mast, black painted, with aluminum wings supporting:
• navigation lights
• radar and GPS antennas equipment
• TV antenna
• horn
• lighting protection
• flybridge lights

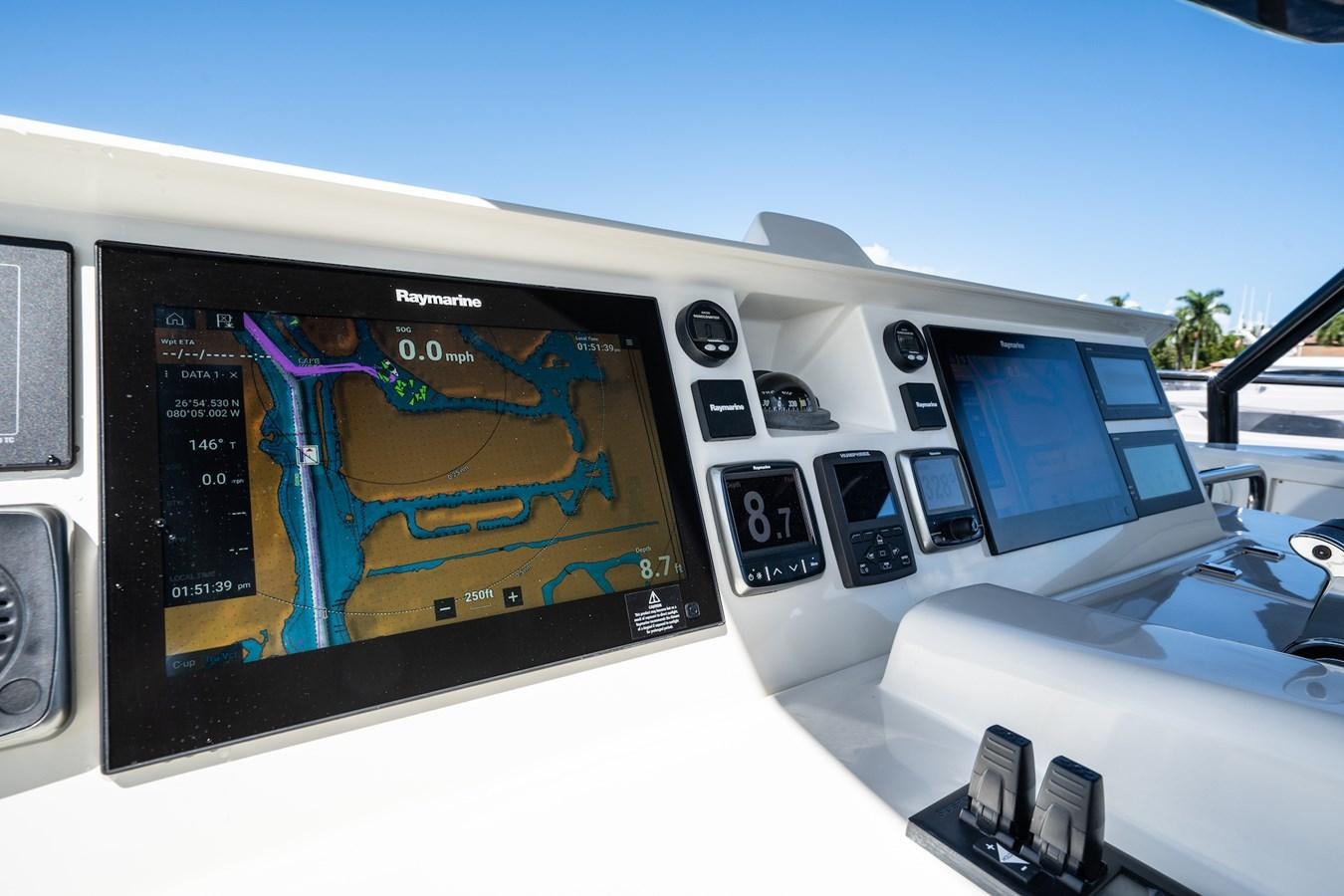

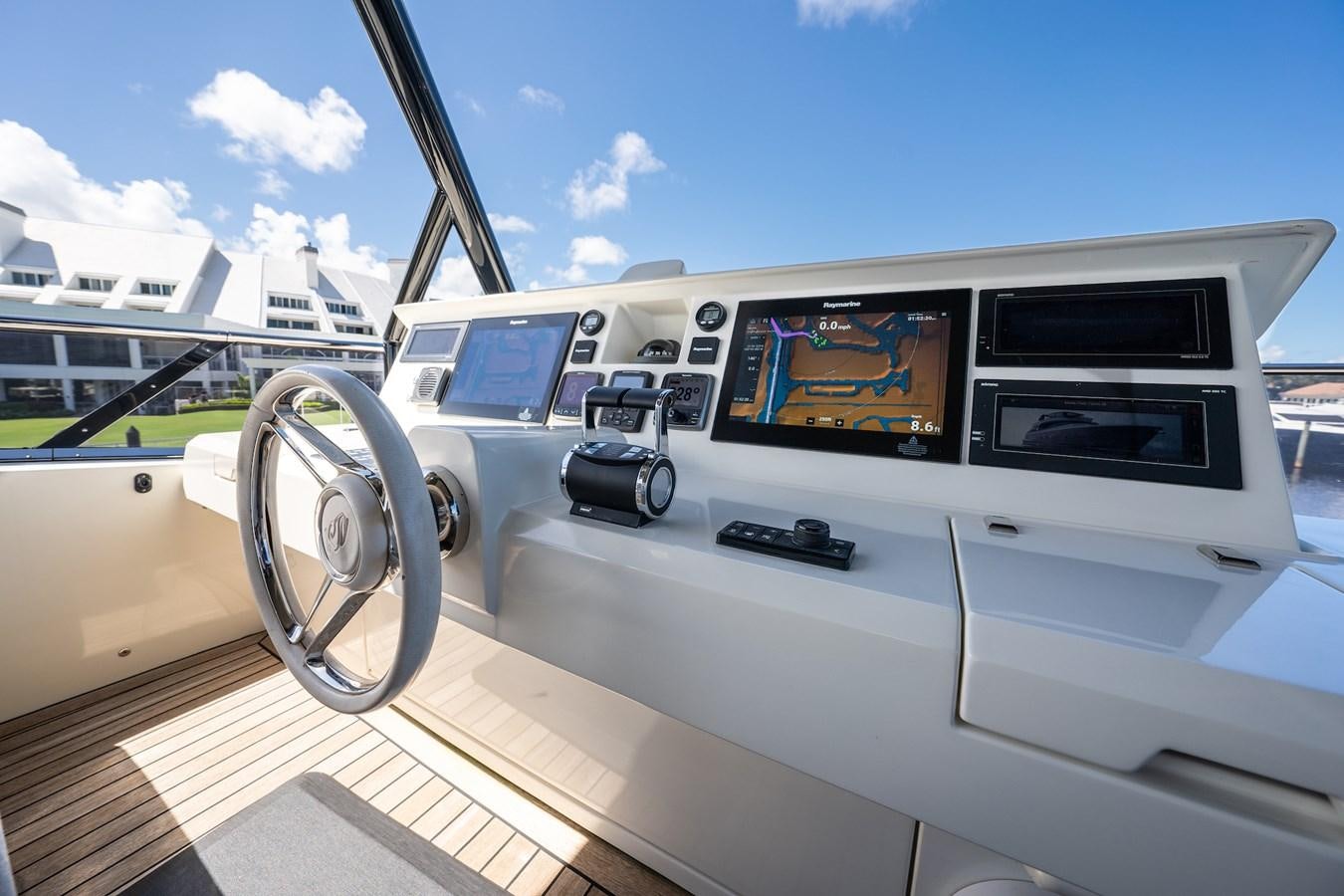

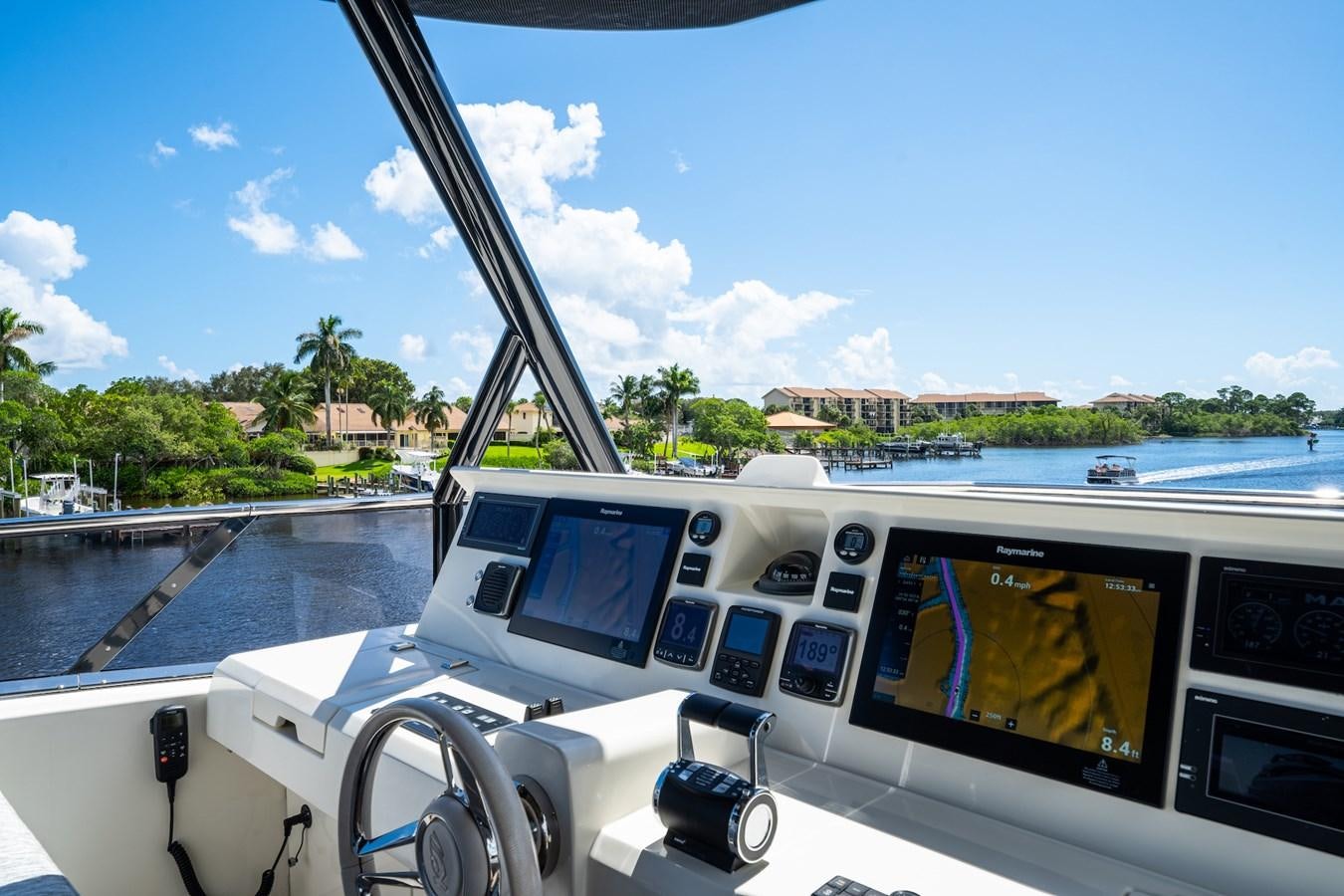

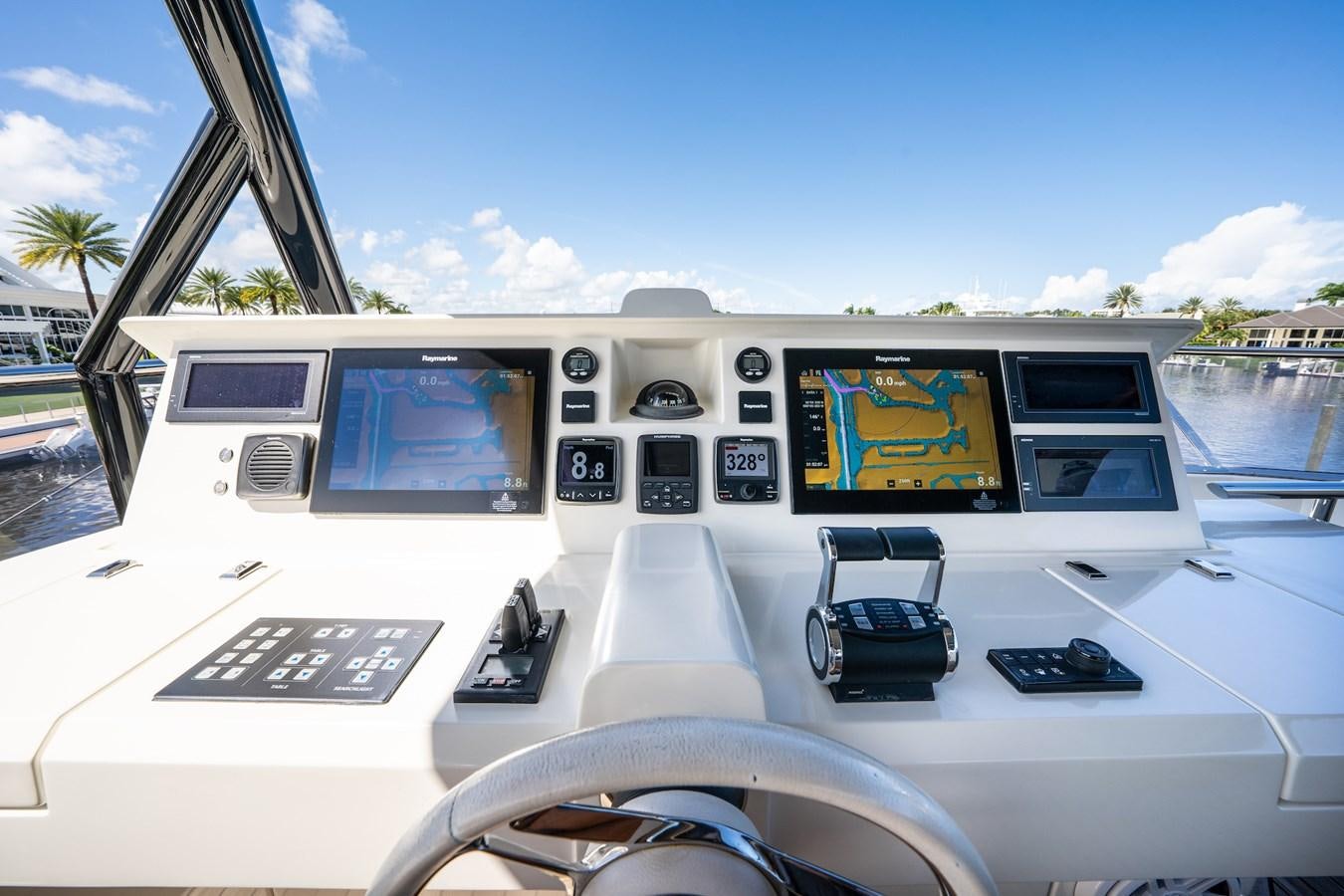

• Pilot console with navigation and engine control screens, including instrumentation as per paragraph.9, plus:
• Steering wheel in skay
• Main engines and reversing gear levers
• Key switches for port and starboard engines
• Horn, anchor winch and chain counter, search light, fire extinguisher controls
• panel with warning and alarms for bilge pumps
• Helm seat

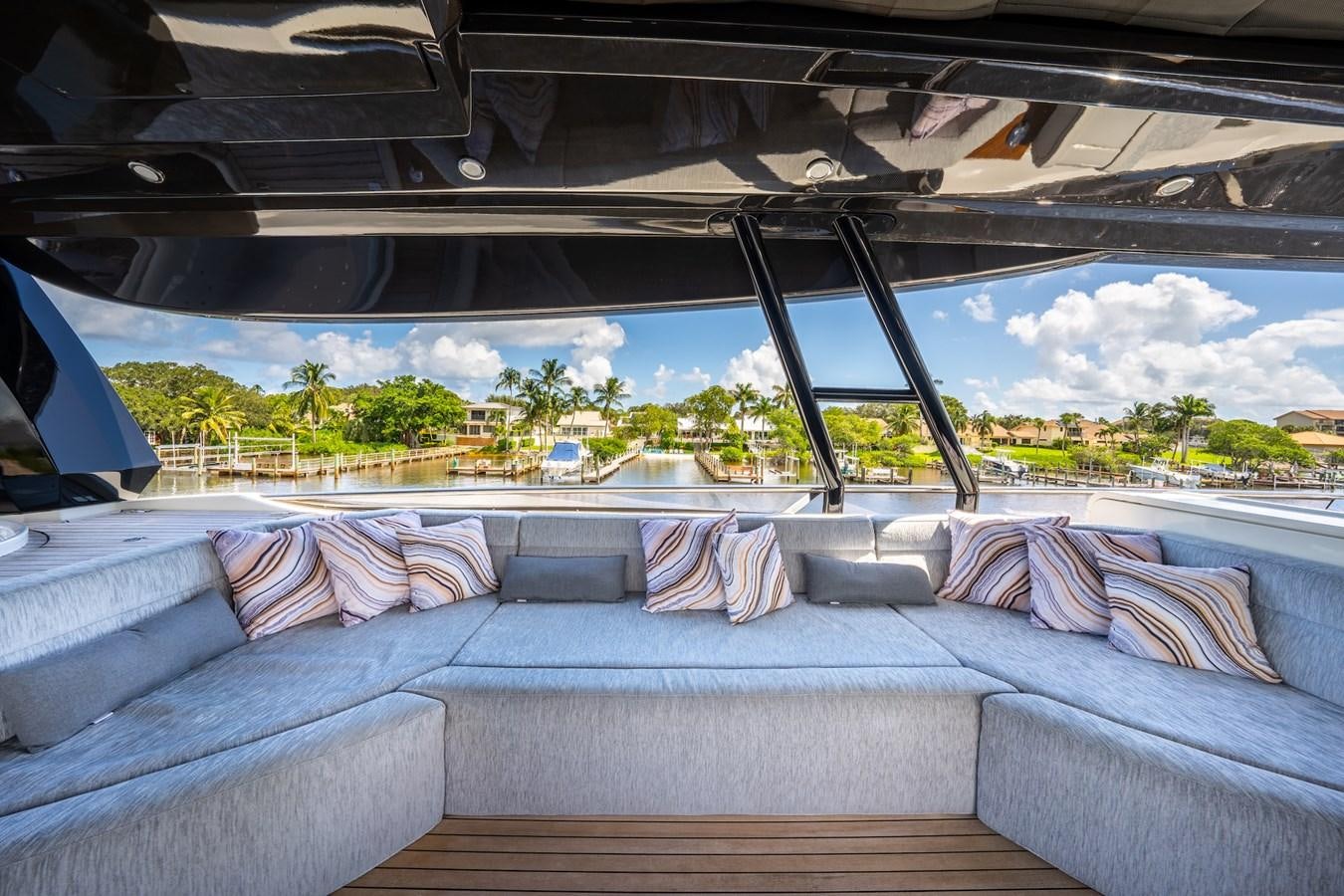

• N°2 C-shape sofas, one with integrated chaise longue, decorative pillows and large capacity storage

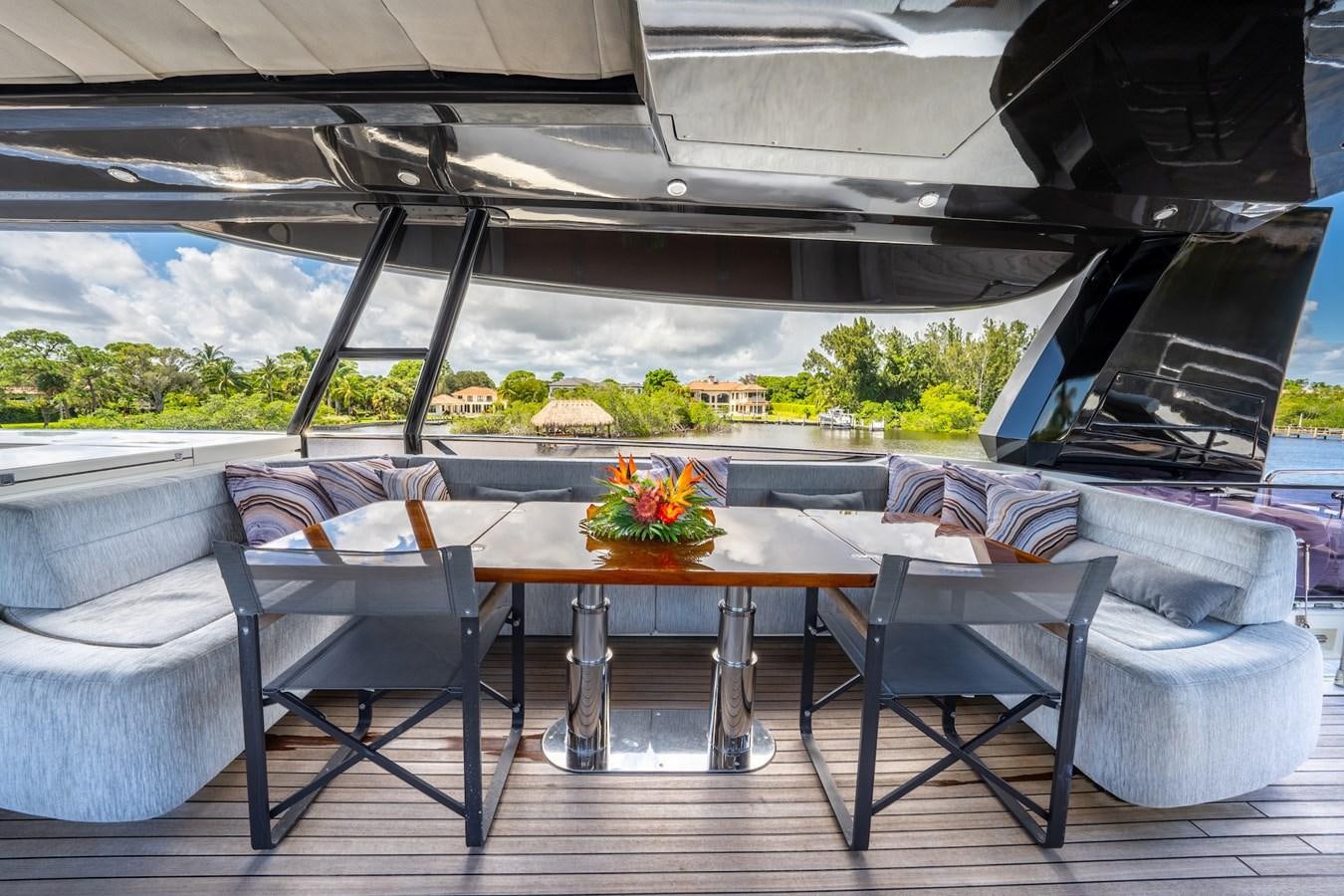

• N°2 teak tables for 10-12 people with 2 stainless steel legs
• Sunbathing aft platform

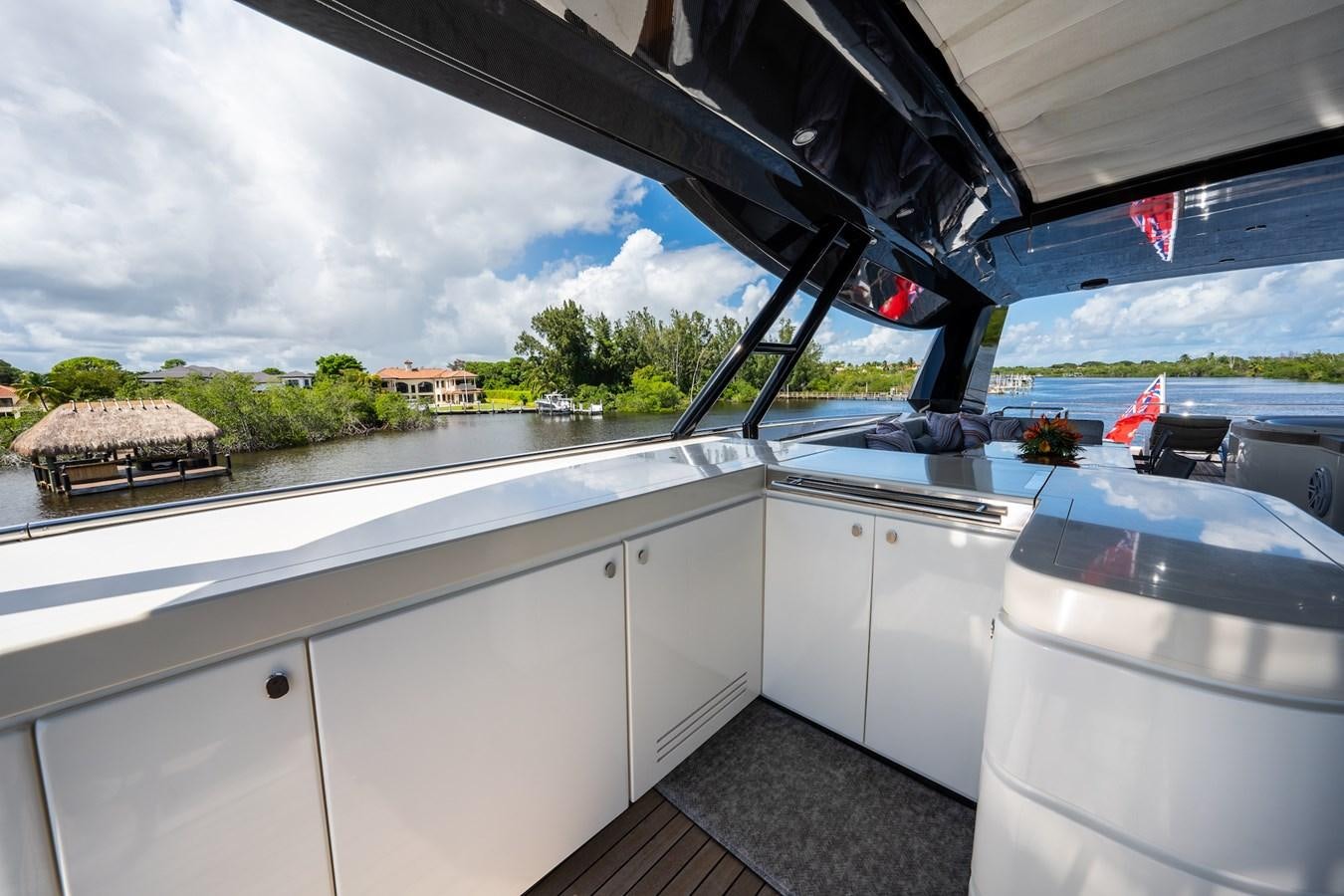

• Galley with:
• sink, hot and cold water supply
• fridge
• ice maker
• N.2 barbecue
• N.3 storages

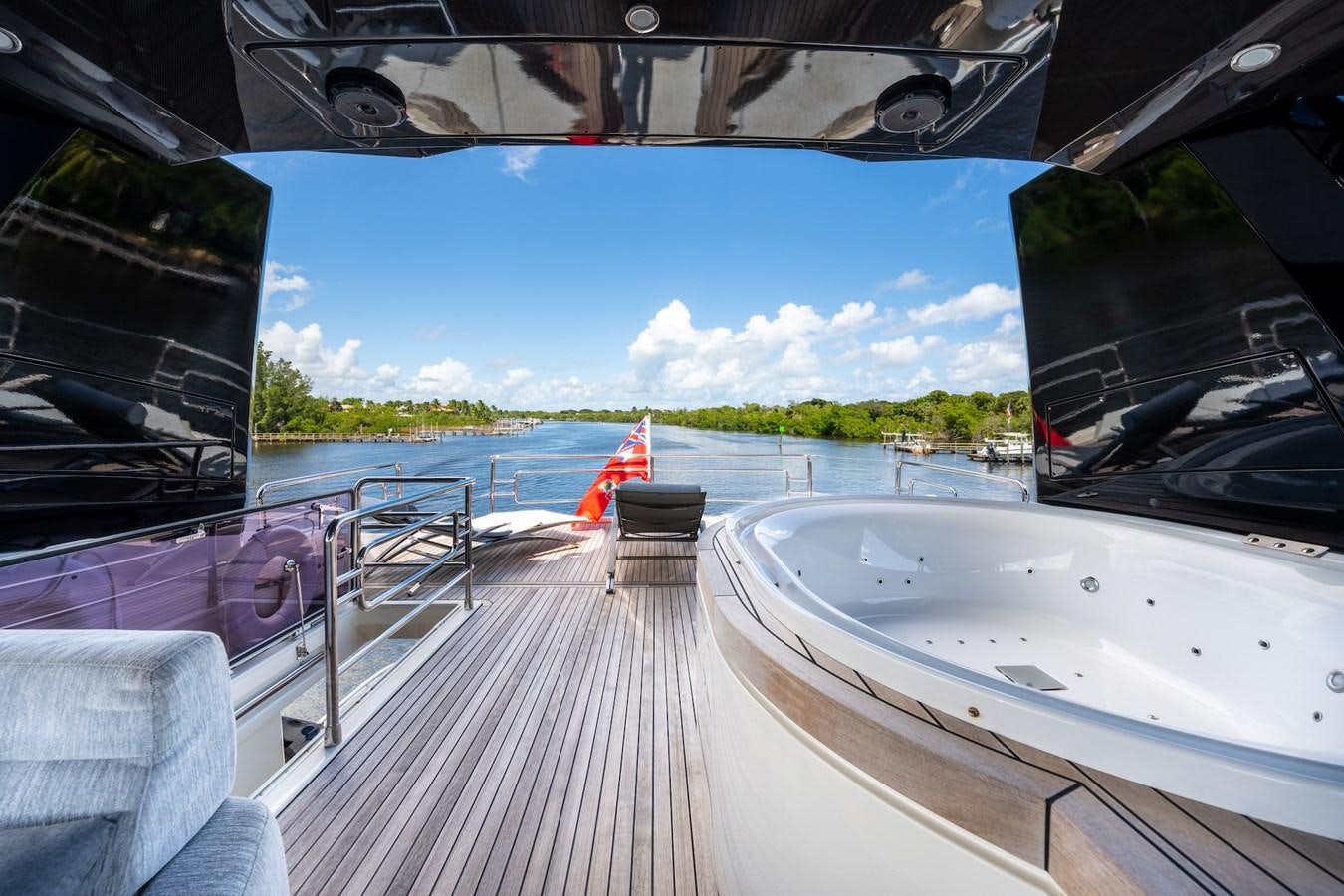

• Option: SPA installation on flybridge aft deck

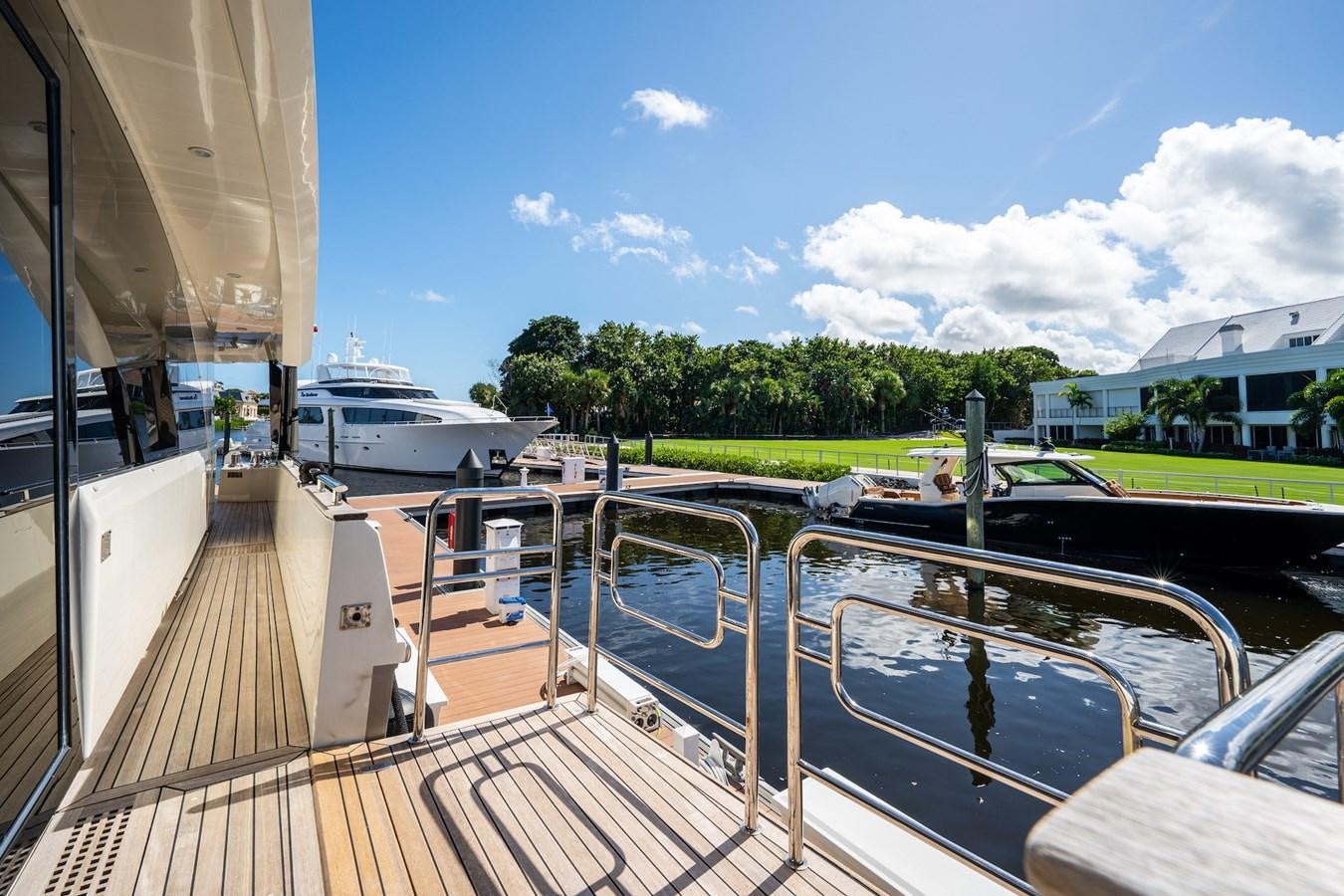

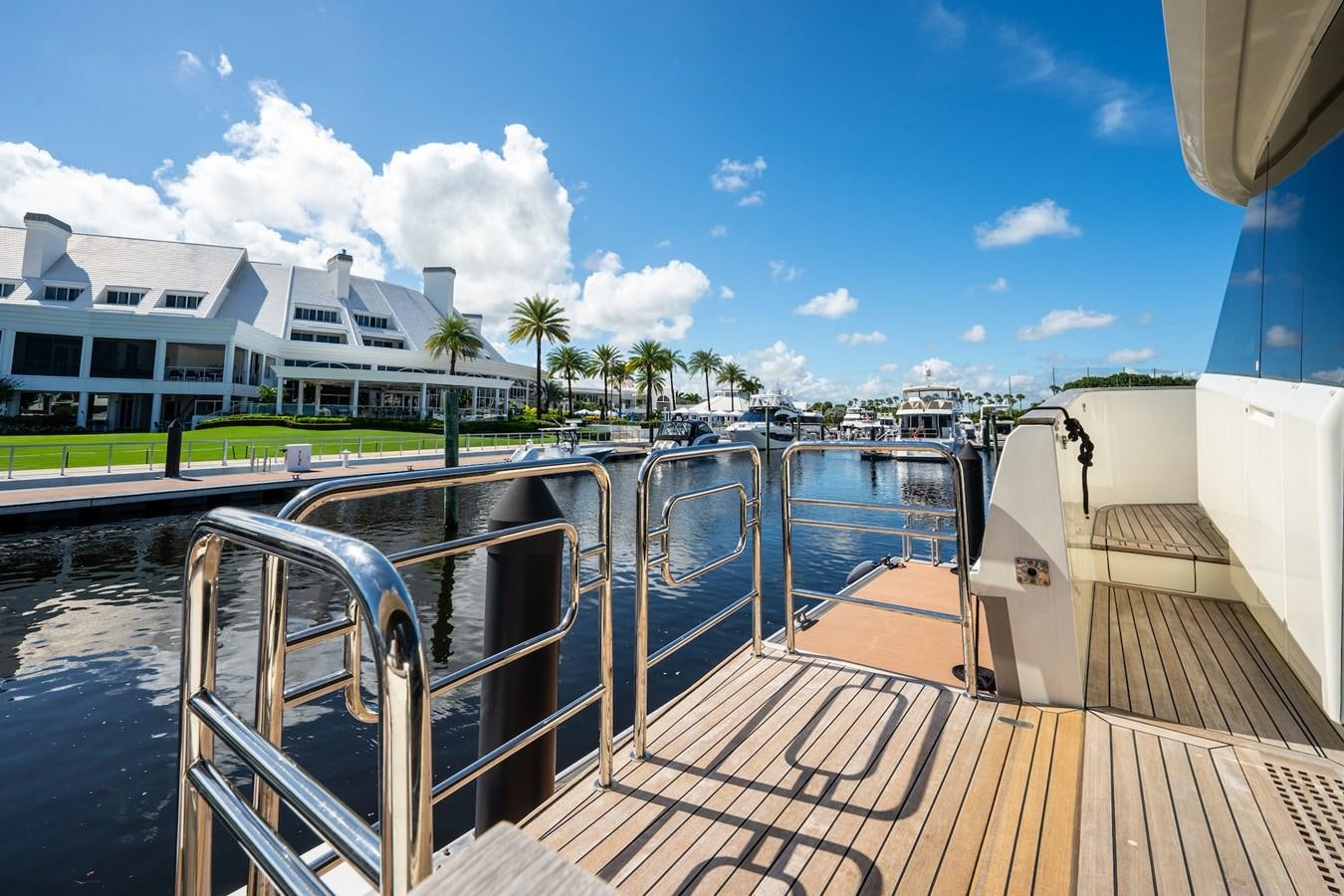

Stern
• Bathing platform with:
• hydraulic up/down lifting system – 1.200 kg max loading capacity
• platform size suitable for a 4.45 m tender length
• platform teak floor and teak grating
• stainless steel fender bar with rubber insert reinforcement
• Transom lazarette with hydraulically operated door
• Option: Garage suitable for 3.85m tender length
• Foldable bathing ladder (with storage supports into transom lazarette)

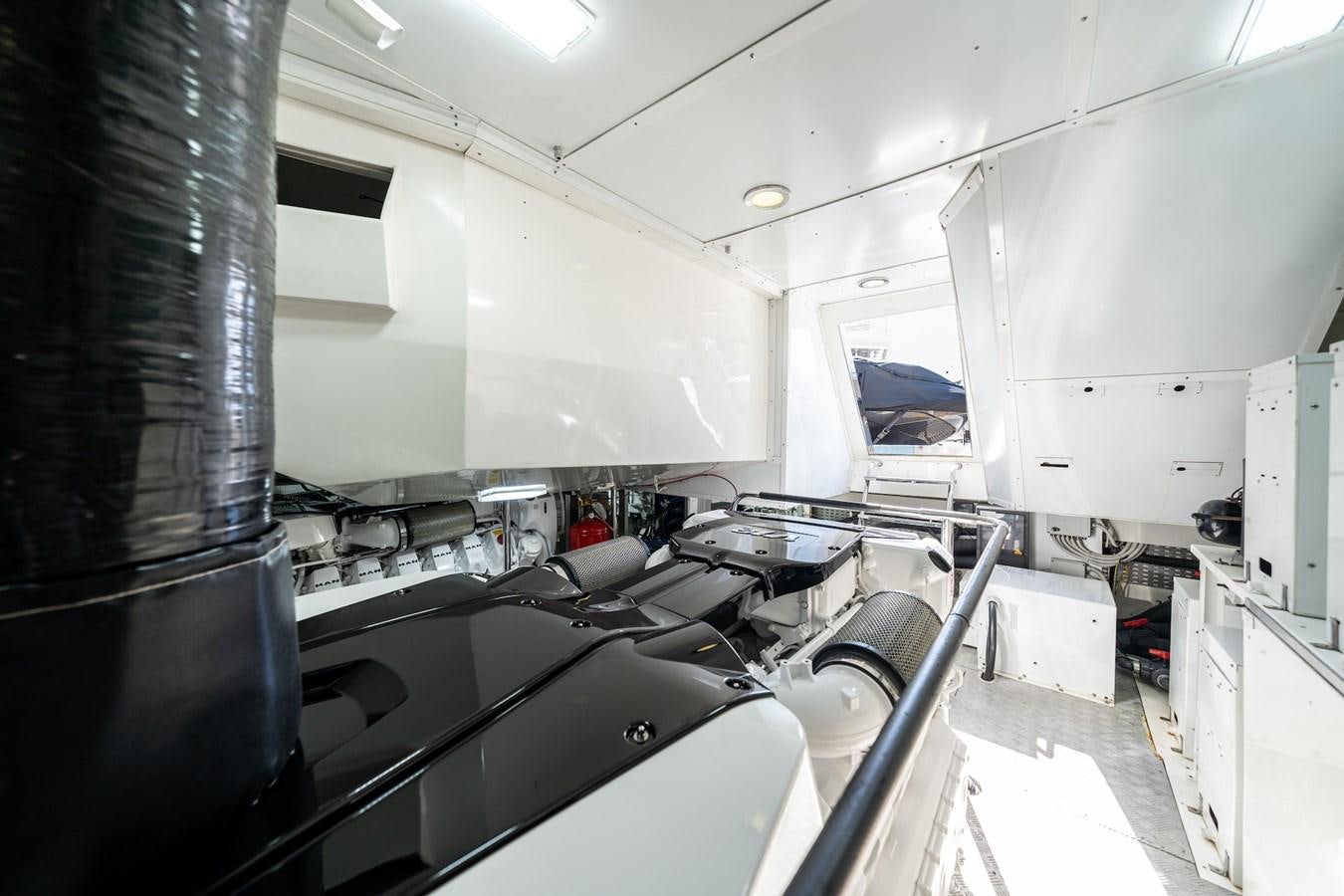

• Water proof access hatch to engine room
• Stern stairs to aft cockpit, with stainless steel handrails and hatches for shore power connection and stern platform shower (cold and hot supply)
• Electro-hydraulic concealed stainless steel gangway (660mm wide), with teak grating and manual stations

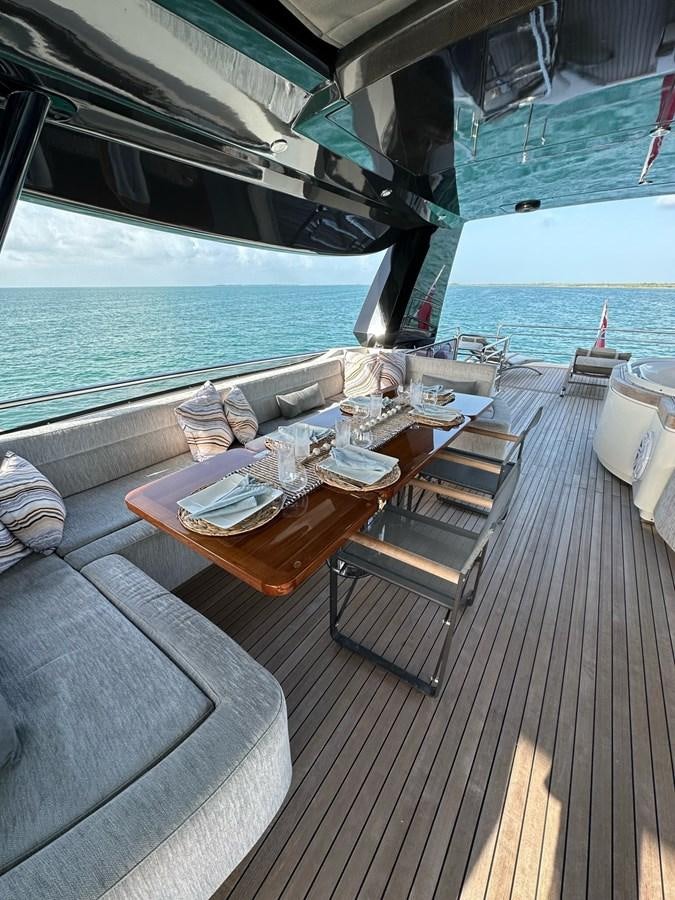

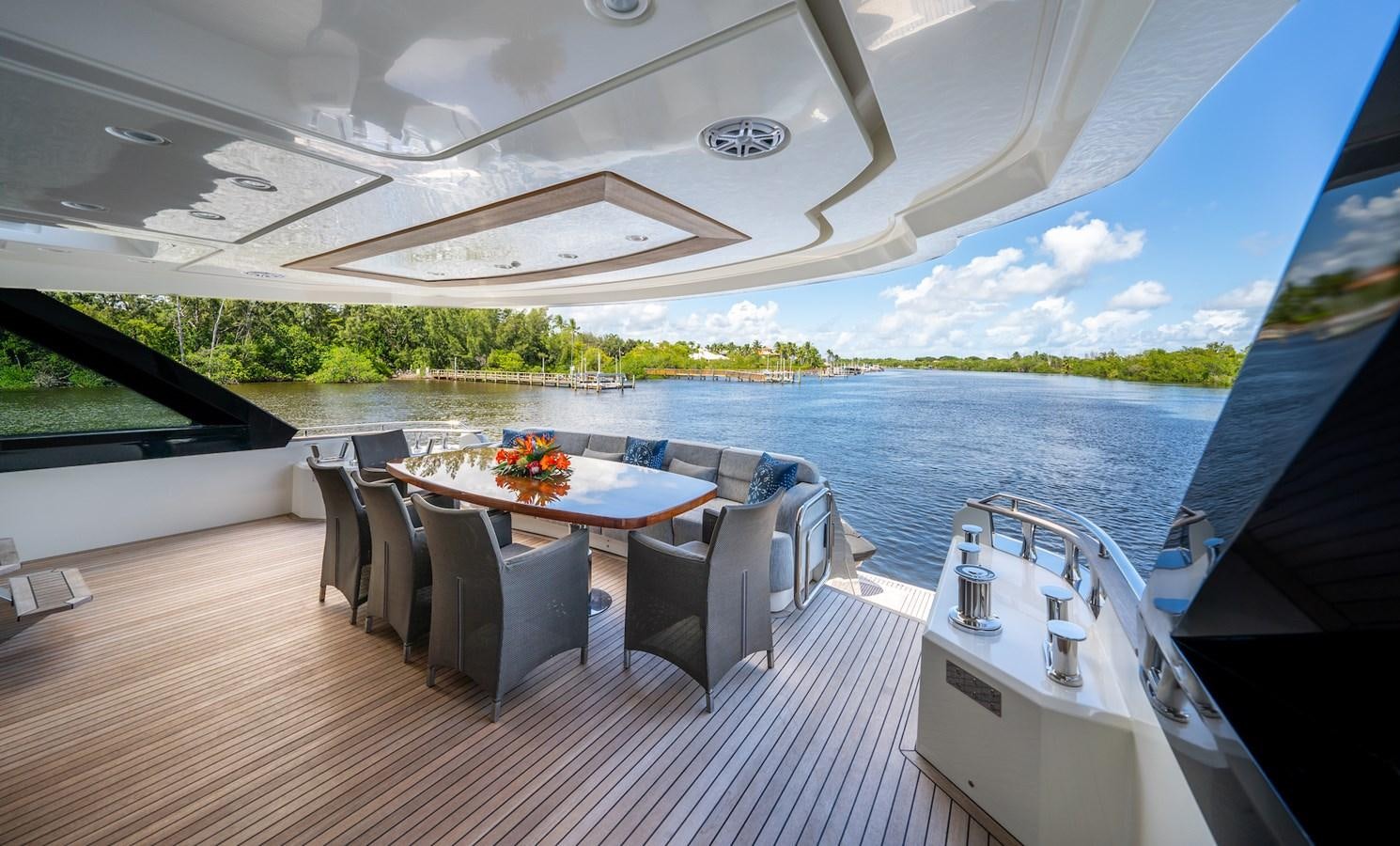

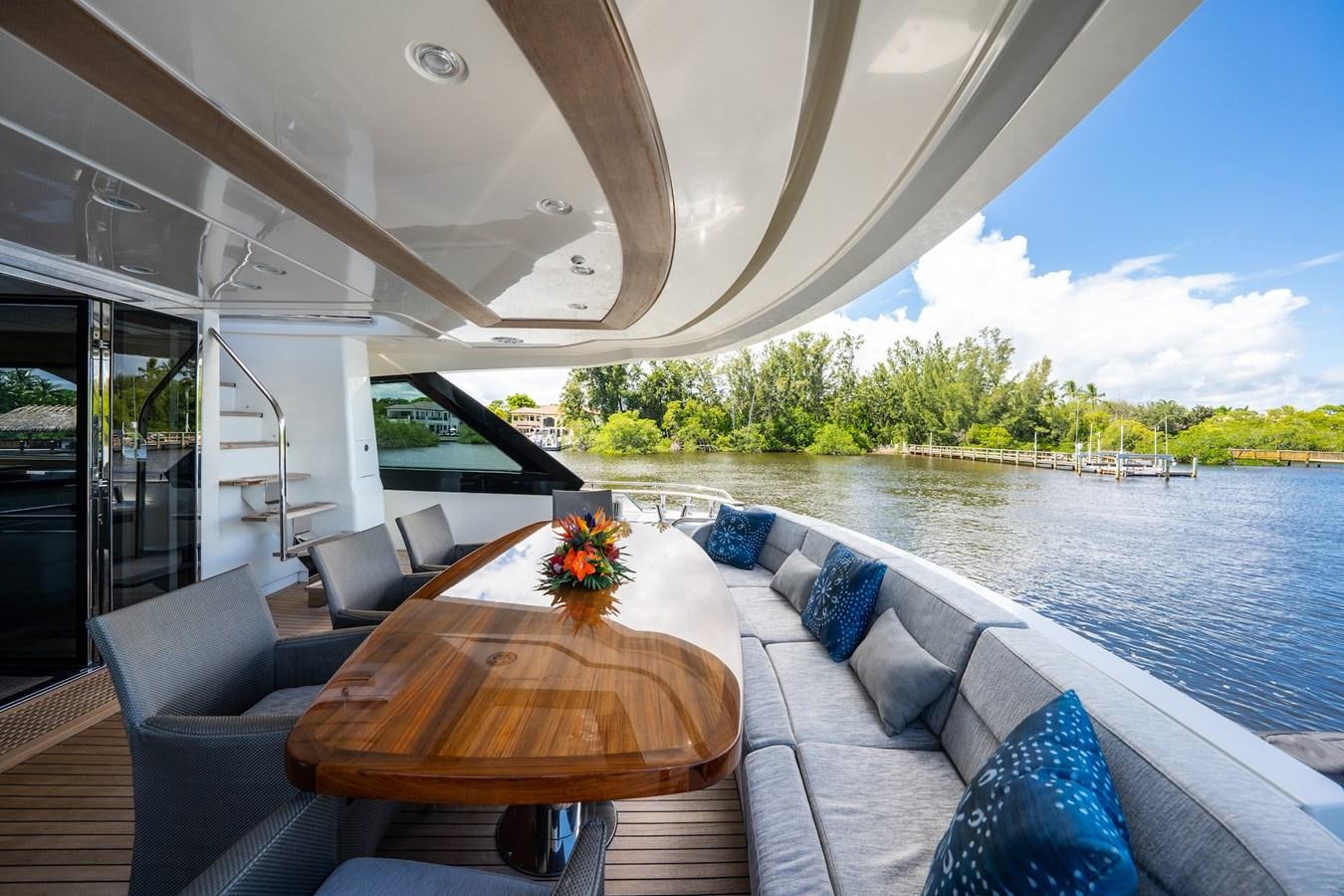

Aft cockpit
• Teak handrails on bulwark with stainless steel handrails
• Teak floor with perimeter courtesy lights
• Stainless steel and tempered glass fashion plates for lateral protection of the cockpit, with courtesy lights
• Saloon door in stainless steel and tempered glass
• Stainless steel gates to stern staircases
• Stern sofa with storage
• Teak table for 10 people with stainless legs
• LED power and courtesy lights on ceiling

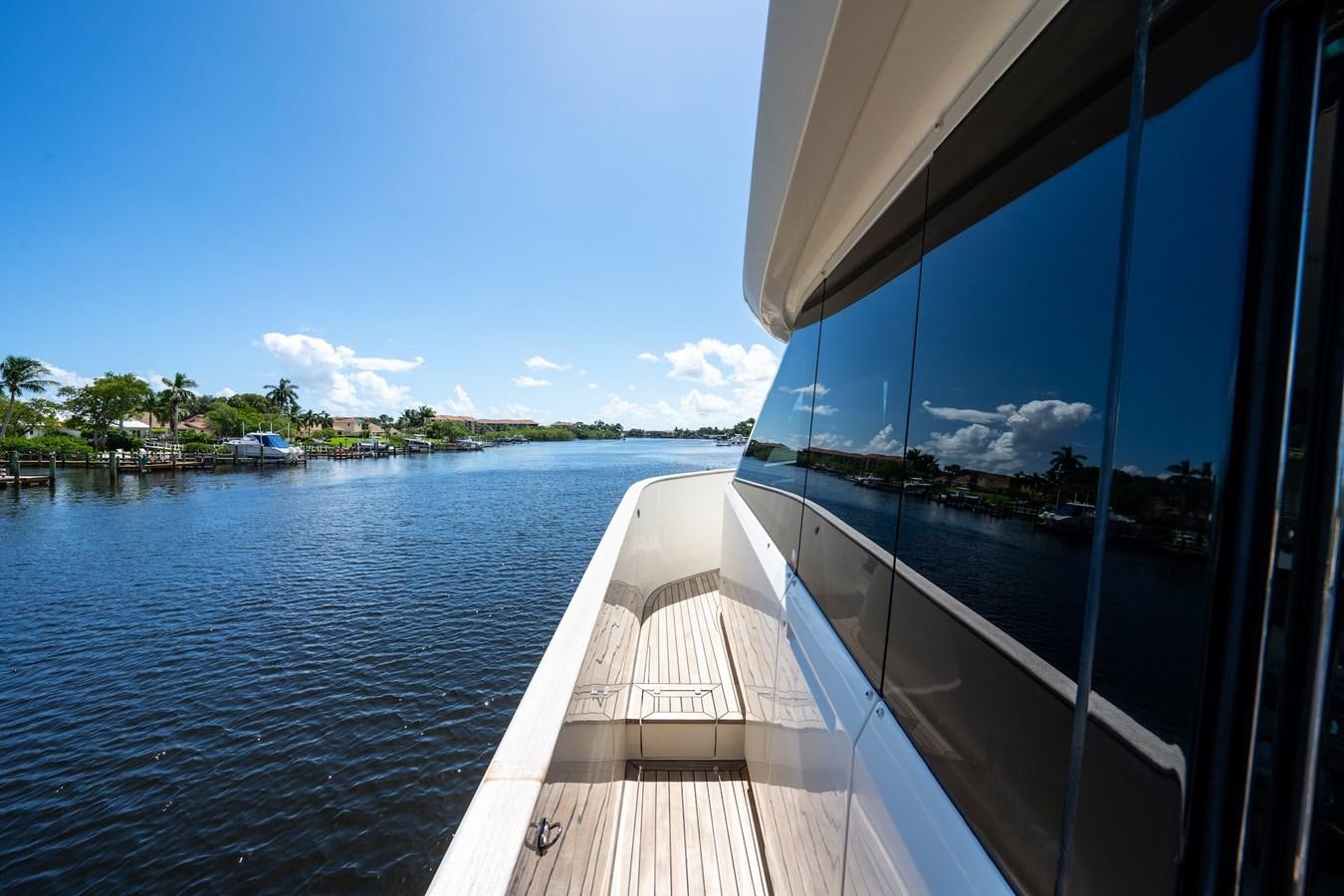

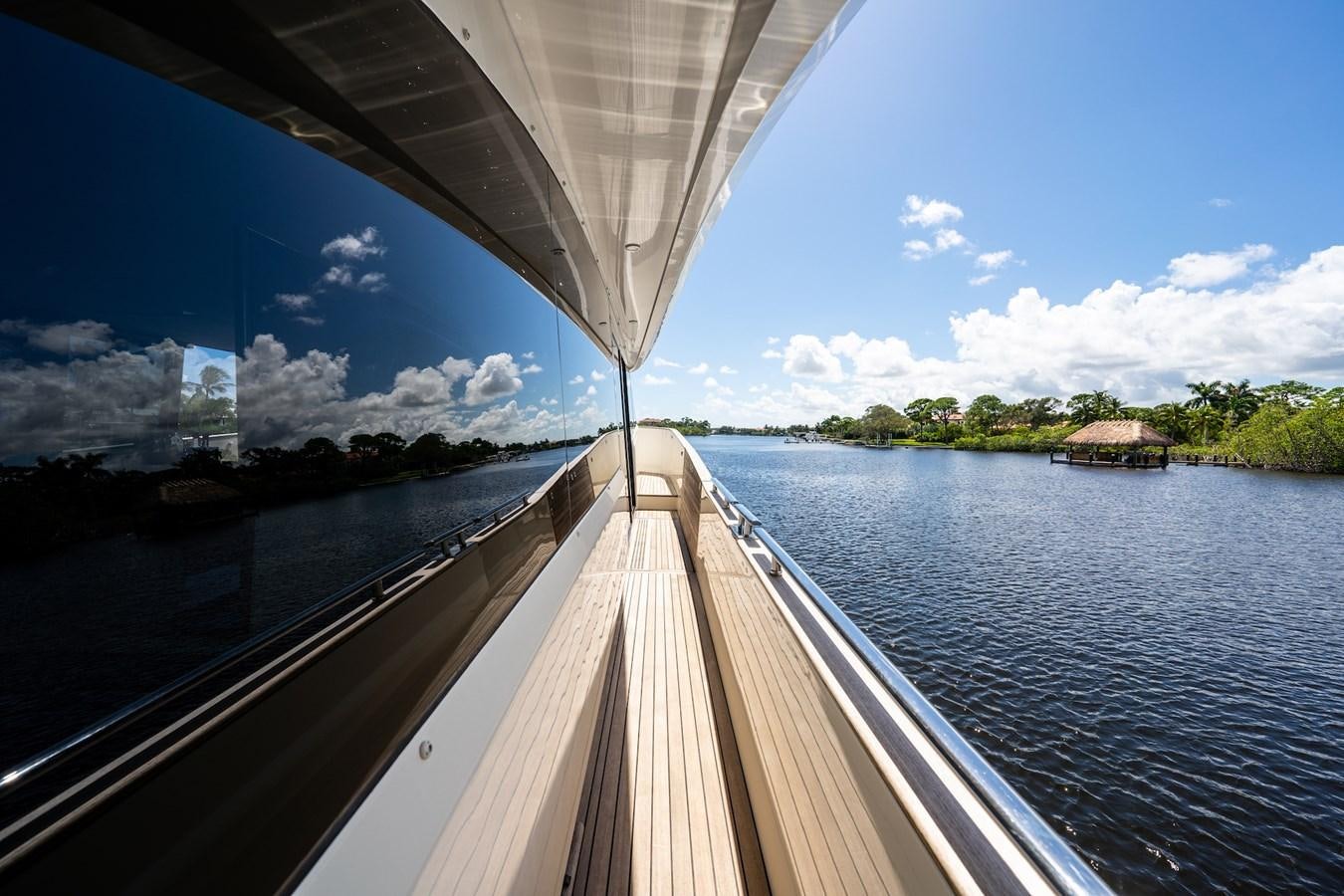

Sideways
• Teak floor with perimeter courtesy lights
• Storage with GRP door, containing diesel intake on port and starboard sides on the superstructure and level indicators.
• Storage covered with teak door and step, containing black and grey waste discharges (on portside)
• Teak handrails on bulwark with stainless steel handrails
• Stainless steel fender rubber with rubber insert reinforcement
• LED power lights on ceilings
• Tempered high thickness glass windows glued to the superstructure

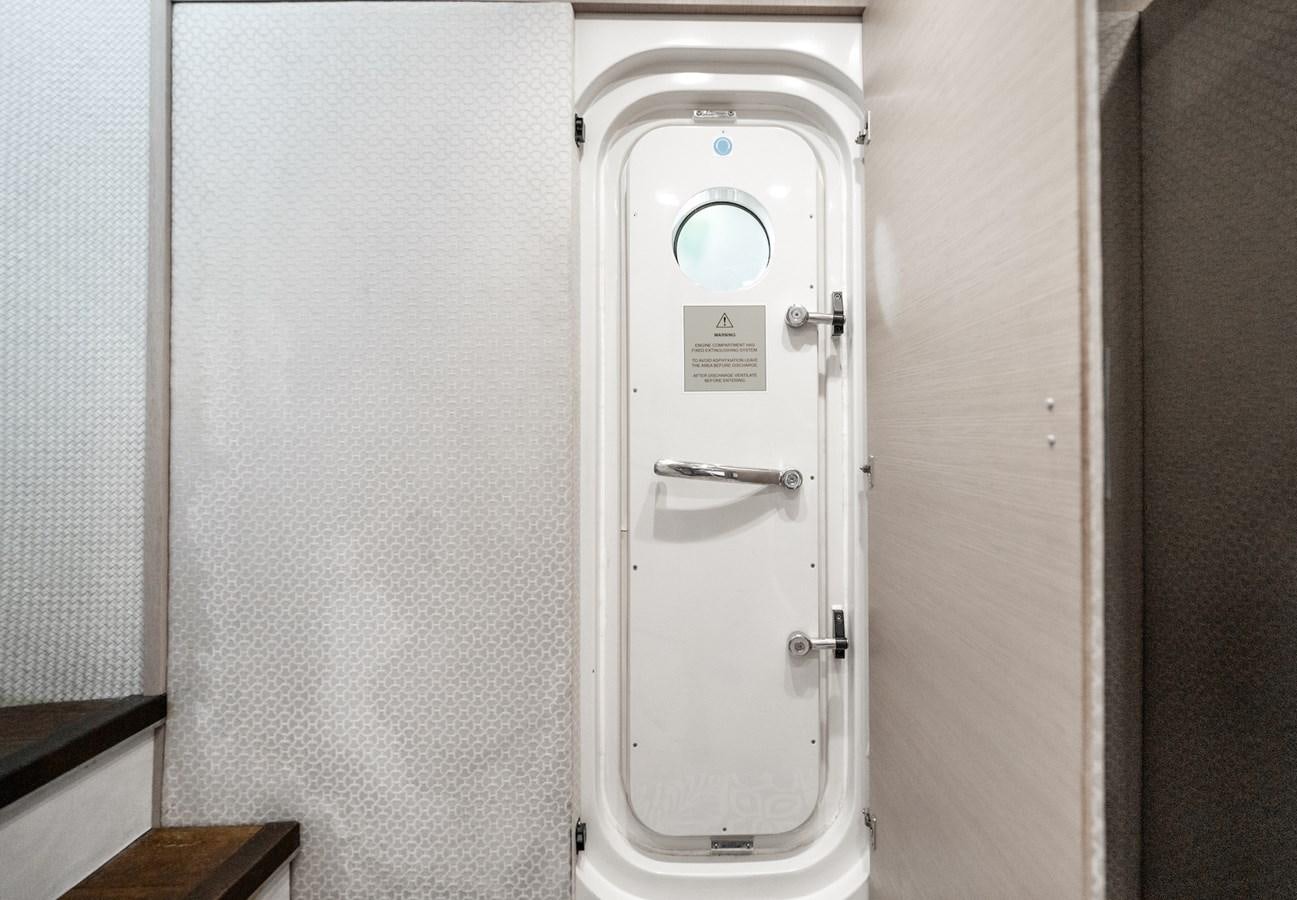

• N°2 semi-automatic electric watertight doors from main dashboard to port side sideway and from saloon to starboard sideway

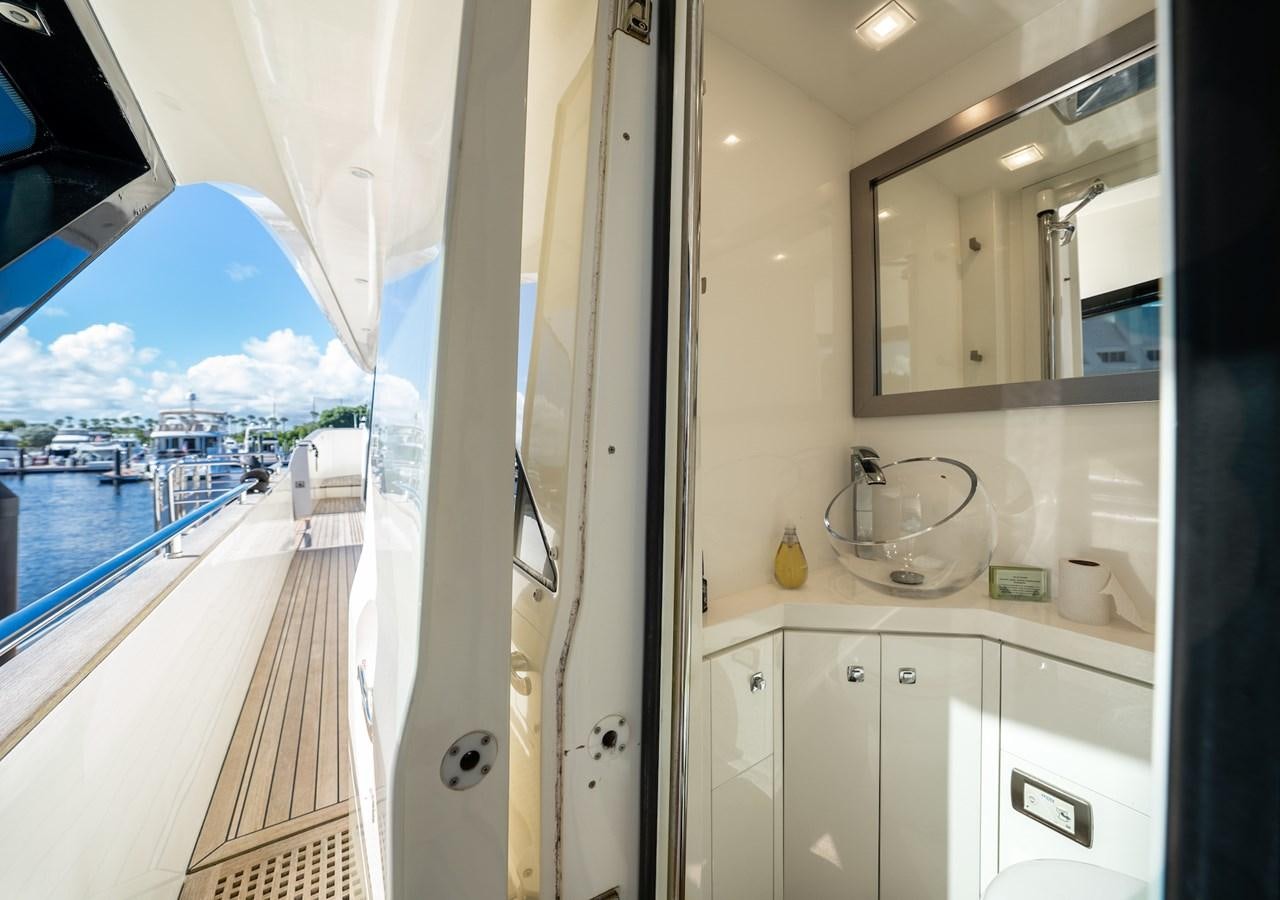

• Day toilet with direct access from port sideway

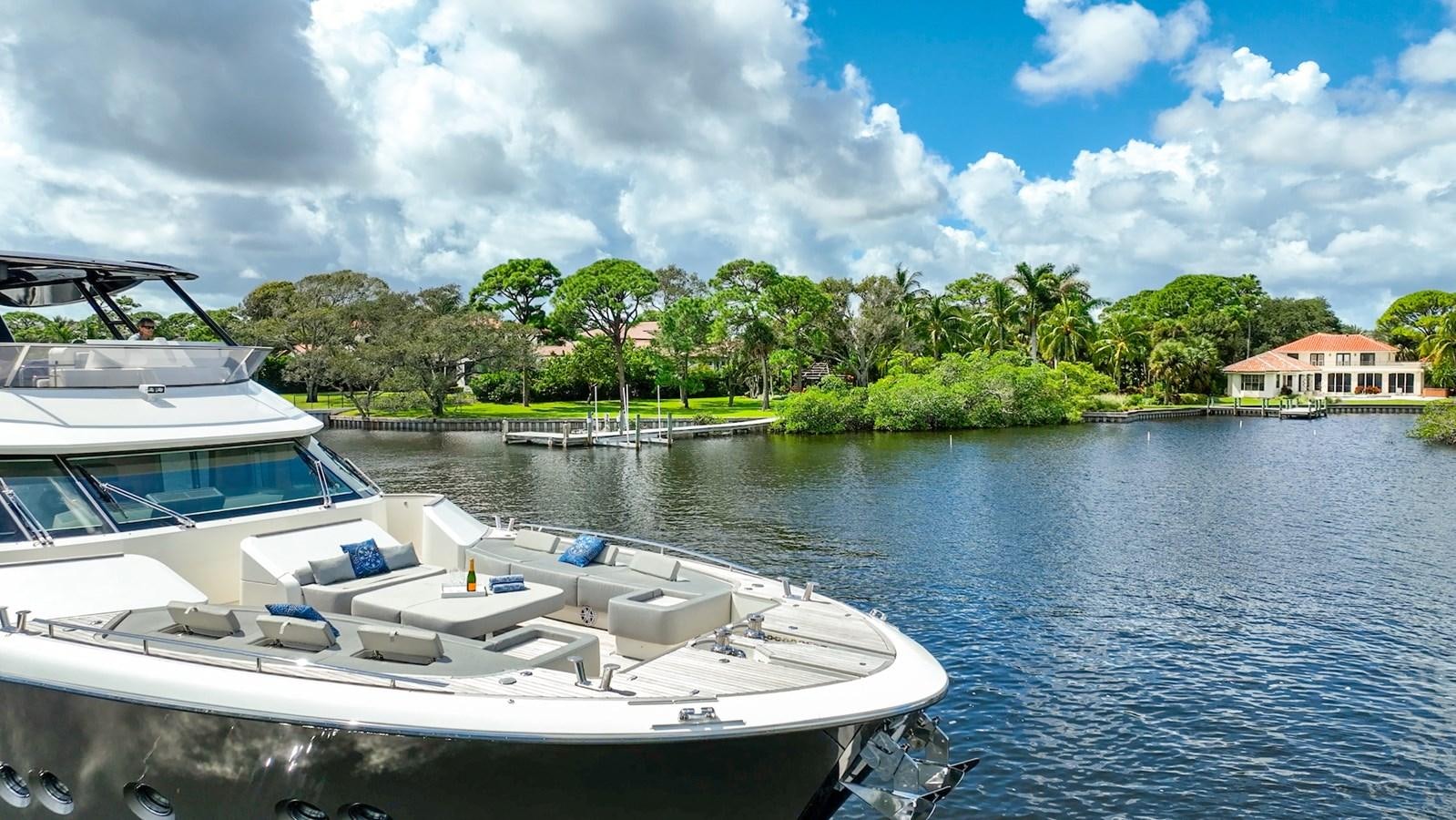

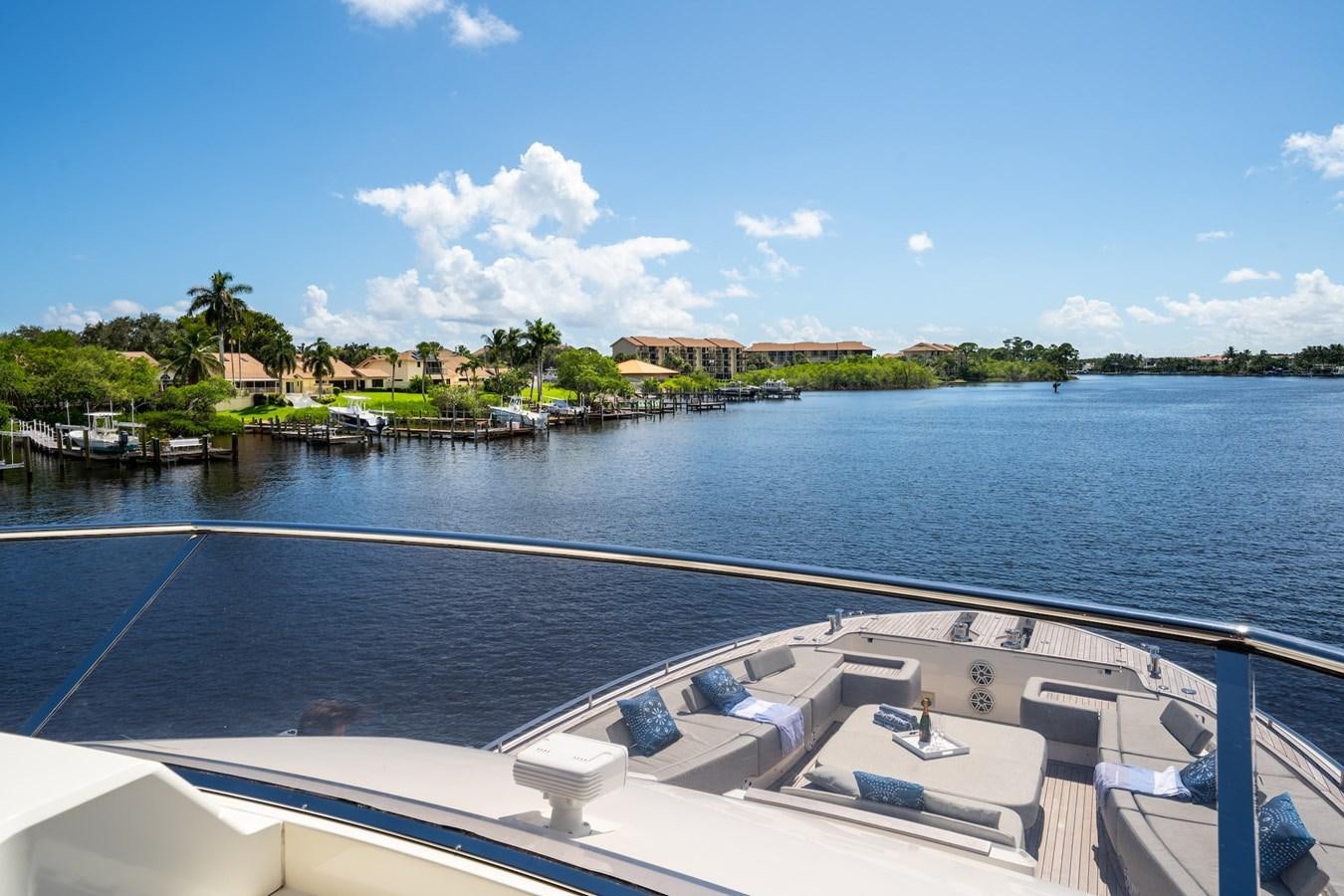

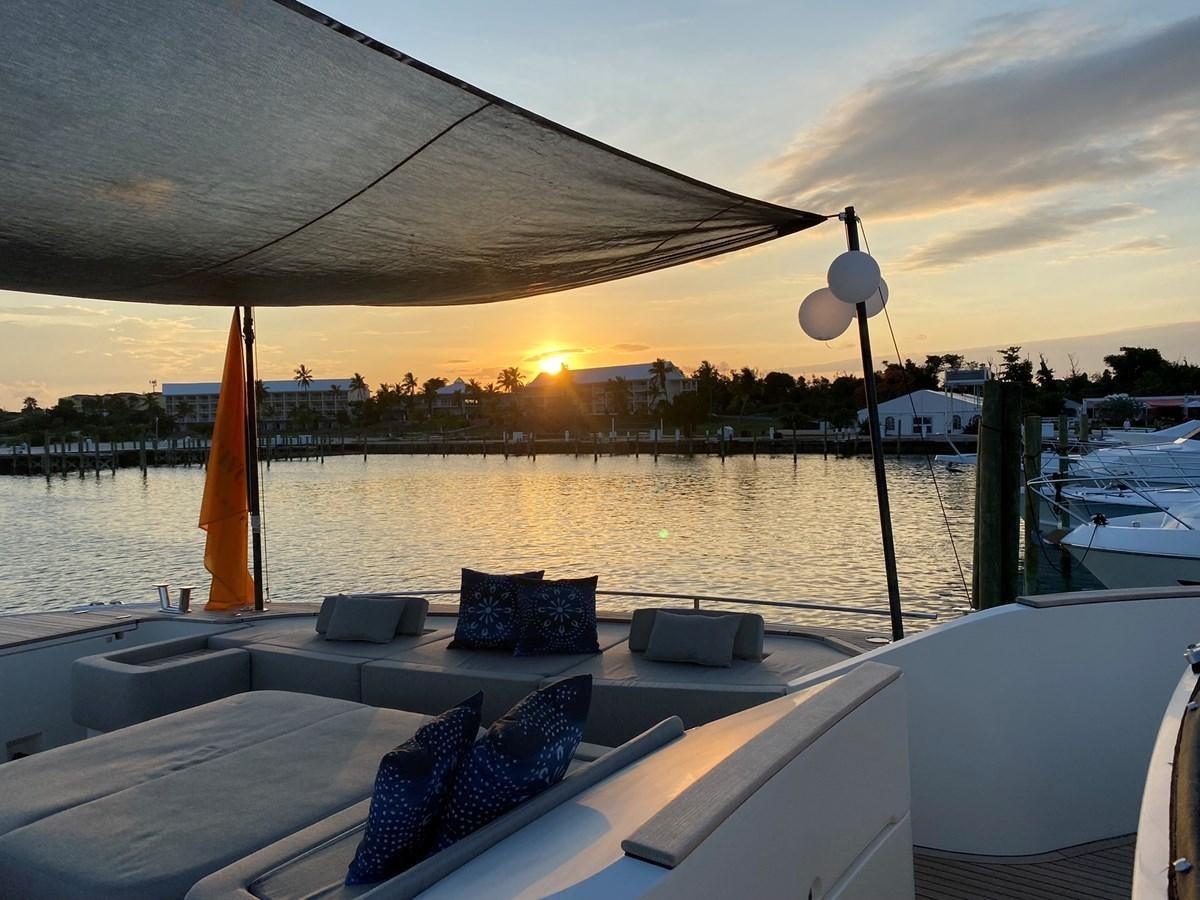

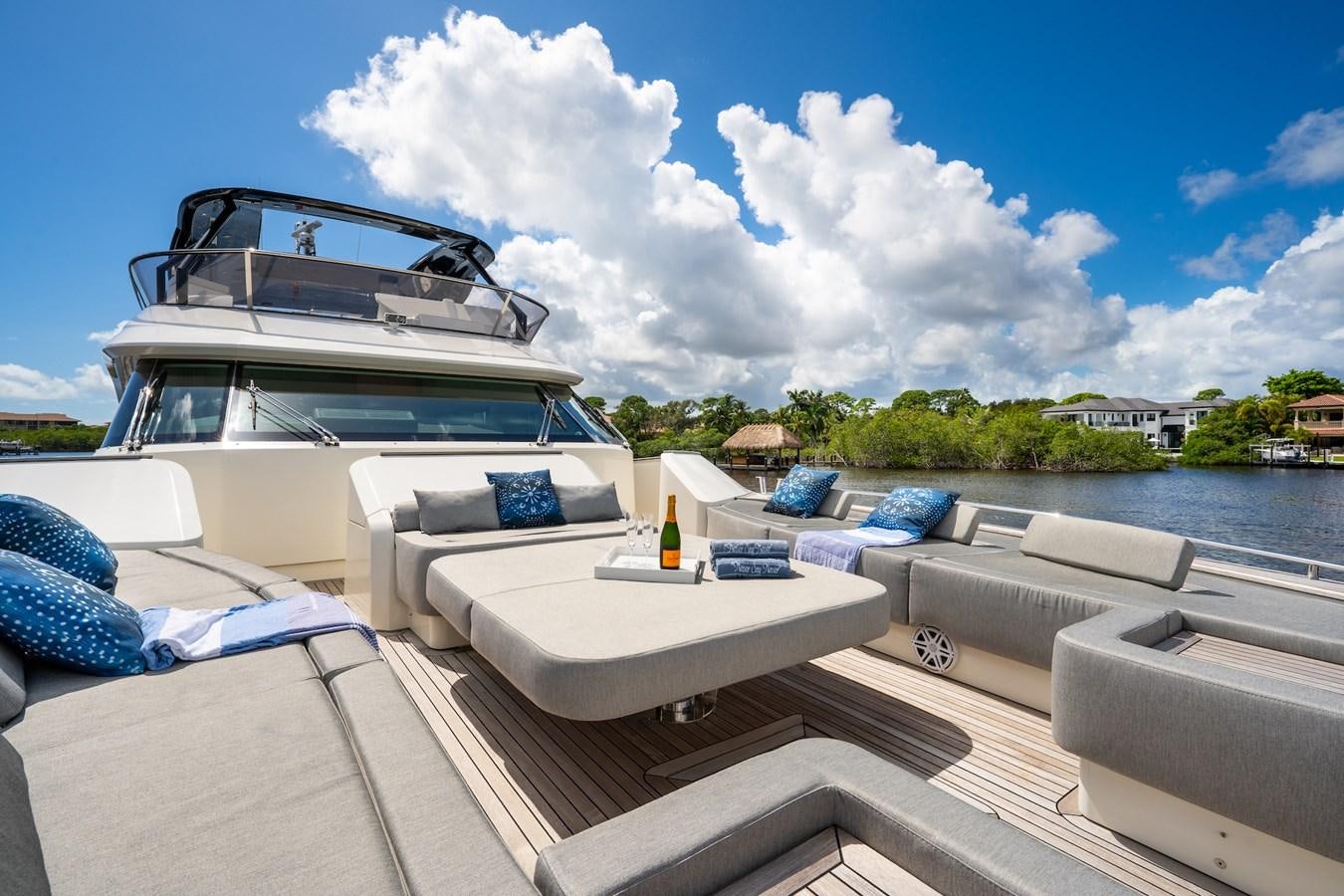

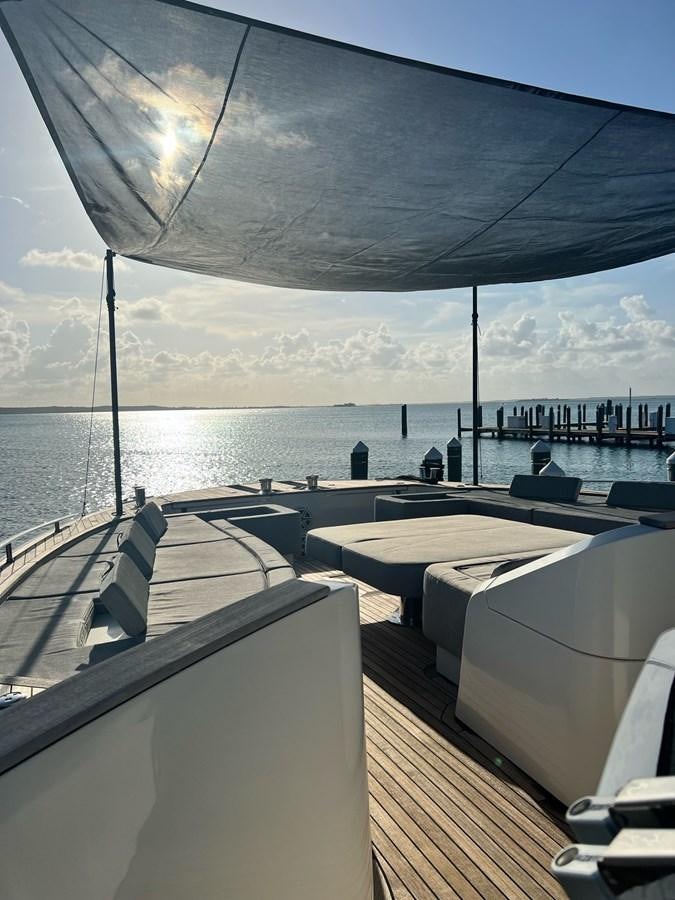

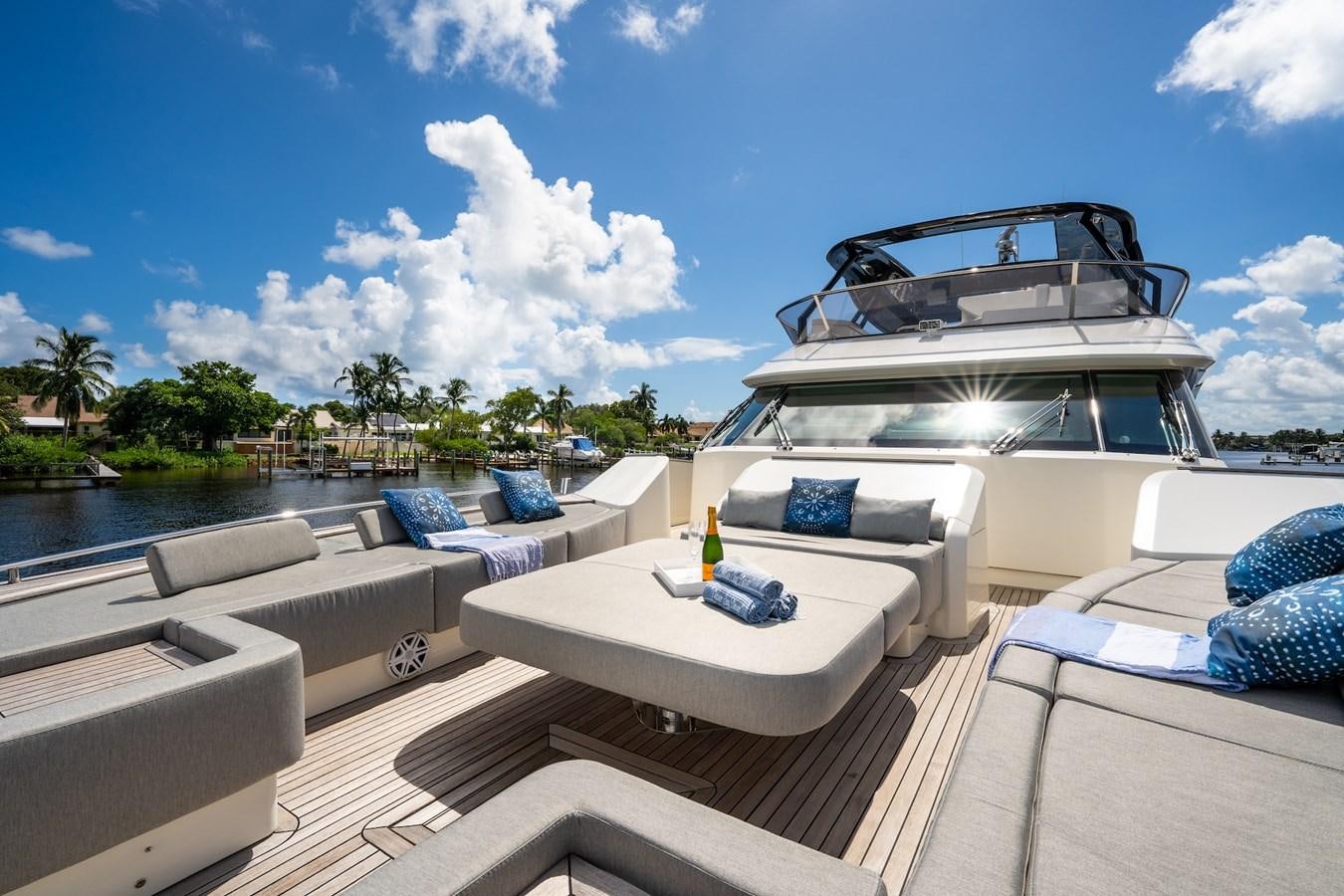

Bow cockpit
• Chain locker in the anchor winch area, with:
• two storages and handrails to fix fenders
• chain guiding support
• cold and hot water shower
• Teak floor with perimeter courtesy lights
• Flush deck hatch for crew cabin emergency exit
• Semi-circular sofas, with integrated removable backrest for double function (sofa or sunbathing cushion), with large capacity storages and decorative pillows
• Central sofa
• Central table.
• Stainless steel handrails
• Teak handrails on bulwark along the portuguese bridge
• Forward windscreen in sandwich tempered glass, with UVA and IR filter films
• 4 electric windscreen wipers for forward windscreen
Internal layout and equipment

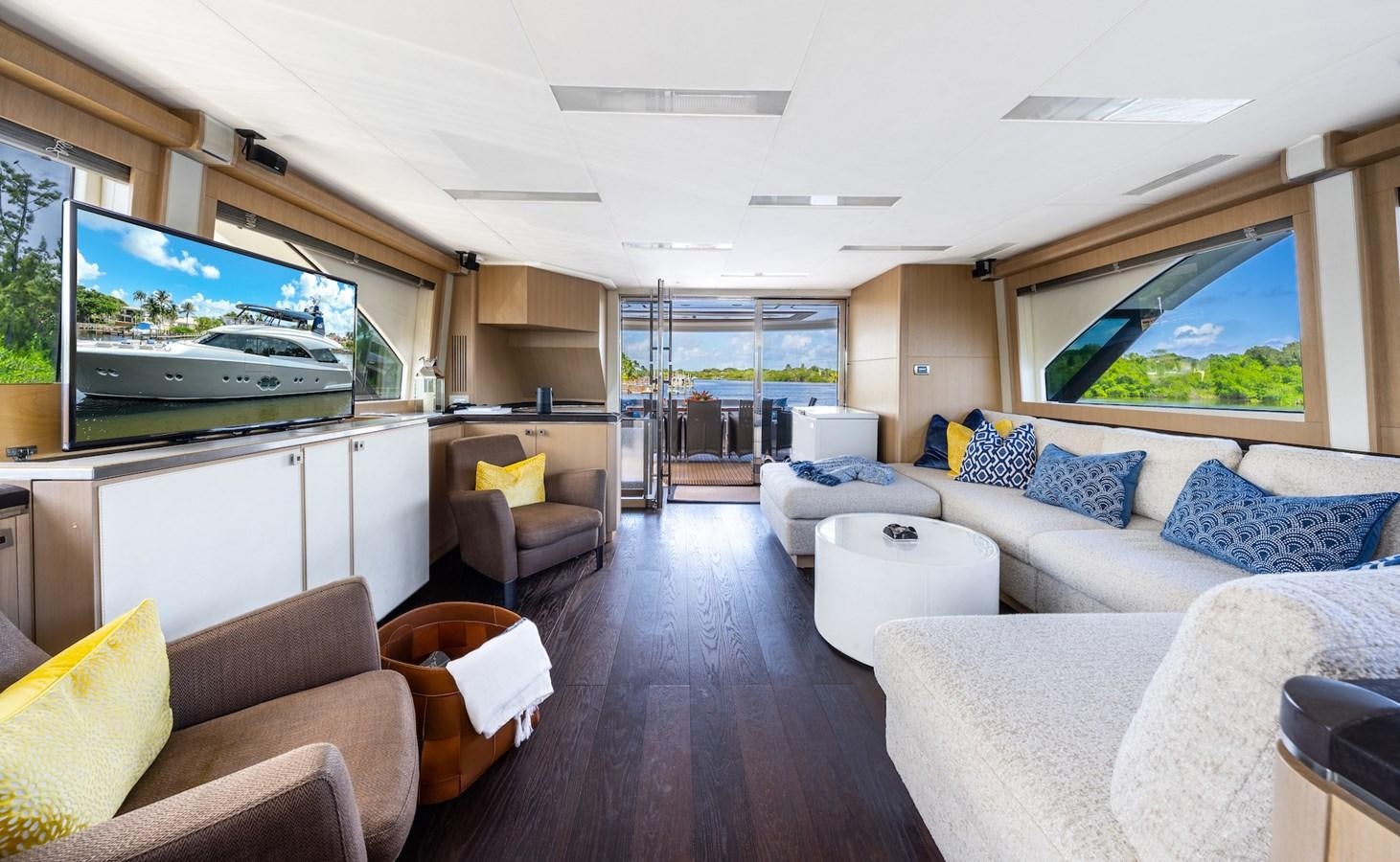

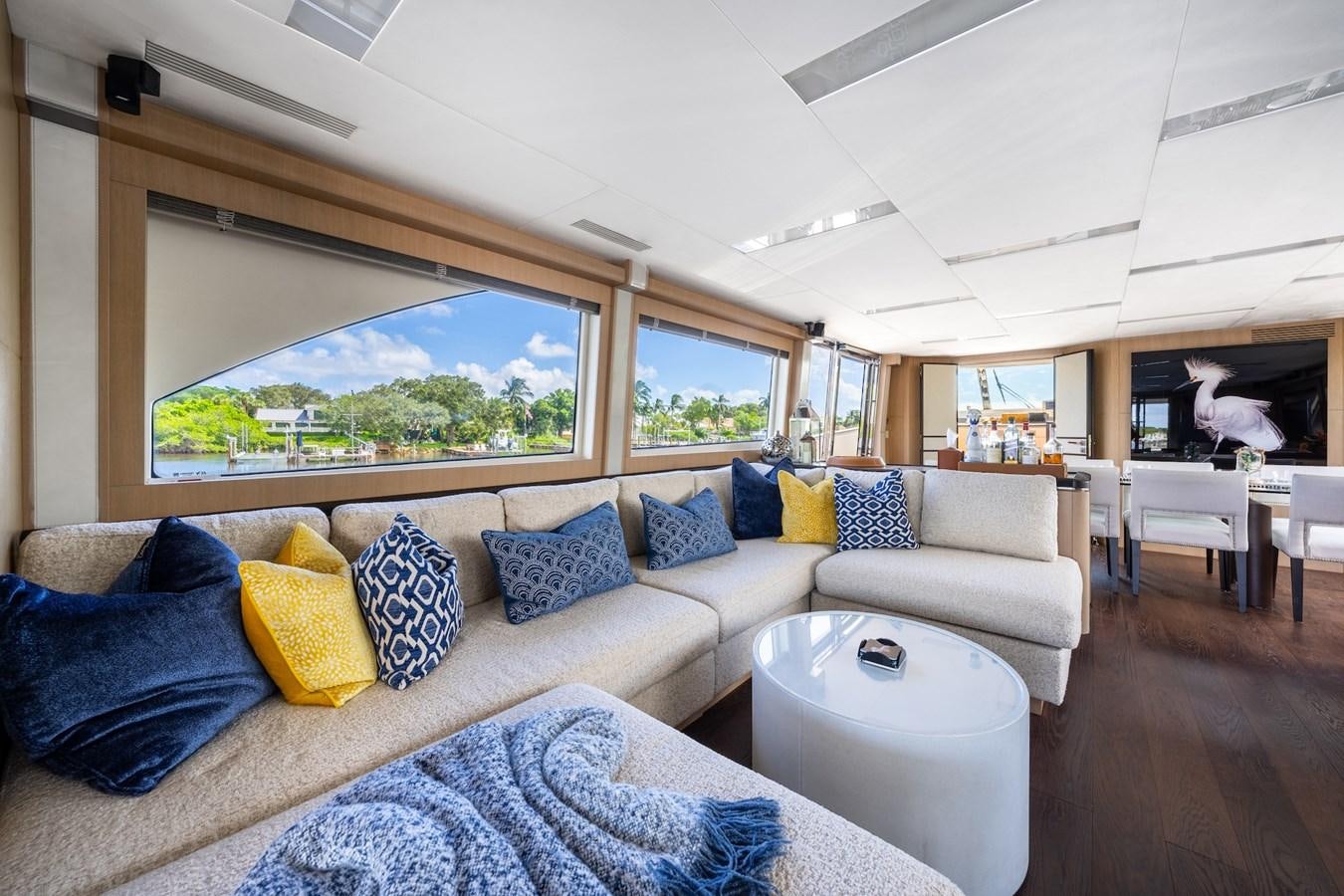

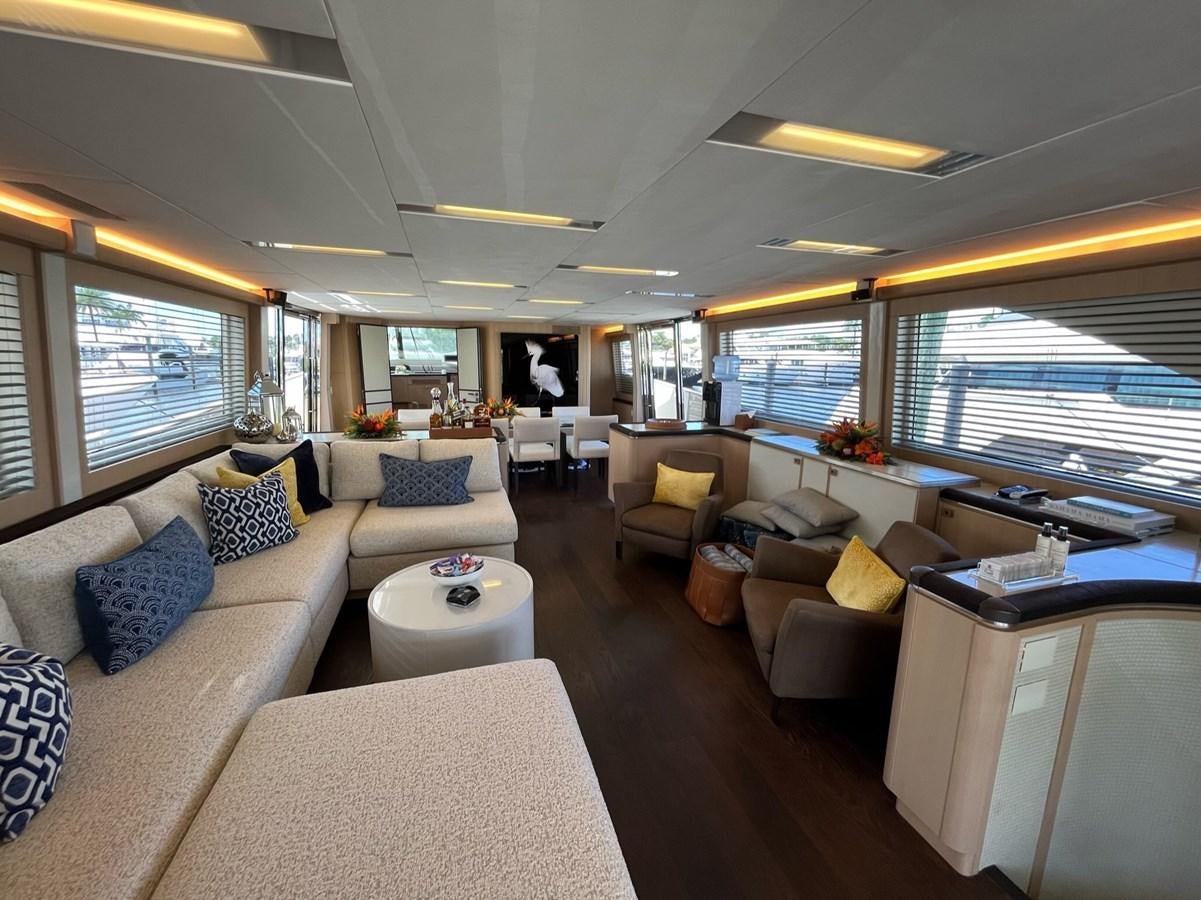

Main deck – saloon, dining area
• Cabinet with shelves on starboard side next to the main entrance
• Cabinet with shelves on port side next to the sofa
• Cabinet with shelves on port side next to the dining area

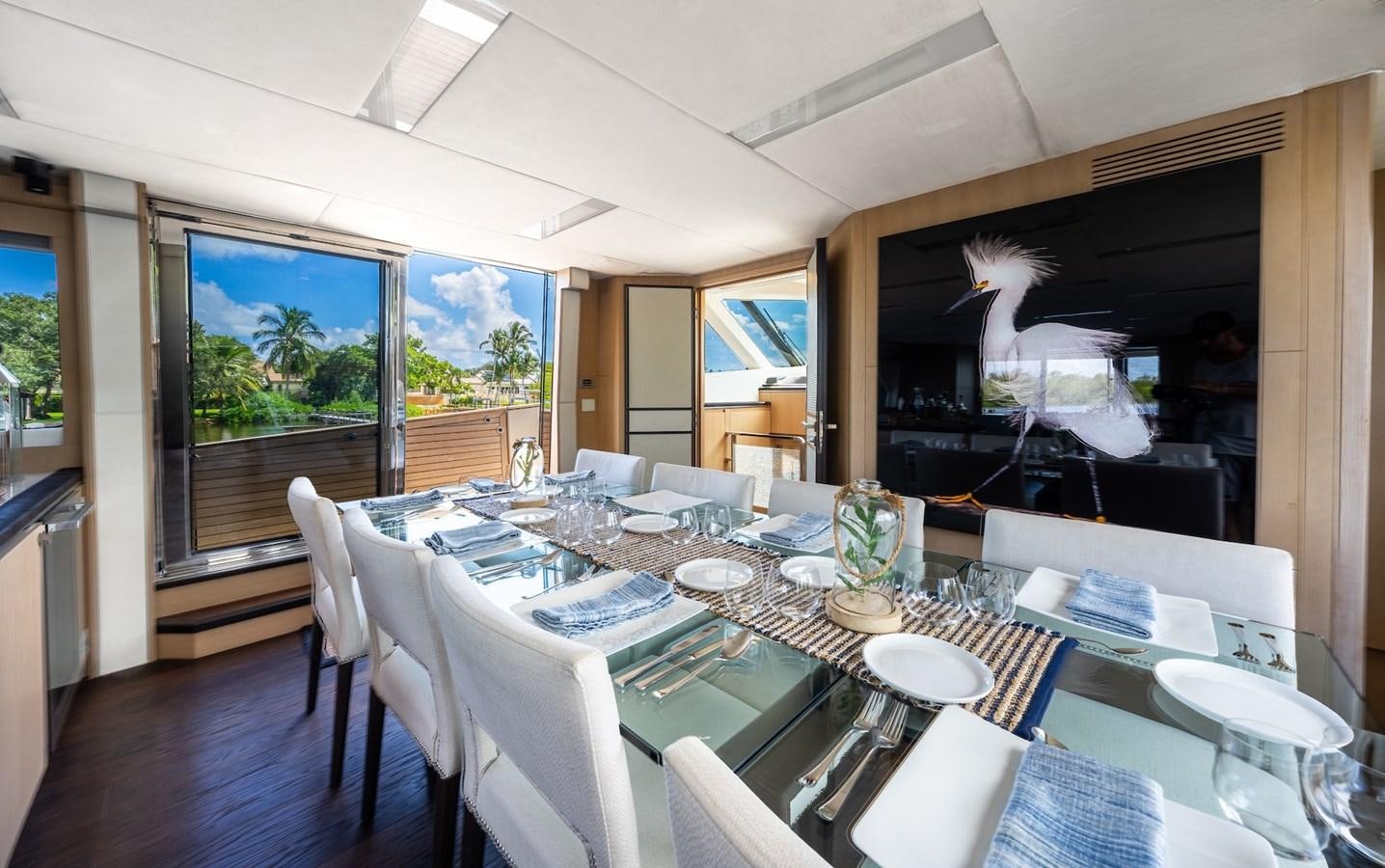

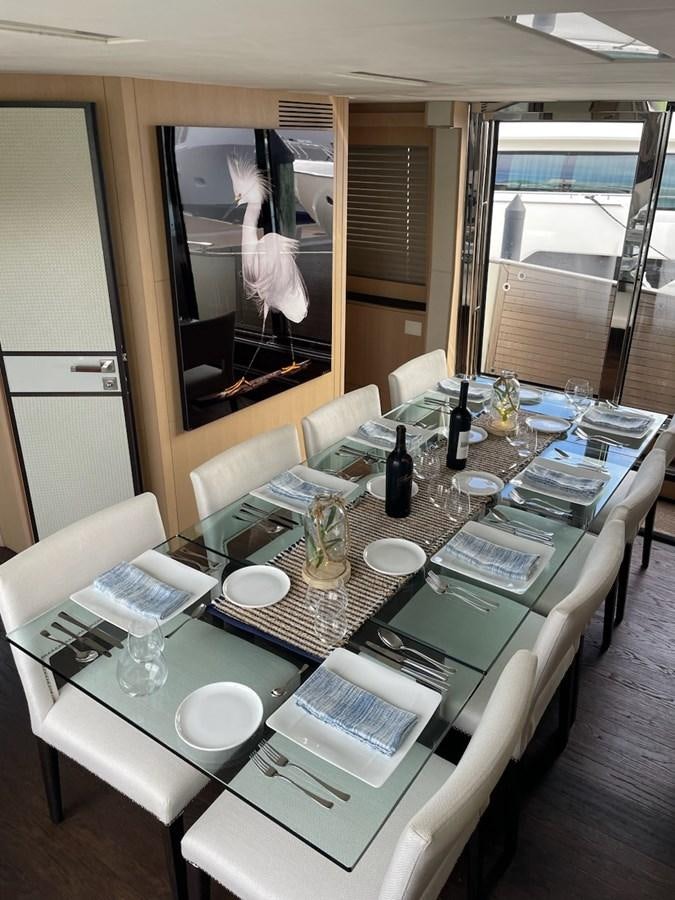

• Dining area forward, with table up to 10 people
• N°6 chairs for dining table
• Dishware and cutlery storage
• Sofa on stern
• TV cabinet with up/down lifting mechanism for a 50" LED TV
• Direct LED lights on ceilings
• Electrical venetians blinds on both port and starboard sides
• Depending on the type of layout selected, n°2 or 3 stairs to access the lower deck

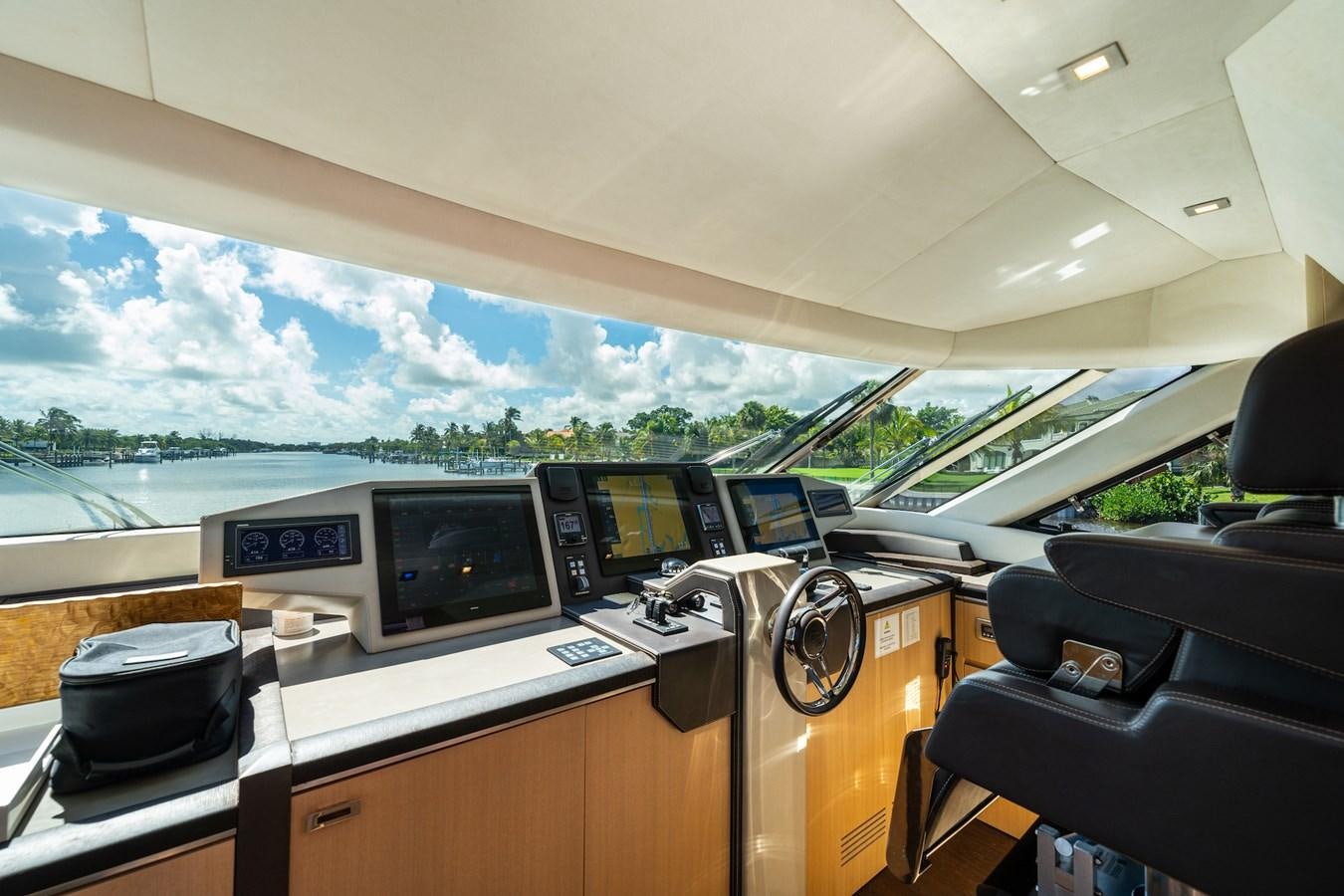

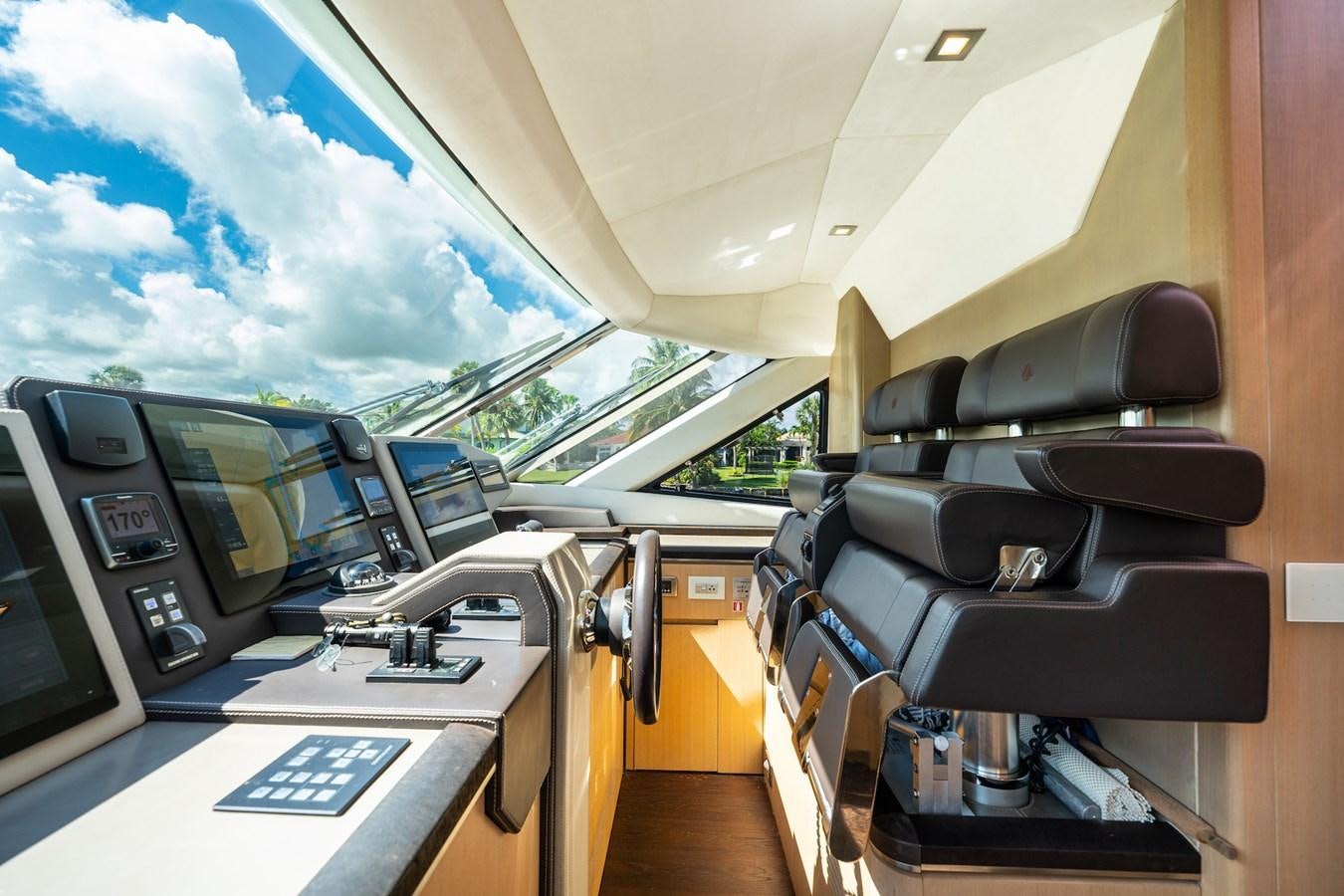

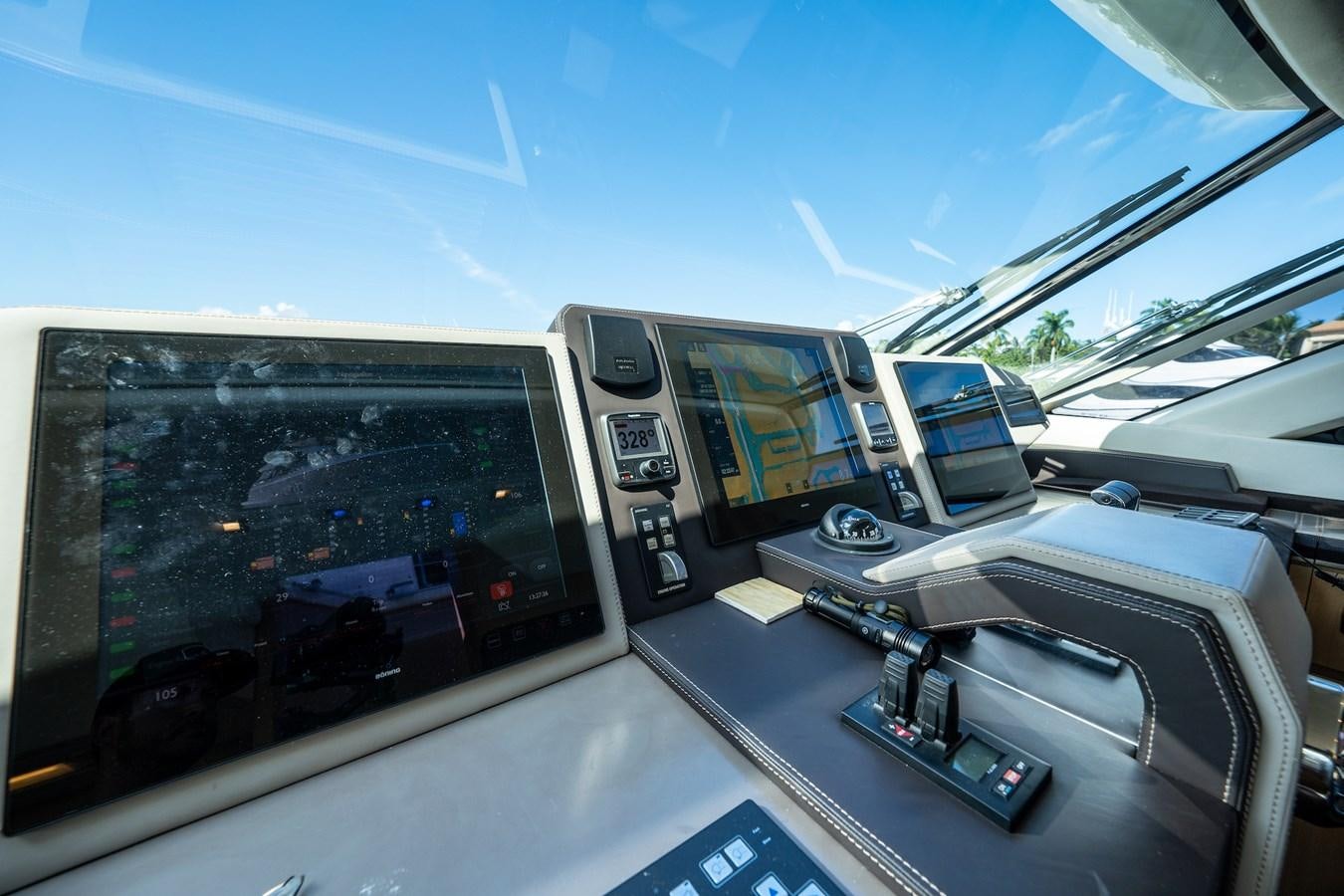

Wheelhouse
• Instrument console in leather with pickled oak

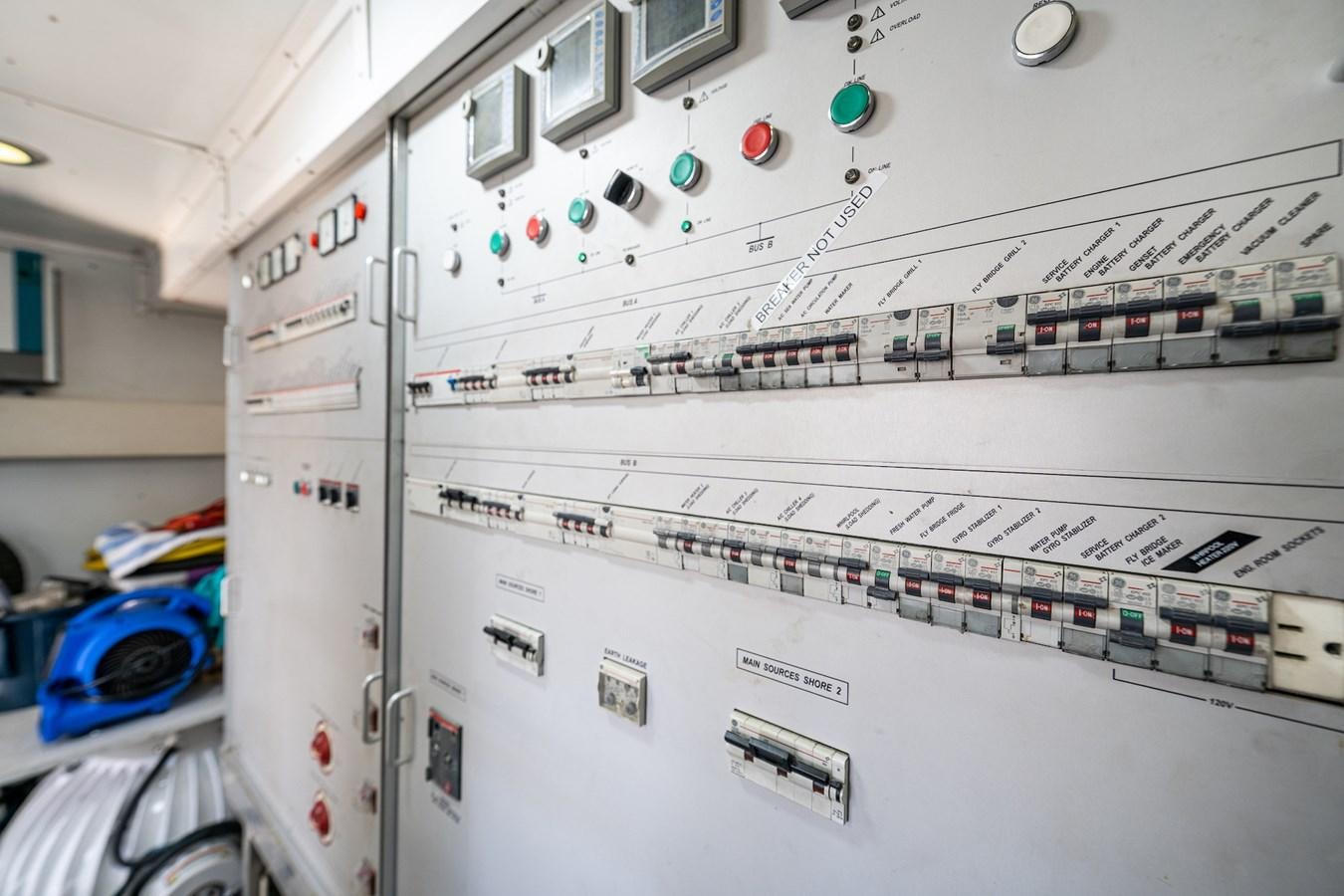

• Electrical panel on starboard side
• Electrical panel on port side next to lower deck stairs
• Chart top in leather on starboard side of the wheelhouse
• N°2 or 4 pilot seats in leather, electrically moved (up/down) depending on the seating arrangement selected
• Direct LED lights on ceilings (day and night navigation lights)
• Pilot station includes, further to the instrumentation as per paragraph.9:
• Steering wheel in leather
Main engines and reversing gear levers
Key switches for port and starboard engines
Horn, windscreen wipers, anchor winch and chain counter, search light, fire extinguisher controls
panel with warning and alarms for bilge pumps

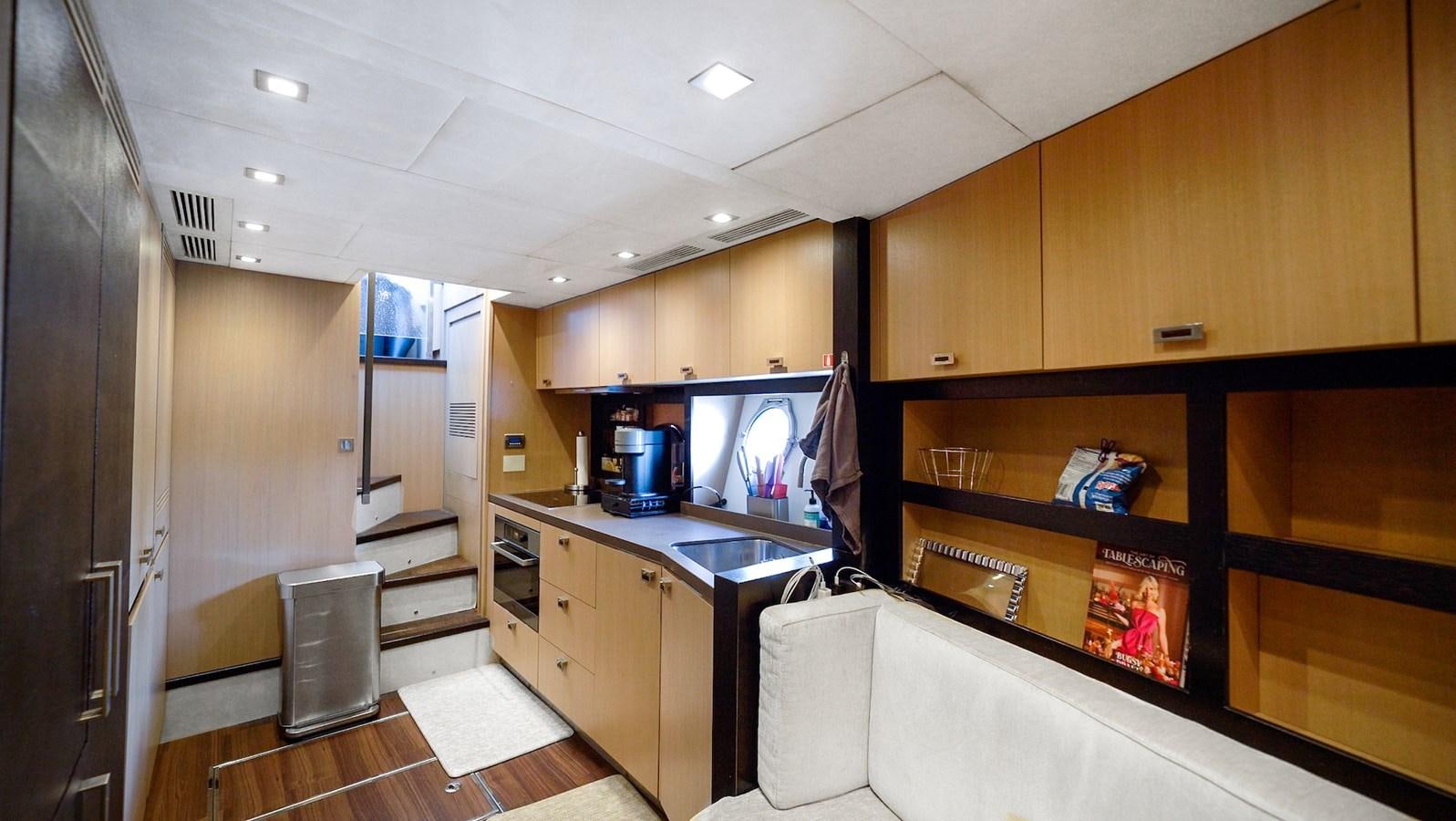

Lower deck - Galley
Working top with cooking top and sink
• Storage shelves above the sink and main cooking top
• Storage with drawers under cooking top and sink
• N°2 big storages
• Direct LED lights on ceilings
• Equipment from Miele or equivalent high quality standards. Galley equipment includes:
five induction hobs
extractor
professional oven (90 cm)
dishwasher
wash machine
side by side fridge and freezer

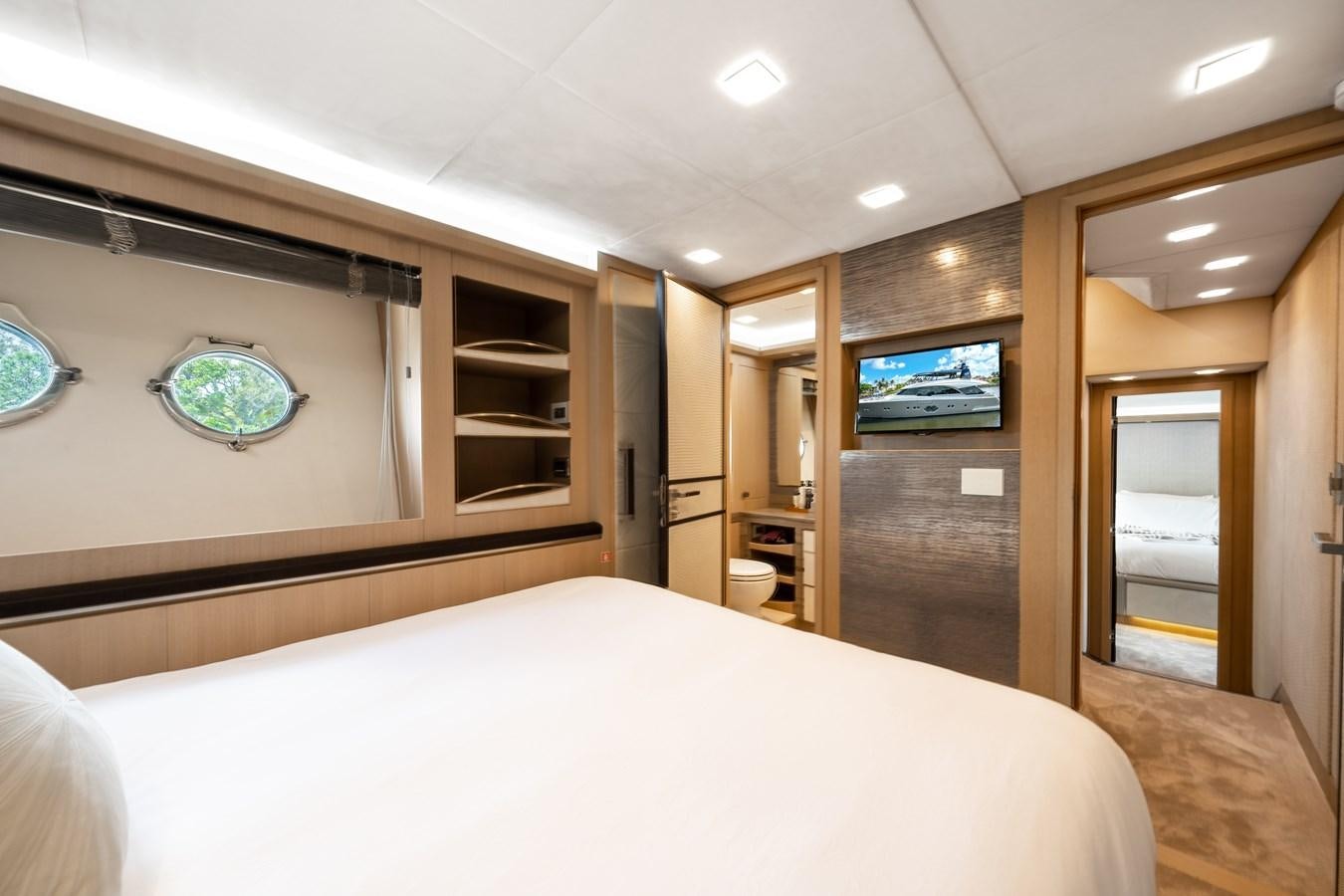

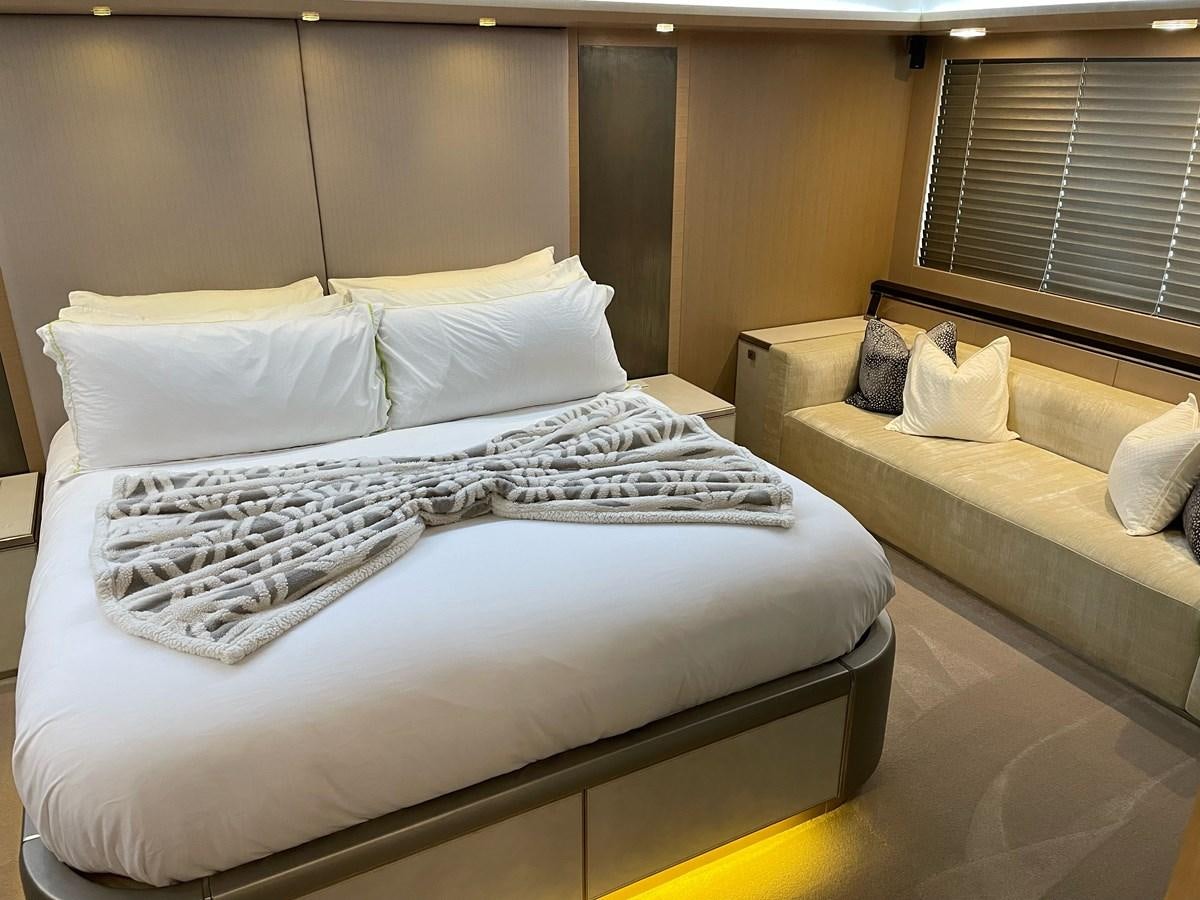

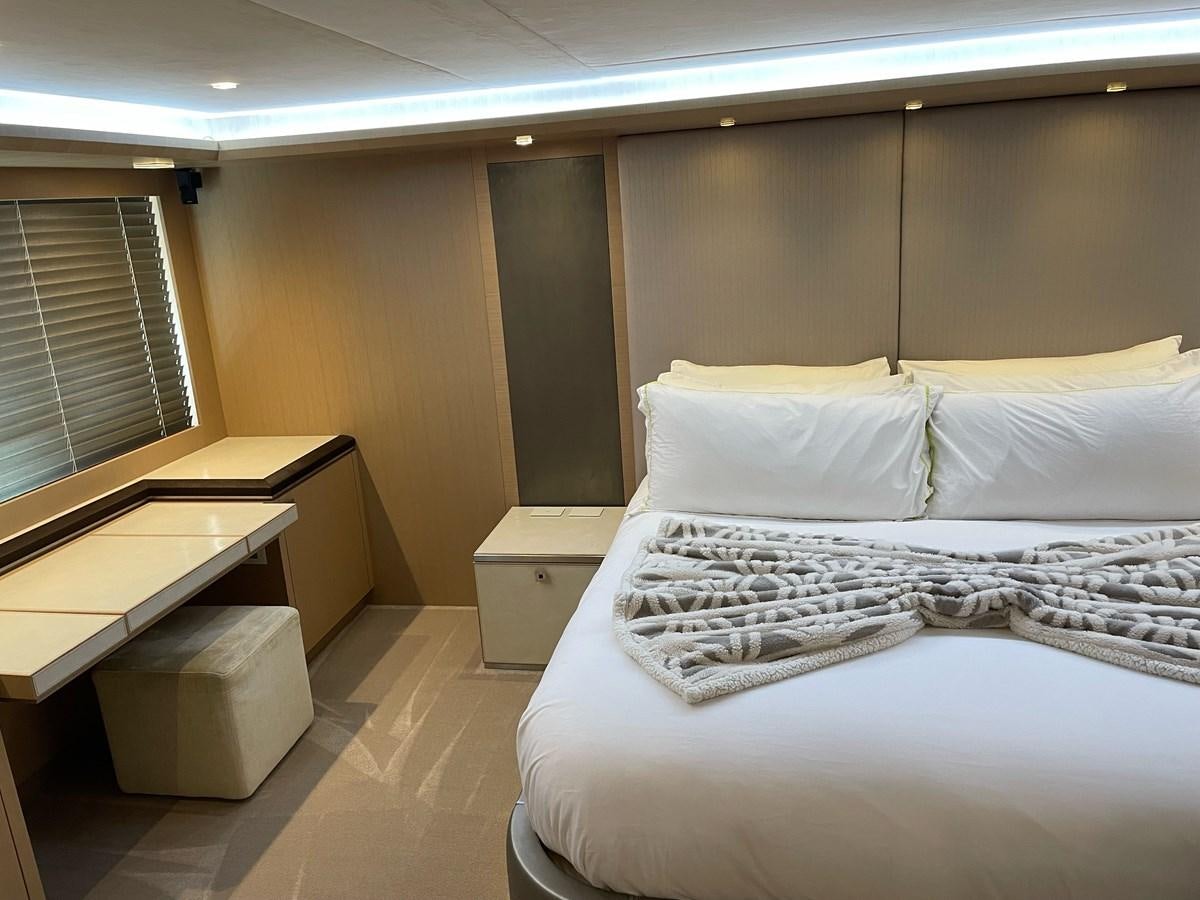

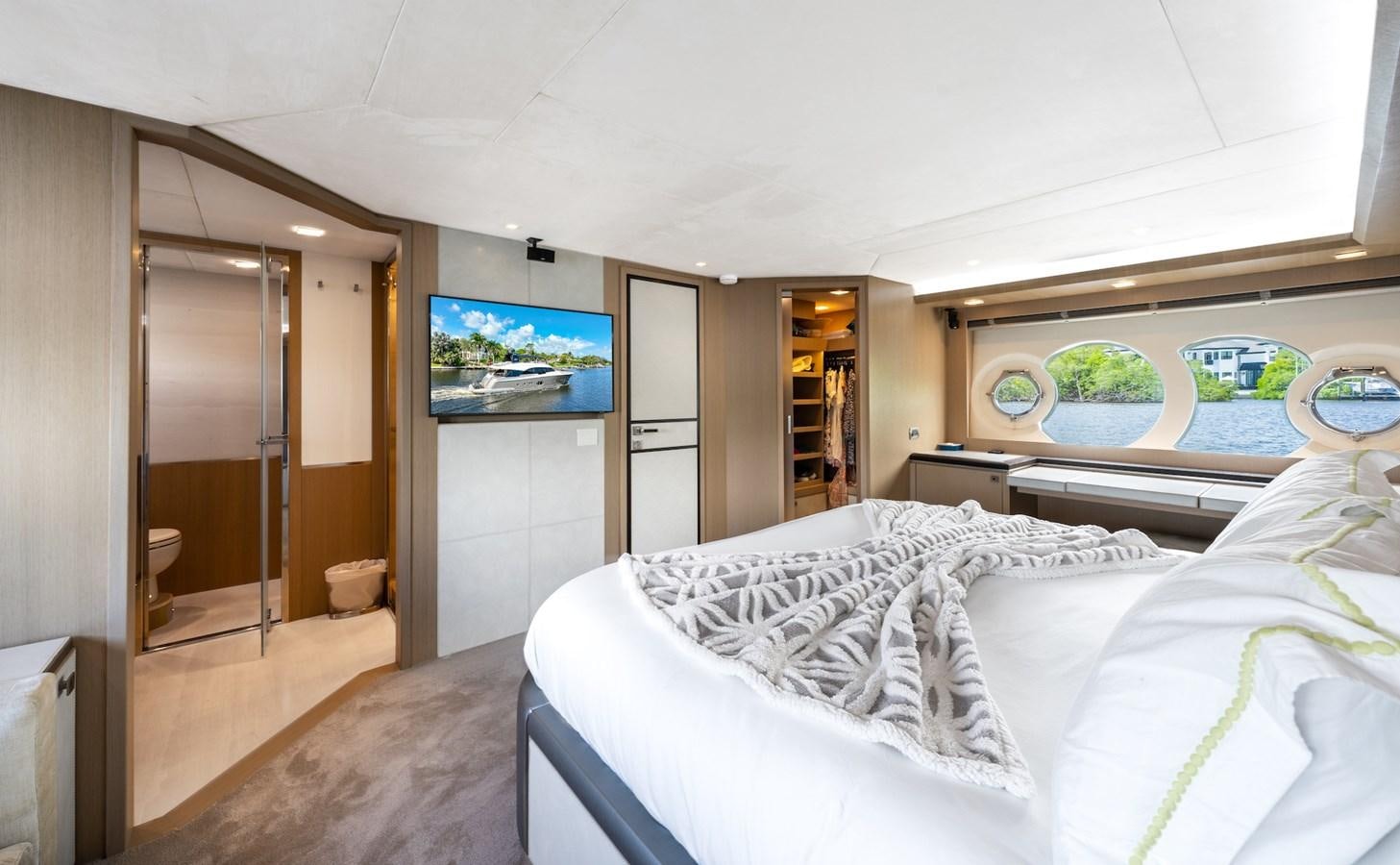

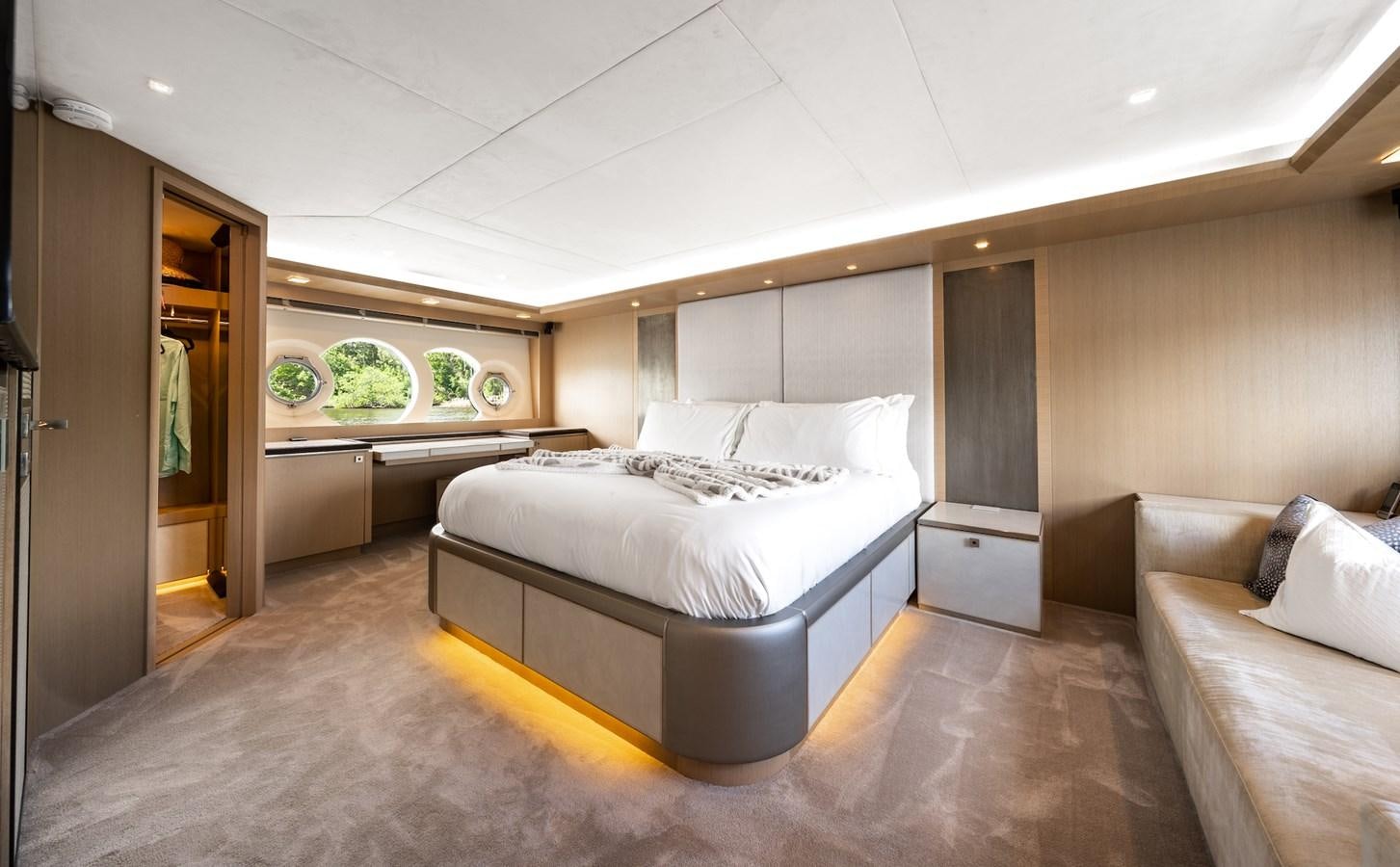

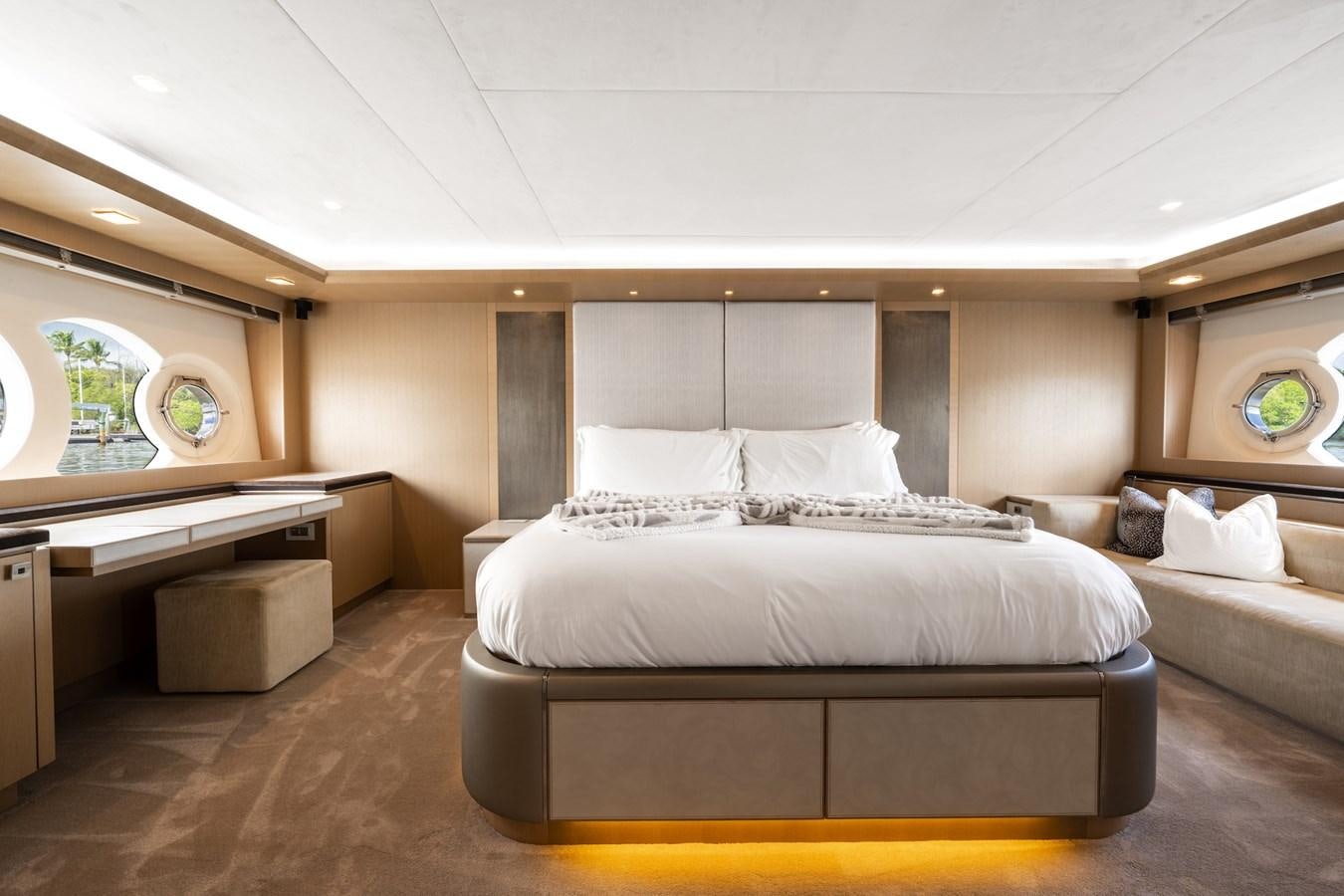

Master cabin
• King size bed with four drawers underneath
• Mattress, bedspread and pillows
• Two nightstands in wood and leather
• LED power and courtesy lights
• MCY design large windows with opening portholes and mosquito nets
• Chest of drawers
• Vanity/Desk

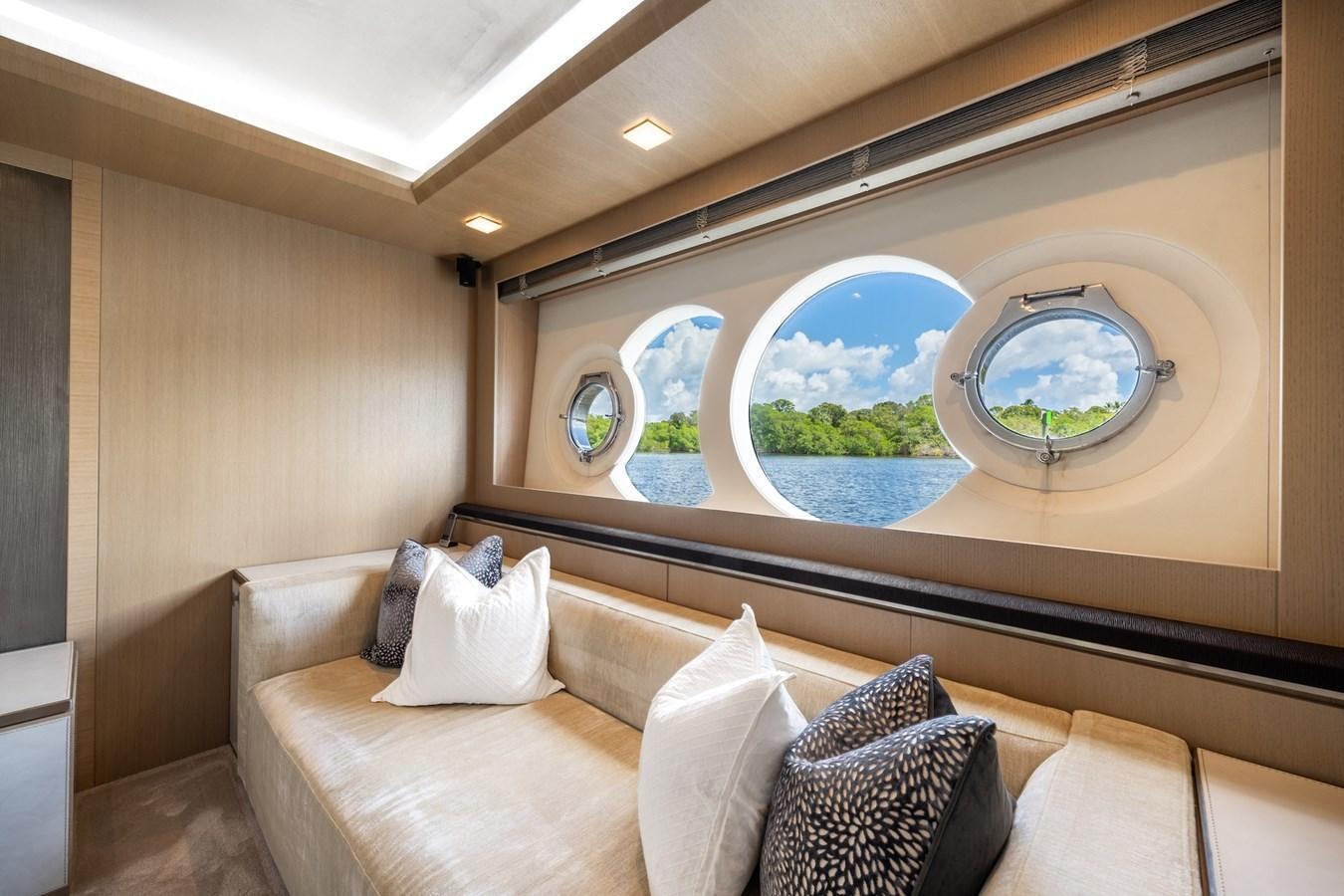

• Sofa/armchairs on port side
• Electrical venetians blinds on both port and starboard sides
En-suite walk in closet
• located forward on starboard side (approx. 4 sqm)
• Wardrobe with hanging bar
• Chest of drawers
• Mirror
• Direct LED lights on ceilings
• Carpet

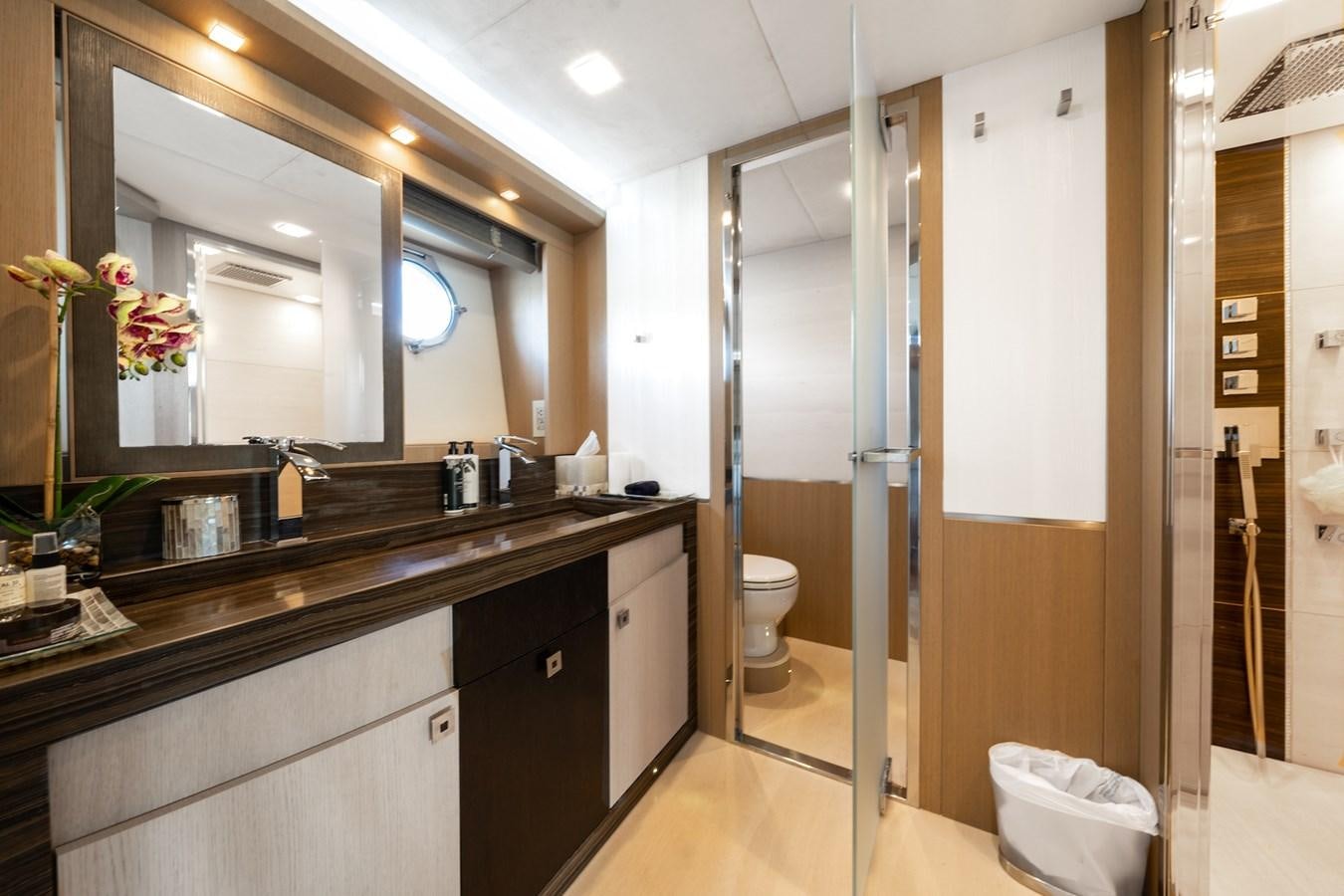

En-suite bathroom
• Thermostatic taps
• Top with integrated n°2 large size basin
• Venetian blinds covered in microfibre fabric
• Mirror and side shelves, cabinet under the basins and LED spotlights
• Separate shower room with:
Italian stone floor and cabinet top with sandwich construction to reduce weight
Shower with glass and stainless steel door
N°2 rain showers
N°2 Hydro-massage shower columns
LED lights on ceiling and in the shower
Extractor
o Separate toilet room with:
Tecma WC

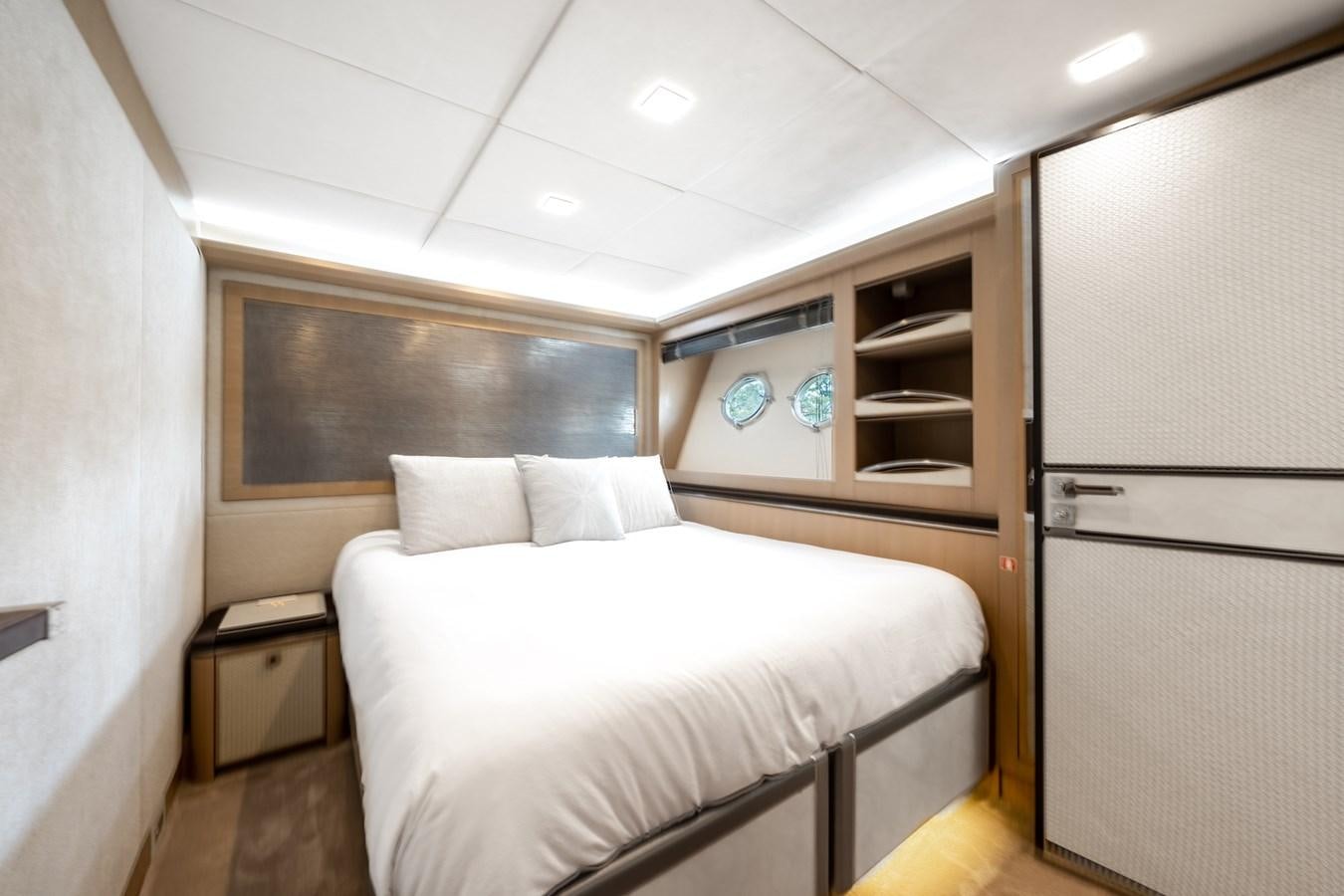

Starboard side guest cabin (fwd)
• Twin beds with storage underneath
• Twin beds can be transformed in Queen size bed, through sliding system
• Mattress, bedspreads and pillows
• One nightstand in wood and leather
• Mirror
• Two opening portholes with mosquito nets
• Power LED stripes for un-direct light and LED spotlights
• Wardrobe with fabric doors
• Venetian blinds covered in microfibre soft fabric
• Carpet

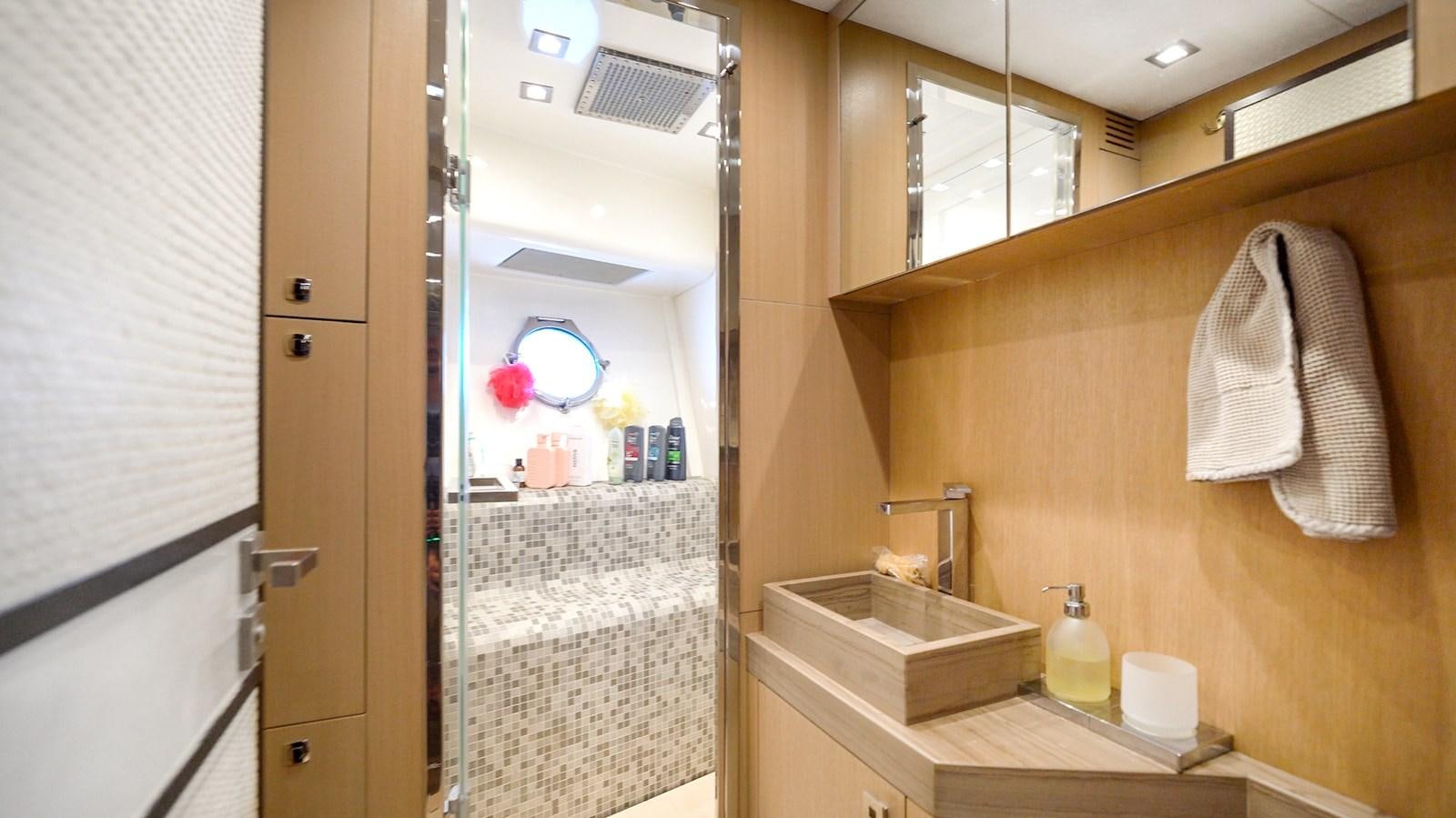

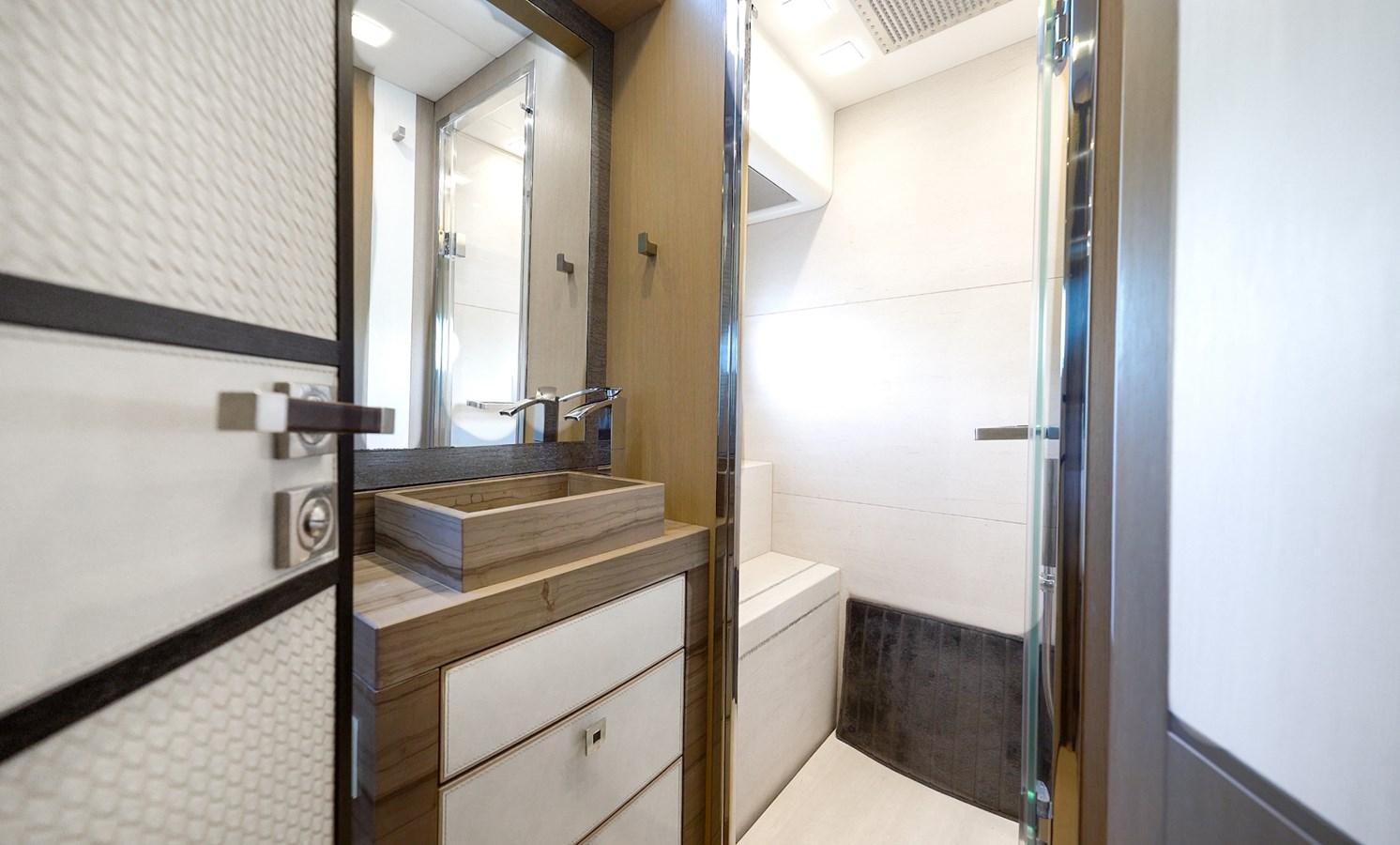

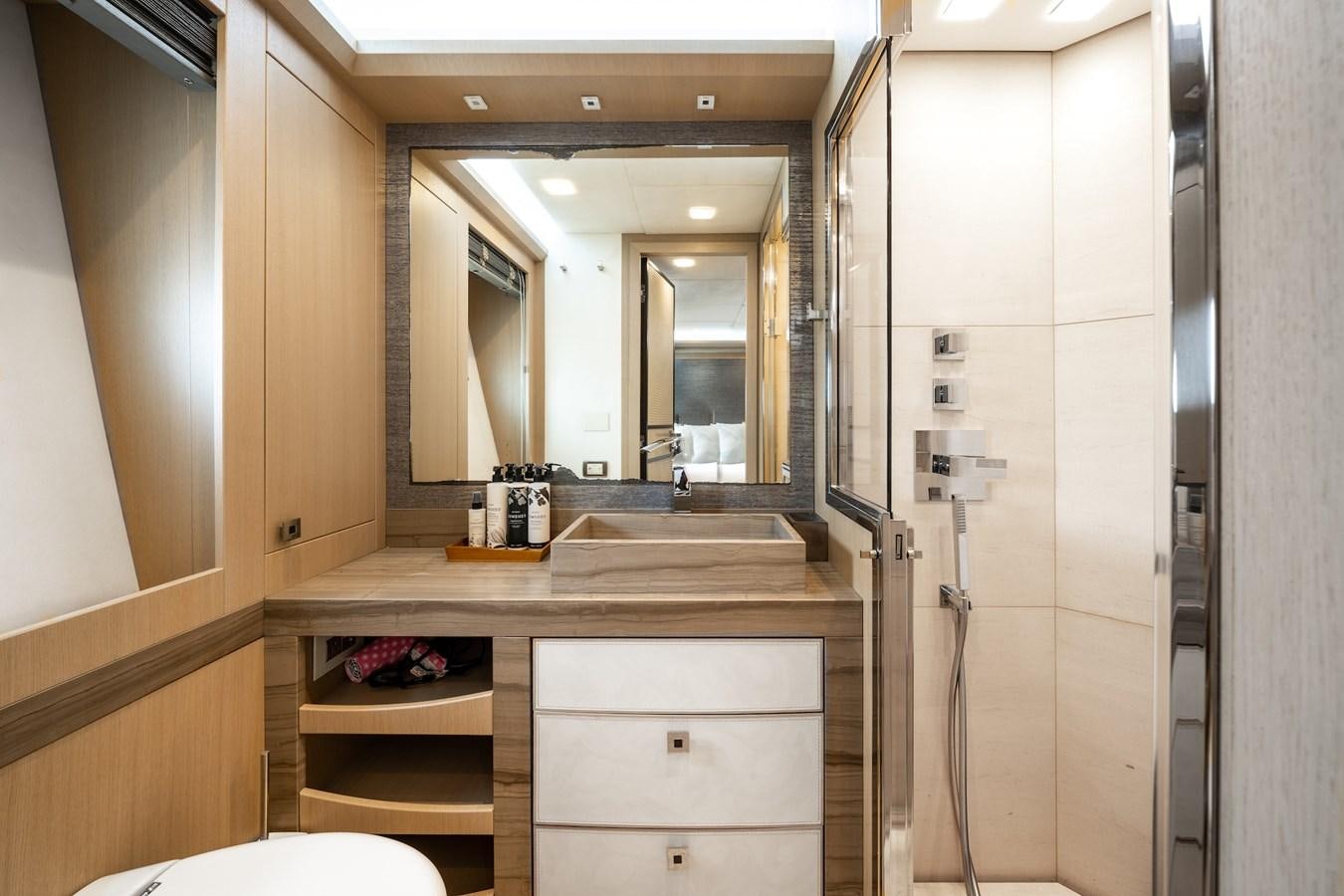

Starboard side guest bathroom (fwd)
• Tecma WC
• Sink
• Mirror
• Cabinet under the sink
• Italian stone floor and cabinet top with sandwich construction to reduce weight
• Shower with glass and steel door and shower column with central rain shower
• Opening porthole with mosquito net
• LED spotlights on ceiling and in the shower
• Extractor

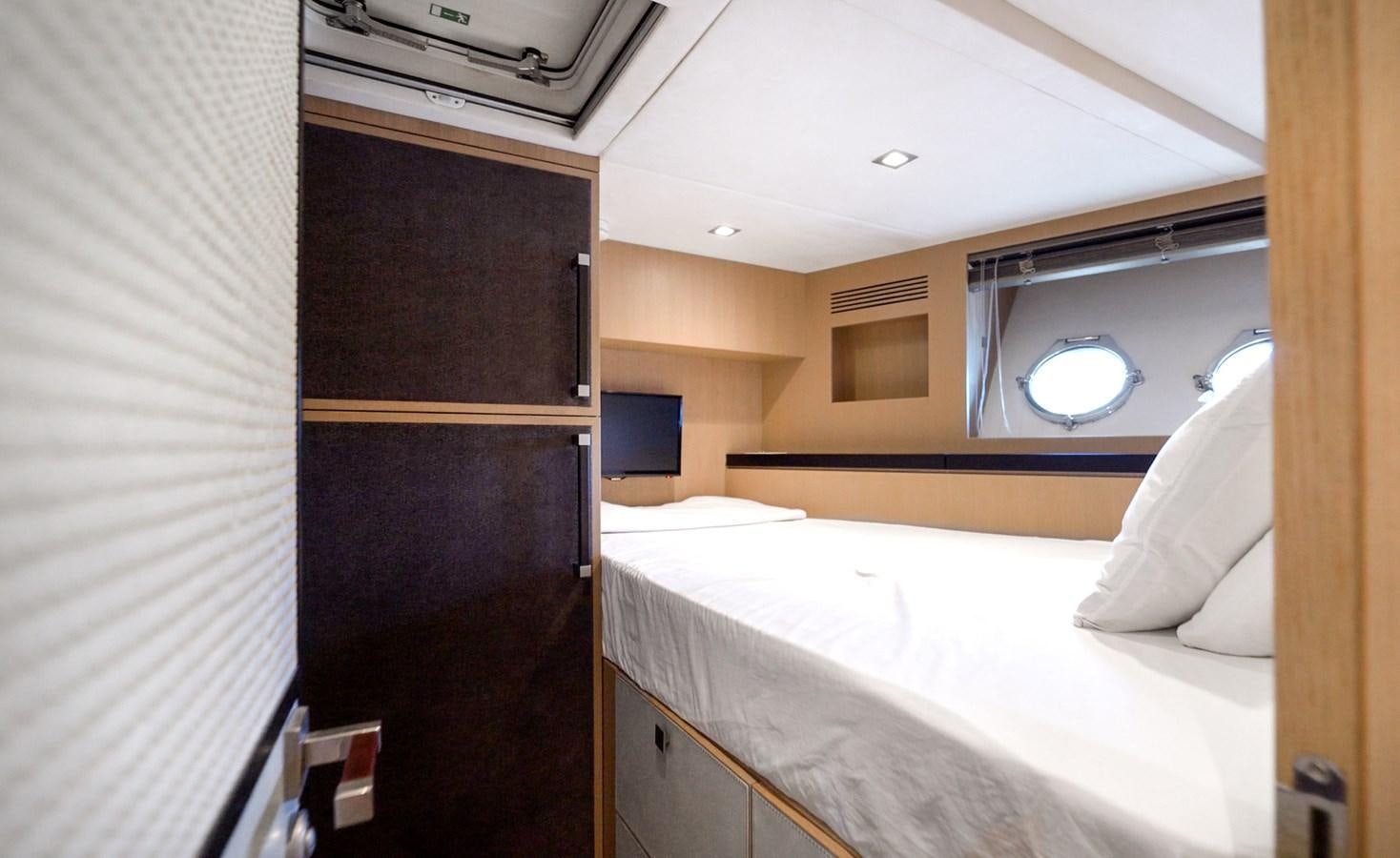

Starboard side guest cabin (aft)
• Twin beds with storage underneath
• Twin beds can be transformed in Queen size bed, through sliding system
• Mattress, bedspreads and pillows
• One nightstand in wood and leather
• Mirror
• Two opening portholes with mosquito nets
• Power LED stripes for un-direct light and LED spotlights
• Wardrobe with fabric doors
• Venetian blinds covered in microfibre soft fabric
• Carpet
Starboard guest bathroom (aft)
• Tecma WC
• Sink
• Mirror
• Cabinet under the sink
• Cabinet above and under the sink
• Italian stone floor and cabinet top with sandwich construction to reduce weight
• Shower with glass and steel door and shower column with central rain shower
• Opening porthole with mosquito net
• LED spotlights on ceiling and in the shower
• Extractor

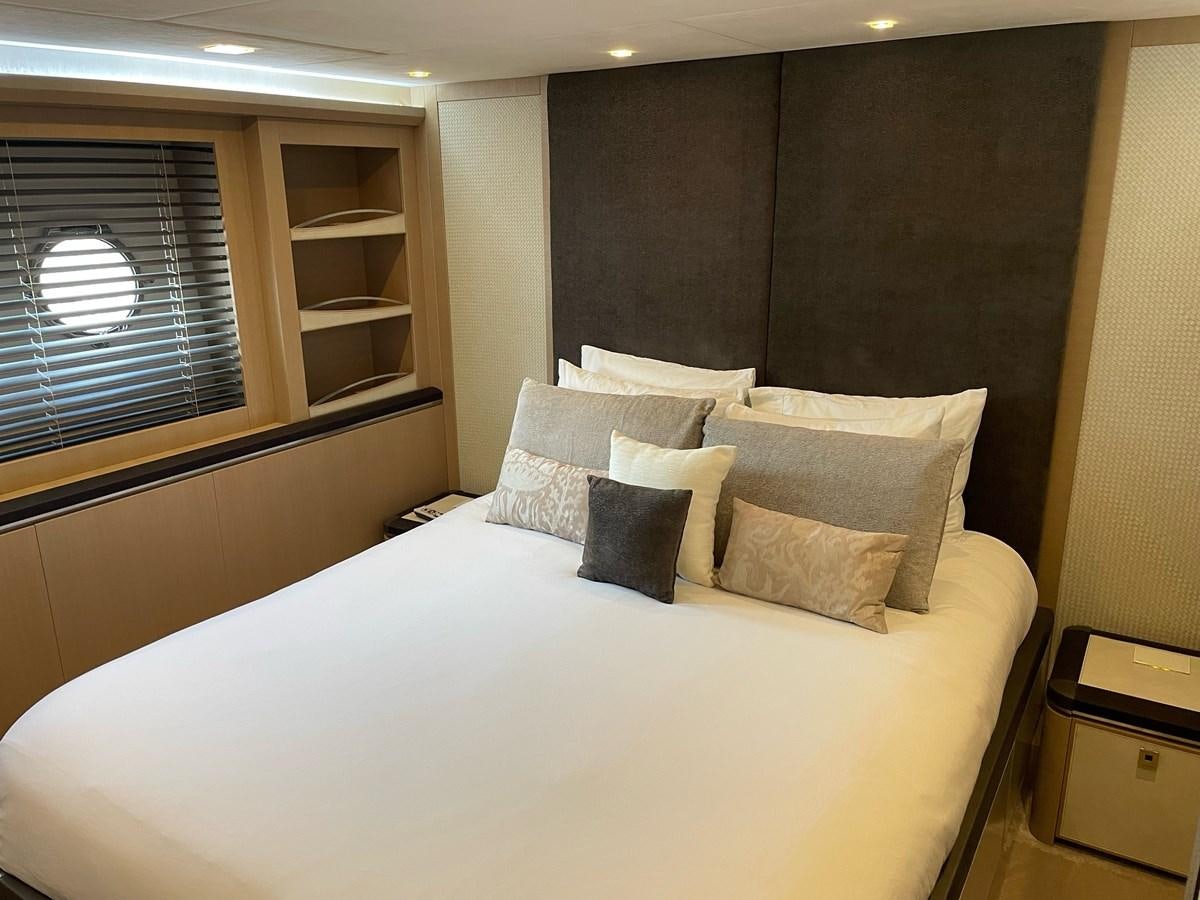

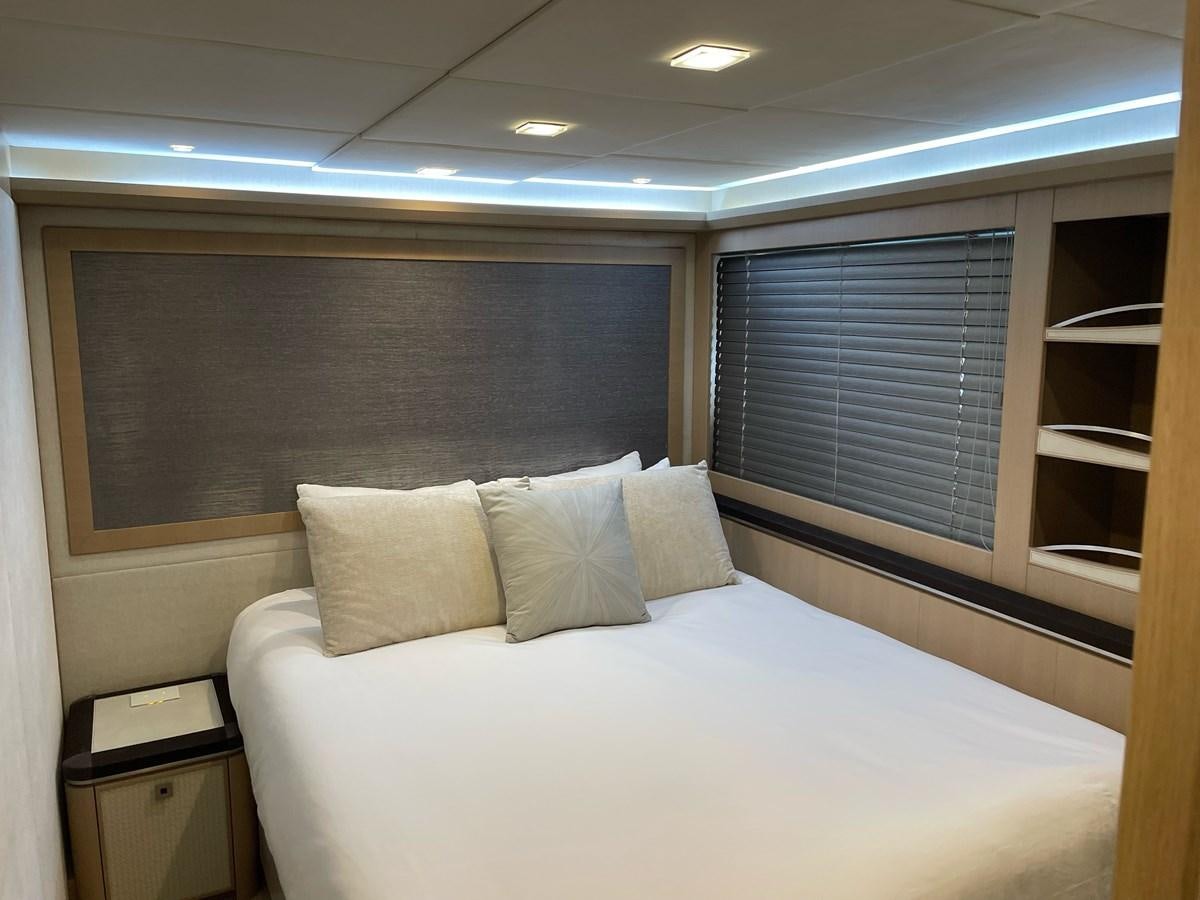

VIP cabin
• Queen size bed with four drawers underneath
• Mattress, bedspread and pillows
• Two nightstand in wood and leather
• Power LED indirect light and LED spotlights
• Two opening portholes with mosquito nets
• Wardrobes with fabric doors
• Venetian blinds covered in microfibre soft fabric
• Carpet
VIP bathroom
• Tecma WC
• Sink
• Mirror
• Cabinet above and under the sink
• Italian stone floor and cabinet top with sandwich construction to reduce weight
• Shower with glass and steel door and shower column with central rain shower
• Opening porthole with mosquito net
• LED spotlights on ceiling and in the shower
• LED power lights for un-direct light

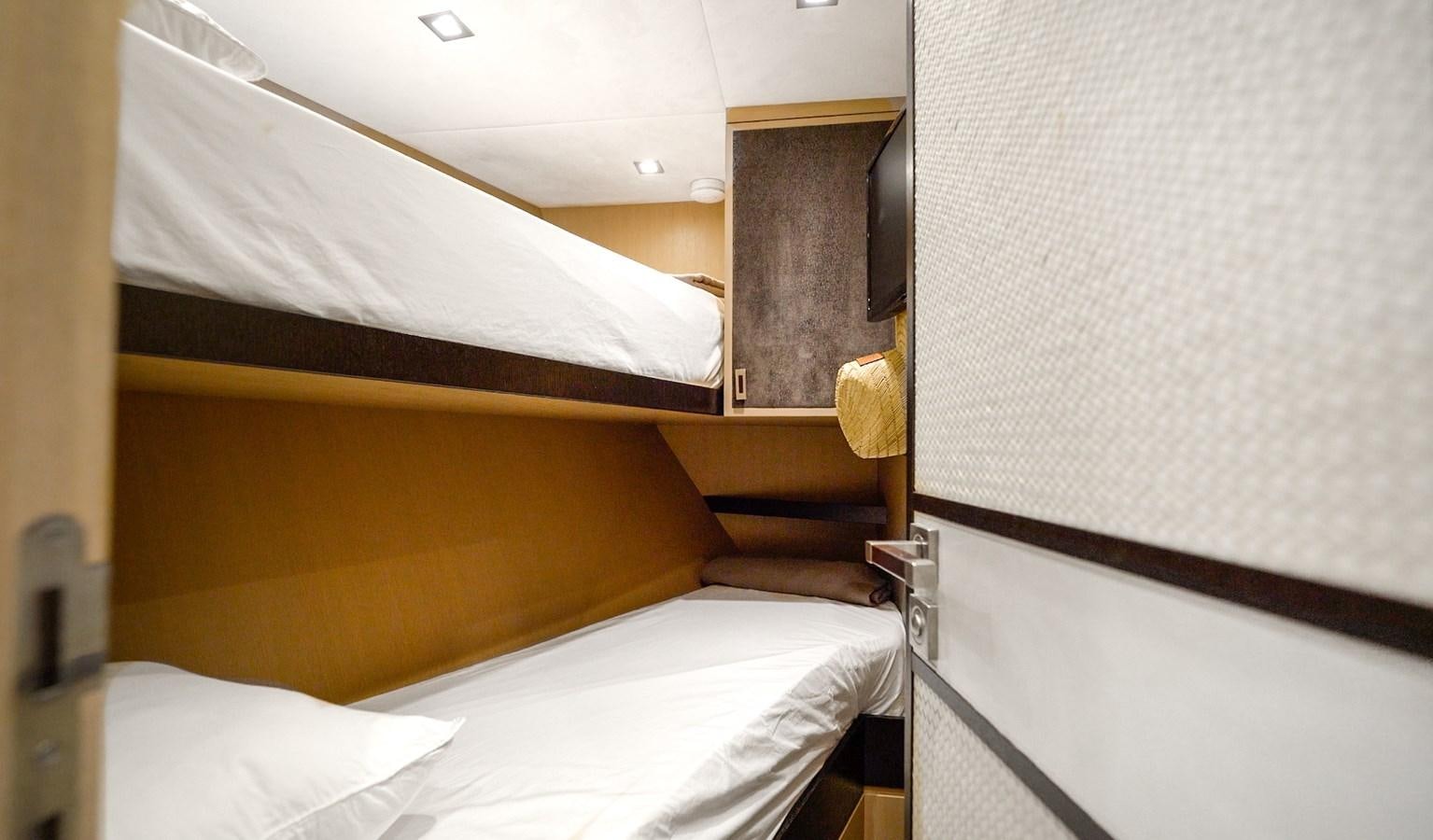

Crew cabin
• Bunk bed with two mattresses, bedspreads and pillows
• Direct LED lights on ceilings
• Opening porthole with mosquito net
• Storage underneath the bed
• Cabinet with shelves
Captain cabin
• Bed with mattress, bedspread and pillow
• Direct LED lights on ceilings
• Opening porthole with mosquito net
• Four drawers underneath the bed
• Wardrobes with shelves and hanging bar
Crew bathroom
• Tecma WC
• Sink
• Oak wood floor and cabinet top
• Direct LED spotlights on ceilings
• Mirror
• Cabinets and extra storage within the shower room
Electrical system
General characteristics
The whole system has been carried out according to:
1) Directive 94/25/CE, amended by 2003/44/CE
2) EN ISO 10133:2000 “Small craft – Electrical systems – Extra-low-voltage d.c. Installations”
3) EN ISO 13297:2000 “Small craft – Electrical systems – Alternating current installation”
4) EN ISO 10134:2003 “Small craft – Electrical devices – Lightning protection systems”
5) EN ISO 16147:2002 “Small craft – Inboard diesel engines – Engine-mounted fuel and electrical components”
Voltage system as follows:
o 24V DC with grounded negative for:
Bilge systems
Steering systems
Engine room ventilation
Internal / External lights
Engine room lights
Navigation lights
Monitoring system
Navigation systems
Emergency systems
Mooring winches
Other small utilities
o 120/240V AC, single phase, 60Hz for:
Air conditioning systems
Galley appliances
Battery chargers
Electrical outlets
Entertainment systems
Other small utilities
Electrical panels
Main electrical control panels are installed in the:
• engine room
• next to the wheelhouse
• on port side next to lower deck stairs to galley and crew quarters
• on starboard side next to lower deck stairs to owner cabin
• on starboard side next to lower deck stairs to guests cabins Secondary electrical panels are installed in all the areas of the yacht
Wiring / Conduits
Electrical wiring is housed in metal or self- extinguishing closed PVC conduits. Electrical wiring is developed with no flammable materials and with proper cross section related to
the use.
Ground equipment
• Ground system for all the water intakes, aluminum structures and steel components
• Ground system for all the 120/240V AC equipments
• Lightning protection
• The ground system is connected to:
• Stern and under hull zincs
• Porous copper plates under the hull
230V AC Power sources
Shore Power
• Two Shore Isolator Transformer 100A
• Two 240V AC, 100A Glendinning cable master on stairs hatch
• AC power source run to the main electrical panel in the engine room
• Power sources are protected by magneto/thermal breakers
Each shore power line has a multi-meter, to control all the electrical parameters (Volt, Amp, Watt, frequency, reverse polarity).
Generators
Two 23KW Kohler generators, 120/240V AC, 60Hz, 12V DC starter, with sound shield box and electronic control panel located in the engine room.
AC power source run to the main electrical panel in the engine room. Power sources are protected by magneto/thermal switches.
Generators has a multi-meter that control all the electrical parameters (Volt, Amp, Watt, frequency, reverse polarity).
120/240V AC distribution
A double Bus (A,B) that spreads current to all the appliances is provided. Each appliance is protected by magneto/thermal breakers.
24V DC Power sources
Batteries
• Group of 24V AGM Mastervolt batteries of 640Amp for services
• Group of 24V AGM Mastervolt batteries of 225Amp for port engine
• Group of 24V AGM Mastervolt batteries of 225Amp for starboard engine
• Group of 24V AGM Mastervolt batteries of 160Amp for emergency systems
• 12V AGM Mastervolt battery of 130Amp for port generator
• 12V AGM Mastervolt battery of 130Amp for starboard generator
Battery chargers
• N°2 x 24V 60 Amp Mastervolt battery charger for service batteries
• 24V 30Amp Mastervolt battery charger for engine batteries
• 12V 25Amp Mastervolt battery charger for generators
• 24V 30Amp Mastervolt battery charger for emergency systems batteries
Alternators
• 24V 120Amp alternators connected to service batteries
• 2 x 24V 120Amp alternators connected to engine batteries
• Generator alternators connected to the generator batteries
Light System
Engine room
Spot power LED lights 24V DC are installed to the ceiling of the engine room. Engine room lights are connected to service batteries
Master, VIP and Guests cabins
• Power LED spotlights and strip power LED in the ceiling
• Courtesy strip LED around the bed an under the furniture
• Lights control close to the entrance door and near the bed
Saloon
• Power LED spotlights and strip power LED in the ceiling
• Blue power LED spotlights in the dashboard ceiling (night navigation lights)
• Dimmers to vary the brightness of light
• Lights control close to the entrance door
Galley
• Power LED spotlights and strip power LED in the ceiling
Captain and Crew quarters
• Power LED spotlights in the ceiling
• Courtesy LED under the bed
• Lights control close to the entrance door
Bathrooms
• Power LED spotlights and strip power LED in the ceiling
• Courtesy strip LED around the furniture
• Lights and shower ventilation control close to the entrance door
Exteriors
• Power LED spotlights and strip power led in the aft cockpit ceiling
• Power LED spotlights in the side walking’s ceiling
• Courtesy LED spotlights around the floor of the external deck and the floor of the fly bridge
• Courtesy Power LED spotlights on the upper side of the fashion plates
• Power LED spotlights in the radar mast wings
• Lights control close to the entrance door and in the electronic management system EMS
Electronics
Dashboard & Navigation Instruments
Hull
• N°1 Raymarine DST800 Depth / Speed / Temperature transducer
Wheelhouse
• 3x 15” touchscreen displays: 2x navigation parameters + 1x boat monitoring (std)
• Option: 3x 19” touch control displays: 2x navigation parameters + 1x boat monitoring
• 2x MAN CLC 8.8” displays for engines monitoring (including voltmeter, engine oil temperature, water temperature, engine revs, gearbox oil temperature, etc)
• 2x Raymarine I/P 70 displays
• 1x Raymarine GS Series keyboard
• Raymarine RAY 260 DSC VHF
• Interceptors indicators
• Magnetic compass
Flybridge
• 2x MAN CLC 8.8” displays for engines monitoring (including voltmeter, engine oil temperature, water temperature, engine revs, gearbox oil temperature, etc)
• 2x Raymarine GS125 12.5” display
• 2x Raymarine I/P 70 display
• 1x Raymarine GS Series keyboard
• Raymarine RAY 260 VHF repeater
• Interceptor indicator
• Magnetic compass
Radar Mast
• 1x Raymarine wind transducer
• 1x GPS antenna
• 1x Raymarine radar antenna radome 4 KW digital
Monitoring system Saloon dashboard display
• 3x 15” touchscreen displays: 2x navigation parameters + 1x boat monitoring (std) as anticipated in par.9 (wheelhouse)
• Option: 3x 19” touch control displays: 2x navigation parameters + 1x boat monitoring as anticipated in par.9 (wheelhouse)
• External and engine room temperature indicators
• Alarms and manual controls for bilge system
• Fresh, Grey and Black water level indicators and alarms with discharge control systems
• Fuel level indicators and alarms with engines consumption indication, water in Racor filters indicator (option), fuel valve ON/OFF indicator
• Fuel spill warning indicators close to the fuel inlets
• Service battery indicators (Volt, Amp IN/OUT, Charge level)
• Engine batteries switch control and voltage indicator
• Generators batteries switch control, voltage indicator, Start/Stop control, fuel valve ON/OFF indicator, water in Racor filter indicator (option)
• Engine room ventilation alarms and control
• 230V AC Source selection page with Volt, Amp, Watt, frequency, phase indicators
• 230V AC main breaker status indicators
• 230V AC overload and load shedding system
• Navigation lights status (ON/OFF) and alarms indicators
• Fly dashboard acoustic alarm activation
• Fly dashboard optical alarm activation
Fly dashboard indicators
• Acoustic remote alarm
• Optical remote alarm
Emergency operation panel
• Bilge pump alarm indicator and manual switch
• Black and grey water tanks discharge pumps control and alarm indicators
• VHF power supply selection
• Engine room ventilation control
Entertainment system
(Monte Carlo Yachts maintains an exceptionally strong commitment to research and incorporate new technologies on board its yachts.
Saloon: 50" Edge LED full HD TV + Blue Ray DVD player Home Theatre Bose Lifestyle V-Class
Owner Cabin: 32" Edge LED full HD TV + Blue Ray DVD player
Home Theatre Bose Lifestyle V-Class
VIP Cabin: 26" Edge LED full HD TV + Blue Ray DVD player Guest Cabin (Port): 22" Edge LED full HD TV + Blue Ray DVD player Guest Cabin (STBD): 22" Edge LED full HD TV + Blue Ray DVD player Crew Cabin: 22" Edge LED full HD TV + Blue Ray DVD player
Aft Cockpit: Two Bose External Speakers (with remote control) Bow Sunpad Area: Radio CD Player with External Loudspeakers
Flybridge: 48" Edge LED full HD TV
Fire extinguishers
• 13x powder 1 kg extinguishers
• Option: 1x sea water fire hose located at bow in the mooring area (30 m length x 45 mm diameter)
• FKO Fire Knock Out in the engine room with alarm sensor and automatic shutdown.
Fuel system
o 1x structural GRP tank, integrated in the hull structural stringers, for a total capacity of
7.000 l.
o The tank is provided with stainless steel breather pipe and electric sensor for level monitoring.
o Fuel tank levels are visible on the electronic management system LCD screens at the wheelhouse dashboard, at the port and starboard fuel inlets and directly on the starboard tank by a optical level, operating with a safety magnetic system.
o Fuel filling operation is carried out through inlets placed on each side of superstructure.
Black and grey water system
• 2 x grey water tank with 700 l capacity.
• 2 x black water tank with 400 l capacity.
• Grey and black water tank levels are visible on the electronic management system LCD screens at the wheelhouse dashboard.
• Tank's emptying has automatic or manual outboard through 2 dedicated electric pumps.
• By pass of the electric pumps in case of emergency.
Bilge system
• Centralized system with suction in each compartment connected to the main collector positioned in the engine room.
• 24 VDC electric pump with controller in main helm on the electronic management system LCD screens at the wheelhouse dashboard.
• Emergency manual pump in the engine room.
• 4 x 24V automatic bilge pumps.
• High capacity emergency bilge pump in engine room through engine sea intakes and water pump.
• Bilge level alarm.
Fresh Water system
• Fresh water system is fed by 4 tanks in the midship bilge (total capacity 1500 l) or by the shore connection on stern.
• Water tank levels are visible on the electronic management system LCD screens at the wheelhouse dashboard.
• 2x water heaters for a total capacity of 200 l.
• Option: watermaker
Sea water system
• 7x main bronze sea water intakes with valves and filters: 2 for the engines, 2 for the generators and 3 for general utility.
• Chain washing with sea water supplied by an electric pump positioned under the floor of owner cabin
• Sea water firefighting system made up of the same electric pump
Air conditioning
Cruisair air conditioning system 192.000 BTU - TWC system with reverse cycle (cool and heat)
Engine room
• 4x Cruisair TWC 48CK chiller unit 48.000 BTU
• 1x Cruisair PKP711 1.5 Hp circulation pump
• 1x Cruisair P711Z sea water pump
Interiors – lower deck
• VIP cabin: 1x Cruisair AT6HVZ fan coil unit 6.000 BTU, 1x Cruisair ATV6HVZ fan coil unit 6.000 BTU
• Starboard guest cabin: 1x Cruisair AT9FZ fan coil unit 9.000 BTU
• STBD guest owner cabin: 1x Cruisair AT9FZ fan coil unit 9.000 BTU
• Owner Cabin: 2x Cruisair AT12HVZ fan coil unit 12.000 BTU
• Galley: 2x Cruisair AT6FZ fan coil unit 6.000 BTU
• Crew cabin: 1x Cruisair AT4FZ fan coil unit 4.000 BTU
• Captain cabin: 1x Cruisair AT9HVZ fan coil unit 9.000 BTU
Interiors – Saloon, wheelhouse and galley
• 3x Cruisair AT12HVZ fan coil unit 12.000 BTU
• 1x Cruisair ATL18HVZ fan coil unit 18.000 BTU
• 1x Cruisair AT9HVZ fan coil unit 9.000 BTU
• 1x Cruisair ATV18HVZ fan coil unit 18.000 BTU
Venting and extraction system
Interiors ventilation
• Centralized system for toilet air extractors. Each toilet is equipped with 120V AC electric extractors with dedicate control.
• Galley extractor (Miele or similar)
Engine Room Ventilation
Engine room ventilation system:
• 2x electrical ventilators 24V DC
Engine room ventilation system control is connected to the engine keys and to the electronic management system.
• 2 x air/water separators on ventilation inlet.
Insulation
- Hull and deck sandwich lamination together with absorbent, sound-proofing and heat insulation materials guarantee high level of noise reduction and thermal insulation.
Interiors ceilings and floorings are soft mounted through vibration absorbers materials and system in order to maximize vibrations and noise reduction.
• Complete noise and thermal insulation of engine room through insulation materials, covered with aluminum sandwich finishing walls.
Interior finish
Main deck – Saloon
• Furniture in pickled oak wood and walnut wood
• Internal part of furniture in maple, matt painted
• Tops of all furniture in leather
• Finishing of structural pillars in leather and pickled oak wood
• Ceilings in hi-tech skay
• Walls in pickled oak wood
• Decorative panel with bronze finishing and oak frame
• Venetians blinds on both and port sides, covered in hi-tech microfibre fabric
• Floor in white oak
• Sofa, pouf and pillows in fabric
• Table in walnut wood and glass with stainless steel supports
• Stern door in stainless steel and glass
• Power led lights and spot led lights
• Stairs to lower deck made with leather, teak and walnut wood
Main deck - Wheelhouse
o Dashboard in pickled oak and walnut wood with leather top; hi-tech fabric and matt lacquered finishing
o Support for screens and steering wheel in leather
o Steering wheel in leather
o Handrail in satin stainless steel
o N° 2 pilot seats in leather, electrically moved (up/down)
o Footrests in stainless steel, pickled oak and leather
o Ceilings in Skay
o Walls in pickled oak wood
Lower deck – Owner Corridor
• Walls covered with high quality fabric
• Ceilings in Skay
• Doors in oak and woven leather,
Lower deck – Owner cabin
• Furniture in pickled oak and walnut wood with hi-tech fabric
• Internal part of furniture in maple, matt painted
• Tops of all furniture in leather
• Top quality and value fabrics
• Decorative panel with bronze finishing and oak frame
• Carpet floor
• Walls in pickled oak
• Bed head in fabric
• Ceilings in Skay
• Sofa in fabric
• Bedcover in fabric
Lower deck – Owner bathroom
• Furniture in pickled oak and walnut wood with hi-tech fabric
• Internal part of furniture in maple, matt painted
• Mirror
• Decorative frame with bronze finishing and oak frame
• Doors in decorated glass with stainless steel frame
• Italian stone, alabaster and handmade mosaic tales for shower walls and floor
• Satin extra clear glass doors with stainless steel frame
• Ceramic toilet
Lower deck – Owner walking closet
• Furniture in pickled oak and walnut wood with hi-tech fabric
• Internal part of furniture in maple, matt painted
• Top quality and value fabrics
• Carpet floor
• Walls in pickled oak
• Ceilings in Skay
Lower deck – Guest Corridor
o Walls covered with top quality and value fabrics
o Carpet floor
o Ceilings in Skay and mirror
o Doors in oak and woven leather, door handles
Lower deck – guest cabins
• Furniture in pickled oak and walnut wood with hi-tech fabric
• Top quality and value fabrics
• Internal part of furniture are in maple, matt painted
• Decorative panel with bronze finishing and oak frame
• Doors in oak and woven leather, door handles
• Walls in pickled oak
• Bed head in fabric
• Ceilings in hi-tech skay
• Bedcover in fabric
Lower deck – guest bathrooms
• Furniture in pickled oak and walnut wood with hi-tech fabric
• Internal part of furniture are in maple, matt painted
• Decorative frame with bronze finishing and oak frame
• Doors in oak and woven leather, door handles
• Italian stone and handmade mosaic tales for shower walls and floor
• Transparent extra clear glass doors with stainless steel frame
• Ceramic toilet
Lower deck – VIP cabin
• Furniture in pickled oak and walnut wood with hi-tech fabric
• Top quality and value fabrics
• Internal part of furniture are in maple, matt painted
• Decorative frame with bronze finishing and oak frame
• Doors in oak and woven leather, door handles
• Walls in pickled oak
• Bed head in fabric
• Ceilings in hi-tech skay fabric
• Bedcover in fabric
Lower deck – VIP bathroom
• Furniture in pickled oak and walnut wood with hi-tech fabric
• Internal part of furniture are in maple, matt painted
• Decorative frame with bronze finishing and oak frame
• Doors in oak and woven leather,
• Italian stone and handmade mosaic tales for shower walls and floor
• Transparent extra clear glass doors with stainless steel frame
• Ceramic toilet
Lower deck – Galley
o Interior of furniture in maple, matt painted
o Corian Top upgraded to Stone
o Ceilings in Skay
Lower deck – Crew dinette
• Interior of furniture in maple, matt painted
• Walls in oak wood
• Ceilings in Skay
Lower deck – Crew cabin
• Oak furniture
• Ceilings in Skay
• Oak wood walls
• Bedcover in fabric
• -Carpet
Lower deck – Captain cabin
• Oak furniture
• Ceilings in Skay
• Oak wood walls
• Bedcover in fabric
• -Carpet
Lower deck – Crew bathroom
• Oak wood furniture
• Ceramic toilet
1. Tables in Cockpit/Bow and Flybridge are permanently in a fixed position (No changes or alterations will be made)
2..Jet Ski
3. Tender
The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
Complete the form below and one of our experienced sales brokers will be in touch soon.
