Asking
$4,935,000

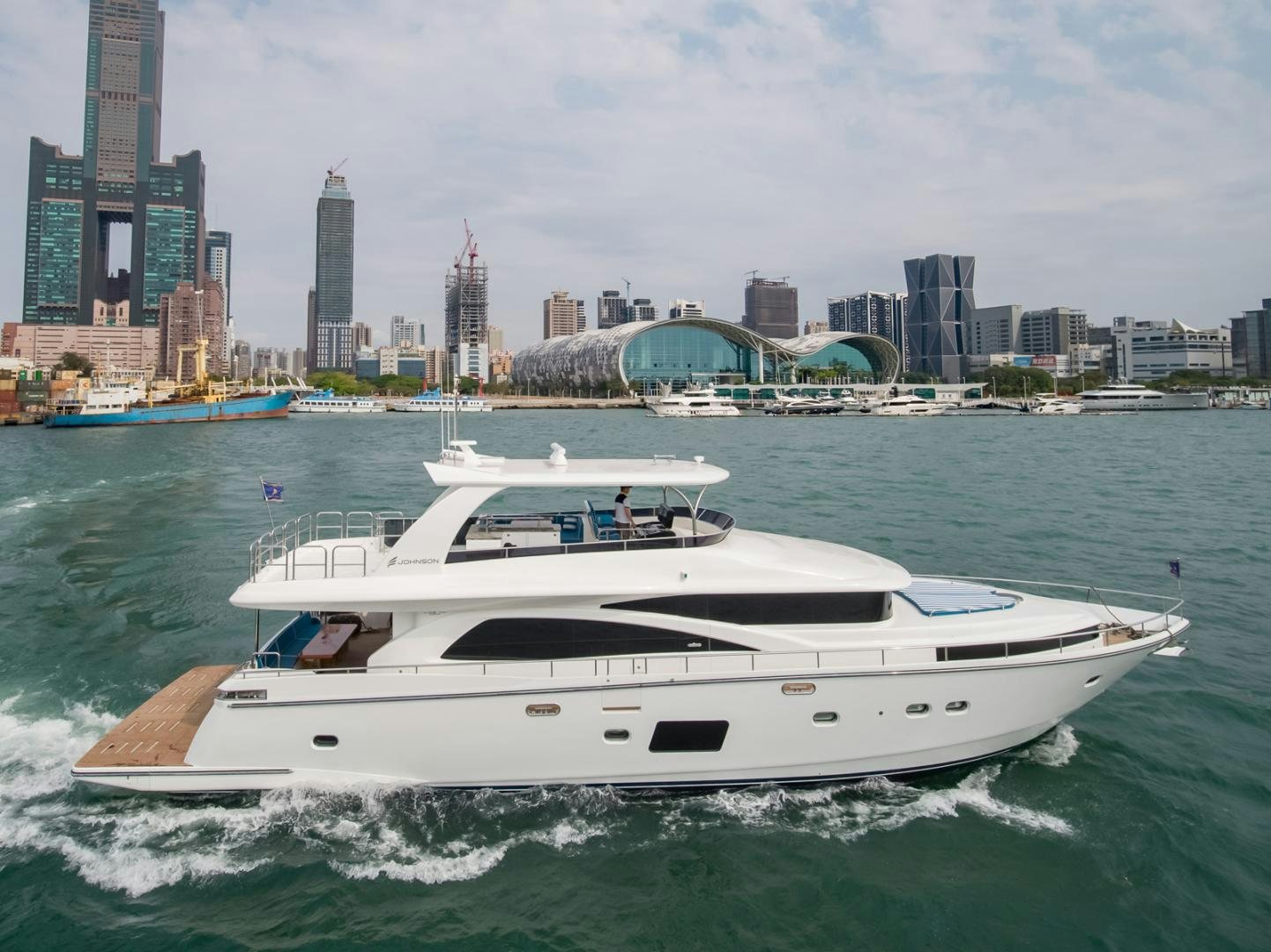

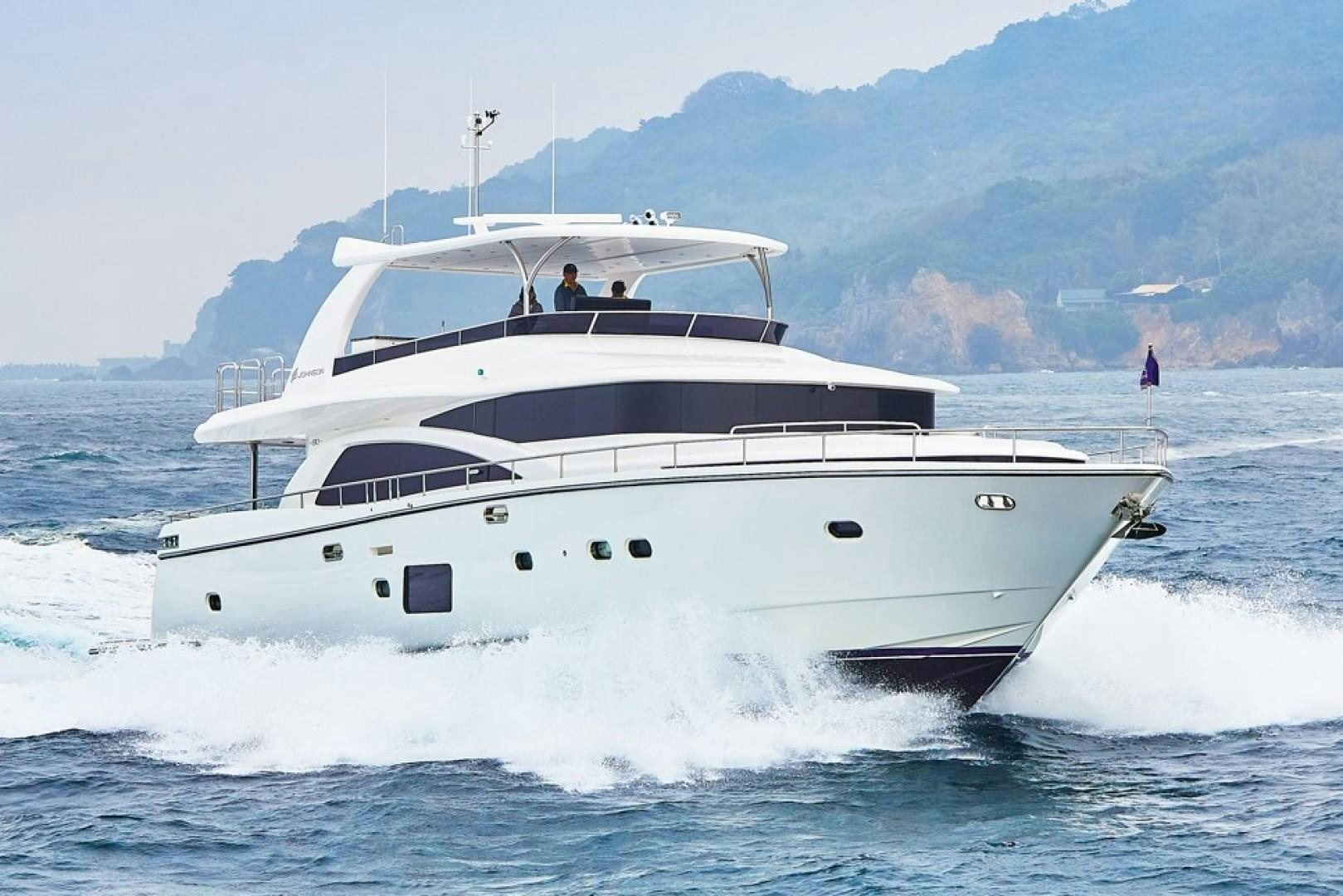

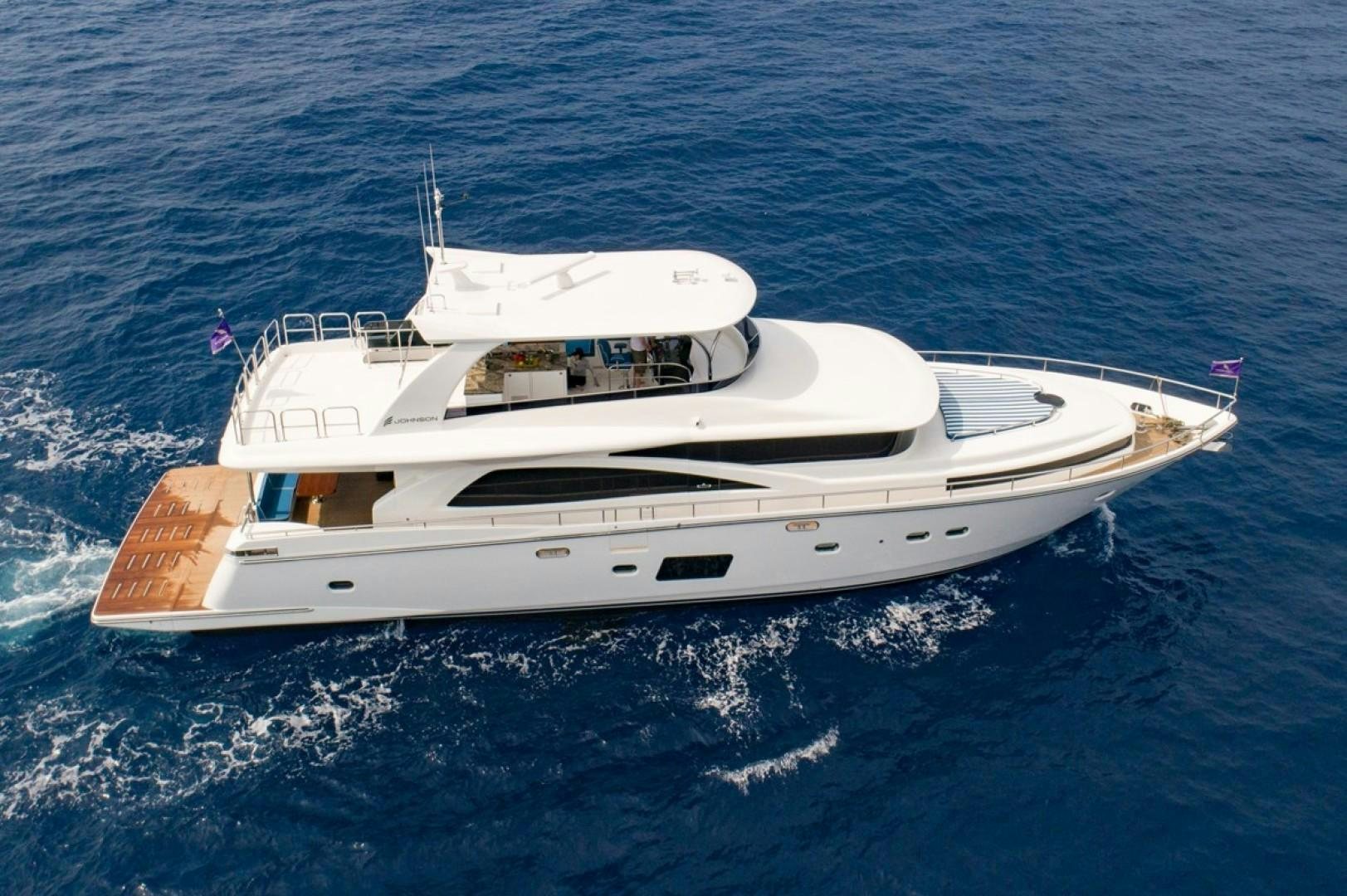

80' JOHNSON SKYLOUNGE W/FISHING COCKPIT (New Construction)
Please note, this is an unbuilt new construction project which has not yet been started.
Listing broker has a list of popular options and prices, however, the standard equipment list above is very complete! Completion time is approximately 14 months depending on other yard projects.
**OPTIONS UPON REQUEST**
**ALL SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE **

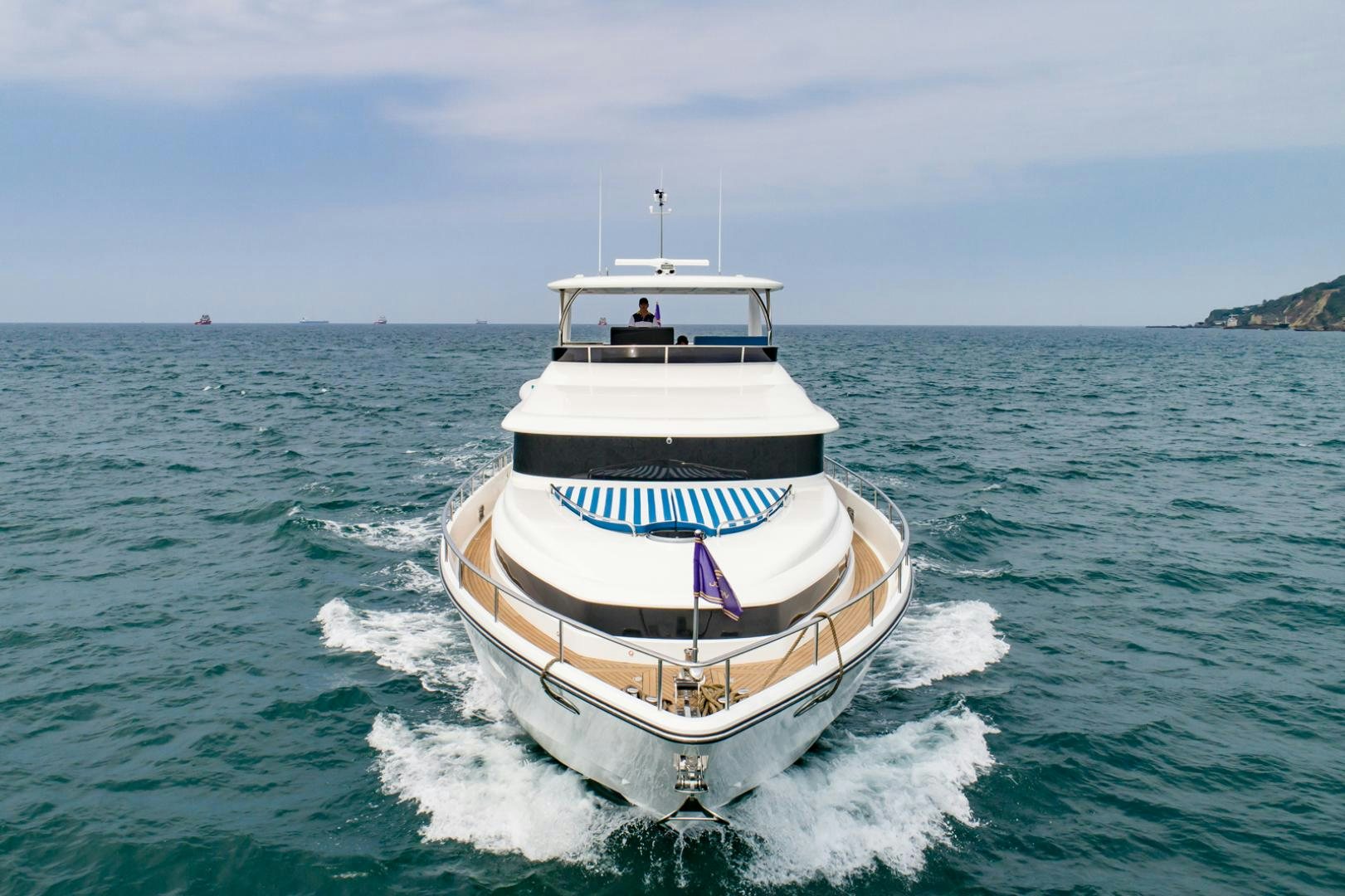

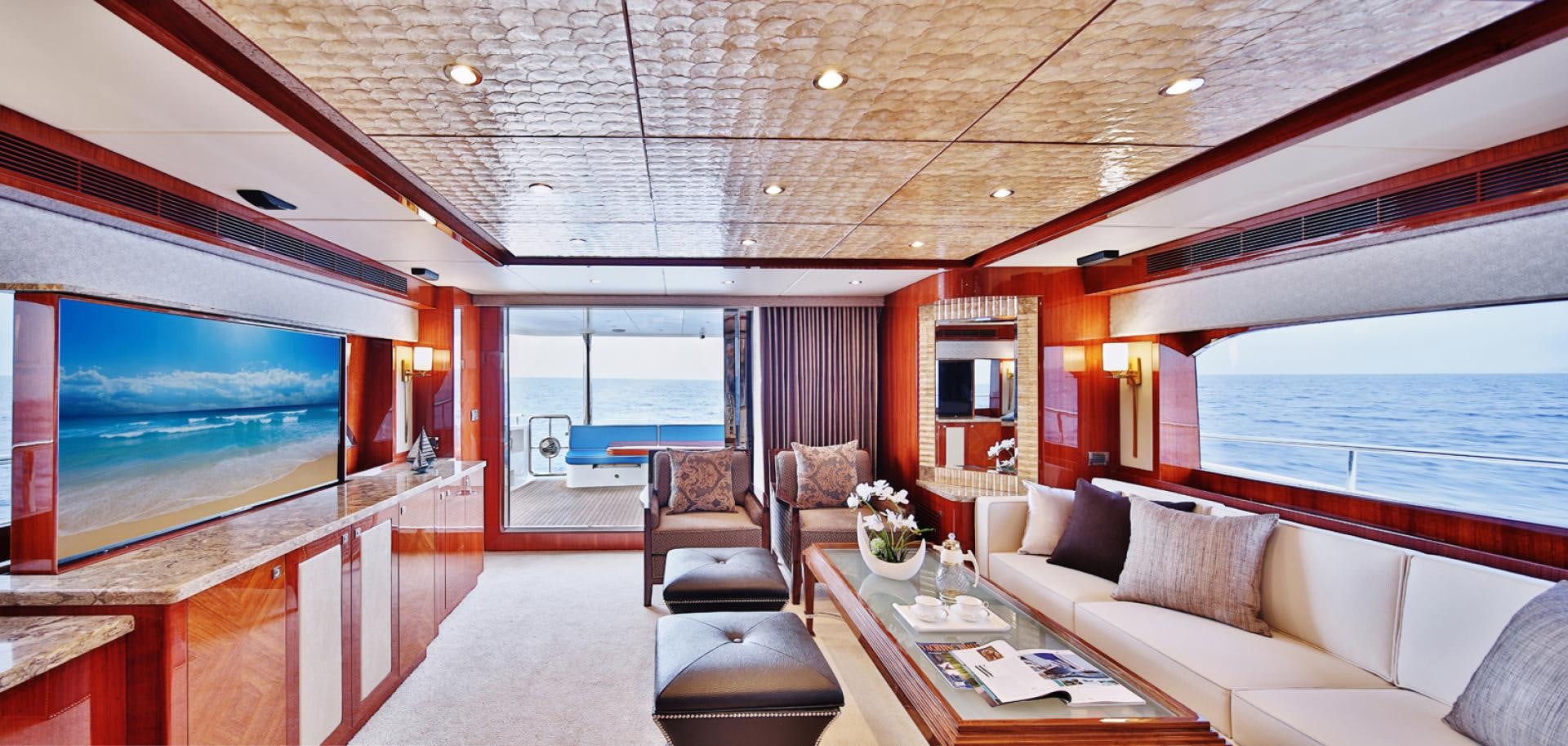

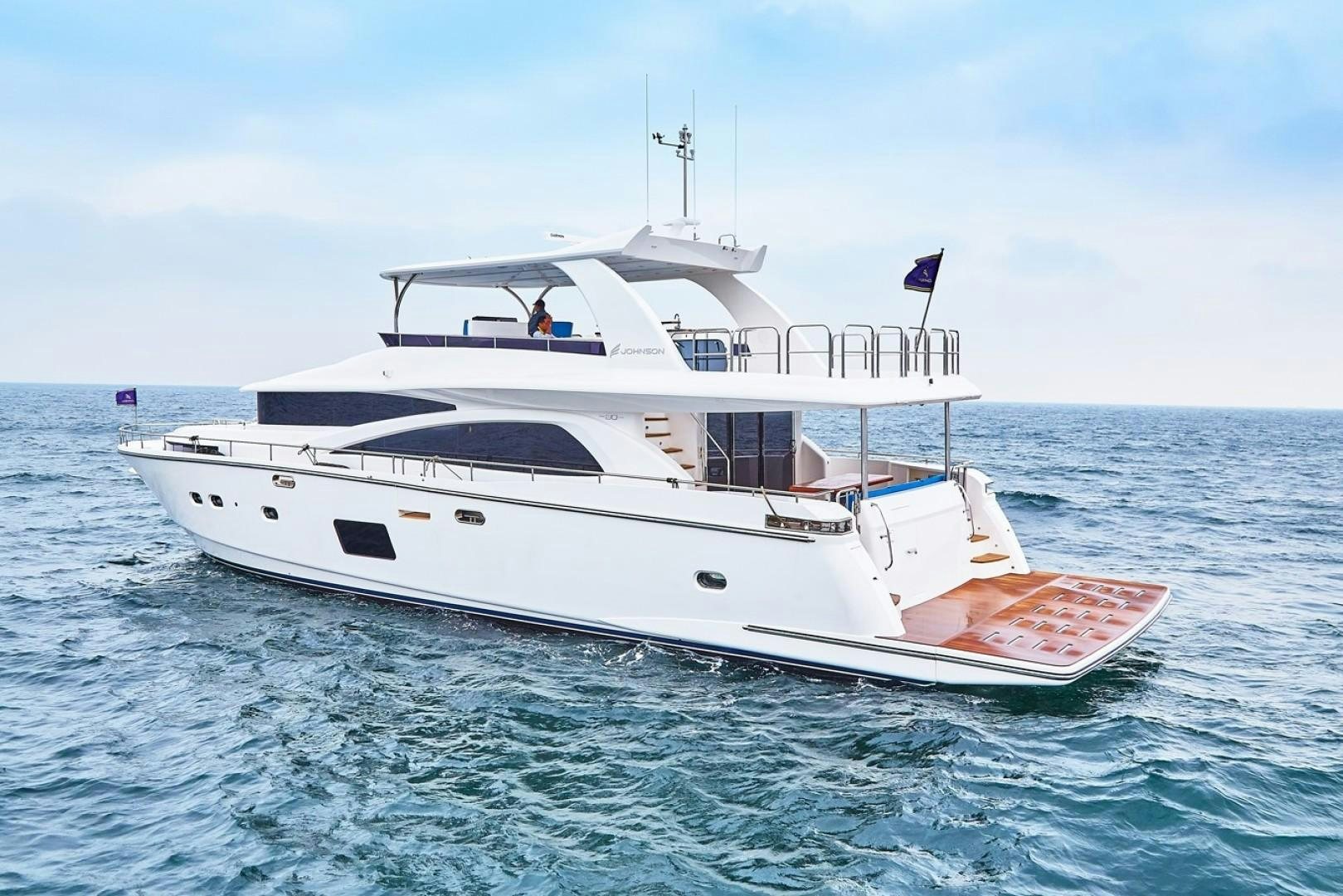

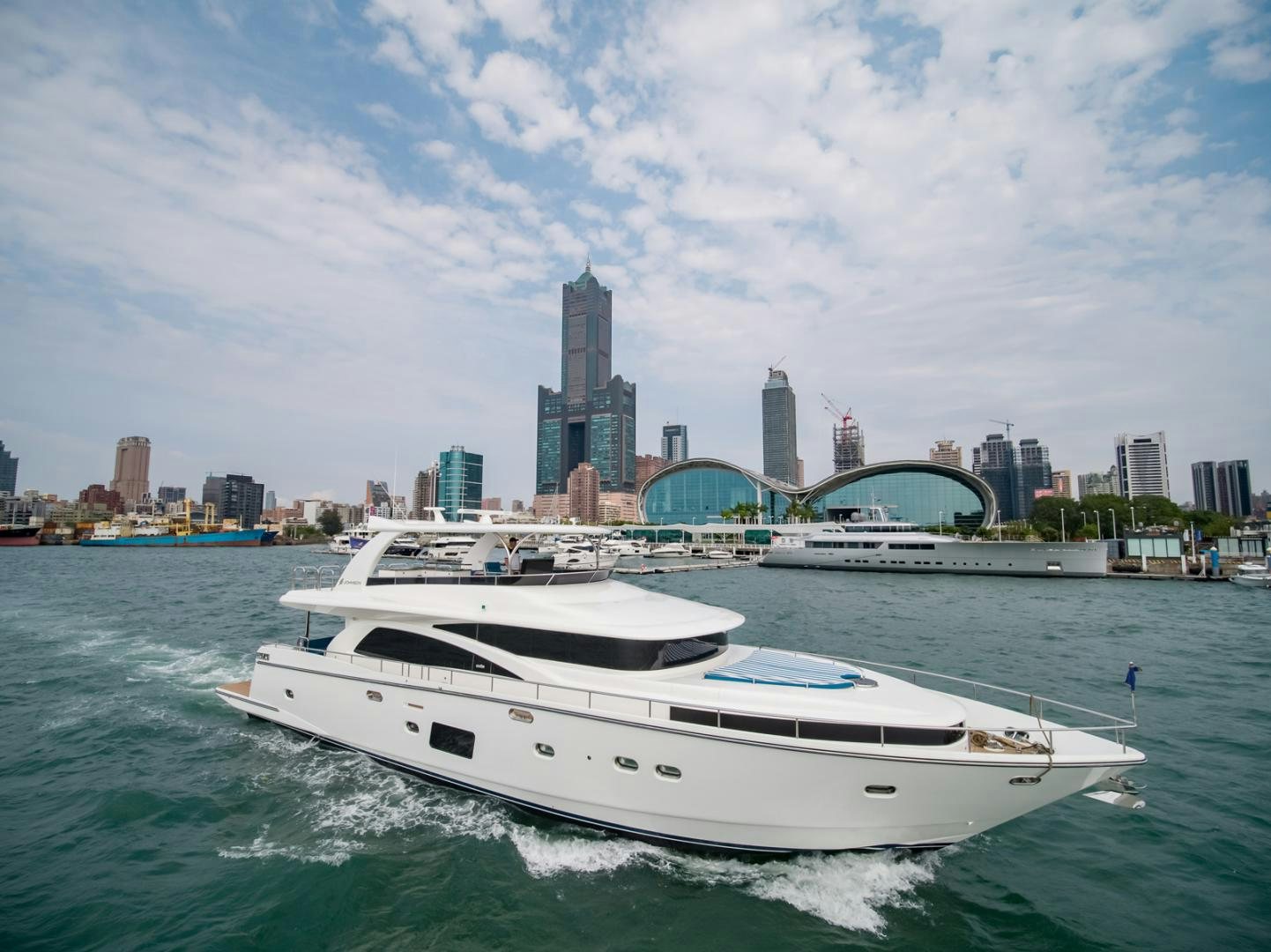

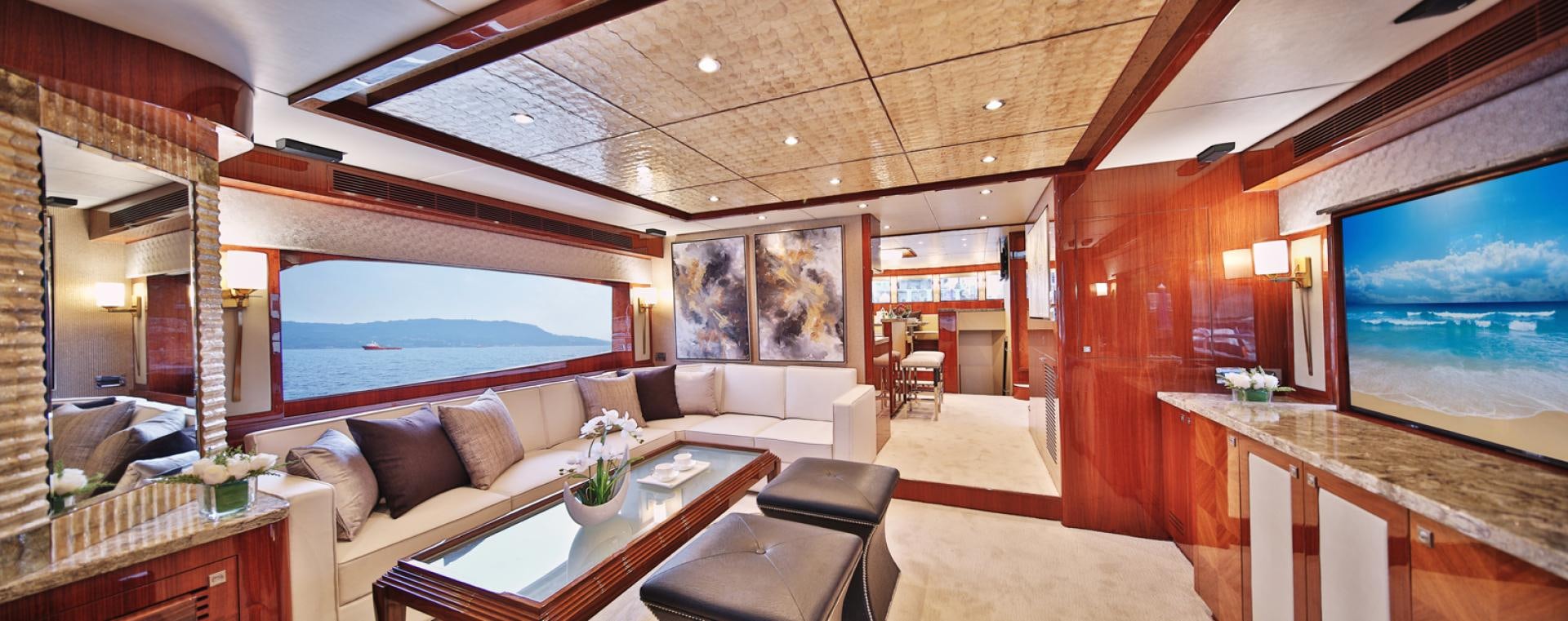

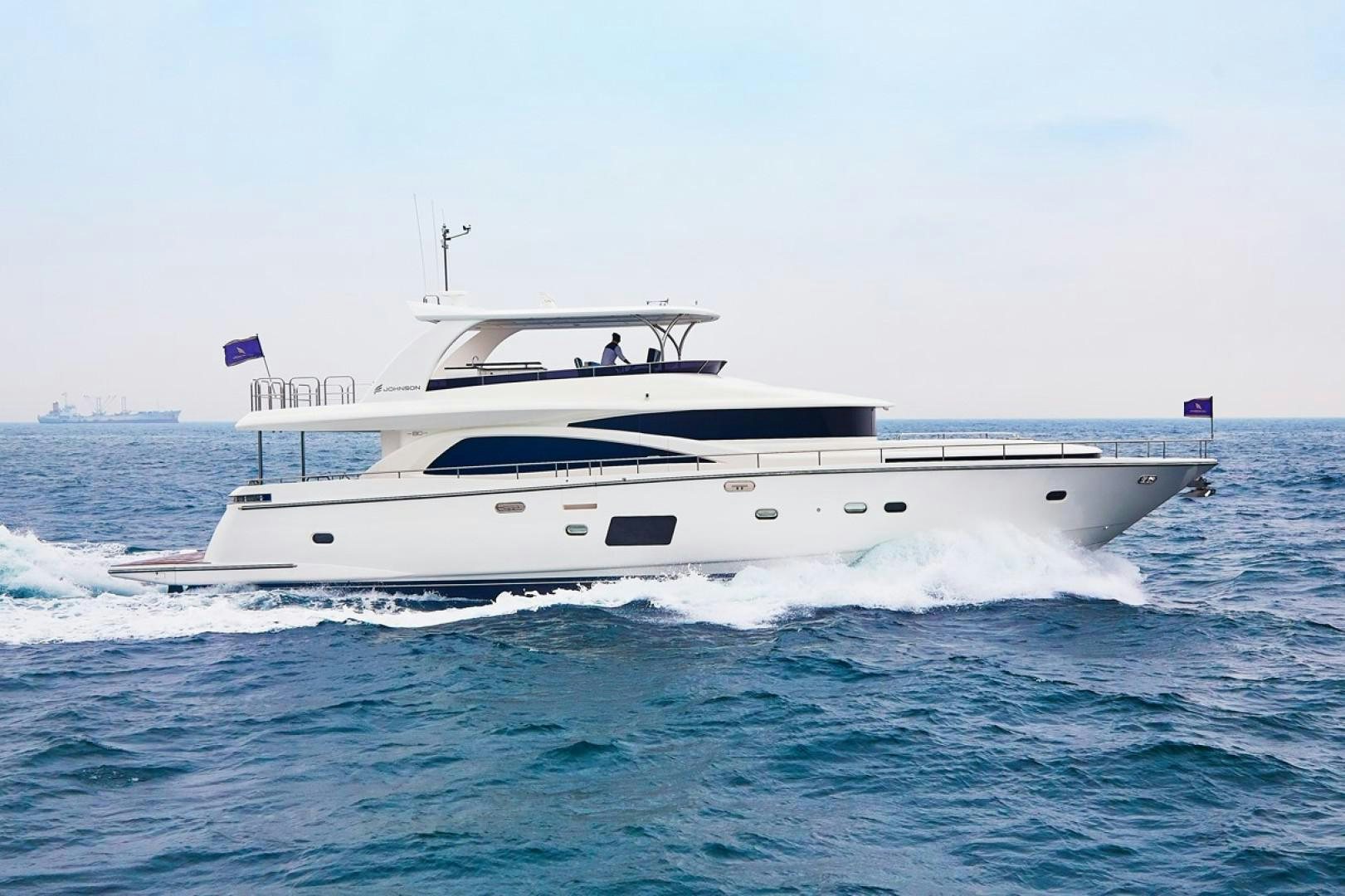

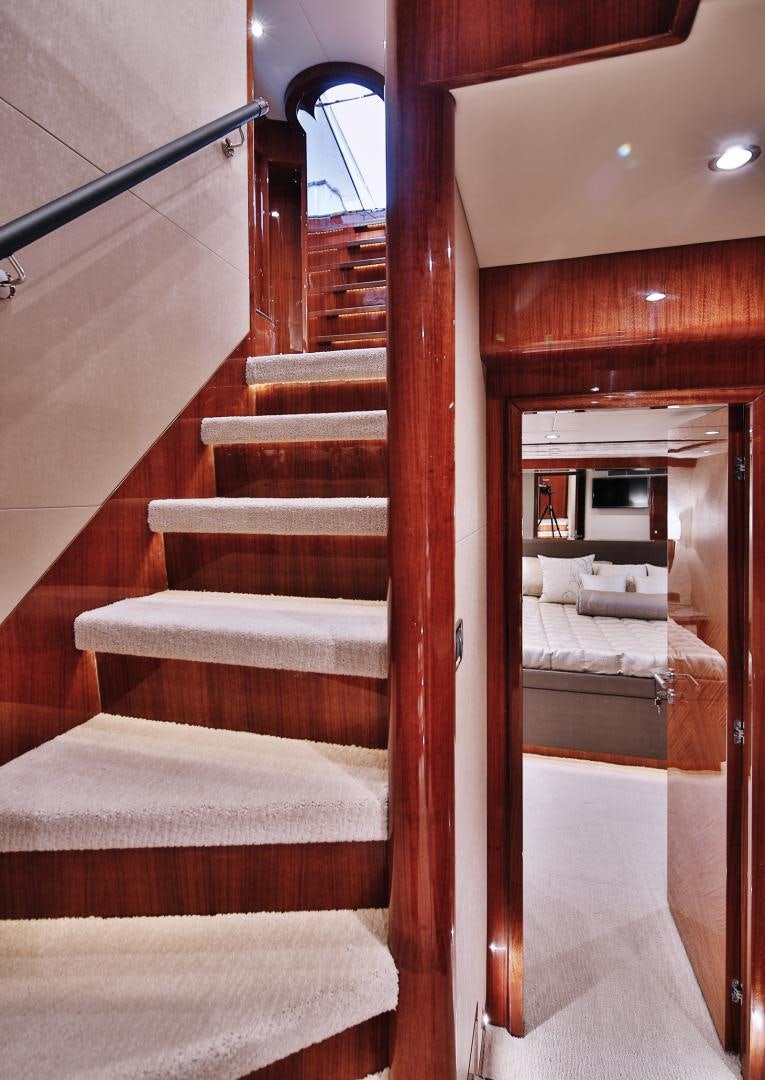

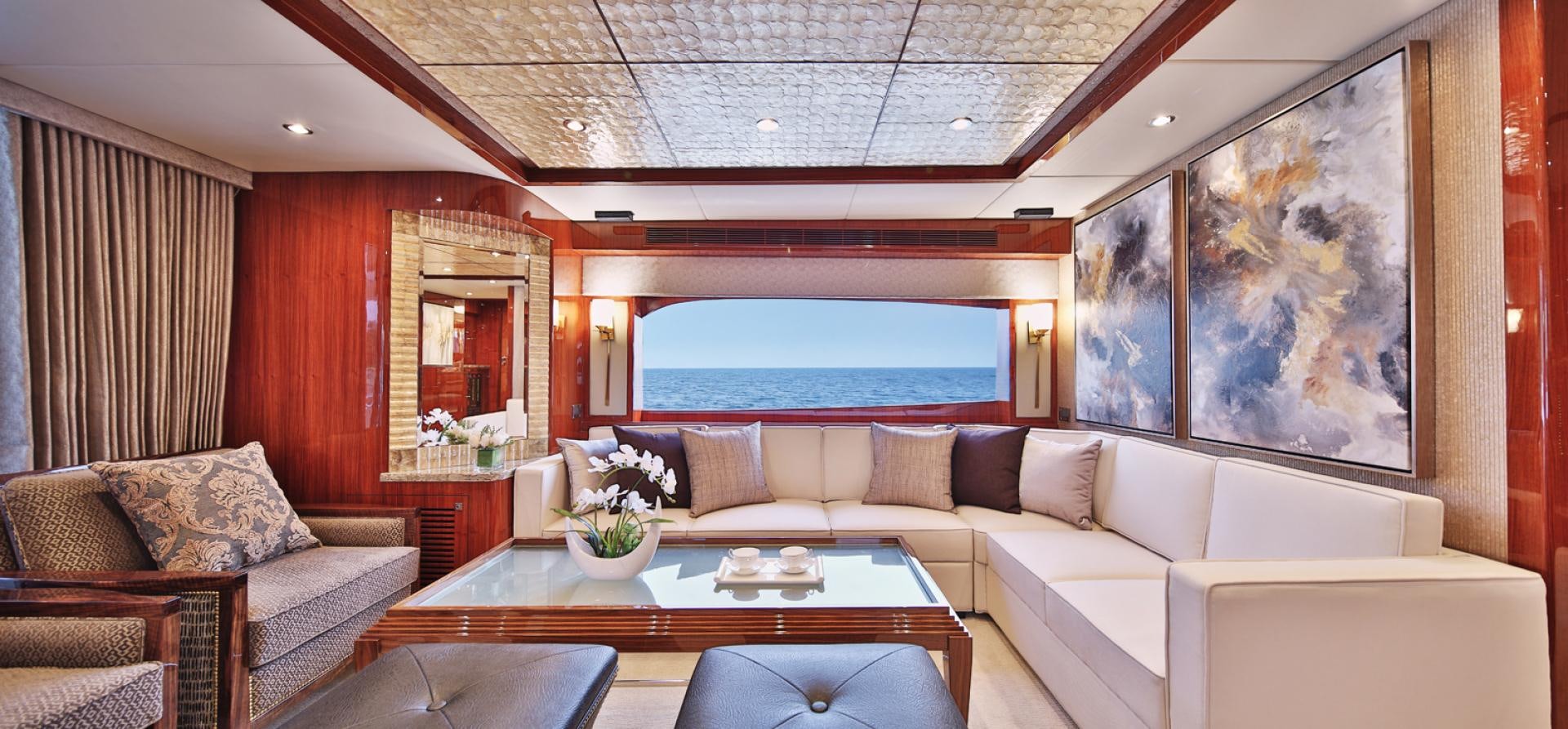

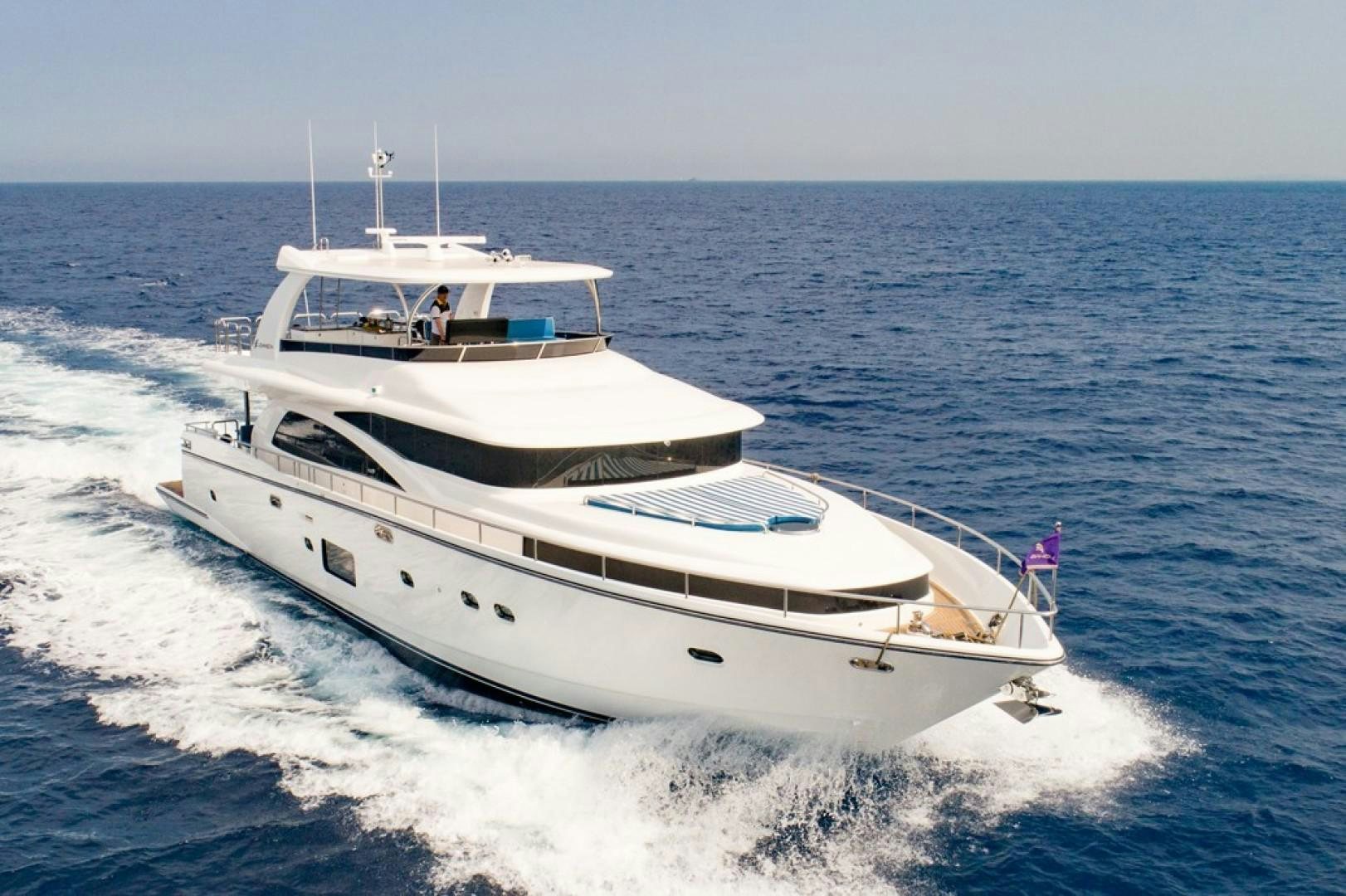

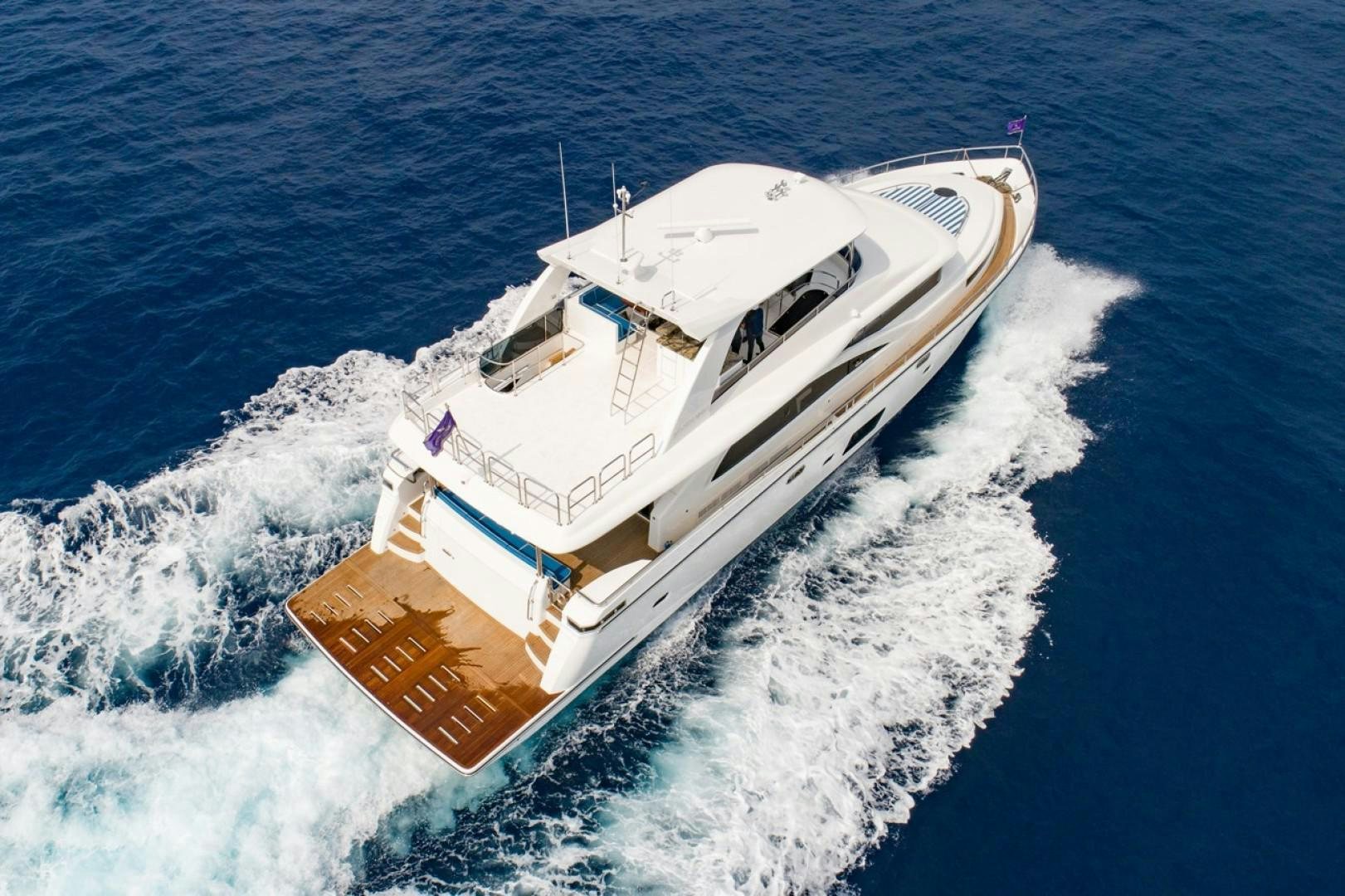

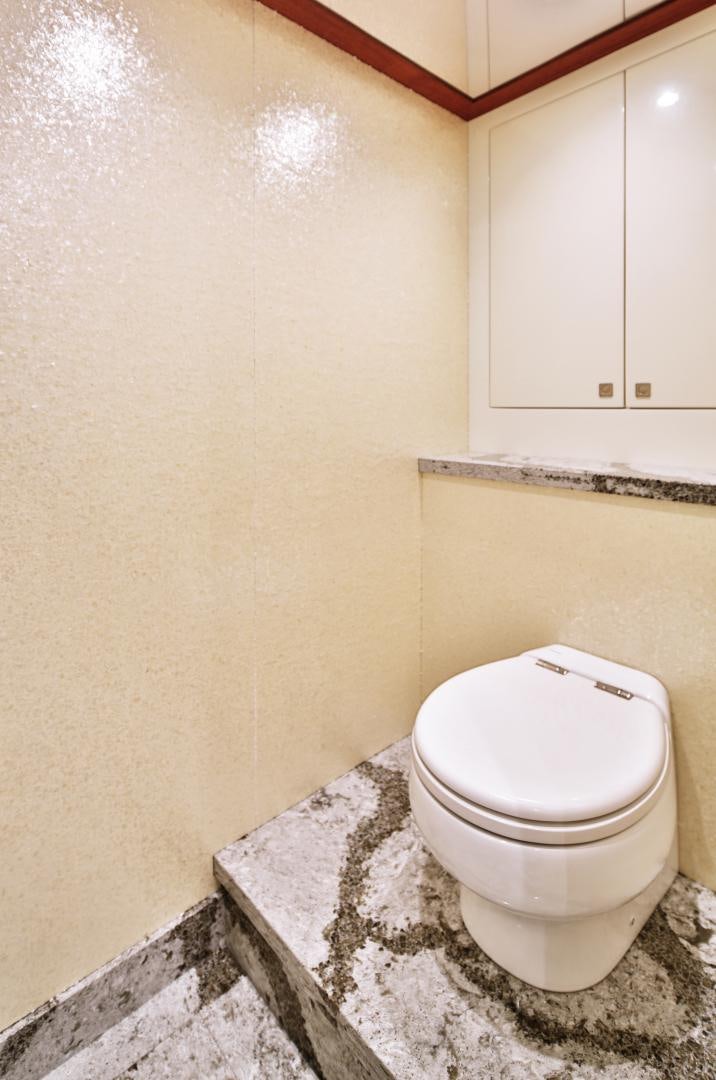

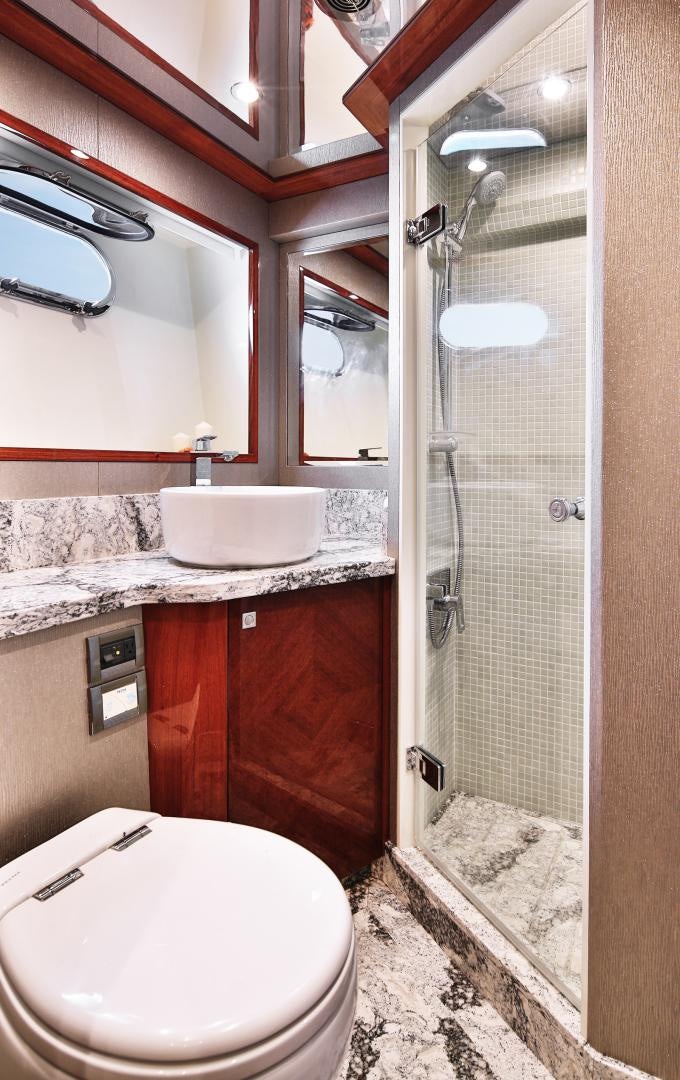

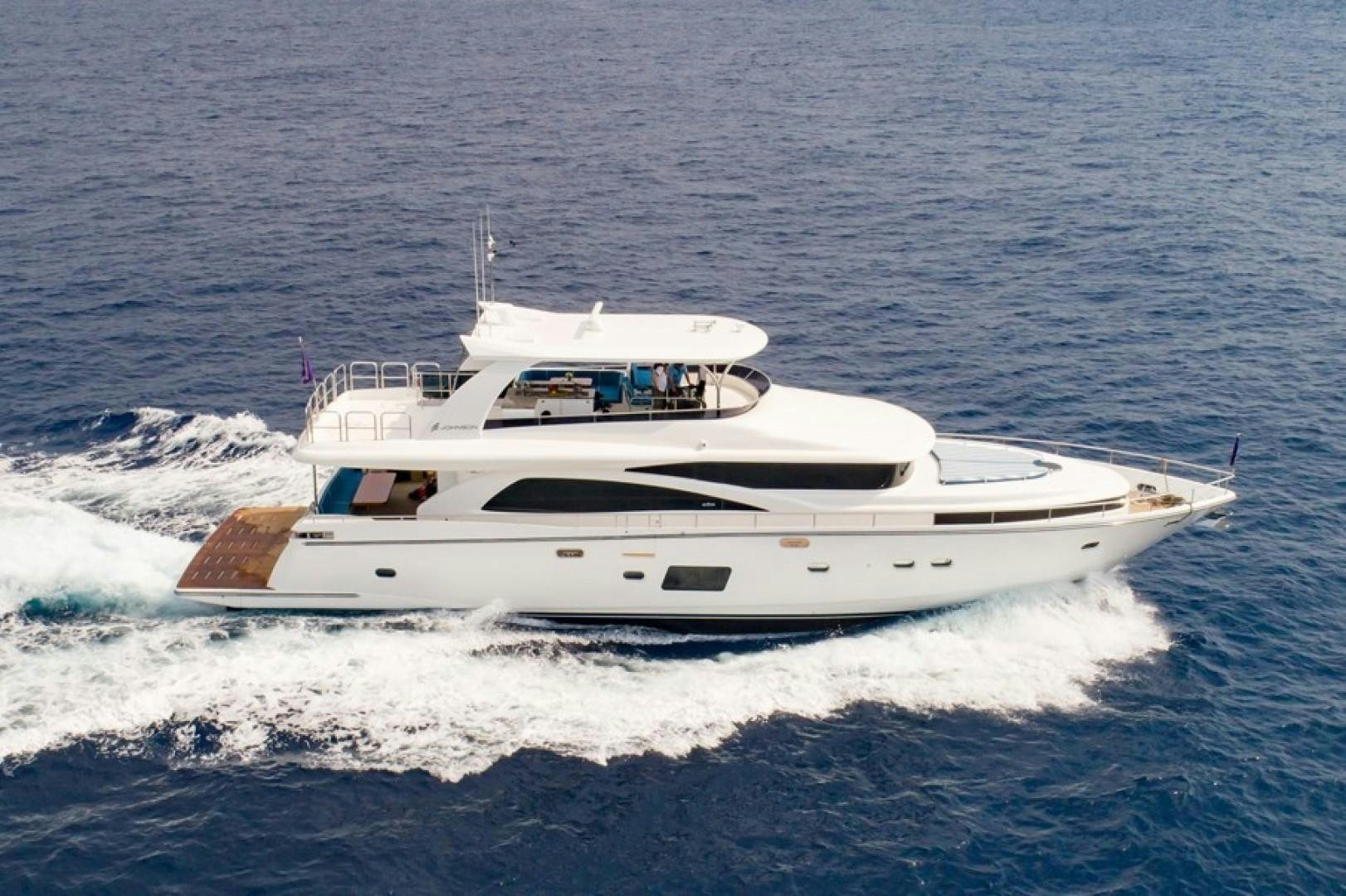

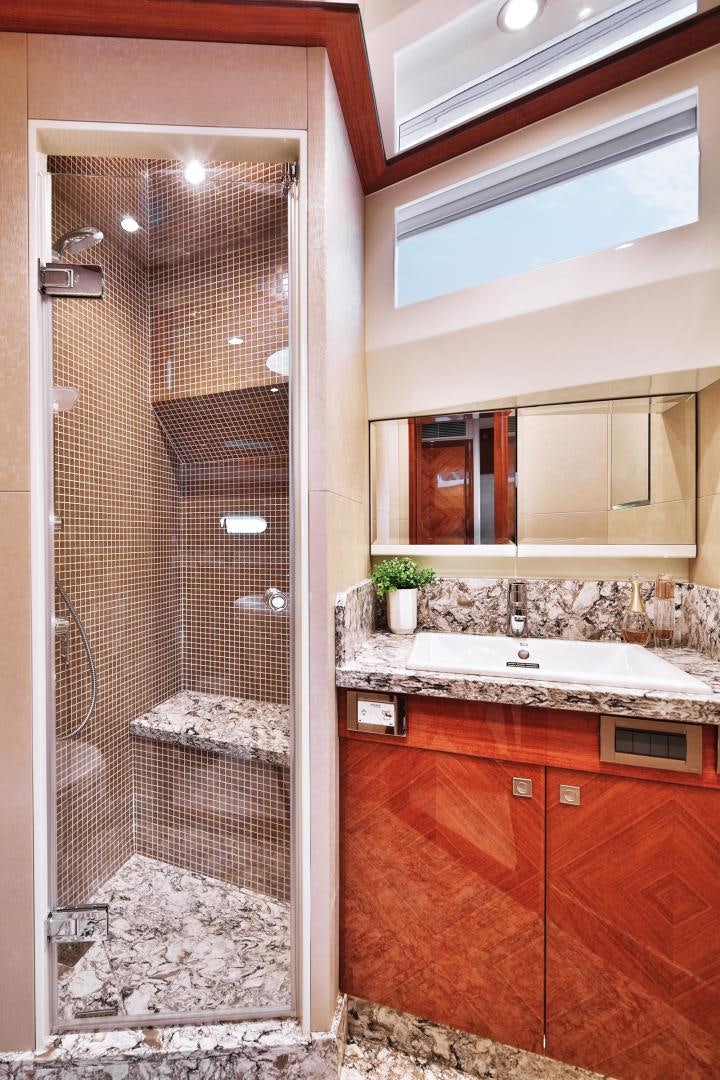

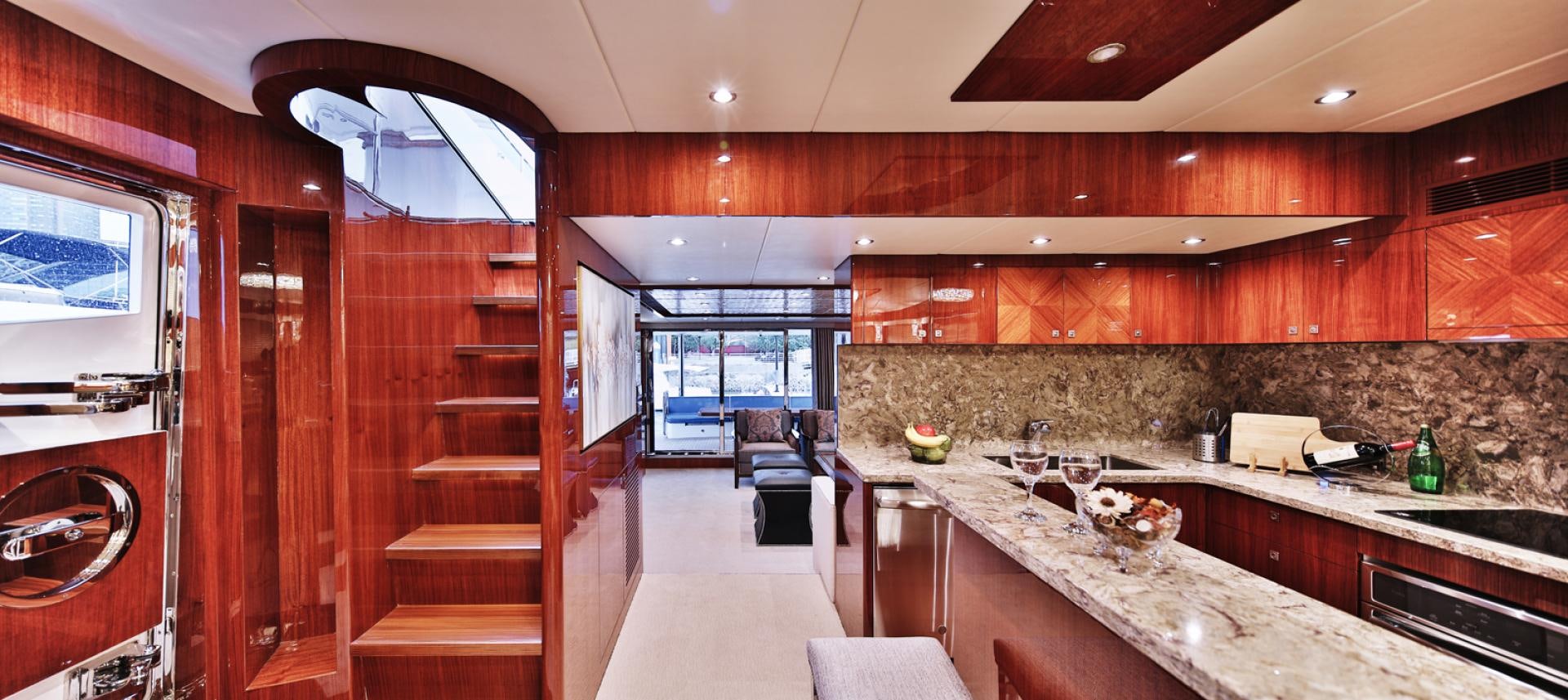

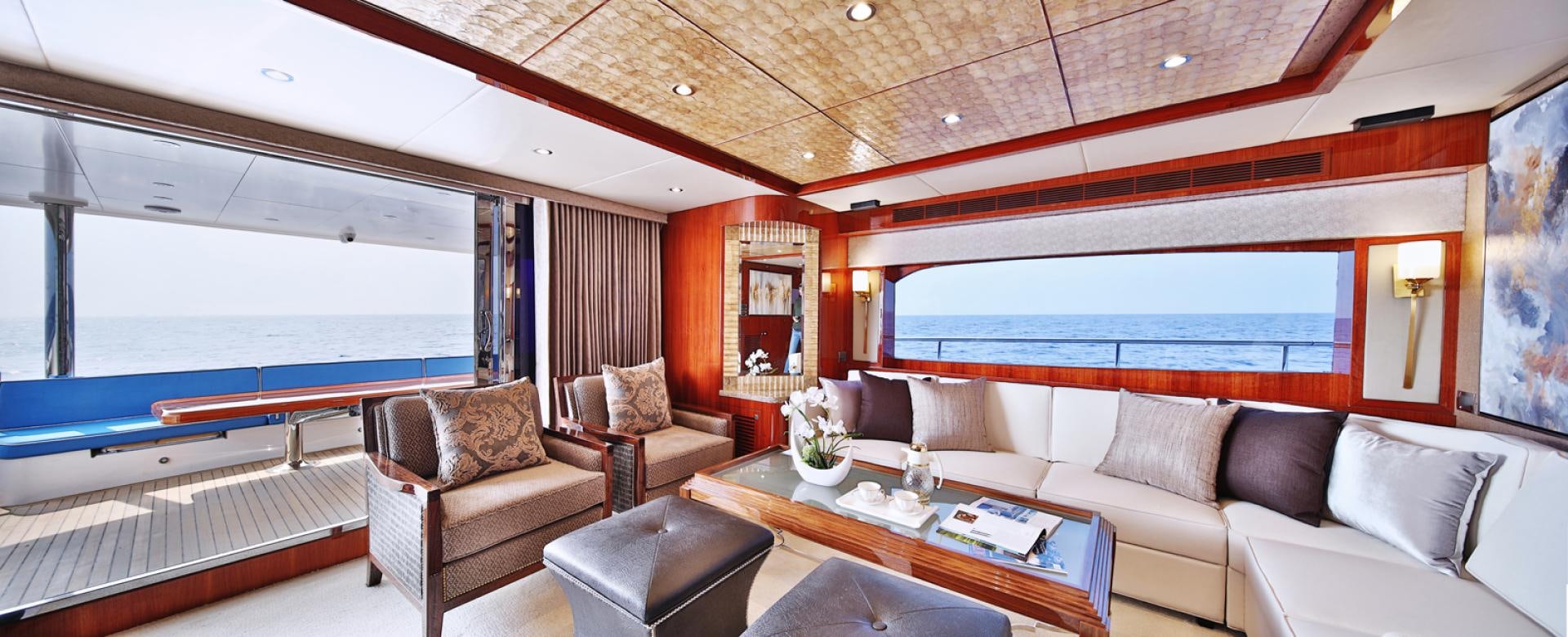

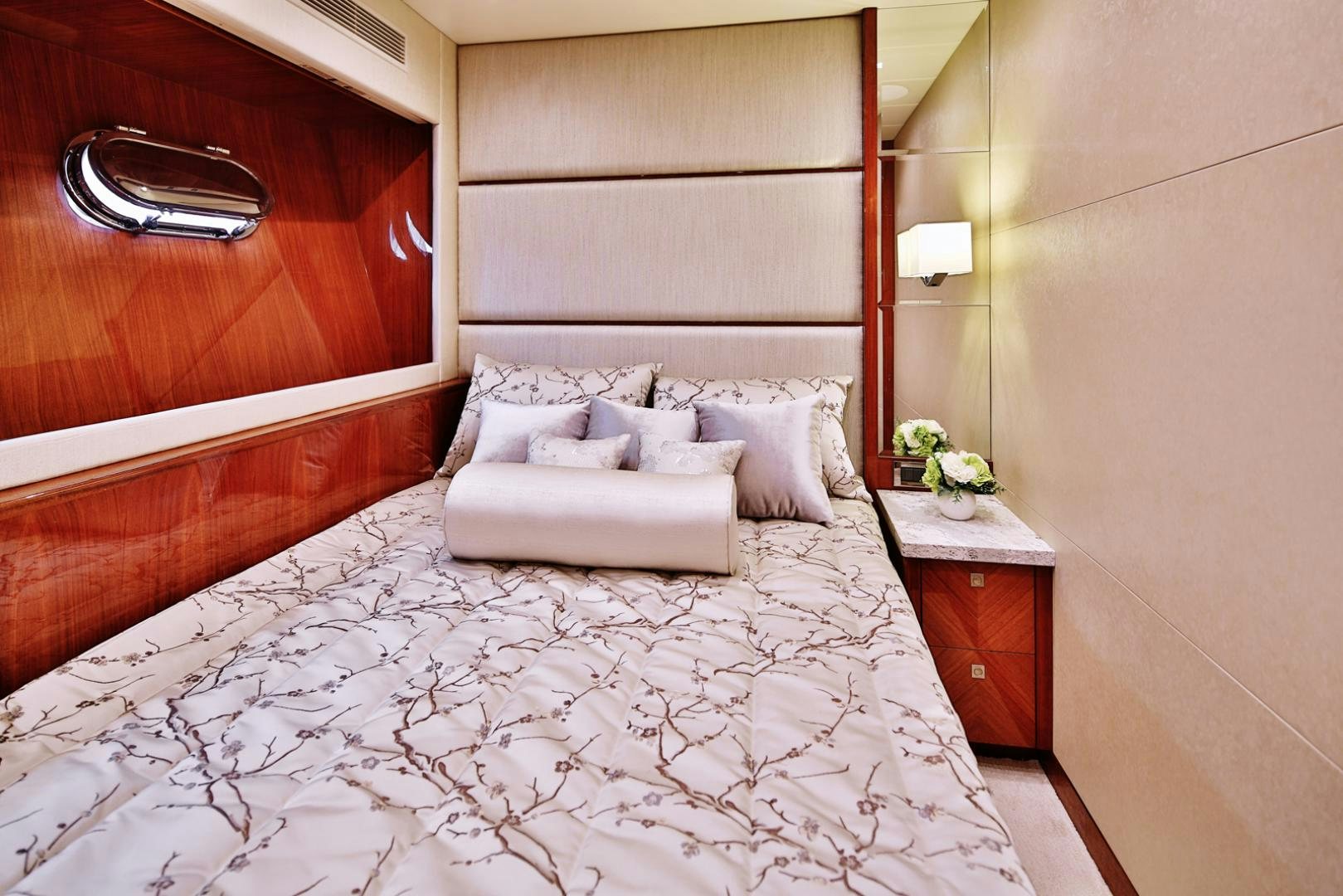

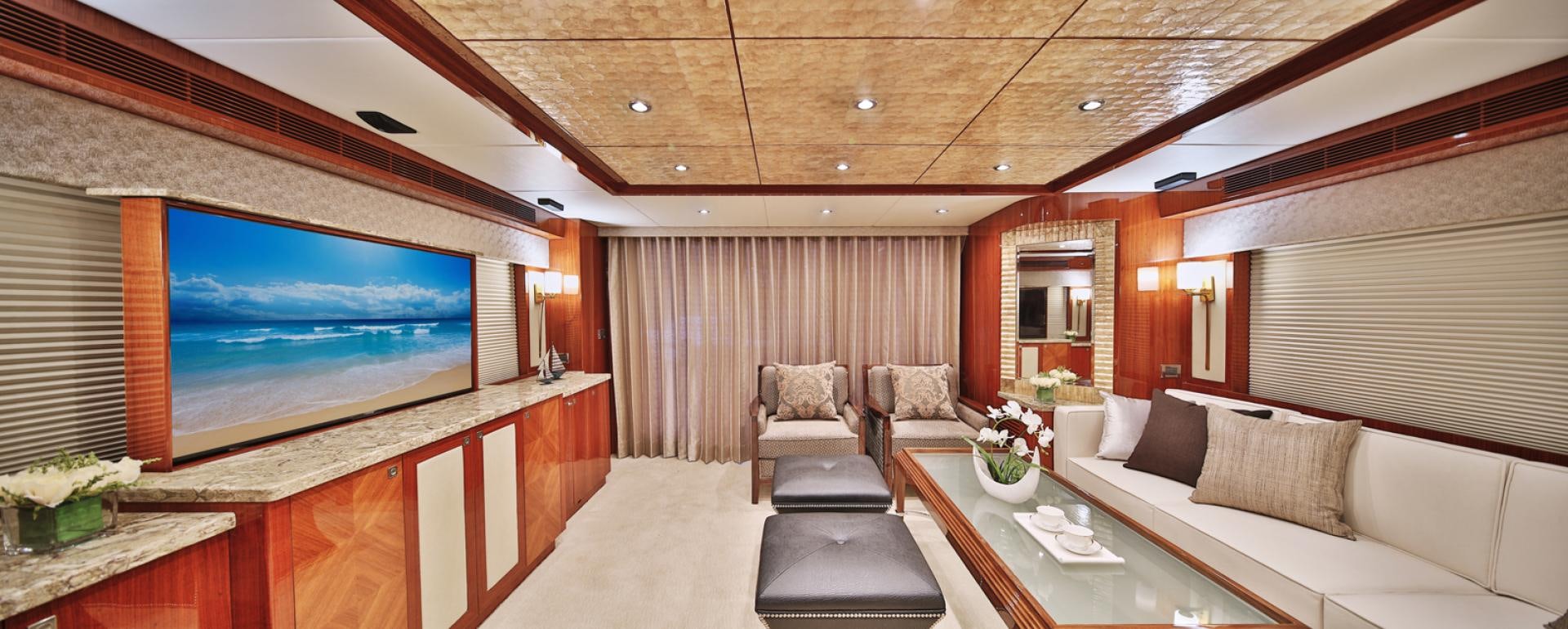

Since this is a new build offering, all photos are of previous projects. Exact layout, wood and stone selection are buyer's choice.
1. DNV Type approved fiber/resin & sandwich core material applied.
2. Isophthalic white gelcoat finish for hull above waterline, exterior decks and furniture.
3. High-density foam cored hull sides, decks, and superstructure.
4. High-density foam cored hull sides, decks and superstructure.
5. Stringers with high density form coring.
6. Interior structural components all properly bonded to hull.
7. Anti-fouling bottom paint, Sea Hawk Cukote, over Sea Hawk Tuff Stuff epoxy prime
8. Tunnels for reduced draft.

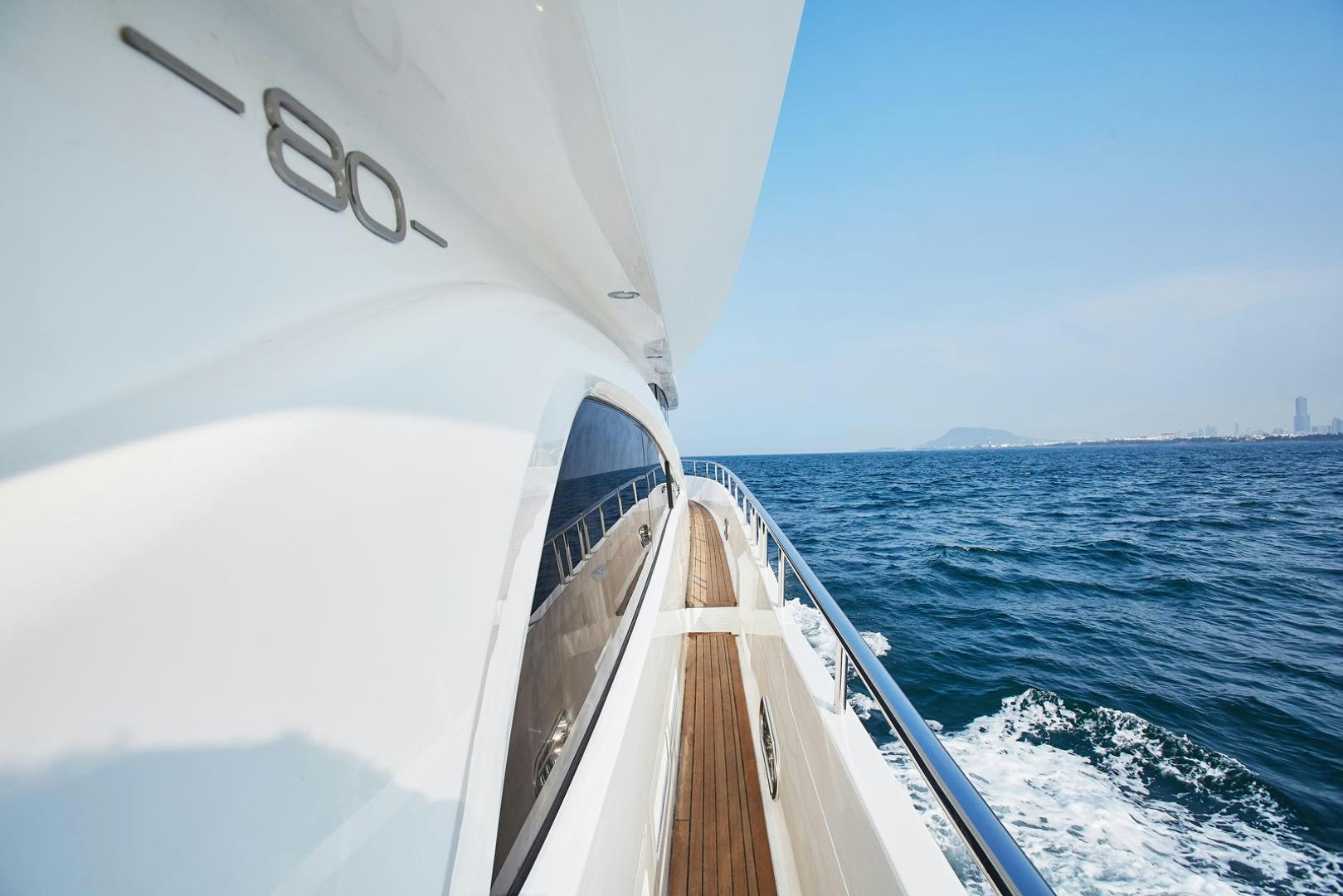

1. MAIN DECK TEAK DECK.
2. STAINLESS INTEGRAL ROLLERS & CHAIN STOPPER FOR ANCHOR CHAIN.
3. 250 FEET GALVANIZED CHAIN (3/8”).
4. MAXWELL HYDRAULIC WINDLASS RC 12-12/HYD.
5. STAINLESS STEEL 130 LB ANCHOR X 1.
6. HEAVY DUTY 316# S/S HANDRAIL & STANCHIONS.
7. HEAVY DUTY 316# S/S CLEATS AND FAIRLEADS .
8. MEDIUM TINTED SAFETY GLASS.
9. MANUALLY OPERATED STAINLESS STEEL SALOON SLIDING DOOR.
10. STAINLESS STEEL RUBRAIL WITH RUBBER INSERT AROUND HULL & DECK JOINT

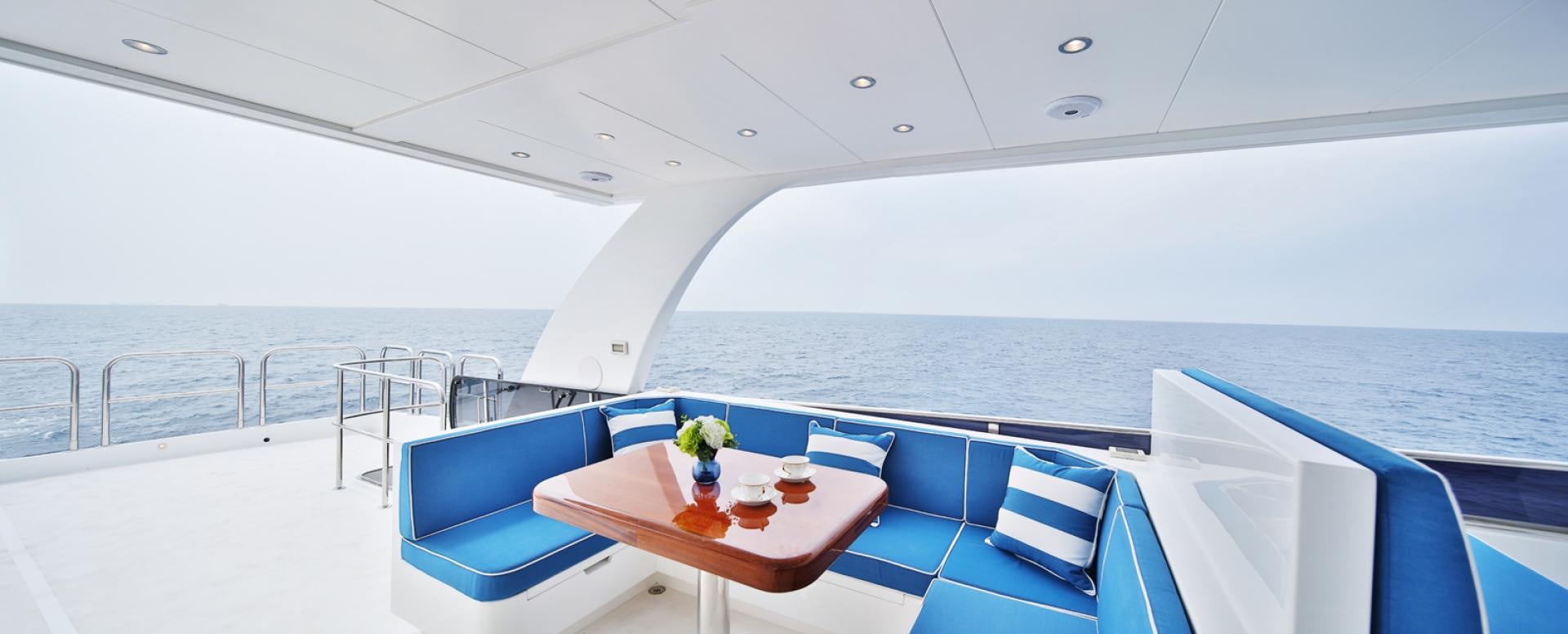

11. AFT DECK SEATING BUILT-IN WITH CUSHIONS.

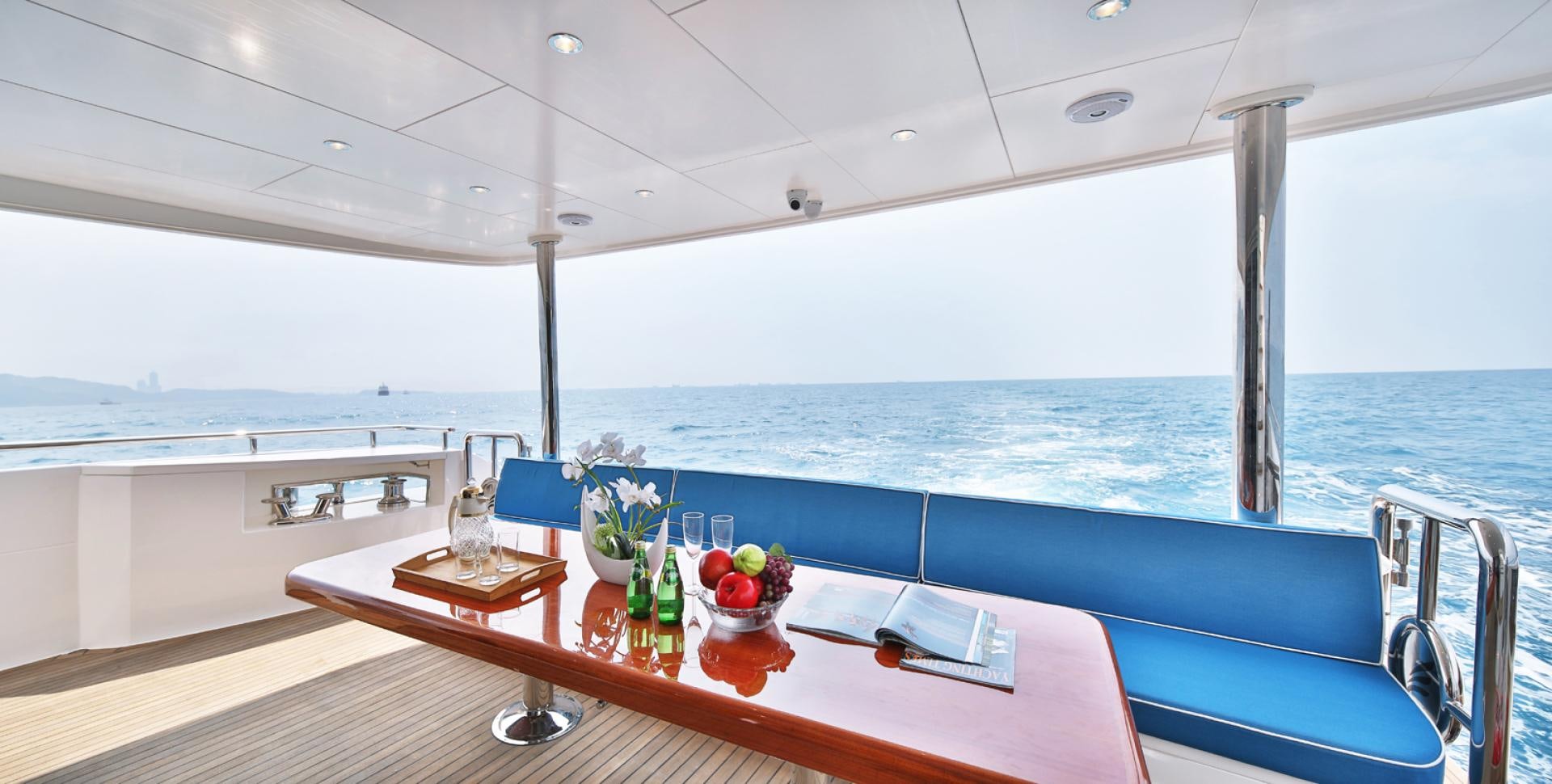

12. AFT DECK TABLE WITH PROTECTIVE COVER.
13. LED LOW LEVEL COURTESY LIGHTS ON SIDE DECK.
14. LED LOW LEVEL COURTESY LIGHTS ON AFT DECK.
15. STAIR TO FLYBRIDGE.
16. HOT AND COLD TRANSOM SHOWER, SSI.
17. STAINLESS STEEL SWIMMING LADDER, ARMSTRONG.
18. WATER FILL DECK FITTING.
19. DIESEL FILL DECK FITTING.
20. FLOJET 4325-3431 DECK WASH DOWN PUMP.
21. LED FLOODLIGHTS FOR COCKPIT.
22. STERN CAPSTAN MAXWELL VC2500 24V.
23. HYDRAULIC SWIMMING PLATFORM (ARITEX W/2000 LBS LIFTING CAPACITY).
1. 5 BLADE BRONZE PROPELLERS x 2
2. BRONZE P-BRACKETS
3. S/S AQUATECH 22HS SHAFTS 3 ½” DIAMETER SHAFTS
4. 3 1/2" TIDES SHAFT AND RUDDER SEALS
5. BOOT TOP STRIPE SIZE 3" COLOR BLACK
6. FULL CATHODIC BONDING SYSTEM TO ZINC ANODES
7. SEAWATER STRAINERS FOR ENGINES, GENSET AND AIR CONDITIONING.
8. SEACOCKS ON ALL UNDERWATER FITTINGS.
9. UNDERWATER EXHAUST WITH BYPASS.
10. OCEAN LED UNDERWATER NIGHT SPORT SERIES X 4

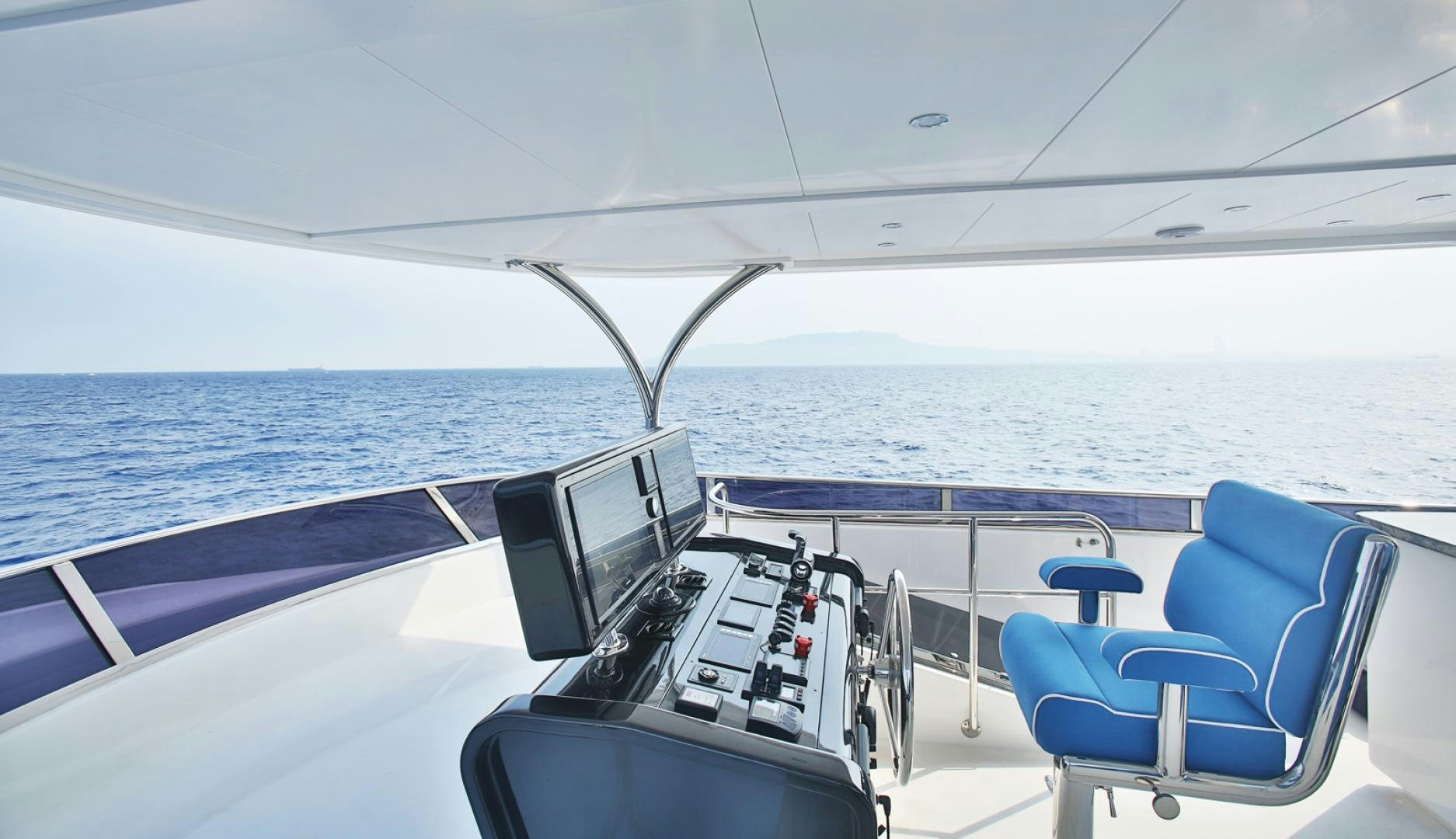

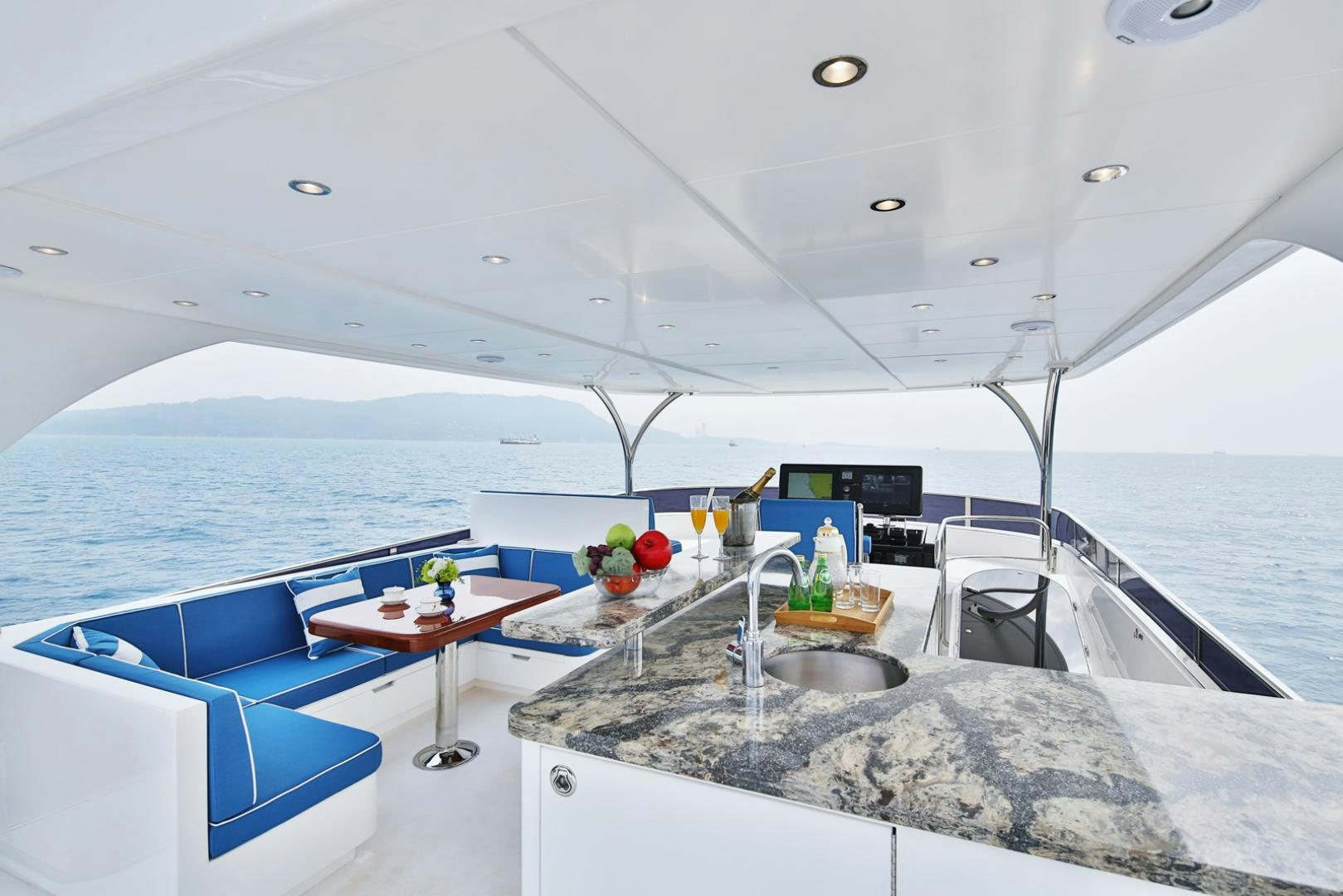

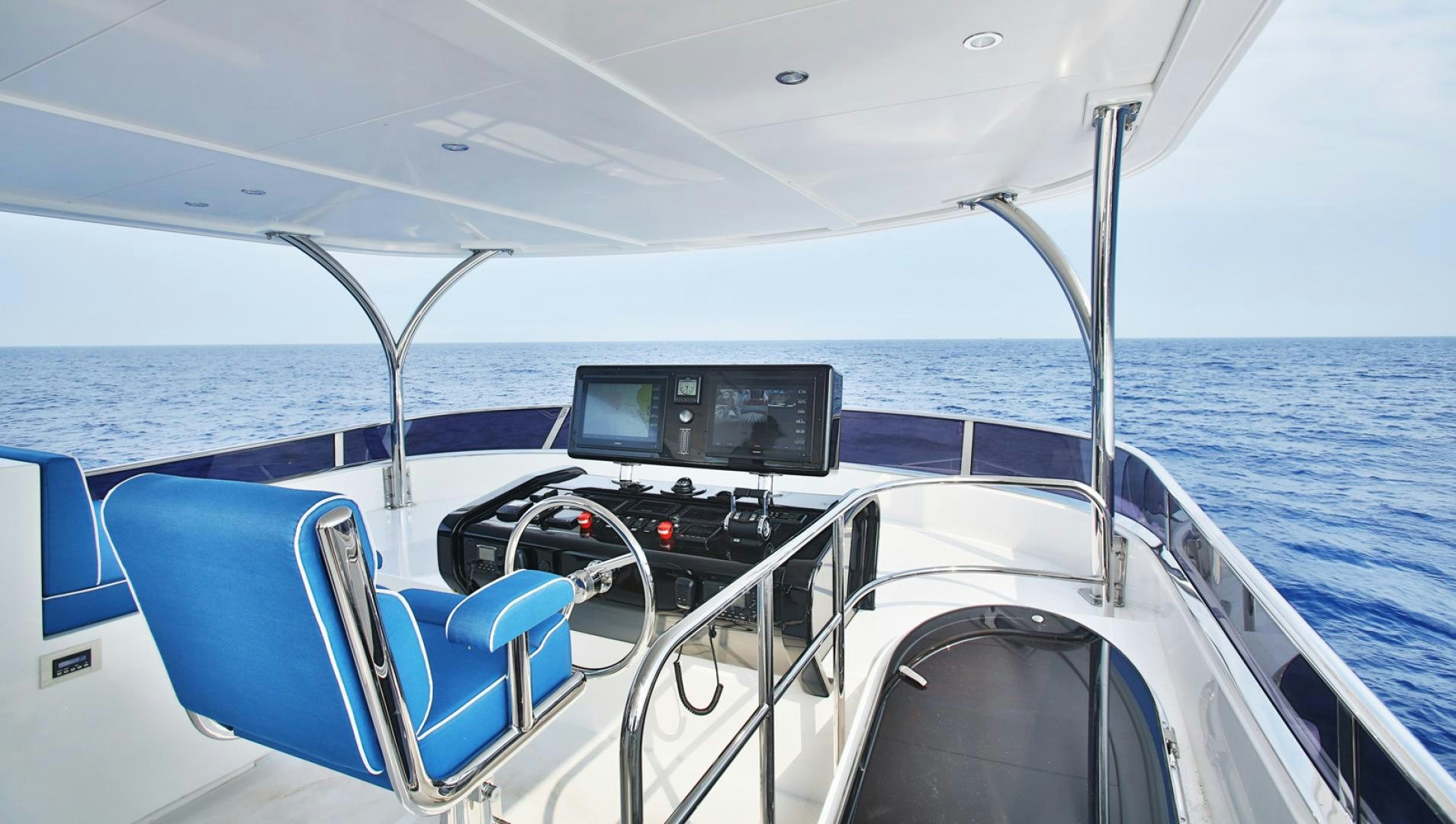

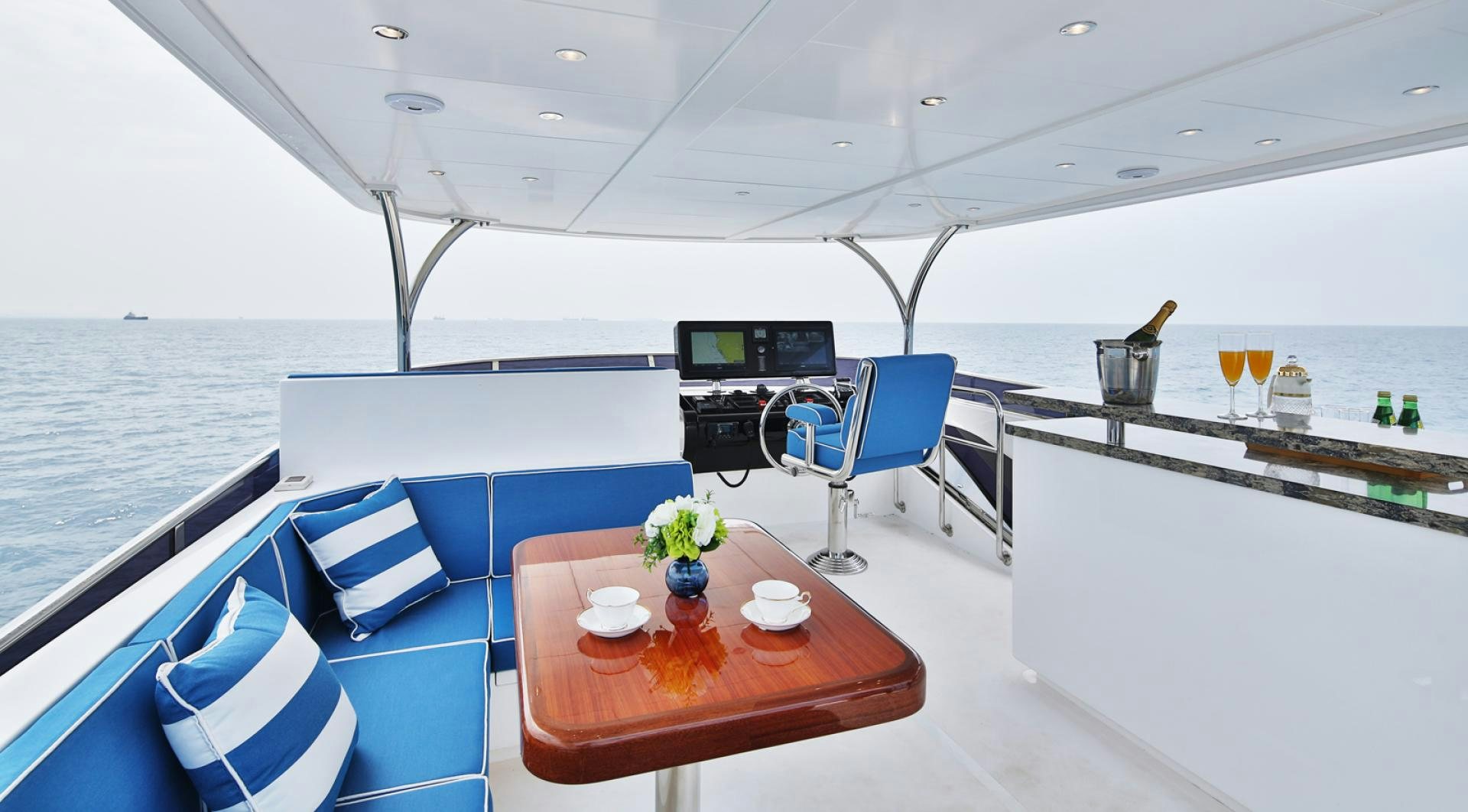

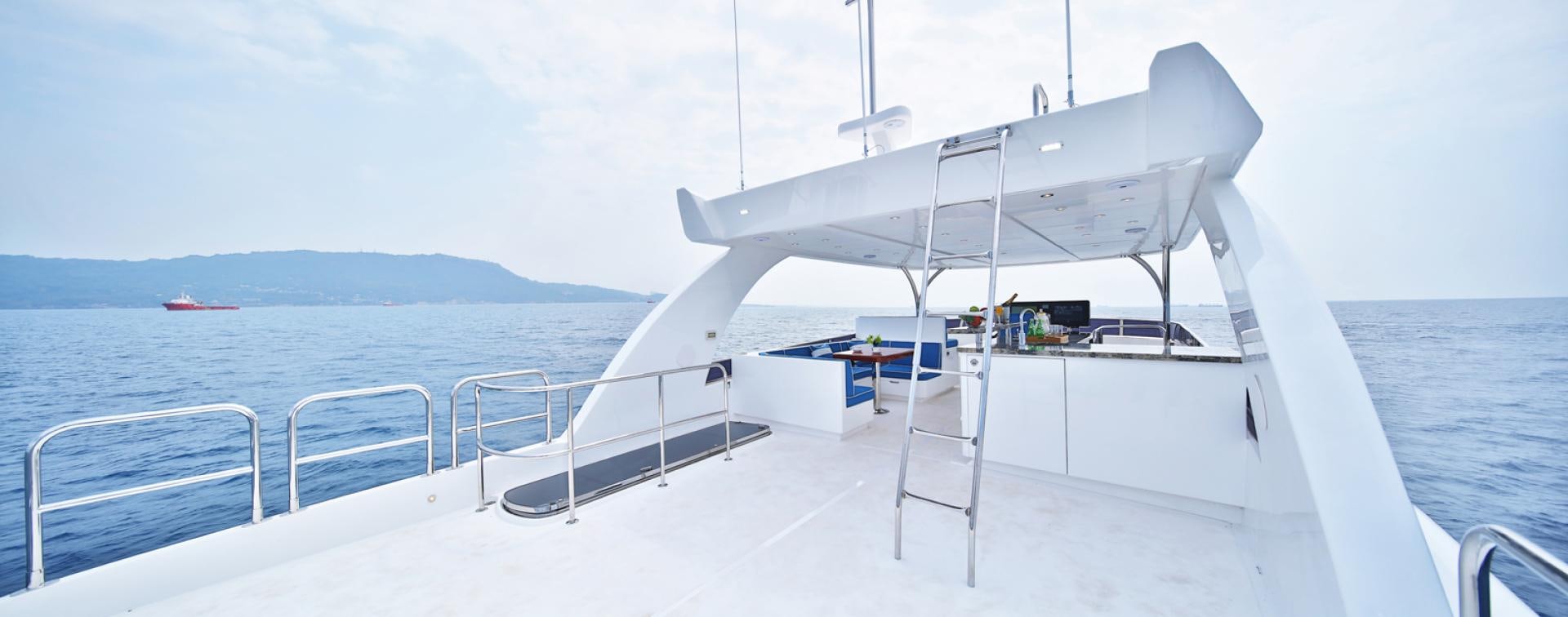

1. NON-SKID FLYBRIDGE DECK ON ENTIRE DECK AREA

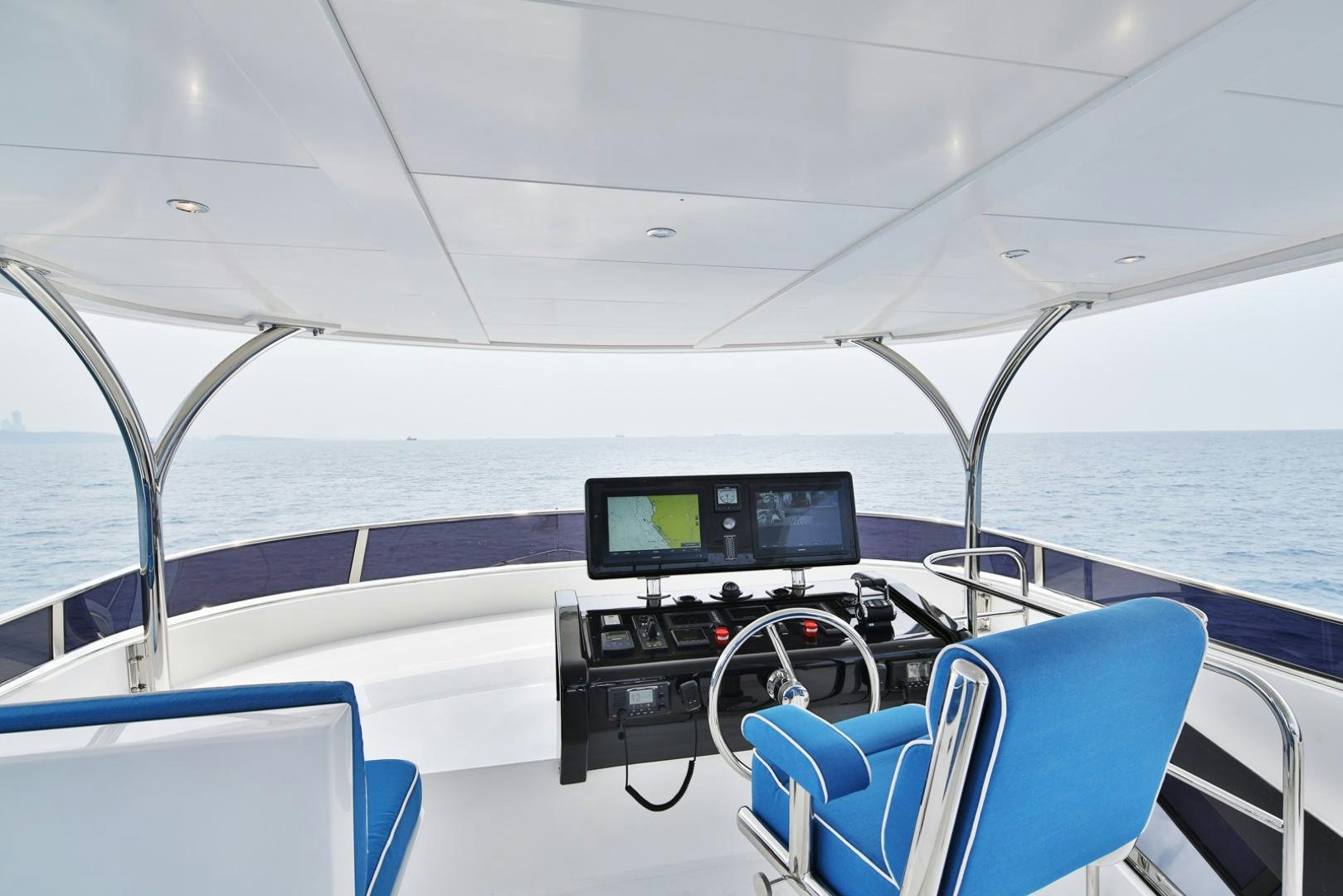

2. INSTRUMENT CONSOLE
3. BUILT-IN SEATING W/CUSHION AND HEIGHT ADJUSTABLE TABLE
4. ISOTHERM CR 130 IN BOX REFRIGERATOR
5. ISOTHERM 5W08A141MN000 ICE MAKER
6. RUDDER INDICATOR
7. MAGNETIC COMPASS
8. STAINLESS STEEL GUARD RAILS AND GRAB RAILS
9. LOW LEVEL COURTESY LED LIGHTS 24V
10. ACR SEARCHLIGHT RCL - 100D 24V LED
11. BUELL TRIPLEX AIR HORN
12. MANUAL PILOT CHAIR
13. STAINLESS STEEL STEERING WHEEL
13. RUDDER INDICATOR
14. CCTV SYSTEM /5 CAMERAS (ENGINE ROOM, AFT DECK PORT & STBD / FWD DECK).
15. FUEL GAUGE HEADHUNTER TX-3000 SERIES
16. ONE SHIPSET LED NAVIGATION LIGHTS
17. FUSION STEREO SYSTEM
1. ENGINE ROOM CLEAN DESIGNED W/LIGHTWEIGHT HONEYCOMB FLOOR.
2. SOUNDPROOFING THROUGHOUT ENGINE ROOM.

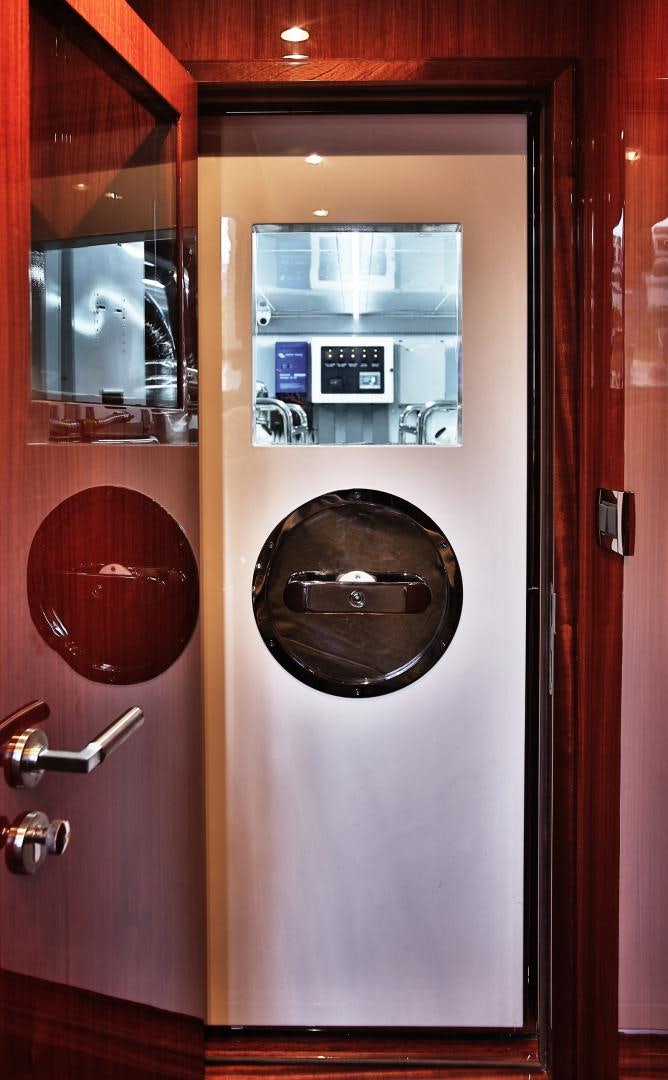

3. HEAVY-DUTY INSULATED ENGINE ROOM DOOR.
4. STAINLESS STEEL GRAB RAILS ON EACH SIDE OF ENGINE
5. ENGINE ROOM LED CEILING LIGHTS
6. ENGINE COMPARTMENT VENTILATION BLOWERS
7. ENGINE ROOM DEMISTERS
8. MAN D2842 LE433 1550 HP ENGINE X 2
9. HYDRAULIC STEERING SYSTEM
10. ENGINE LOAD DISTRIBUTED THROUGH FLEXIBLE MOUNTINGS ON STAINLESS STEEL ENGINE BED BONDED TO FRP HULL GIRDER
11. ENGINE ROOM ALARM SYSTEM
12. AIR COMPRESSOR
13. TRIDENT HOSE OR EQUIVALENT FOR ENGINE EXHAUST
14. SIDE POWER STABILIZER
15. SIDE POWER HYDRAULIC BOW AND STERN THRUSTERS
1. 110V/220 AC ELECTRICAL SYSTEM
2. DC 24V SYSTEM
3. COLOR CODED WIRING FOR EASY IDENTIFICATION
4. MAIN ELECTRIC PANEL INCLUDES A/C & D/C CIRCUIT BREAKERS
5. A/C VOLT RECEPTACLES LOCATED SOCKETS THROUGHOUT THE BOAT
6. GFI PROTECTION FOR ALL A/C OUTLETS IN EXTERIOR, HEADS, GALLEY AND ENGINE ROOM.
7. FIBERGLASS WATER/EXHAUST SEPARATOR FOR GENERATOR.
8. ELECTROLYSIS BONDING SYSTEM.
9. CATHODIC PROTECTION W/ZINC ANODES FOR SHAFTS, STRUTS, ETC.
10. INDIRECT LIGHTING UNDER VALANCE IN SALOON, STATEROOMS AND GALLEY.
11. ITALIAN VIMAR SWITCHES FOR LIGHTING SYSTEM.
12. ANTI-ELECTROLYSIS BONDING SYSTEM.
12a. 24V 50 AMP 220 VOLT CABLEMASTER WITH 85' OF 50 AMP SHORE CORD
A/C D/C MAIN POWER SYSTEM
13. KOHLER GENERATOR 32KW (60HZ) WITH SOUND SHIELD X1, AND 9KW (60H) X1
14. BATTERY CHARGER FOR 24V
15. BATTERY CHARGER FOR 12V
16. ALTERNATOR SPLIT CHARGING SYSTEM
17. 255 AMP/HR AGM SHIP SERVICE BATTERIES X 4 LIFELINE 8D
18. 255 AMP/HR AGM ENGINES START BATTERIES X 4 LIFELINE 8D
19. 210 AMP/HR AGM GENERATOR START BATTERIES X 2 LIFELINE
20. ALL BATTERIES ENCLOSED WITH PROPER FIXTURES
21. 2 SHORE POWER CONNECTIONS WIRED WITH 2 UNITS OF 50 AMP AUTOMATIC ISOLATING & BOOSTER ANG ISOLATION TRANSFORMERS AB 12.5 KVA
22. BEP BATTERY SELECT SWITCH
23. 3KW INVERTER
1. GARMIN GPS
2. GARMIN COMPRESSION RADAR
3. GARMIN 17" MULTIFUNCTION DISPLAYS X 2
4. GARMIN AUTOPILOT SYSTEM
5. GARMIN AIS
6. GARMIN VHF RADIO X 2
7. RITCHIE MAGNETIC COMPASS
FUEL OIL SYSTEM
1. FUEL TANKS WITH SIGHT AND ELECTRIC GAUGES AND CAPACITY AS SPECIFIED IN PRINCIPAL DIMENSION ABOVE
2. RACOR DUAL FUEL FILTER/WATER SEPARATOR FOR EACH ENGINE.
3. RACOR FUEL FILTER/WATER SEPARATOR FOR GENERATOR.
4. OIL CHANGING PUMP FOR ENGINE, GENERATOR AND CLUTCHES.
FRESH WATER SYSTEM
5. STAINLESS STEEL WATER TANK WITH ELECTRIC GAUGE AND CAPACITY AS SPECIFIED IN PRINCIPAL DIMENSION ABOVE.
6. HEADHUNTER MARCH 5 M5-230 A/C PUMP
7. HEADHUNTER XRS-124 X-CALIBER 12-24V D/C PUMP FOR BACK UP.
8. MARINE GRADE LINES FOR FRESH WATER SYSTEM.
9. SEAWARD HF 2250 20 GALLONS WATER HEATER X 2
10. HOT WATER CIRCULATION PUMP.
11. DOCKSIDE FRESH WATER INLET
12. WATER MAKER 900 GPD, AQUA WHISPER COMPACT
SANITARY SYSTEM
13. HOLDING TANK WITH SEALAND MACERATOR PUMP X 2
14. HOLDING TANK LEVEL INDICATOR, HEADHUNTER
15. Y-VALVE FOR HOLDING TANK W/DECK FITTING FOR DOCKSIDE PUMP OUT.
16. TECMA TOILET SYSTEM
17. SUMP PUMPS FOR SHOWER WATER
17a. SEALAND HOLDING TANK VENT FILTER
BILGE WATER SYSTEM
18. D/C 24V RULE 3700 BILGE PUMPS X 7
19. PAR JABSCO 29270-0000 MANUAL BILGE PUMP IN ENGINE ROOM
20. HIGHWATER LEVEL BILGE ALARM SYSTEM X 7
21. BILGE EXHAUST VENTILATION FANS
AIR CONDITIONING SYSTEM
22. CRUISAIR CHILLED WATER AIR CONDITIONING SYSTEM WITH 60,000 BTU COMPRESSOR X 2
23. AIR HANDLERS THROUGHOUT.
FIRE SAFETY SYSTEM
24. FIRE INSULATION IN ENGINE ROOM
25. AUTO SHUTDOWN SYSTEM
26. AUTOMATIC MANUAL SEA-FIRE FIRE EXTINGUISHER SYSTEM NFD 1700
27. INTEGRATED FIRE ALARM SYSTEM IN HELM STATION, WITH SMOKE DETECTOR IN EACH CABIN

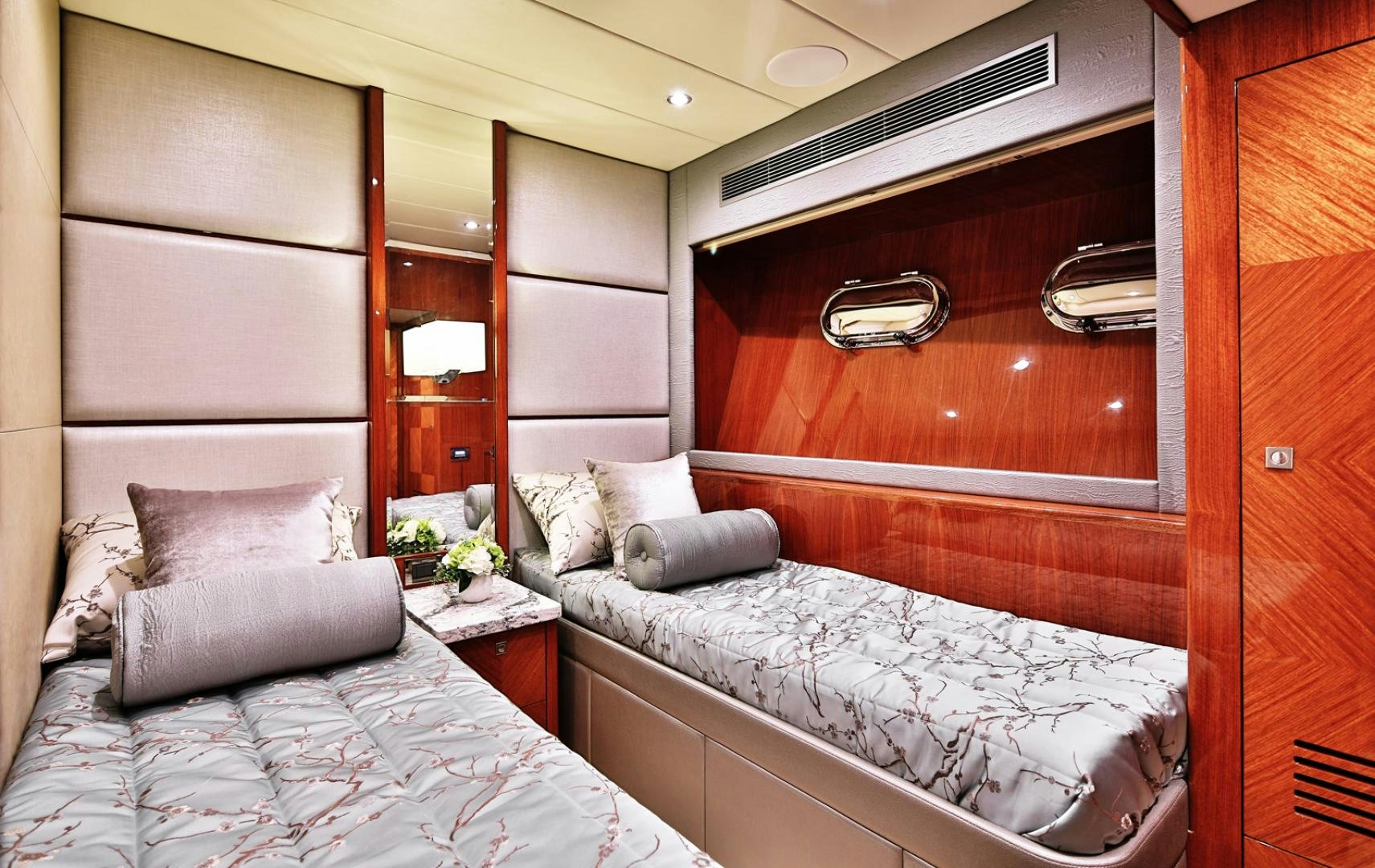

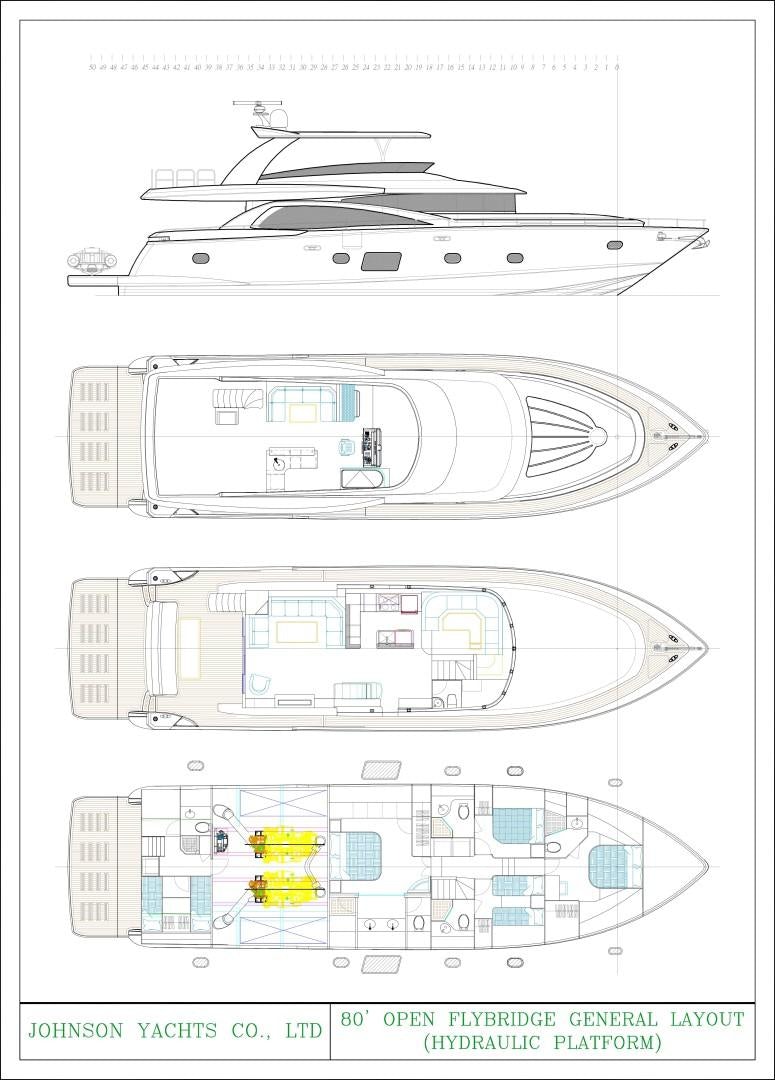

1. STANDARD LAYOUTS: MASTER STATEROOM, VIP PLUS 2 GUEST CABINS AND 1 CREW CABIN
2. CUSTOM ROSEWOOD JOINERY
3. STANDARD SELECTION OF CARPET EXCEPT IN WOOD FLOOR AREAS.
4. STANDARD SELECTION OF INTERLOCKING VINYL CEILING PANELS THROUGHOUT MAJALITE
5. CHOICE OF MARBLE, GRANITE, WOOD FLOORS IN GALLEY FROM STANDARD COLLECTION.
6. CHOICE OF GRANITE, GLASS, QUARTZ STONE FOR GALLEY
7. STANDARD CHOICE OF FABRICS FOR BEDSPREADS, DECORATIVE PILLOWS AND SHEET SET (FLAT SHEET, FITTED SHEET, PILLOW CASES) ONE SET PER BERTH.

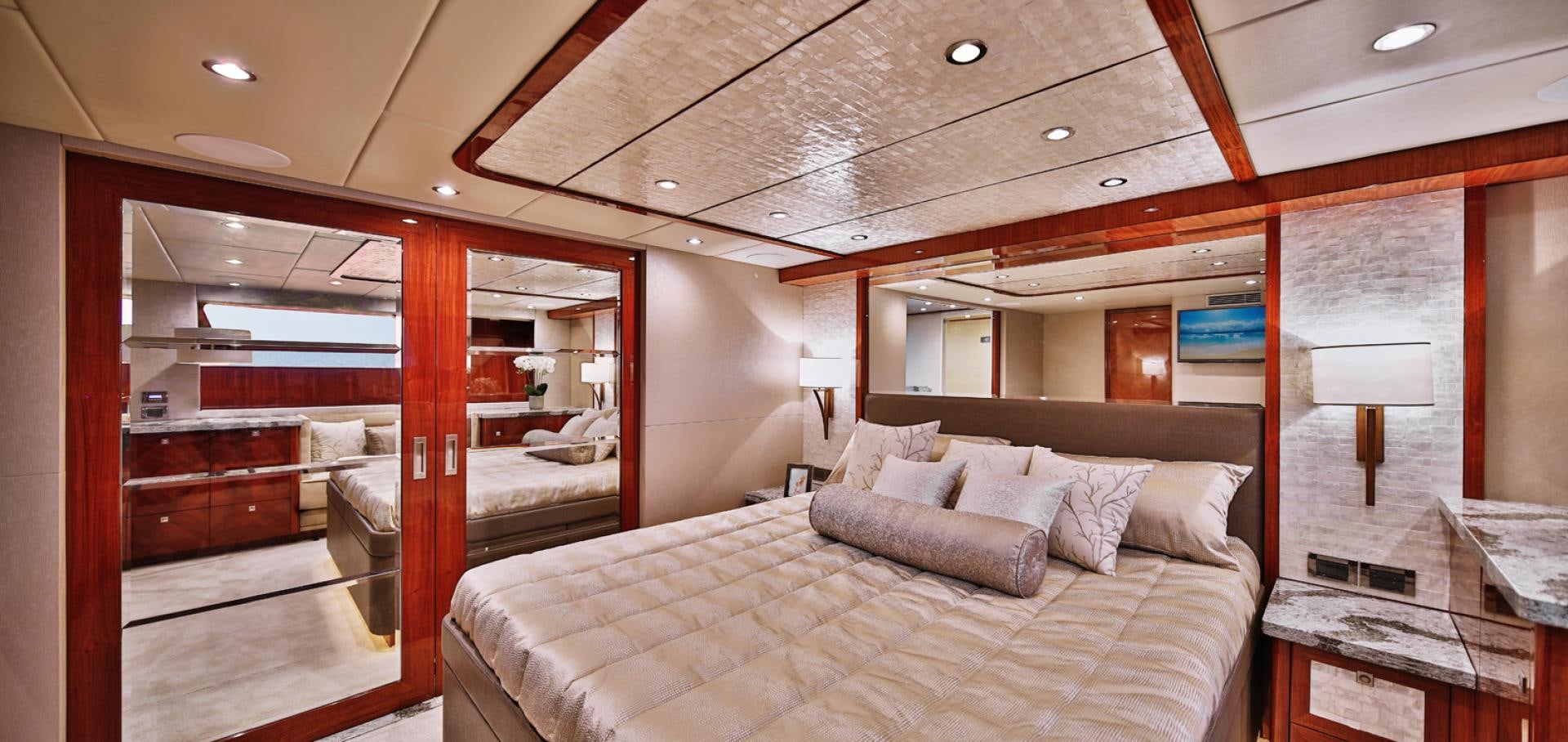

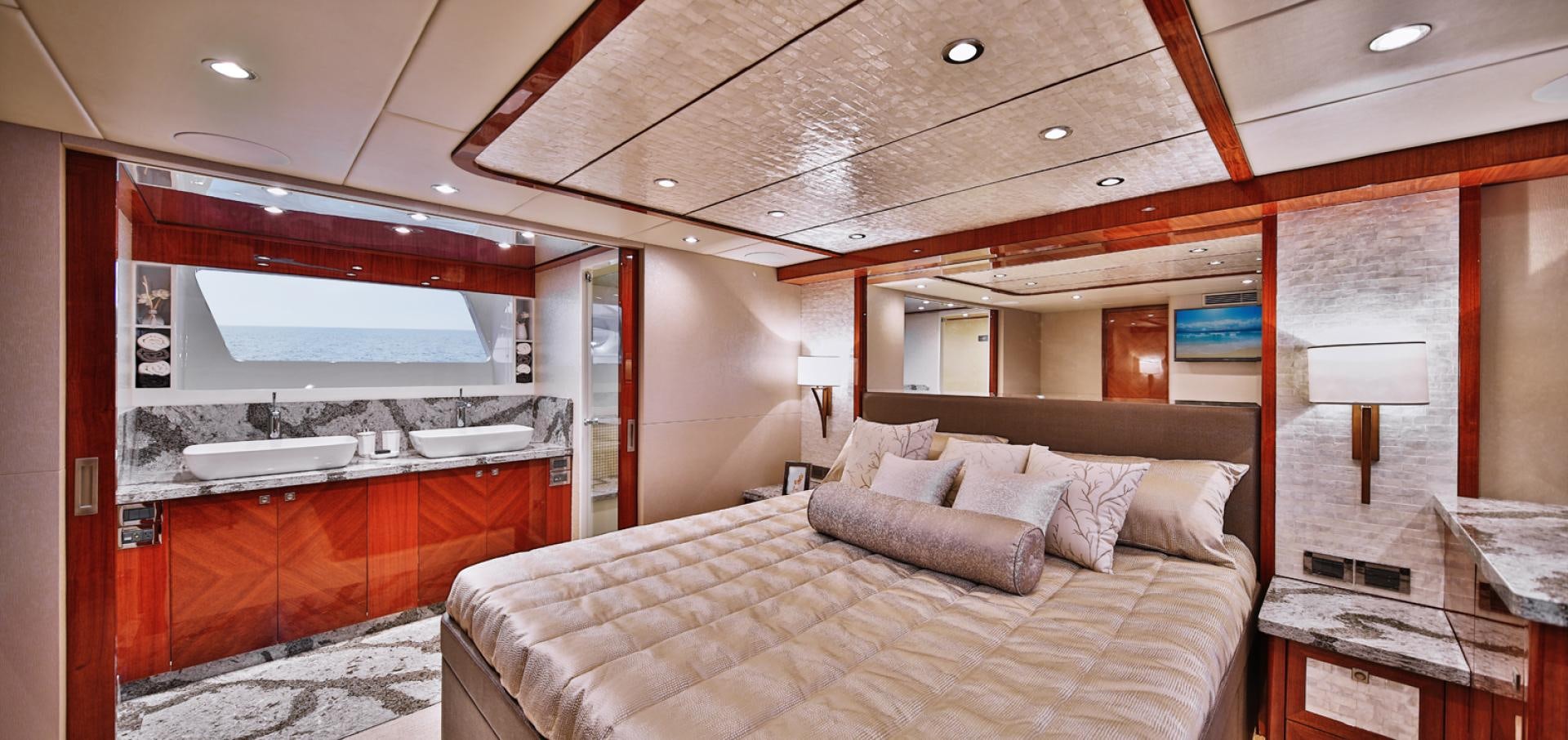

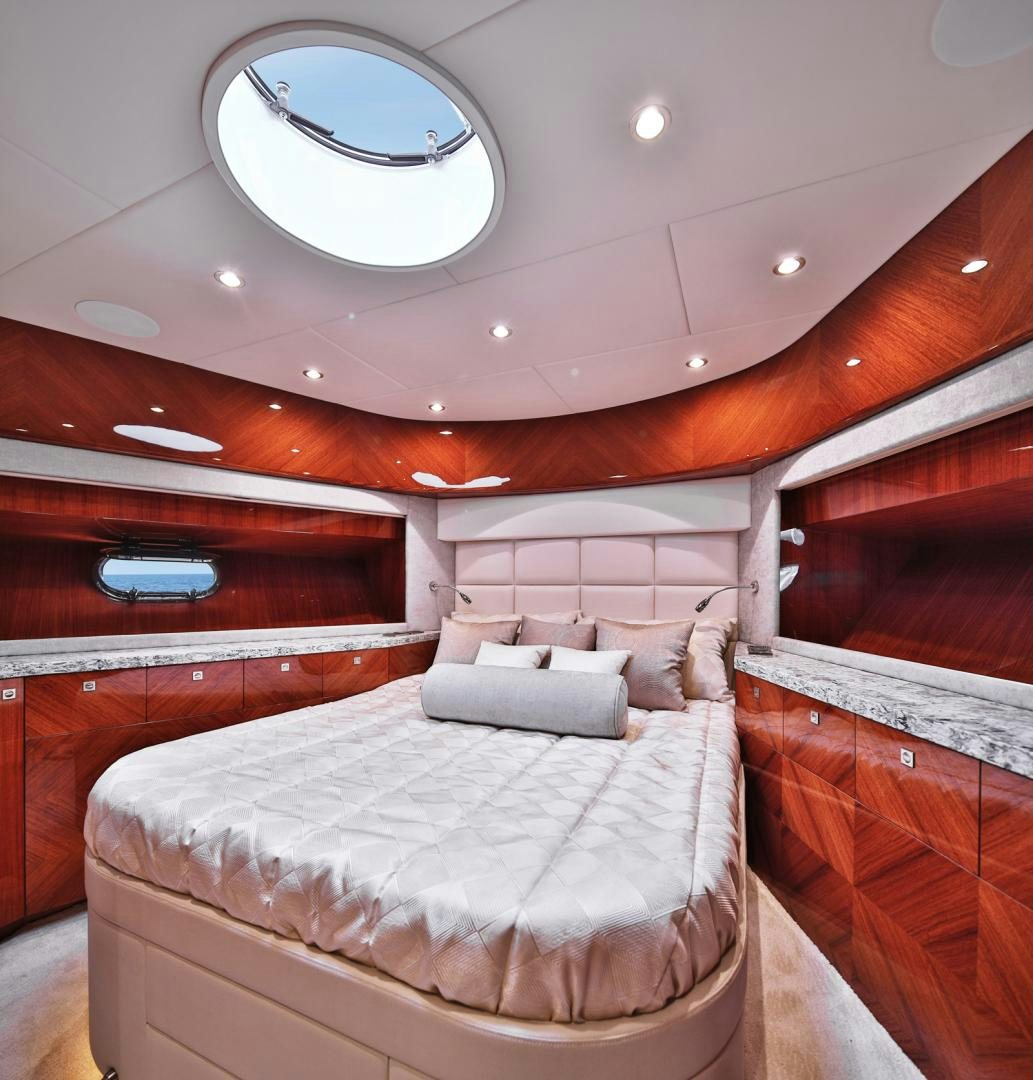

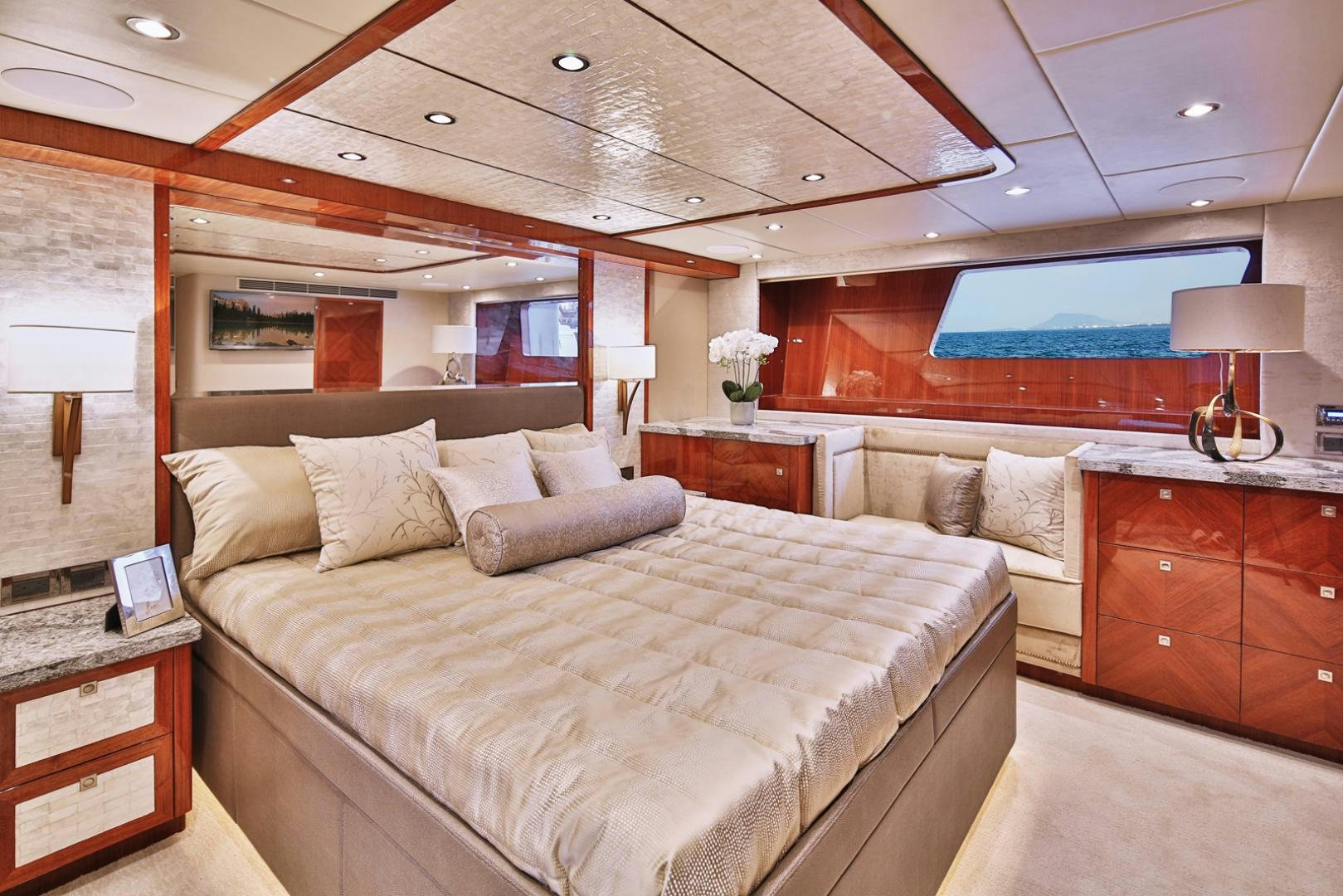

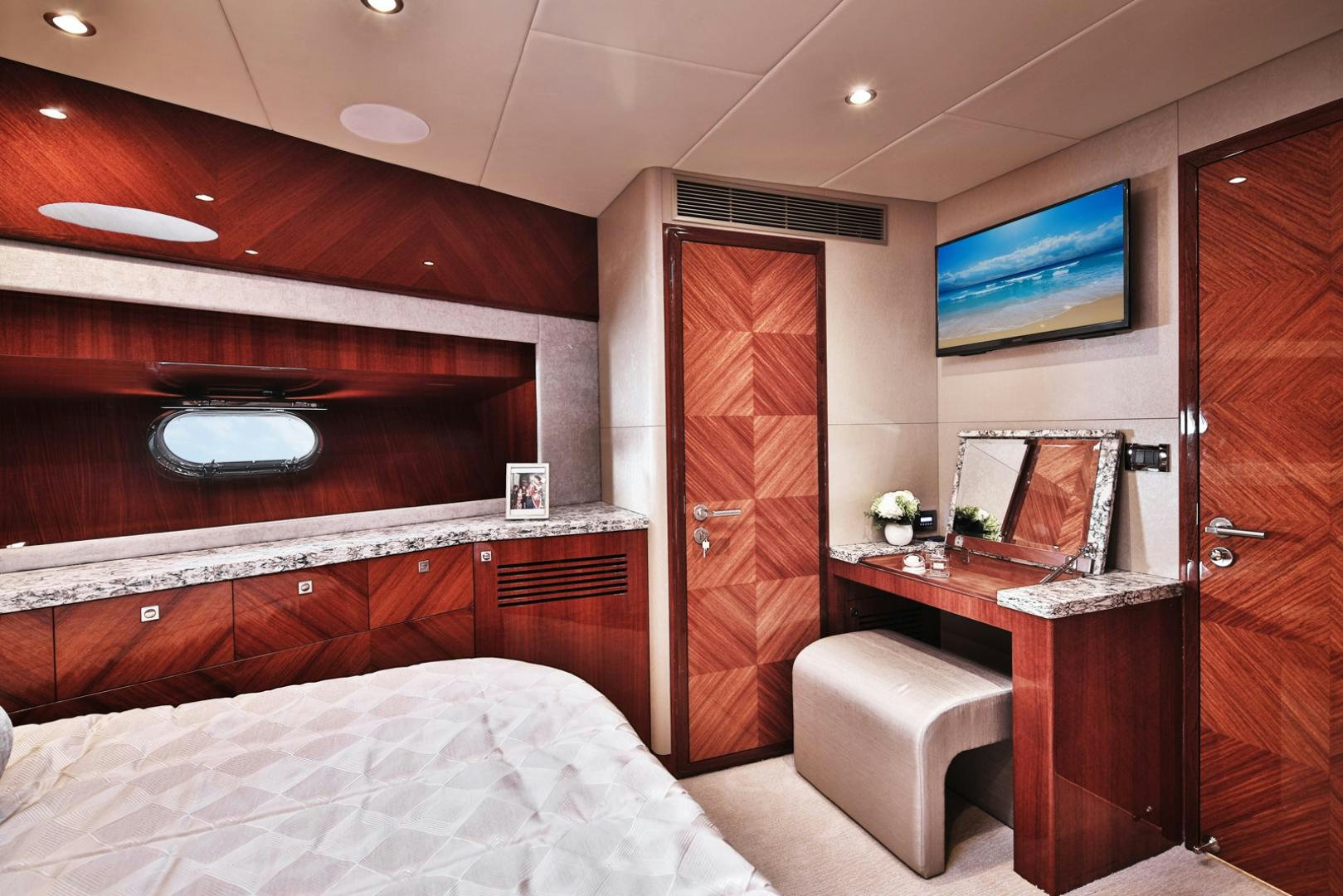

8. KING SIZE BED IN MASTER STATEROOM.
9. UPHOLSTERED HEADBOARD FOR MASTER STATEROOM, VIP STATEROOM AND GUEST CABINS.

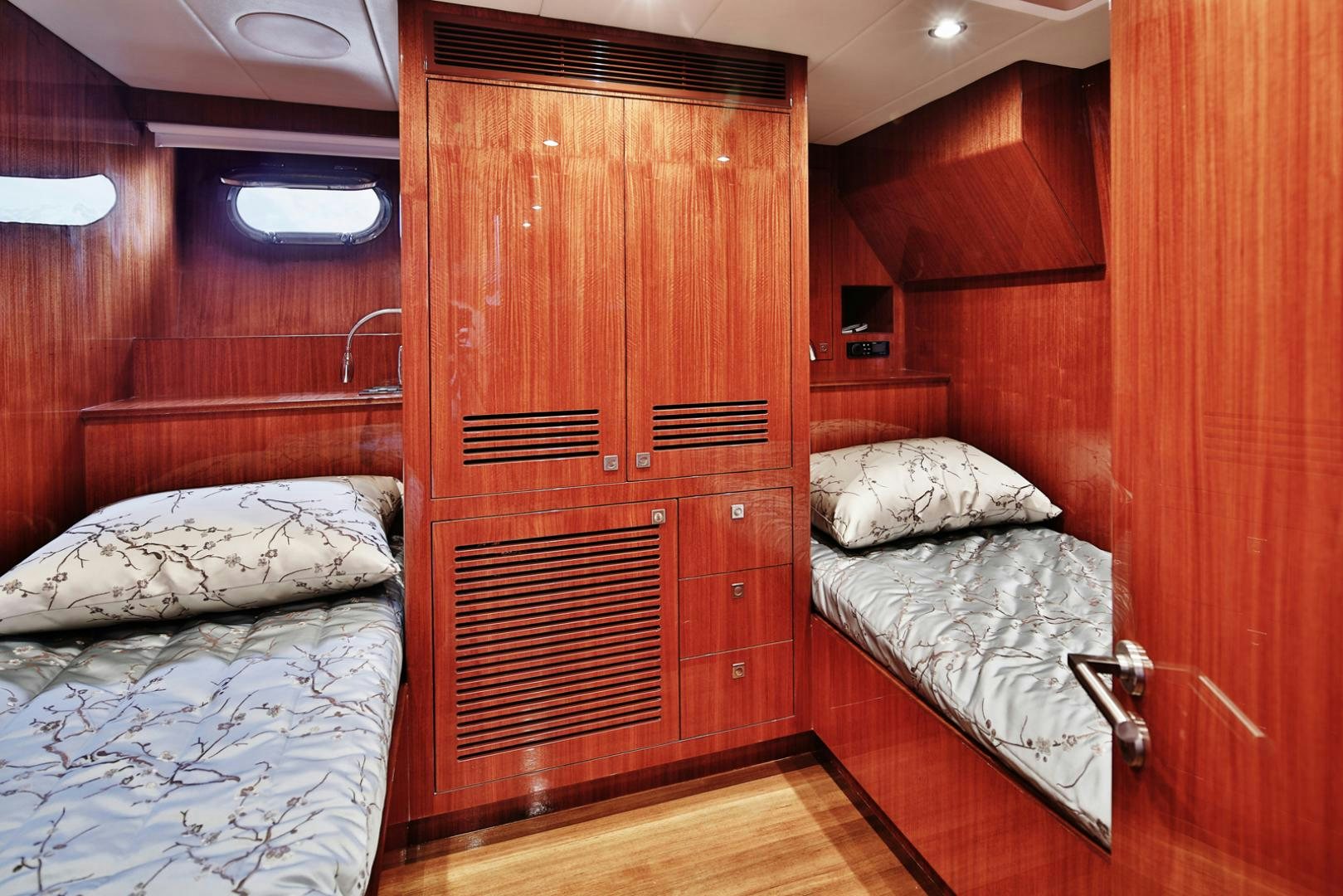

10. WOOD OR UPHOLSTERED BED FRAMES IN ALL CABINS.
11. HANGING LOCKERS IN ALL STATEROOMS
12. QUICK KAI XP-LP 4W LED CEILING LIGHTS
13. INDIRECT LIGHTING SYSTEM UNDER BED AND VALANCES
14. 24V READING LIGHTS IN EACH CABIN

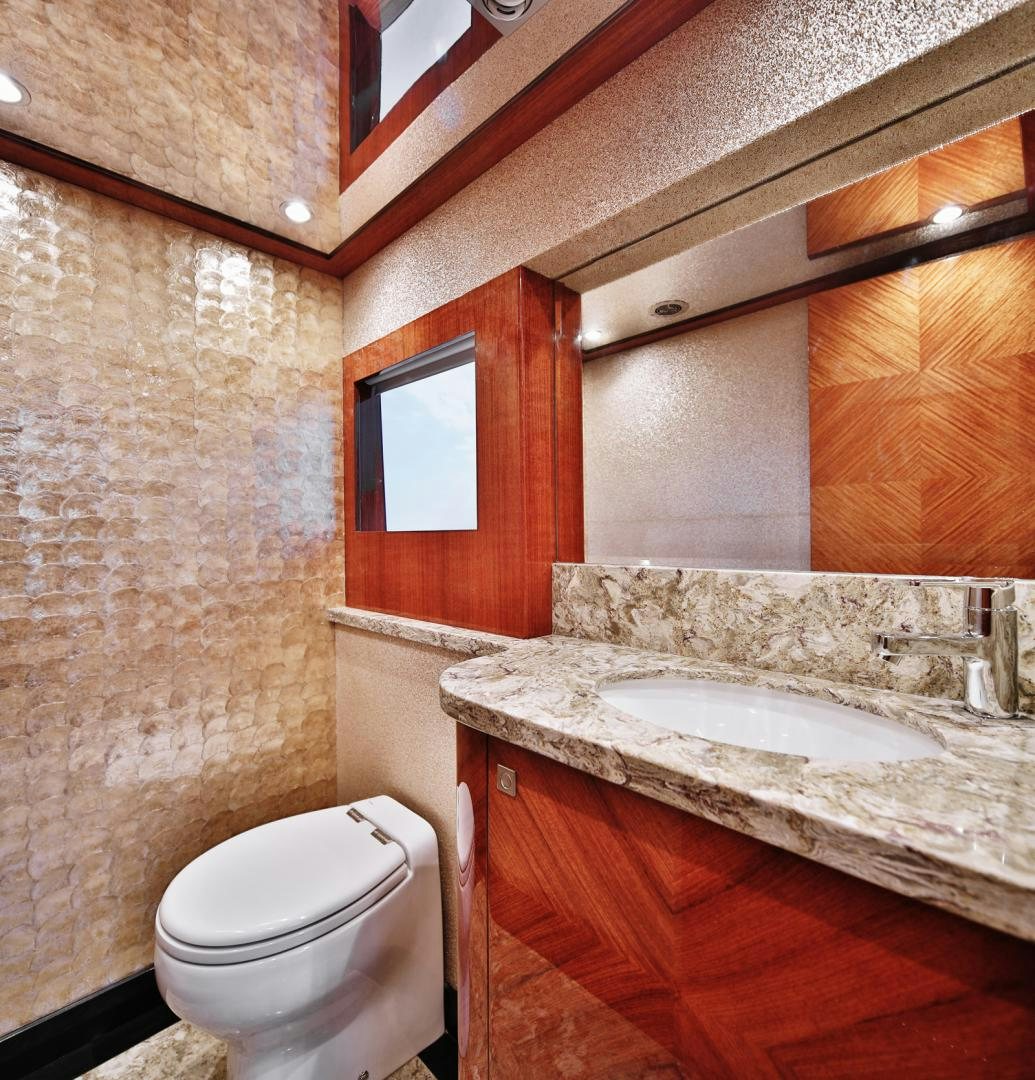

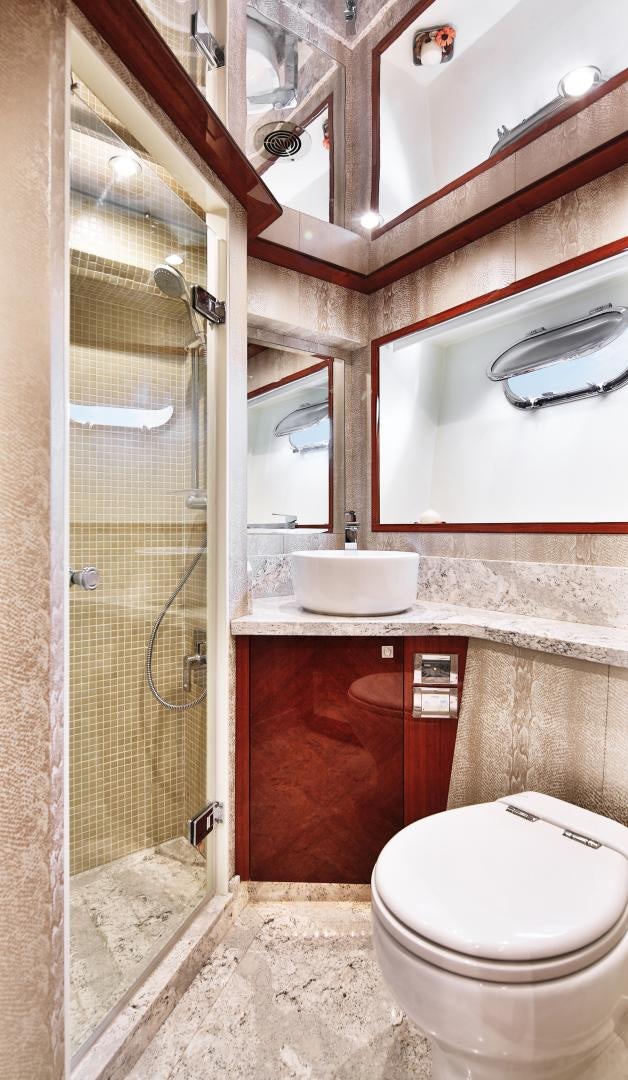

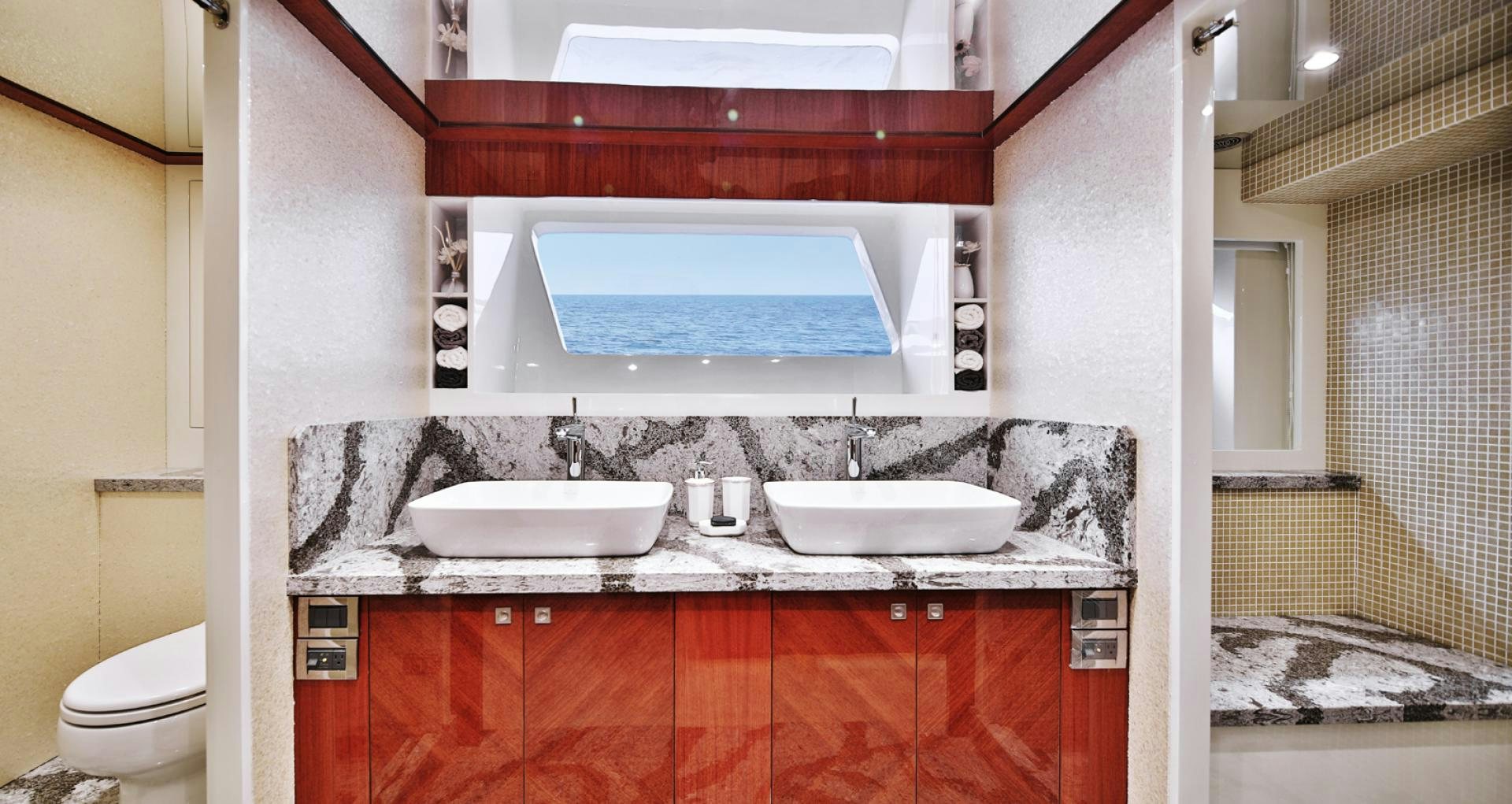

15. CHOICE OF MARBLE, GRANITE, MOSAIC, GLASS, QUARTZ, STONE FOR COUNTERTOP AND BACK-SPLASH IN ALL HEADS FROM SHIPYARD COLLECTION.
16. CHOICE OF MARBLE, GRANIT,WOOD FLOOR IN ALL HEADS FROM SHIPYARD COLECTION.
17. GLASS, DISHES, PLATE HOLDERS IF SAMPLE PROVIDED
18. GROHE FAUCETS, TOWER BARS, TOWEL RINGS, CUP, BRUSH, SOAP HOLDERS, TOILET ROLL HOLDERS ALL HEADS.
19. TOTO OR EQUIVALENT BASINS
20. LACQUER FINISH ABOVE BASIN COUNTERTOP
21. WOOD FINISH BELOW BASIN COUNTERTOP
22. EXHAUST BLOWER FOR EACH HEAD.
23. EXHAUST BLOWER FOR EACH HEAD.

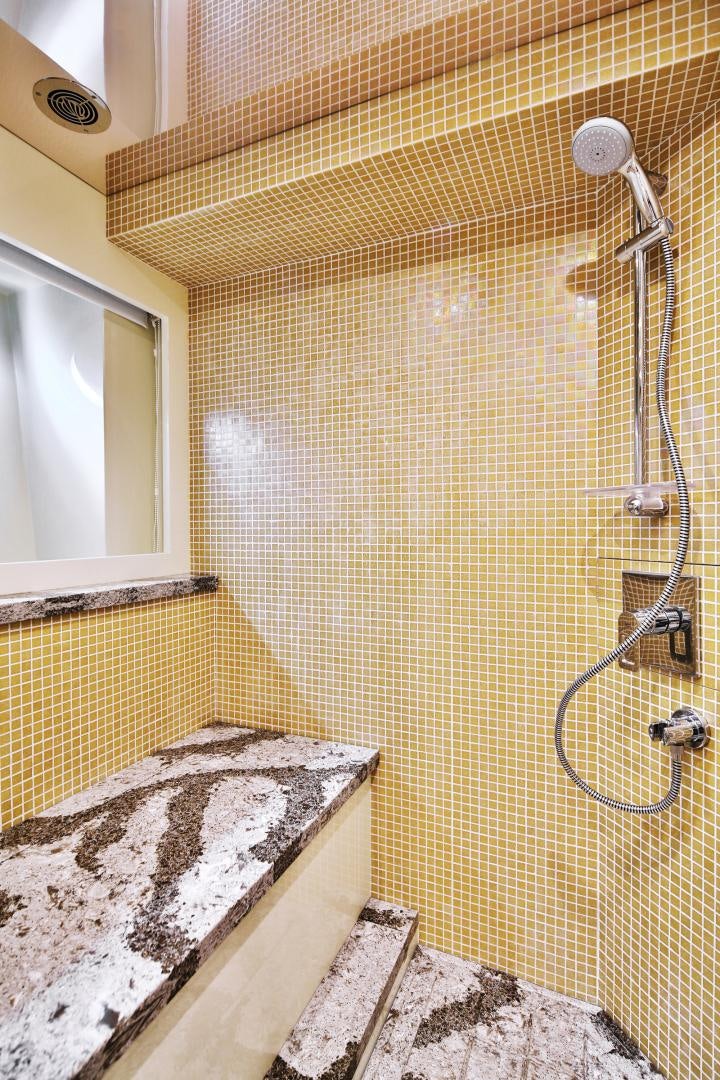

STANDARD CHOICES OF MOSAIC FINISH FOR ALL SHOWER WALLS EXCEPT FOR CREW WHICH IS TO BE FINISHED IN LACQUER.
24. MIRROR AND MIRROR CEILING FOR ALL HEADS.
25. HUNTER DOUGLAS AIR BLIND THROUGHOUT

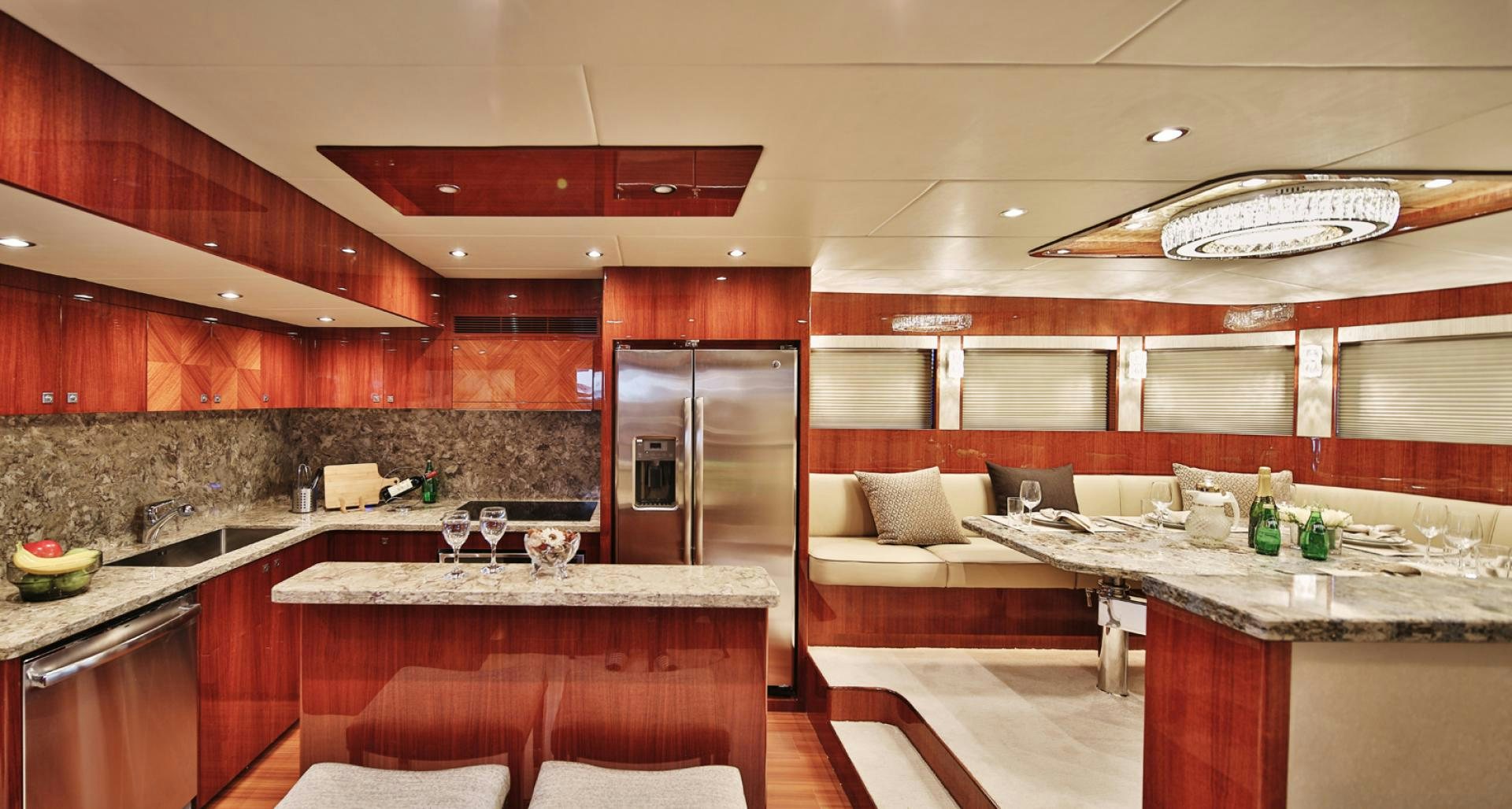

APPLIANCES
26. GE - GZS22DSJ/DMJ SIDE-BY-SIDE REFRIGERATOR
27. GE - PDT825SSJSS DISHWASHER
28. GE - PEB9159SJSS MICROWAVE
29. KITCHEN AID KECC607BBL INDUCTION COOK TOP
30. BOSCH HUI50351UCPULL-OUT HOOD VENTILATION
31. STAINLESS STEEL SINKS PER LAYOUT
32. ELECTROLUX ELFS210TIW WASHER
33. ELECTROLUS EFDE210TIW DRYER
34. GE - PT7050SFSS OVEN
35. CREW'S GALLEY - GE MICROWAVE AND ISOTHERM REFRIGERATOR
STEREO SYSTEM
36. TV ANTENNA ON TOP OF RADAR ARCH
37. WI-FI BOOSTER SYSTEM WITH WIRELESS ROUTERS ONBOARD
38. FLYBRIDGE FUSION MARINE STEREO X 1 AND SPEAKERS X 4
39. SALOON: POP-UP SONY 55" LCD TV WITH BOSE LIFESTYLE HOME ENTERTAINMENT SYSTEM AND SEPARATE BLU-RAY DISC PLAYER
40. GALLEY: SONY 43" LCD TV WITH FUSION MARINE STEREO SYSTEM AND SEPARATE BLU-RAY DISC PLAYER
41. MASTER STATEROOM: SONY 32" LCD TV WITH FUSION MARINE STEREO SYSTEM AND SEPARATE BLU-RAY DISC PLAYER
42. VIP STATEROOM: SONY 32" LCD TV WITH FUSION MARINE STEREO SYSTEM
43. GUEST STATEROOM: Philips 24" LCD TV WITH FUSION MARINE SYSTEM
44. EXTERIOR CONNECTOR FOR SHORE PHONE AND CABLE TV
